2011 FORD KUGA Subframe removal

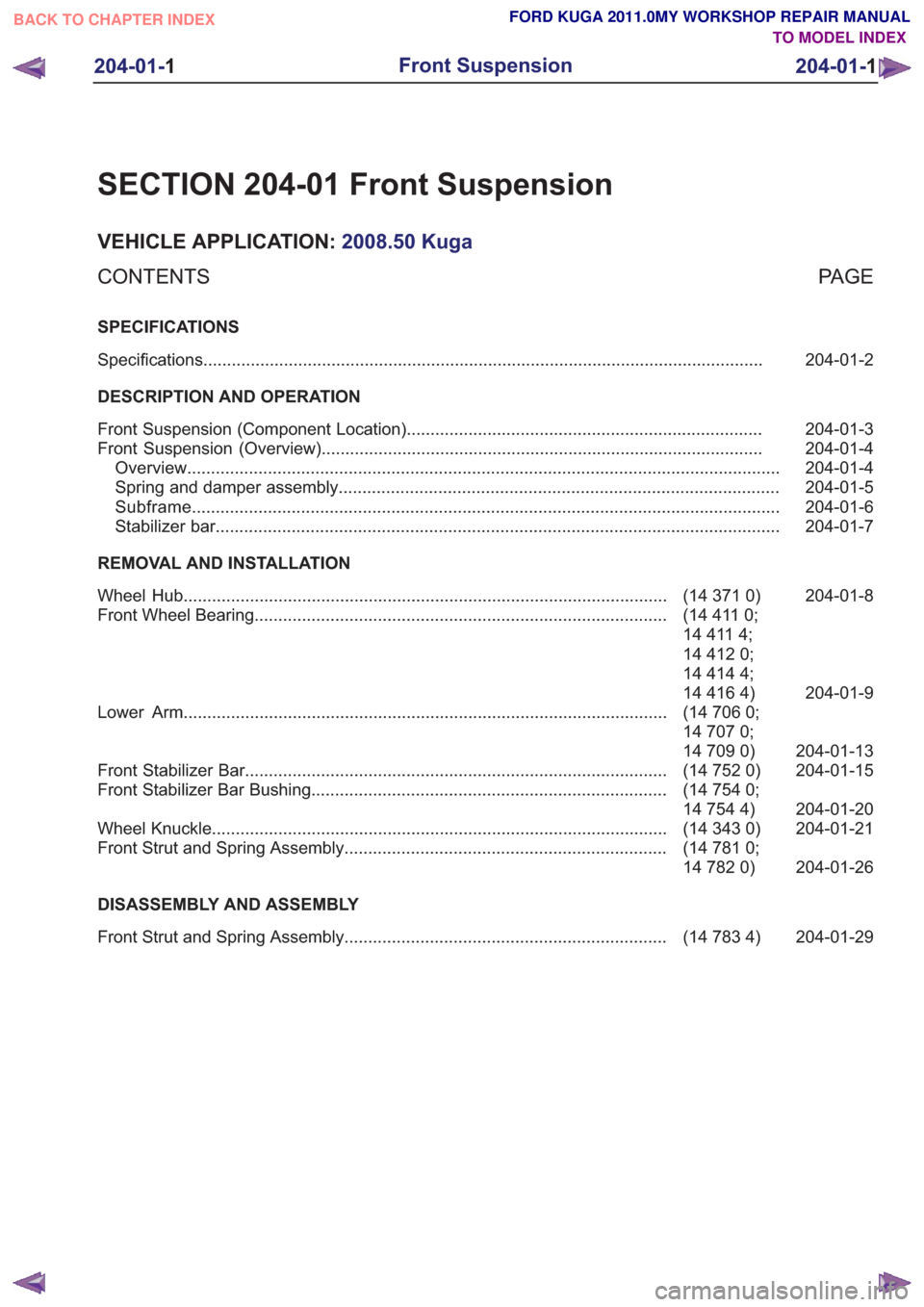

SECTION 204-01 Front Suspension
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
SPECIFICATIONS
204-01-2
Specifications ........................................................................\
..............................................
DESCRIPTION AND OPERATION 204-01-3
Front Suspension (Component Location) ........................................................................\
...
204-01-4
Front Suspension (Overview) ........................................................................\
.....................
204-01-4
Overview ........................................................................\
.....................................................
204-01-5
Spring and damper assembly ........................................................................\
.....................
204-01-6
Subframe ........................................................................\
....................................................
204-01-7
Stabilizer bar ........................................................................\
...............................................
REMOVAL AND INSTALLATION 204-01-8
(14 371 0)
Wheel Hub ........................................................................\
..............................
204-01-9
(14 411 0;
14 411 4;
Front Wheel Bearing
........................................................................\
...............
14 412 0;
14 414 4;
14 416 4)
204-01-13
(14 706 0;
14 707 0;
14 709 0)
Lower Arm
........................................................................\
..............................
204-01-15
(14 752 0)
Front Stabilizer Bar ........................................................................\
.................
204-01-20
(14 754 0;
14 754 4)
Front Stabilizer Bar Bushing
........................................................................\
...
204-01-21
(14 343 0)
Wheel Knuckle ........................................................................\
........................
204-01-26
(14 781 0;
14 782 0)
Front Strut and Spring Assembly
....................................................................
DISASSEMBLY AND ASSEMBLY 204-01-29
(14 783 4)
Front Strut and Spring Assembly ....................................................................
204-01-1
Front Suspension
204-01- 1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Subframe
E96885
1
2
2
3
3
Description
Item
Subframe
1
Rear bushes, subframe
2
Front bushes, subframe
3
The following components may be renewed:
• Subframe
• Subframe bushes During removal and installation or renewal of
components of the subframe, pay attention to the
following:
• Before installing the subframe bushes, they
must be aligned according to the installation
instructions.
• When the subframe is installed or removed, it must be aligned with the vehicle body using the
appropriate special tools.
• After completing the work, the suspension geometry of the vehicle must be checked and
corrected as necessary.
G1000166en2008.50 Kuga8/2011
204-01- 6
Front Suspension
204-01- 6
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

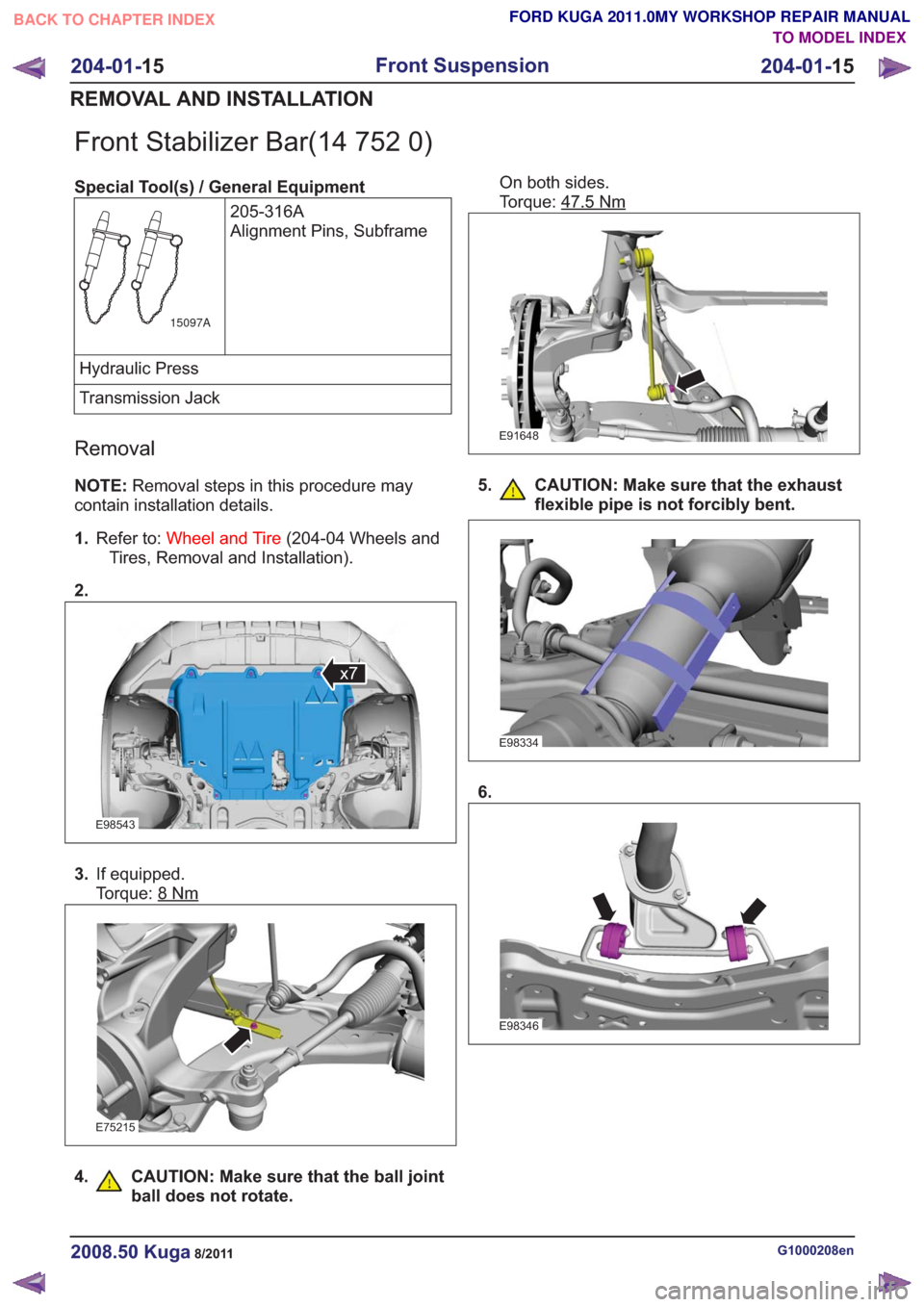

Front Stabilizer Bar(14 752 0)
Special Tool(s) / General Equipment205-316A
Alignment Pins, Subframe
15097A
Hydraulic Press
Transmission Jack
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2.
E98543
x7
3. If equipped.
Torque: 8
Nm
E75215
4. CAUTION: Make sure that the ball joint
ball does not rotate.
On both sides.
Torque: 47.5
Nm
E91648
5. CAUTION: Make sure that the exhaustflexible pipe is not forcibly bent.
E98334
6.
E98346
G1000208en2008.50 Kuga8/2011
204-01- 15
Front Suspension
204-01- 15
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

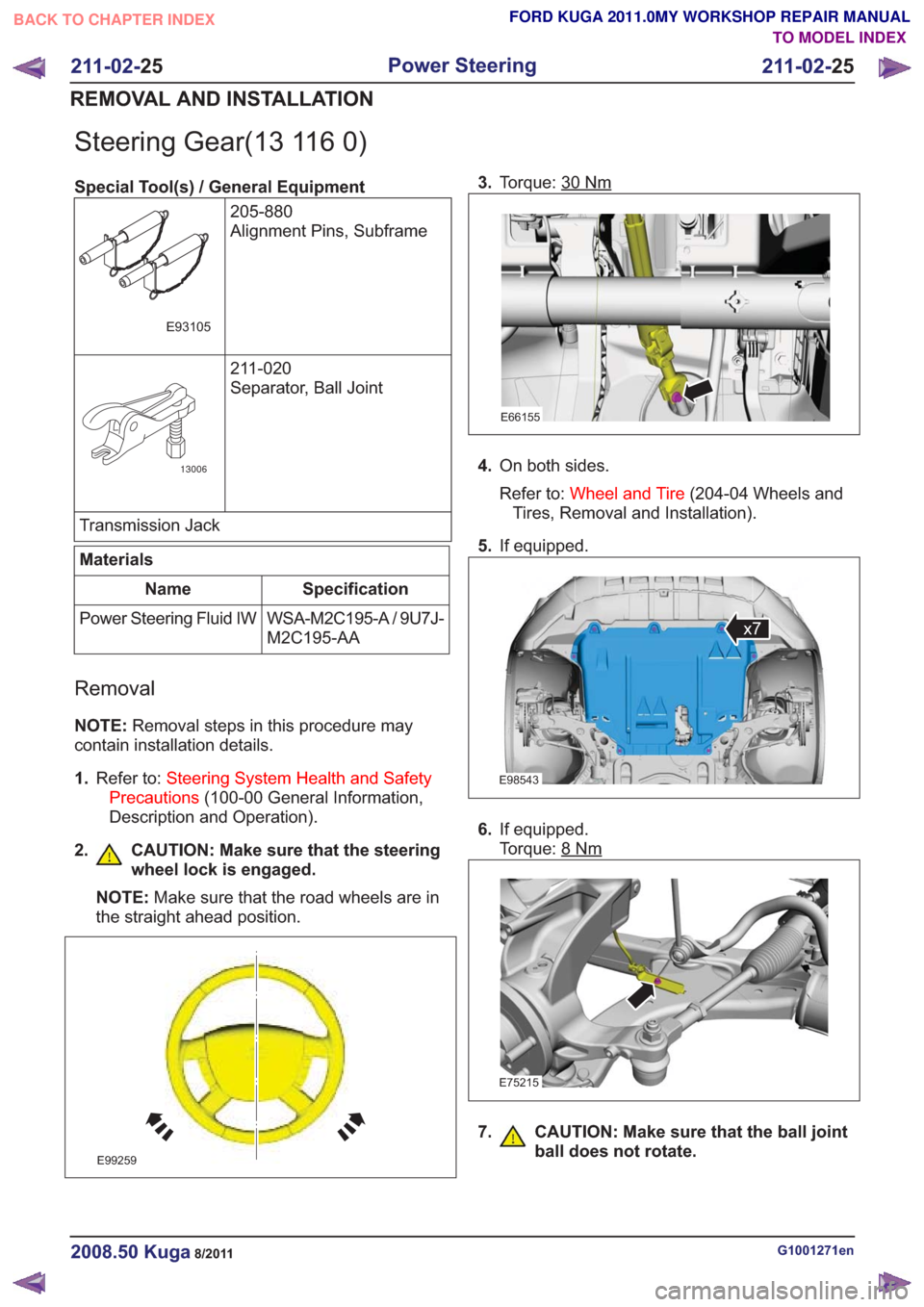

Steering Gear(13 116 0)
Special Tool(s) / General Equipment205-880
Alignment Pins, Subframe
E93105
211-020
Separator, Ball Joint
13006
Transmission Jack
Materials
Specification
Name
WSA-M2C195-A / 9U7J-
M2C195-AA
Power Steering Fluid IW
Removal
NOTE:
Removal steps in this procedure may
contain installation details.
1. Refer to: Steering System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
2. CAUTION: Make sure that the steering wheel lock is engaged.
NOTE: Make sure that the road wheels are in
the straight ahead position.
E99259
3. Torque: 30Nm
E66155
4.On both sides.
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
5. If equipped.
E98543
x7
6.If equipped.
Torque: 8
Nm
E75215
7. CAUTION: Make sure that the ball joint
ball does not rotate.
G1001271en2008.50 Kuga8/2011
