Page 1929 of 2057

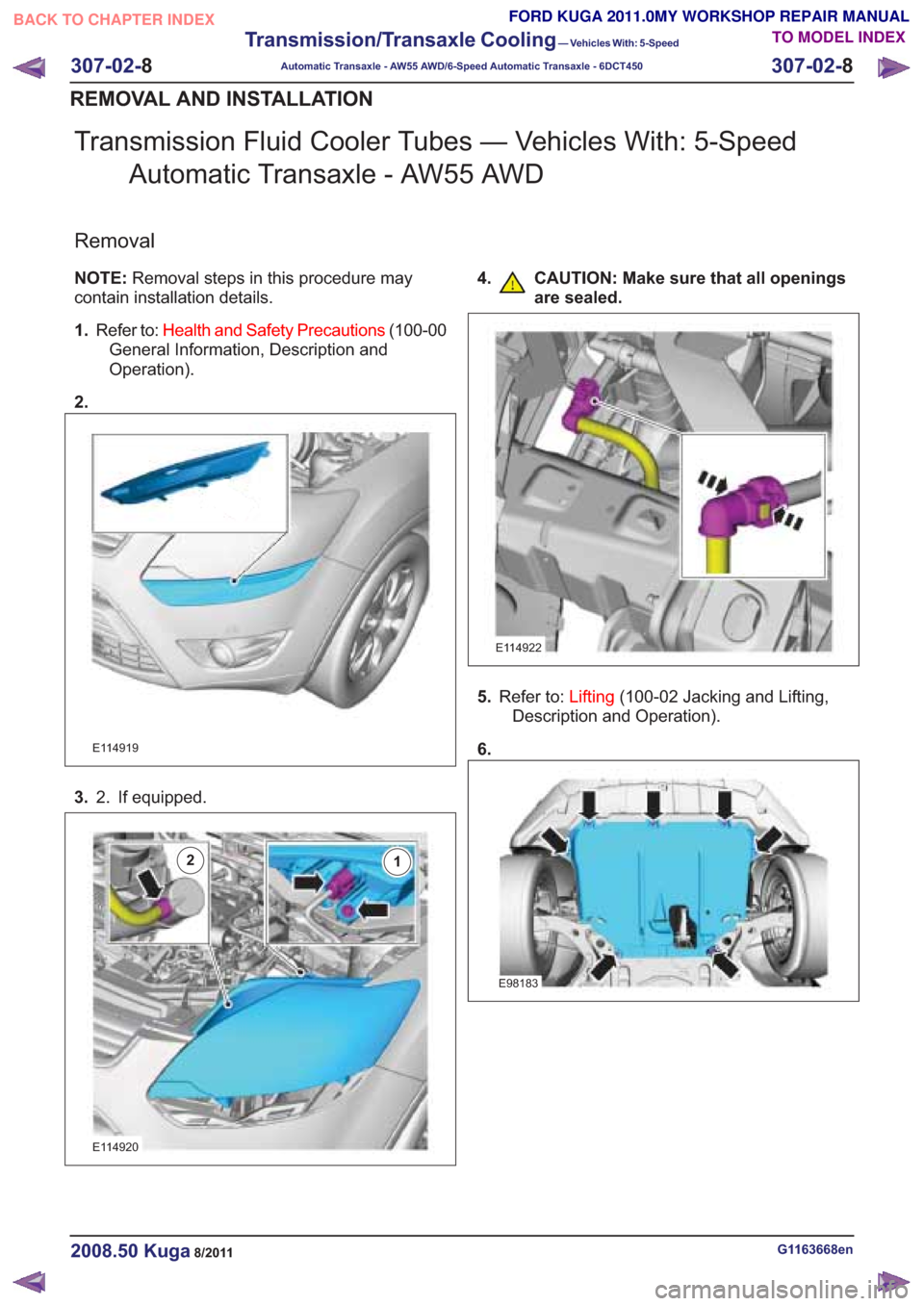

FORD KUGA 2011 1.G Workshop Manual Transmission Fluid Cooler Tubes — Vehicles With: 5-SpeedAutomatic Transaxle - AW55 AWD Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety

Page 1930 of 2057

FORD KUGA 2011 1.G Workshop Manual 7. E98184 8. CAUTION: Make sure that all openingsare sealed. E114923 9. CAUTION: Make sure that all openingsare sealed. E114962 Installation 1.To install, reverse the removal procedure. 2. Refer to: T

Page 1931 of 2057

FORD KUGA 2011 1.G Workshop Manual SECTION 307-05 Automatic Transmission/Transaxle External Controls — Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450 VEHICLE APPLICATION: 2008.50 Kuga PA G

Page 1932 of 2057

FORD KUGA 2011 1.G Workshop Manual Information not available at this time. G1163681en2008.50 Kuga8/2011 SPECIFICATIONS TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL 307-05- 2 Automatic Transmission/Tran

Page 1933 of 2057

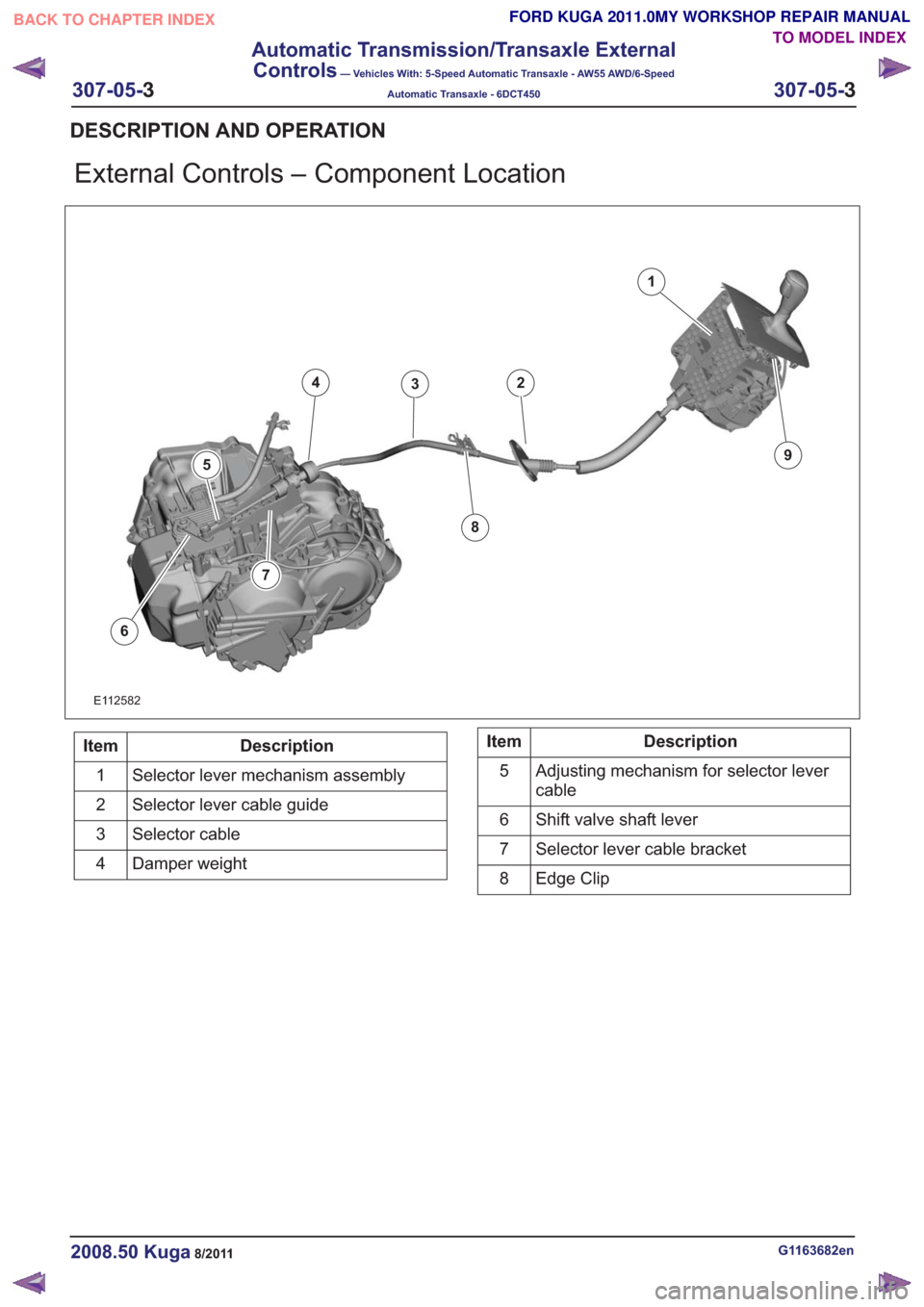

FORD KUGA 2011 1.G Workshop Manual External Controls – Component Location 1 234 5 6 8 9 7 E112582 Description Item Selector lever mechanism assembly 1 Selector lever cable guide 2 Selector cable 3 Damper weight 4Description Item Adju

Page 1934 of 2057

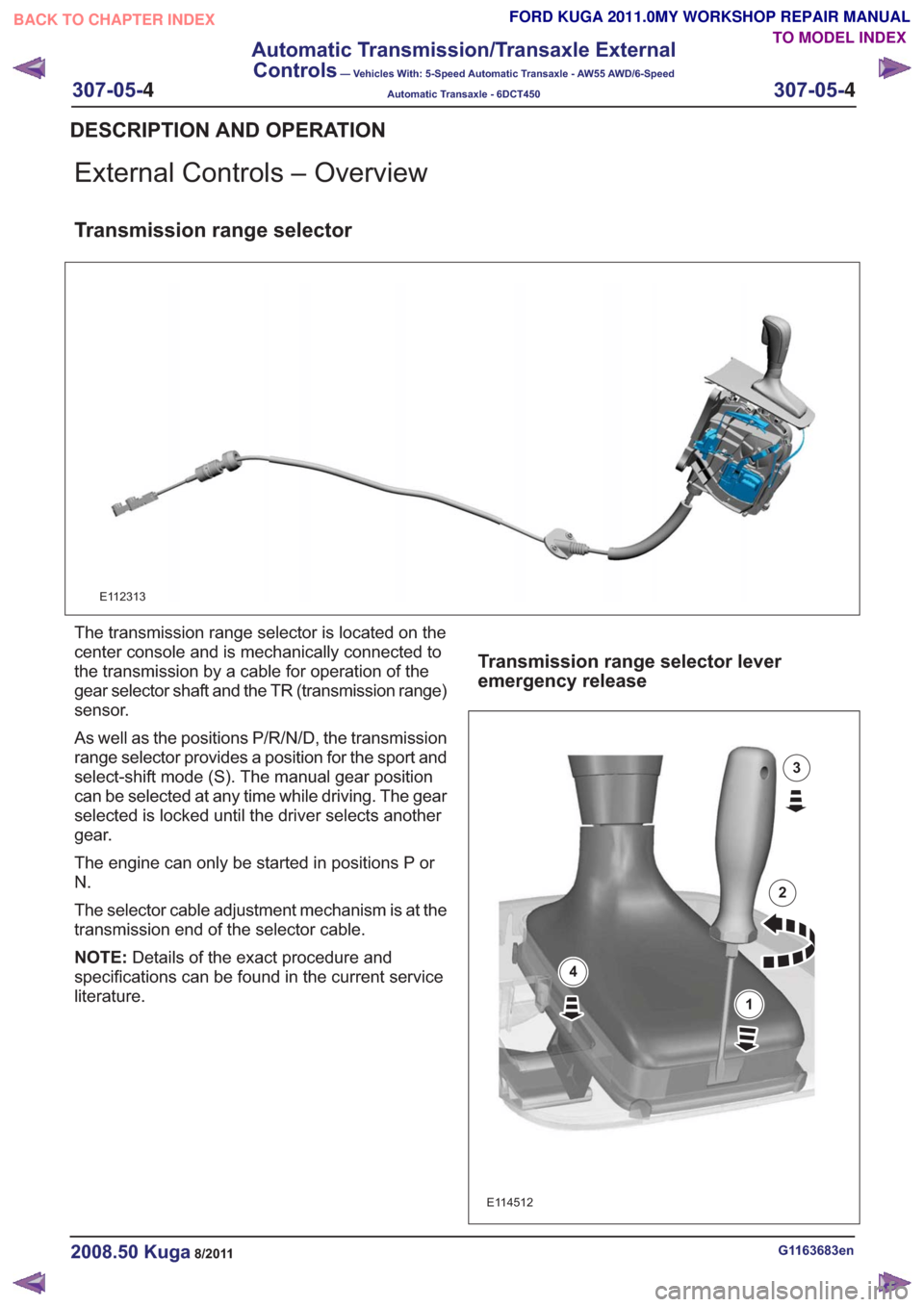

FORD KUGA 2011 1.G Workshop Manual External Controls – Overview Transmission range selector E112313 The transmission range selector is located on the center console and is mechanically connected to the transmission by a cable for ope

Page 1935 of 2057

FORD KUGA 2011 1.G Workshop Manual If the release mechanism of the selector lever lock fails when the selector lever is in the P position through the solenoid of the selector lever lock actuated by the TCM, it is possible to emergency

Page 1936 of 2057

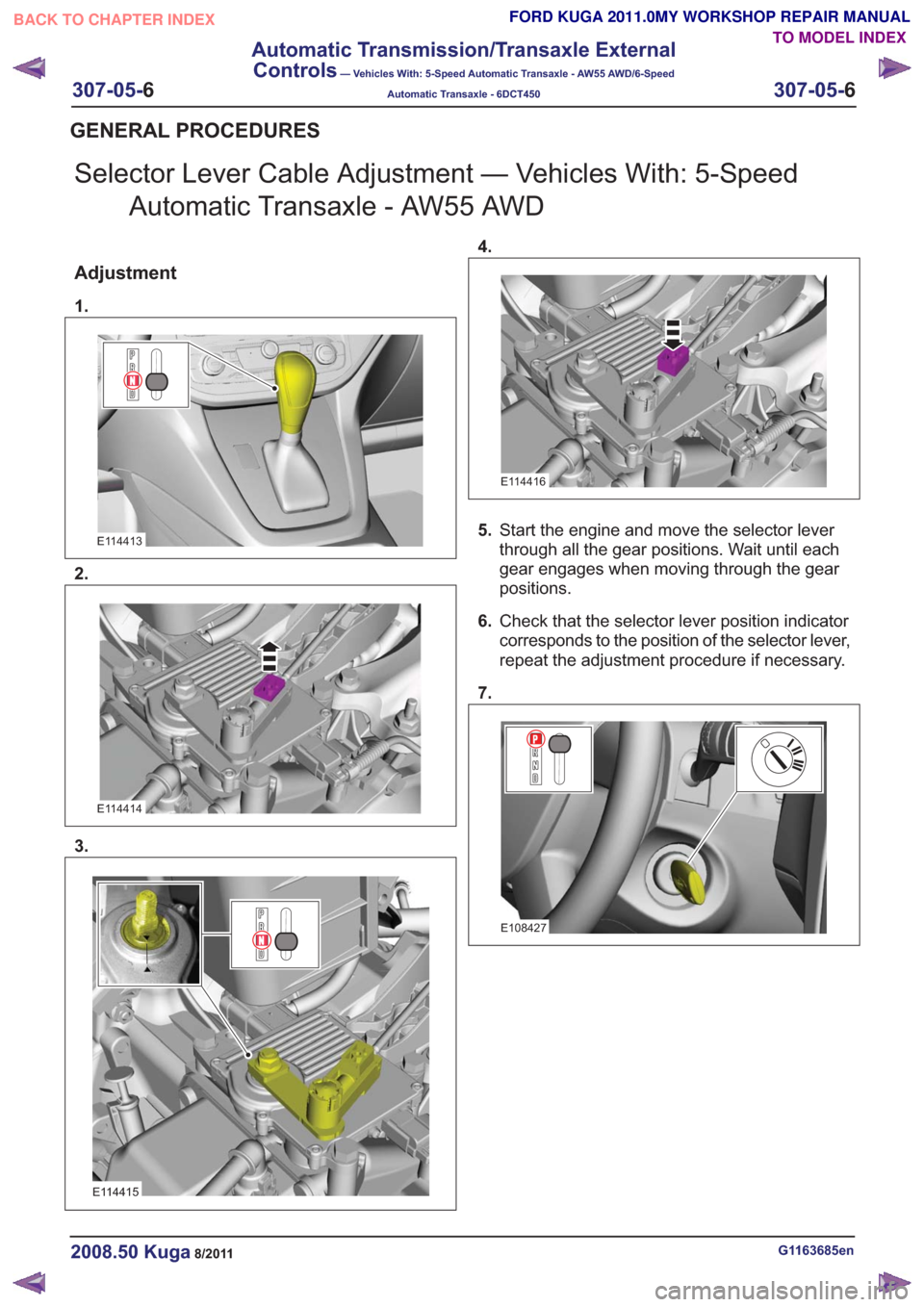

FORD KUGA 2011 1.G Workshop Manual Selector Lever Cable Adjustment — Vehicles With: 5-SpeedAutomatic Transaxle - AW55 AWD Adjustment 1. E114413 2. E114414 3. E114415 4. E114416 5.Start the engine and move the selector lever through a
