Page 1697 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • Check the fuel system pres-sure. • Low fuel system pressure. • Poor starting • CHECK the system for fuelleak(s). REPAIR the system as necessary. • Fuel syst

Page 1698 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • REMOVE and visuallyINSPECT the catalytic converter as necessary. REFER to: Catalytic Converter (309-00 Exhaust System - 2.5L Duratec (147kW/200PS) - VI5, Removal an

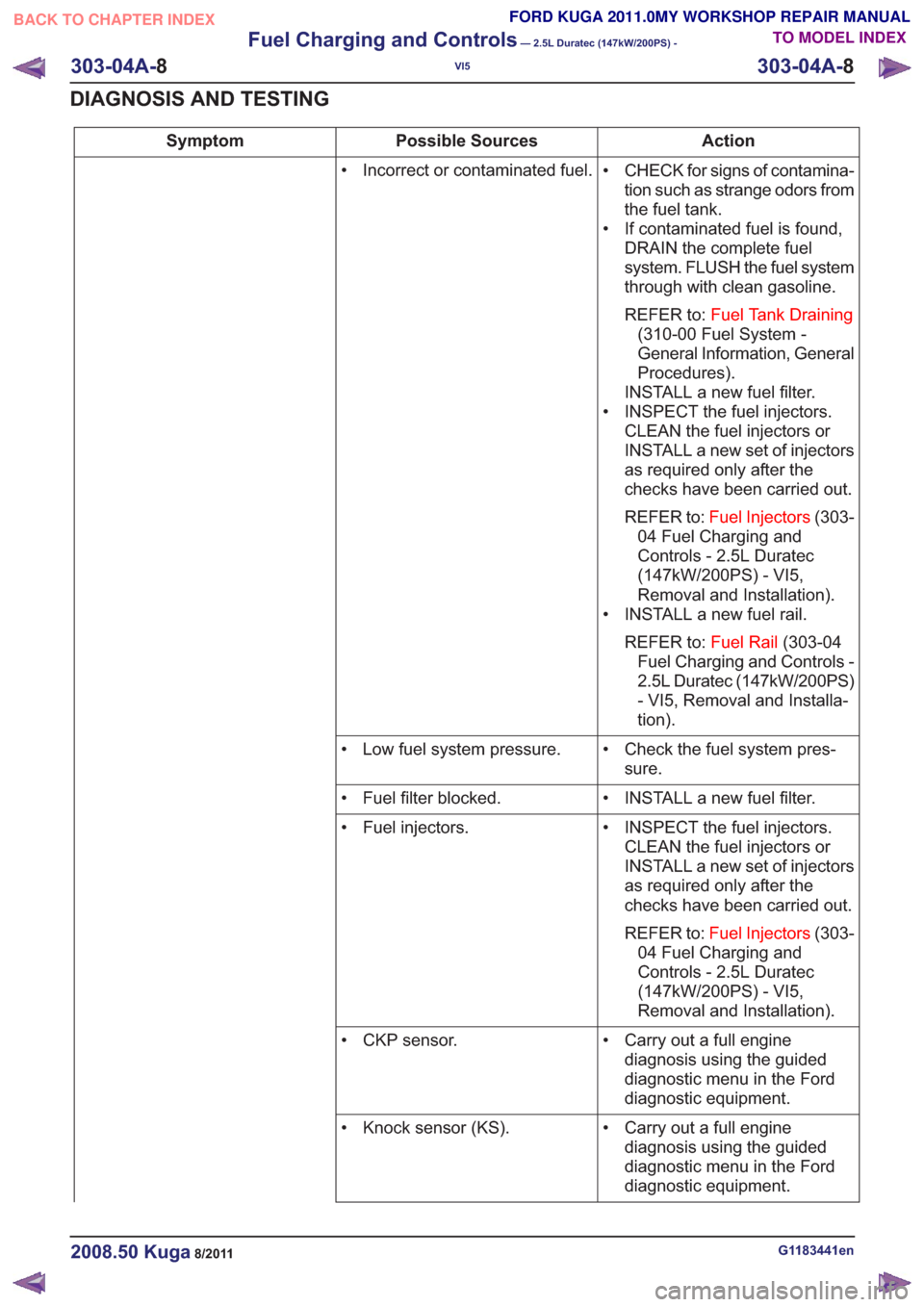

Page 1699 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • CHECK for signs of contamina-tion such as strange odors from the fuel tank. • If contaminated fuel is found, DRAIN the complete fuel system. FLUSH the fuel system

Page 1700 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • Carry out a full enginediagnosis using the guided diagnostic menu in the Ford diagnostic equipment. • Fuel injection supply manifold fuel pressure sensor. • REF

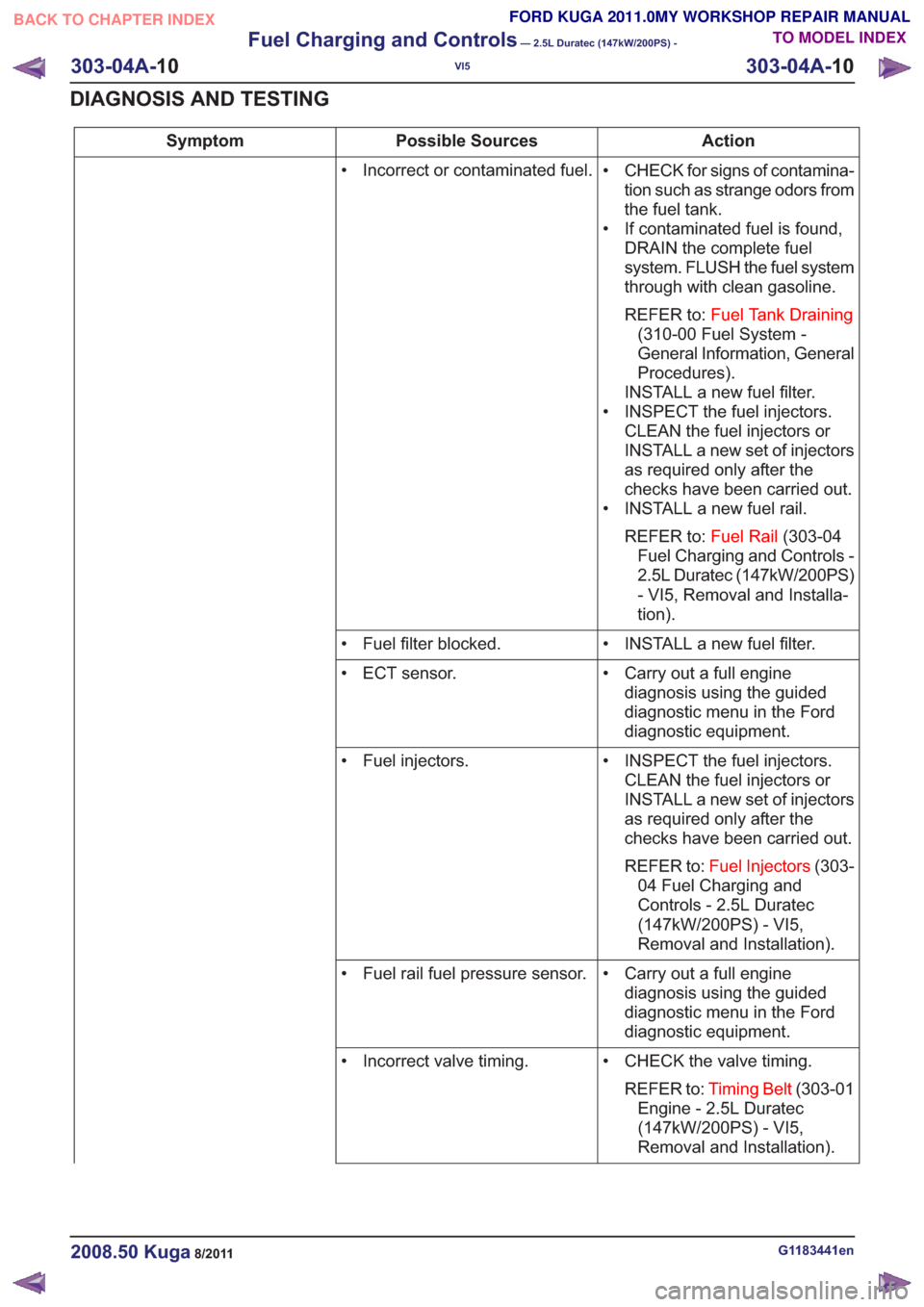

Page 1701 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • CHECK for signs of contamina-tion such as strange odors from the fuel tank. • If contaminated fuel is found, DRAIN the complete fuel system. FLUSH the fuel system

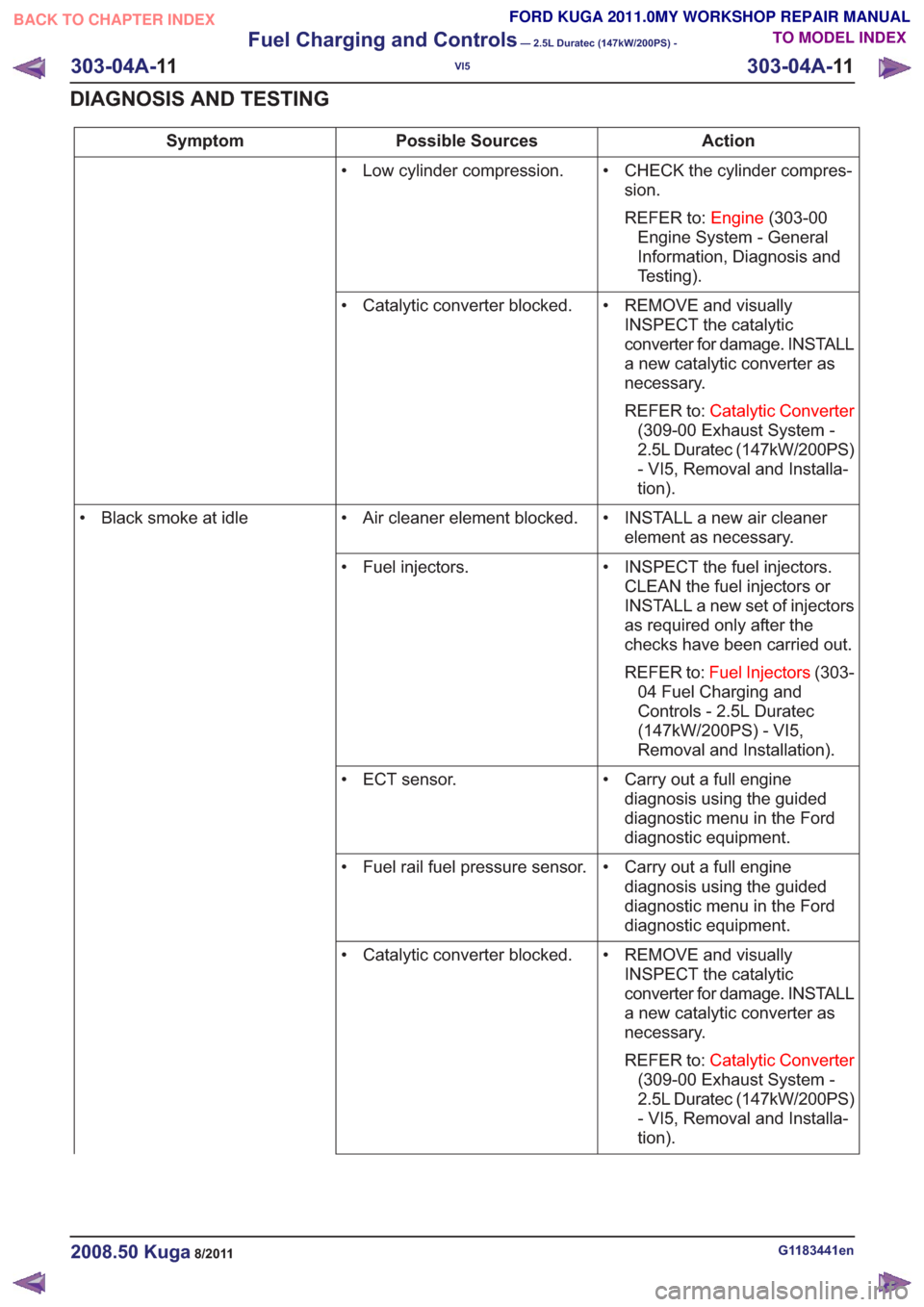

Page 1702 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • CHECK the cylinder compres-sion. REFER to: Engine(303-00 Engine System - General Information, Diagnosis and Testing). • Low cylinder compression. • REMOVE and v

Page 1703 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • CHECK the valve timing.REFER to: Timing Belt (303-01 Engine - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation). • Incorrect valve timing. • INSTALL a

Page 1704 of 2057

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • Carry out a full enginediagnosis using the guided diagnostic menu in the Ford diagnostic equipment. • Fuel rail fuel pressure sensor. • REMOVE and visuallyINSPE
