Page 1321 of 2057

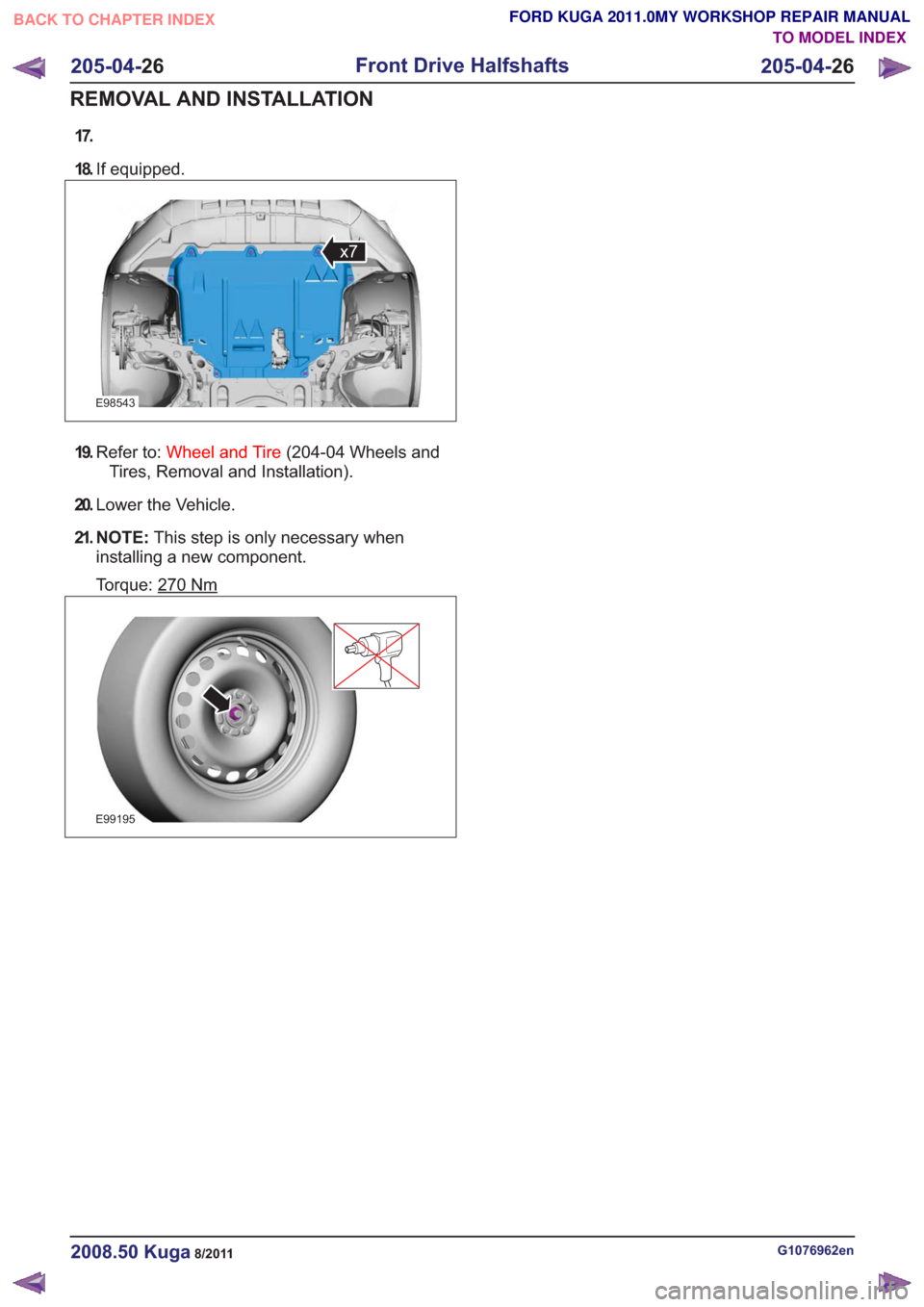

FORD KUGA 2011 1.G Workshop Manual 17. 18.If equipped. E98543 x7 19.Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 20. Lower the Vehicle. 21. N O T E : This step is only necessary when installing a new co

Page 1322 of 2057

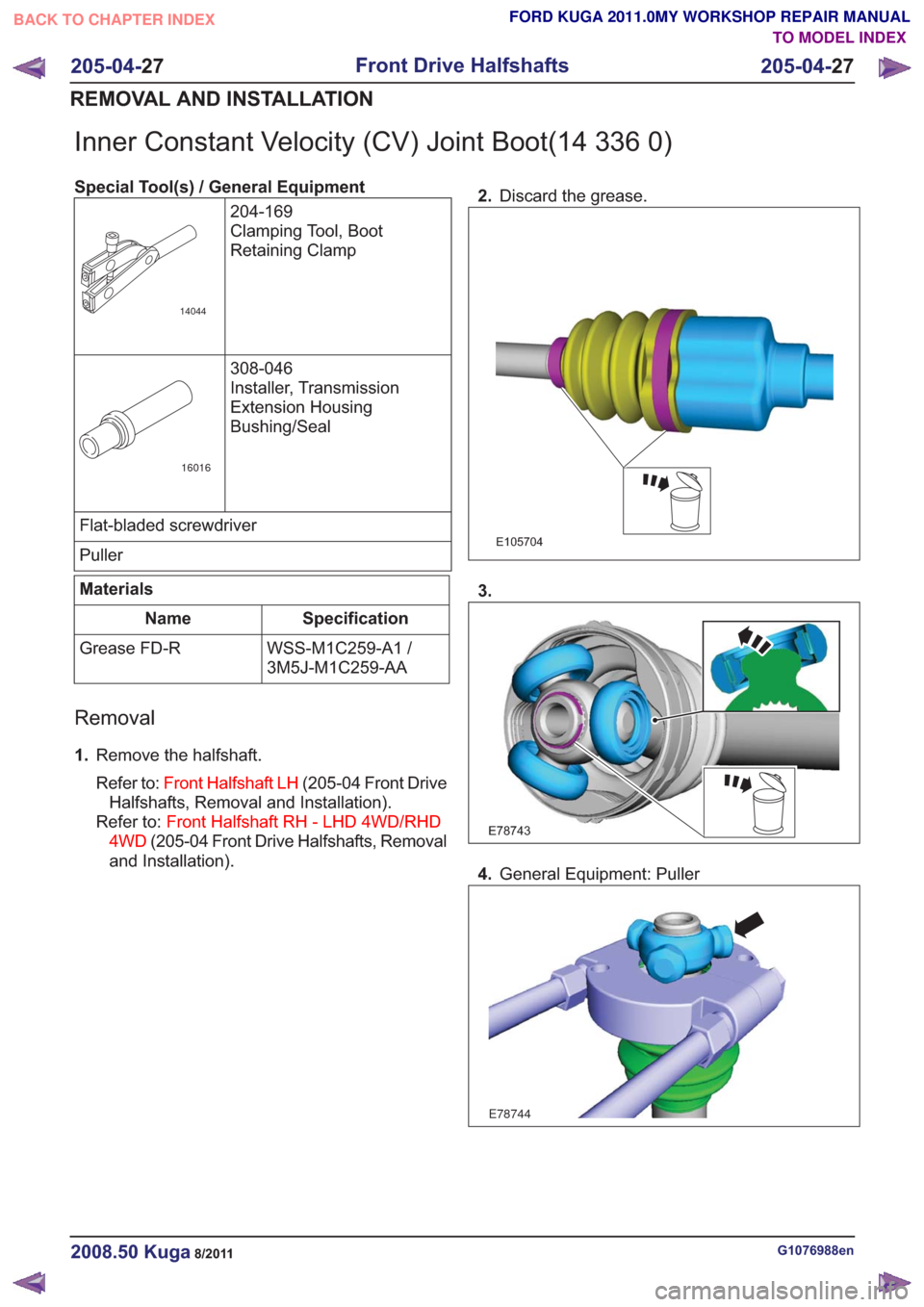

FORD KUGA 2011 1.G Workshop Manual Inner Constant Velocity (CV) Joint Boot(14 336 0) Special Tool(s) / General Equipment204-169 Clamping Tool, Boot Retaining Clamp 14044 308-046 Installer, Transmission Extension Housing Bushing/Seal 16

Page 1323 of 2057

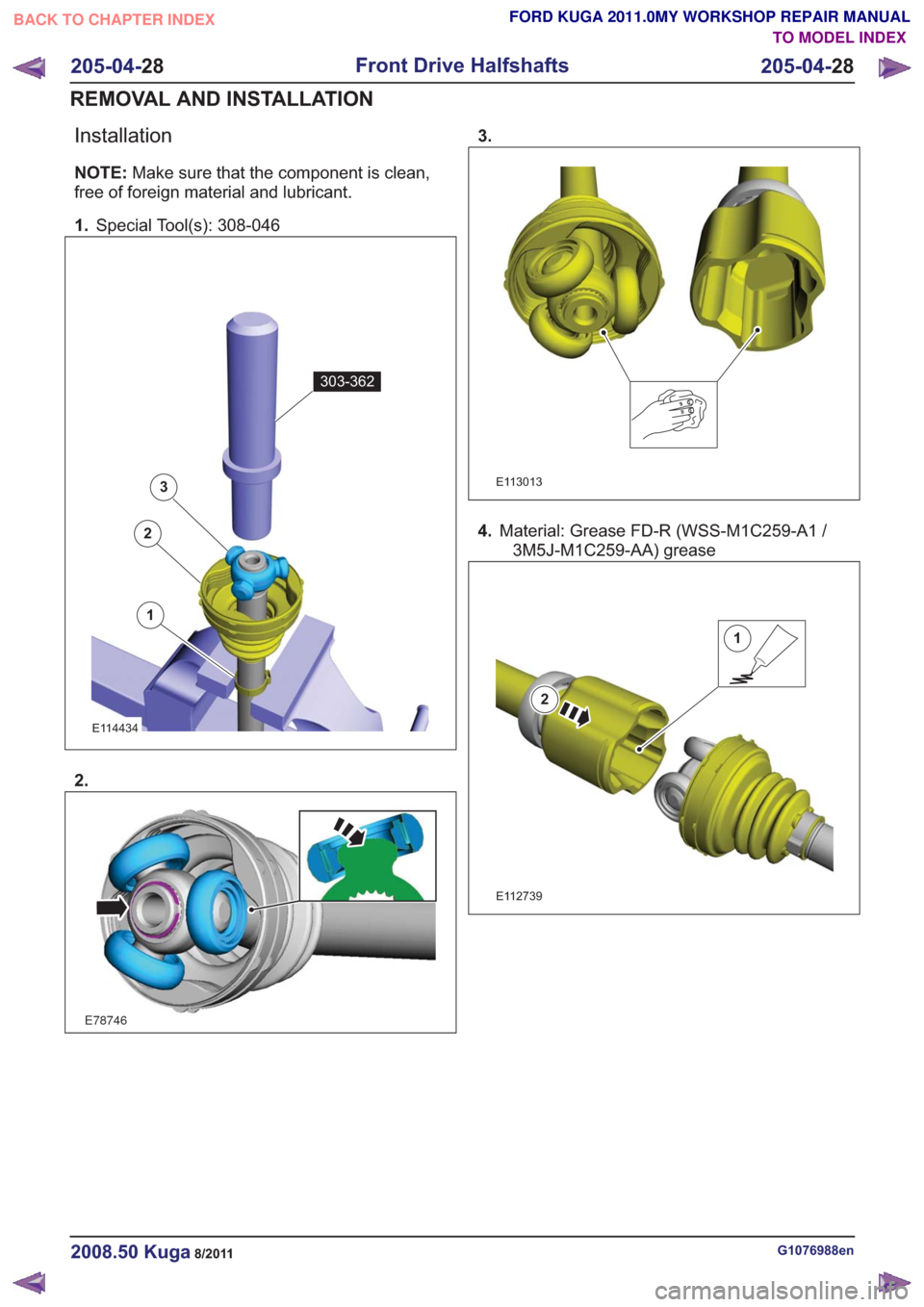

FORD KUGA 2011 1.G Workshop Manual Installation NOTE:Make sure that the component is clean, free of foreign material and lubricant. 1. Special Tool(s): 308-046 303-362 1 2 3 E114434 2. E78746 3. E113013 4.Material: Grease FD-R (WSS-M1C

Page 1324 of 2057

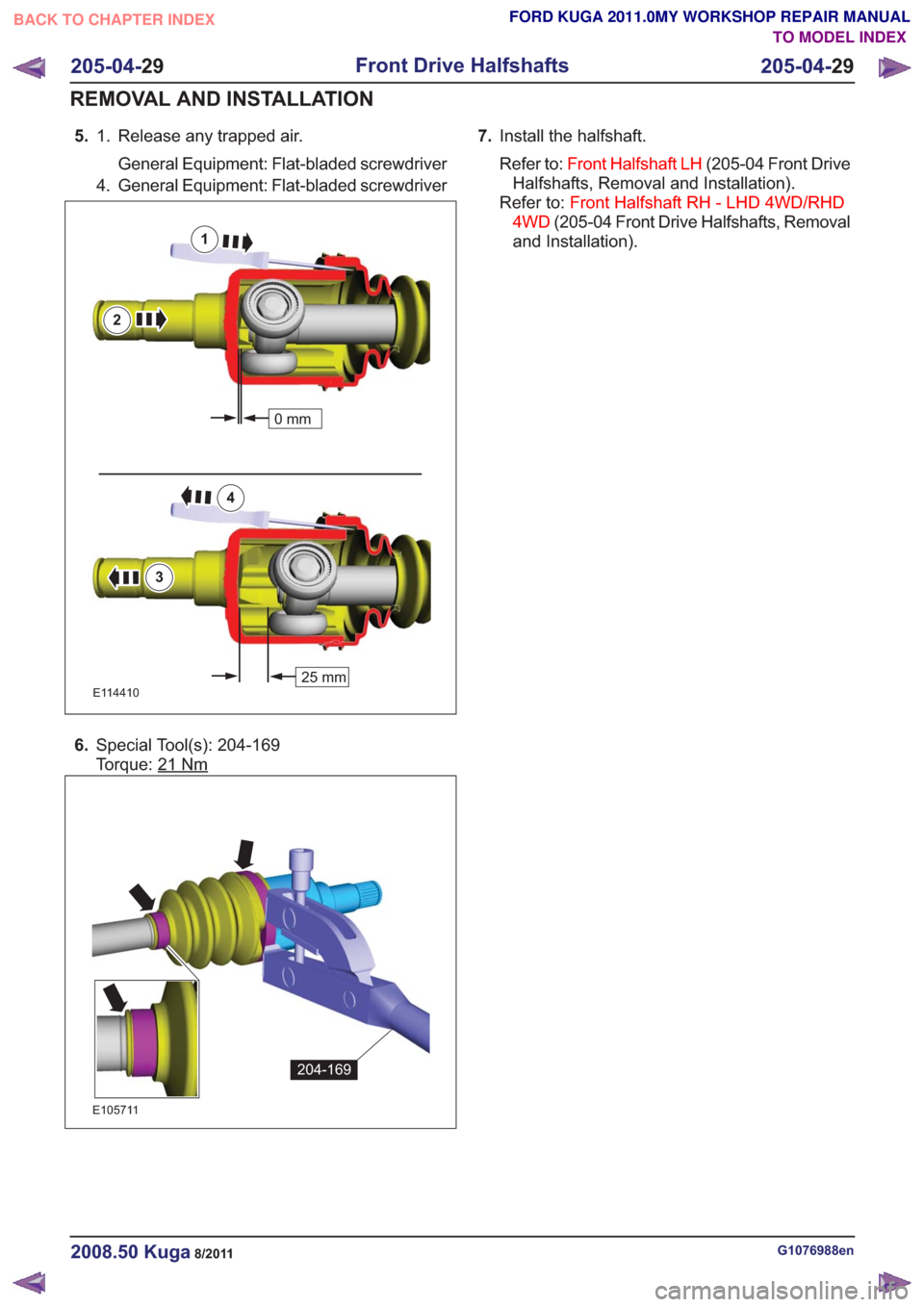

FORD KUGA 2011 1.G Workshop Manual 5.Release any trapped air. General Equipment: Flat-bladed screwdriver 1. 4. General Equipment: Flat-bladed screwdriver 25 mm 0mm 1 2 25 mm 0mm 3 4 E114410 6. Special Tool(s): 204-169 Torque: 21 Nm 204

Page 1325 of 2057

FORD KUGA 2011 1.G Workshop Manual Outer Constant Velocity (CV) Joint Boot(14 338 0) Special Tool(s)204-169 Clamping Tool, Boot Retaining Clamp 14044 Removal 1.Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Join

Page 1326 of 2057

FORD KUGA 2011 1.G Workshop Manual Halfshaft Bearing Special Tool(s) / General Equipment204-169 Clamping Tool, Boot Retaining Clamp 14044 205-080 Installer, Differential Bearing 205080 205-310 Remover, Bearing/Gear TI15091 Special Tool

Page 1327 of 2057

FORD KUGA 2011 1.G Workshop Manual 3.Special Tool(s): 205-310 General Equipment: Hydraulic Press 205-310205-310 E112938 Installation 1.Special Tool(s): 205-080, 303-255 General Equipment: Hydraulic Press 205-080 303-255 205-080 303-255

Page 1328 of 2057

FORD KUGA 2011 1.G Workshop Manual 4.Special Tool(s): 204-169 204-169204-169 E112741 G1209151en2008.50 Kuga8/2011 205-04- 33 Front Drive Halfshafts 205-04- 33 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011
