Page 1489 of 2057

FORD KUGA 2011 1.G Workshop Manual E131502 7. NOTE:Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. Slowly turn the steering wheel from lock to lock five times. E131522 123 8. Materi

Page 1490 of 2057

FORD KUGA 2011 1.G Workshop Manual E131677 12 9. E131500 10.Right-hand side. E99631 G1001271en2008.50 Kuga8/2011 211-02- 33 Power Steering 211-02- 33 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORK

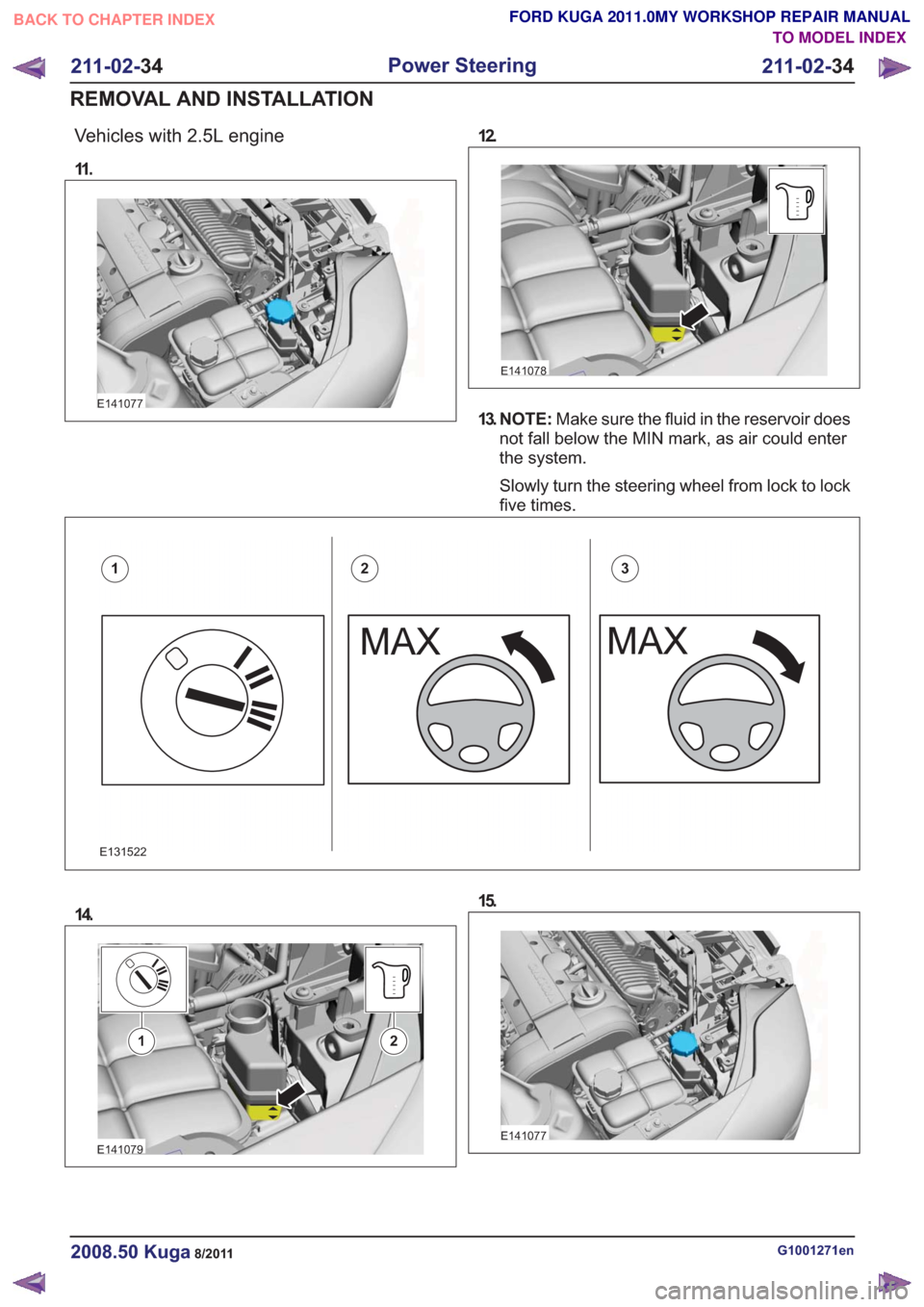

Page 1491 of 2057

FORD KUGA 2011 1.G Workshop Manual Vehicles with 2.5L engine 11 . E141077 12. E141078 13. N O T E :Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. Slowly turn the steering wheel fro

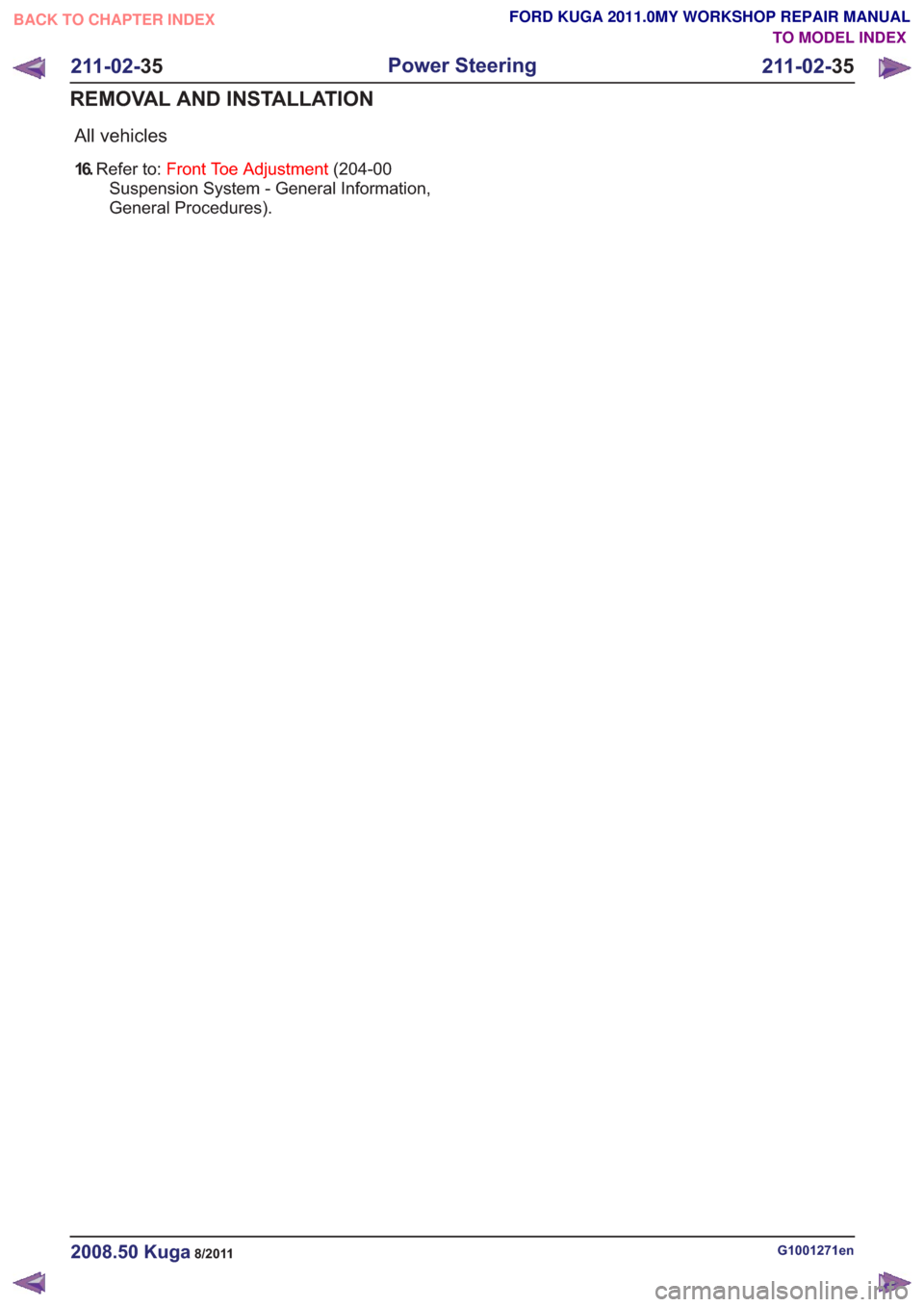

Page 1492 of 2057

FORD KUGA 2011 1.G Workshop Manual All vehicles 16.Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures). G1001271en2008.50 Kuga8/2011 211-02- 35 Power Steering 211-02- 35 REMOVAL AND INSTA

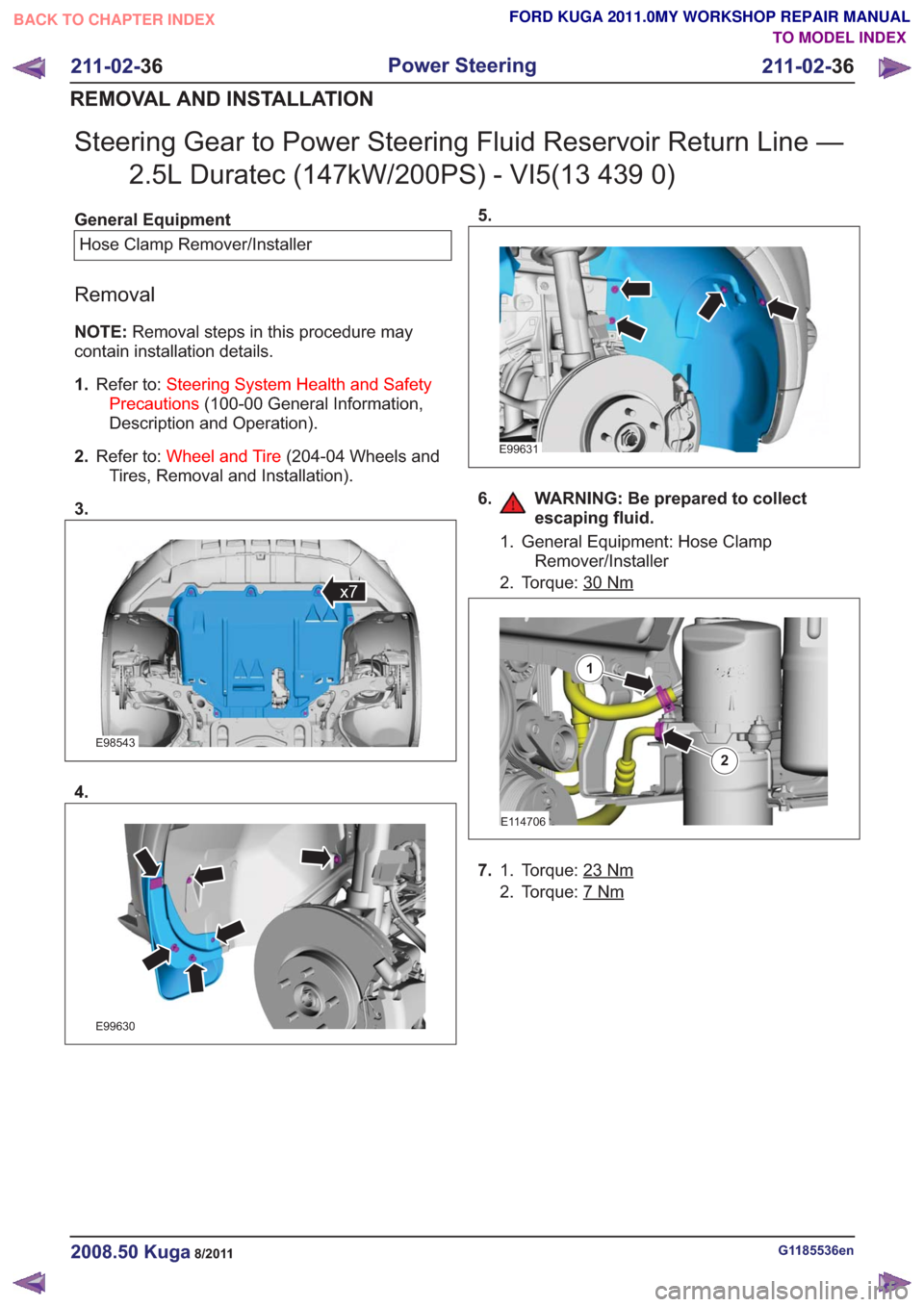

Page 1493 of 2057

FORD KUGA 2011 1.G Workshop Manual Steering Gear to Power Steering Fluid Reservoir Return Line —2.5L Duratec (147kW/200PS) - VI5(13 439 0) General Equipment Hose Clamp Remover/Installer Removal NOTE: Removal steps in this procedure m

Page 1494 of 2057

FORD KUGA 2011 1.G Workshop Manual E112634 2 1 8.Torque: 4Nm E99258 9. WARNING: Be prepared to collect escaping fluid. CAUTION: Make sure that all openings are sealed. Torque: 18 Nm E114705 10. G1185536en2008.50 Kuga8/2011 211-02- 37 P

Page 1495 of 2057

FORD KUGA 2011 1.G Workshop Manual E114708 11 . E114777 1 1 x4 2 x4 2 G1185536en2008.50 Kuga8/2011 211-02-38 Power Steering 211-02- 38 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORKSHOP REPAIR MAN

Page 1496 of 2057

FORD KUGA 2011 1.G Workshop Manual Installation 1.To install, reverse the removal procedure. 2. E141077 3. E141078 4. NOTE: Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. Slowly tu
