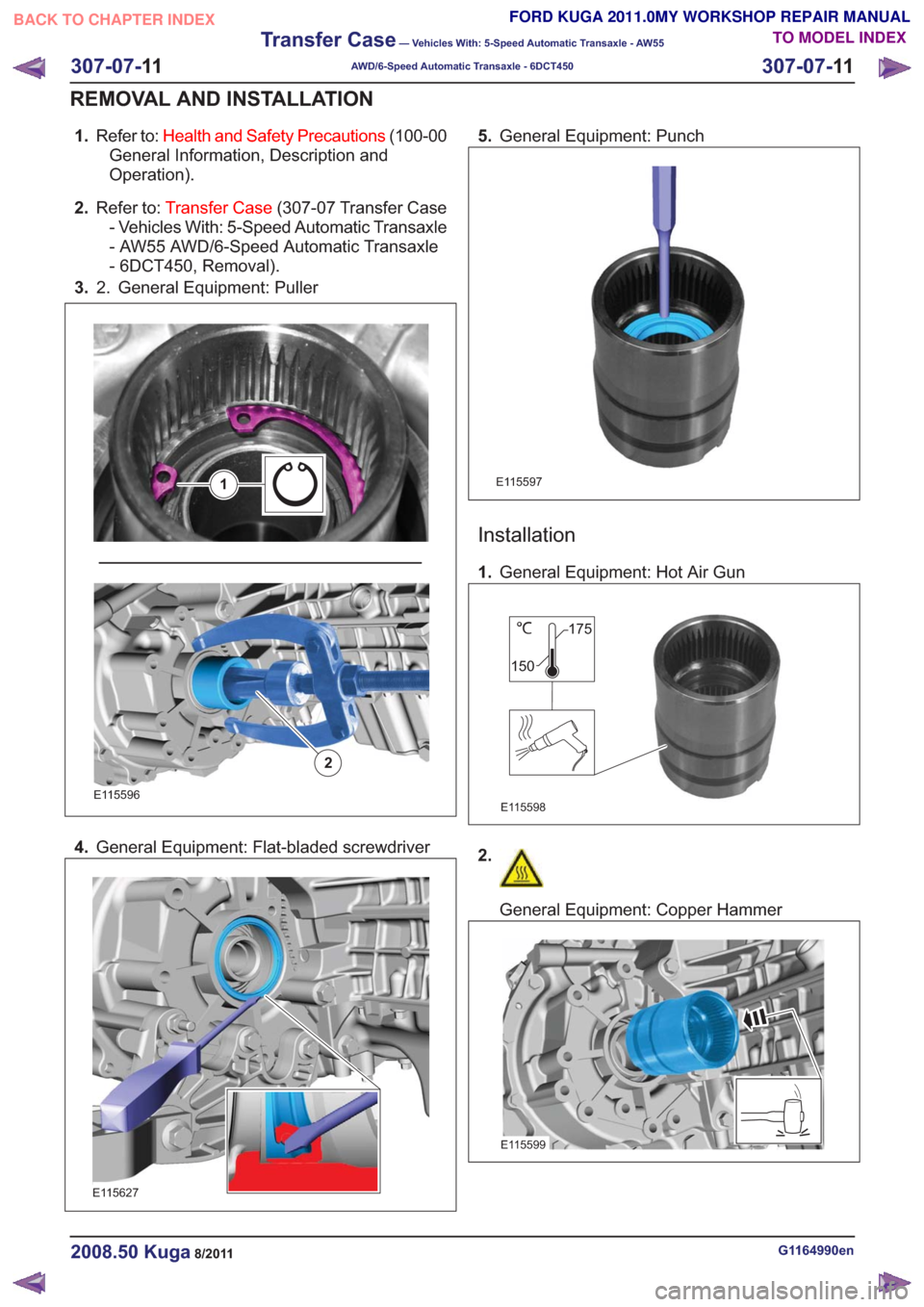

Page 1953 of 2057

FORD KUGA 2011 1.G Workshop Manual 1.Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Transfer Case (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55

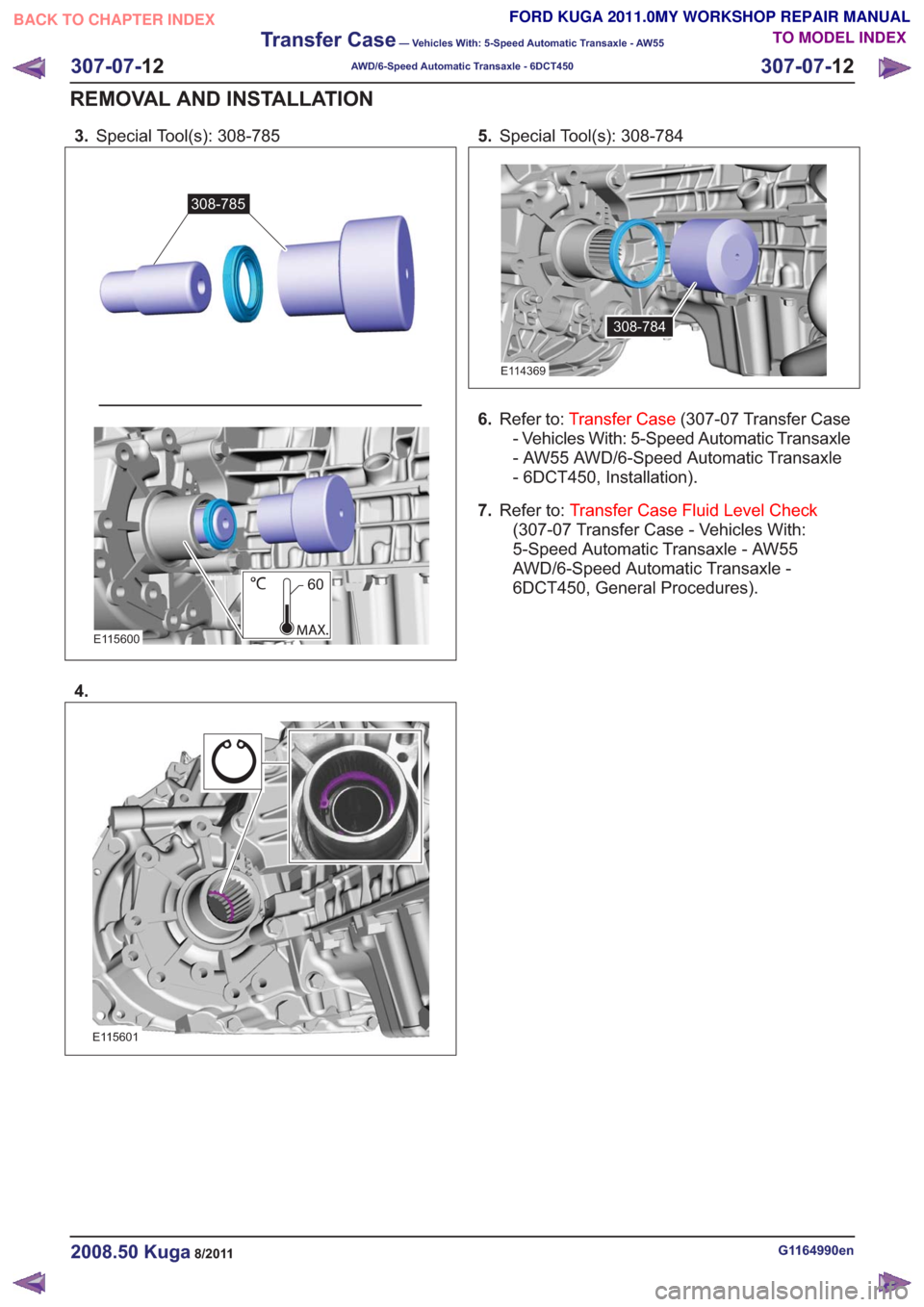

Page 1954 of 2057

FORD KUGA 2011 1.G Workshop Manual 3.Special Tool(s): 308-785 308-785 60 308-785 60 E115600 4. E115601 5.Special Tool(s): 308-784 308-784308-784 E114369 6.Refer to: Transfer Case (307-07 Transfer Case - Vehicles With: 5-Speed Automatic

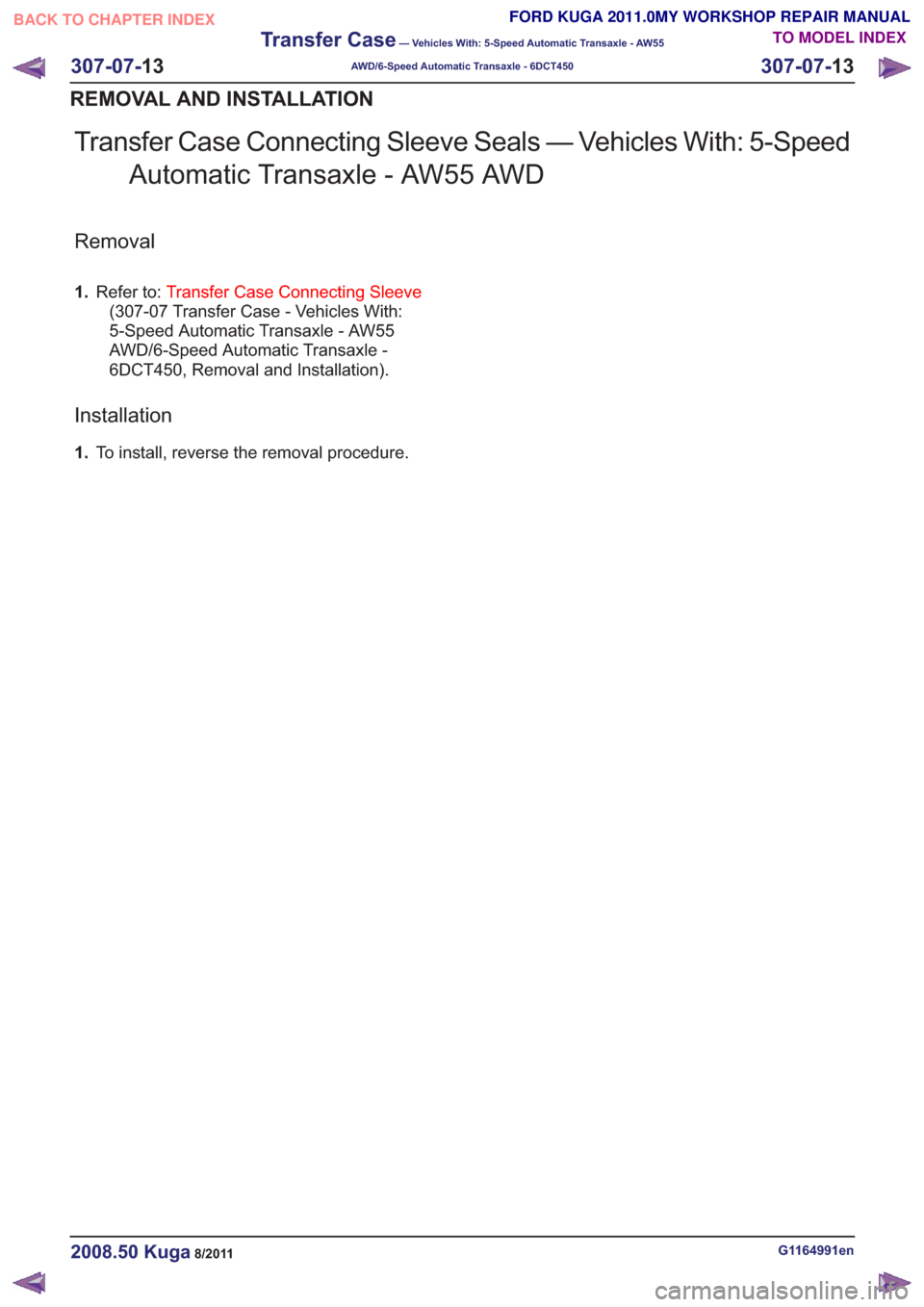

Page 1955 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer Case Connecting Sleeve Seals — Vehicles With: 5-SpeedAutomatic Transaxle - AW55 AWD Removal 1.Refer to: Transfer Case Connecting Sleeve (307-07 Transfer Case - Vehicles With: 5-Speed Automa

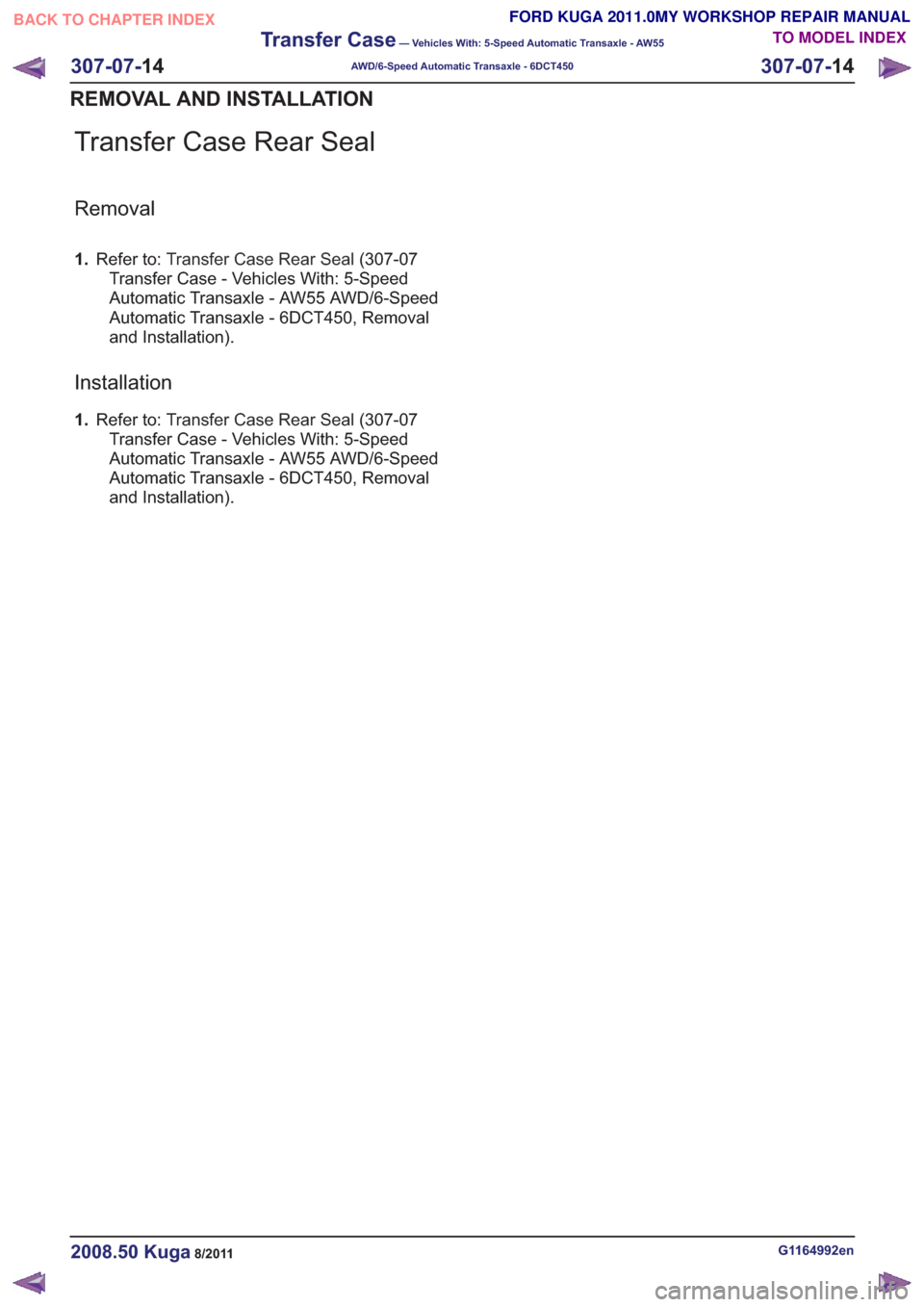

Page 1956 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer Case Rear Seal Removal 1.Refer to: Transfer Case Rear Seal (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, Removal and Ins

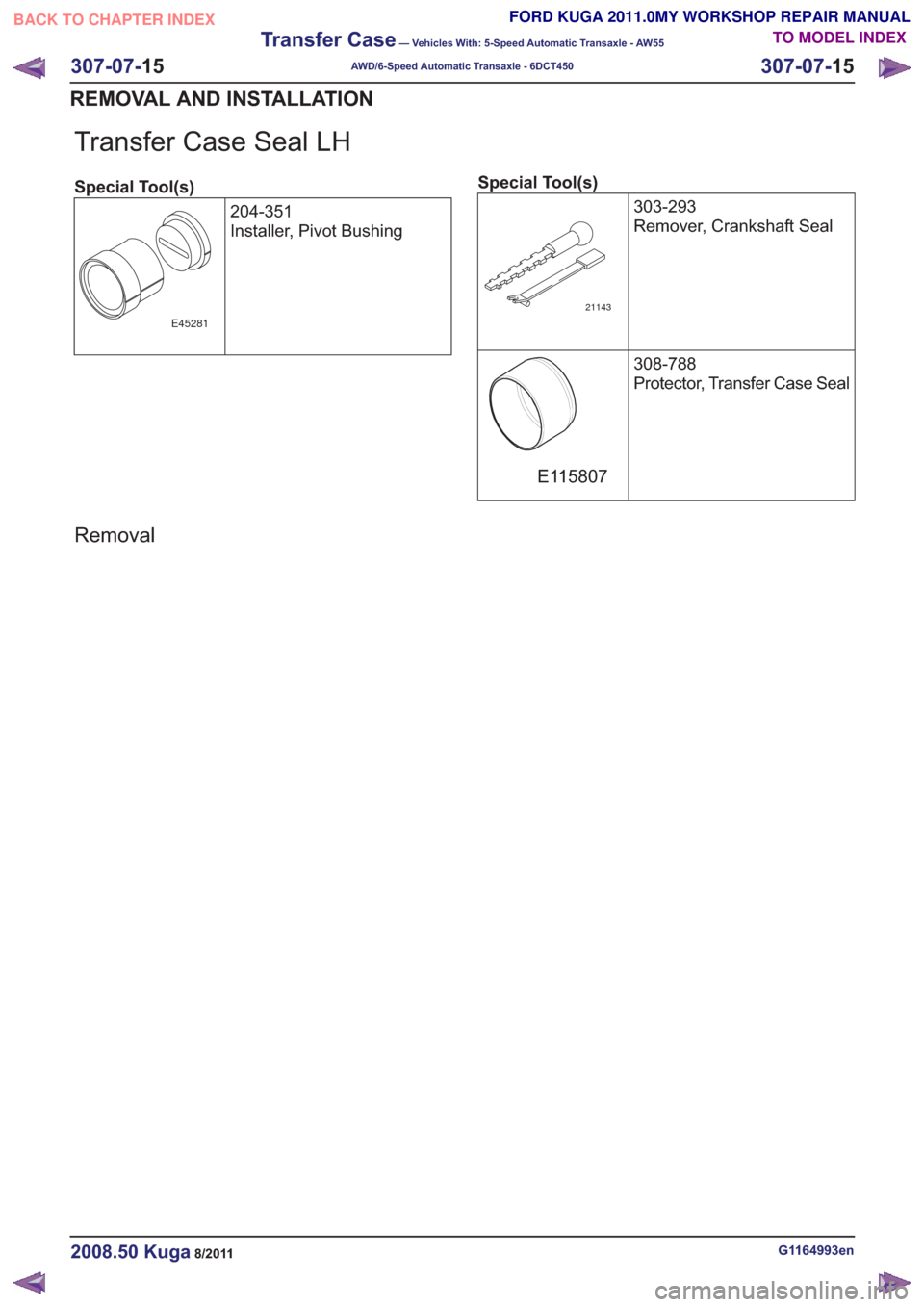

Page 1957 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer Case Seal LH Special Tool(s)204-351 Installer, Pivot Bushing E45281 Special Tool(s)303-293 Remover, Crankshaft Seal 21143 308-788 Protector, Transfer Case Seal E115807 Removal G1164993en2008.

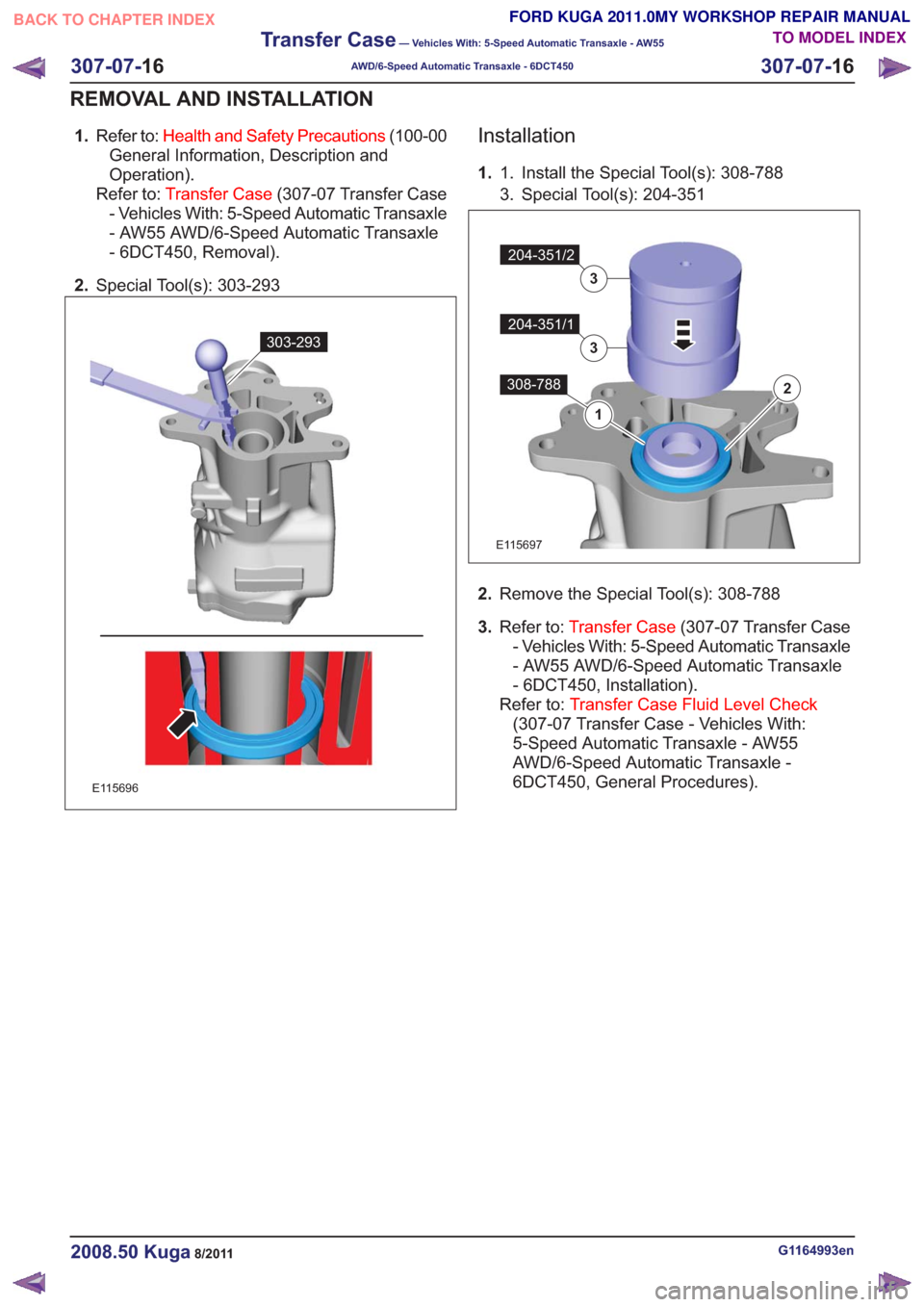

Page 1958 of 2057

FORD KUGA 2011 1.G Workshop Manual 1.Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Transfer Case (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD

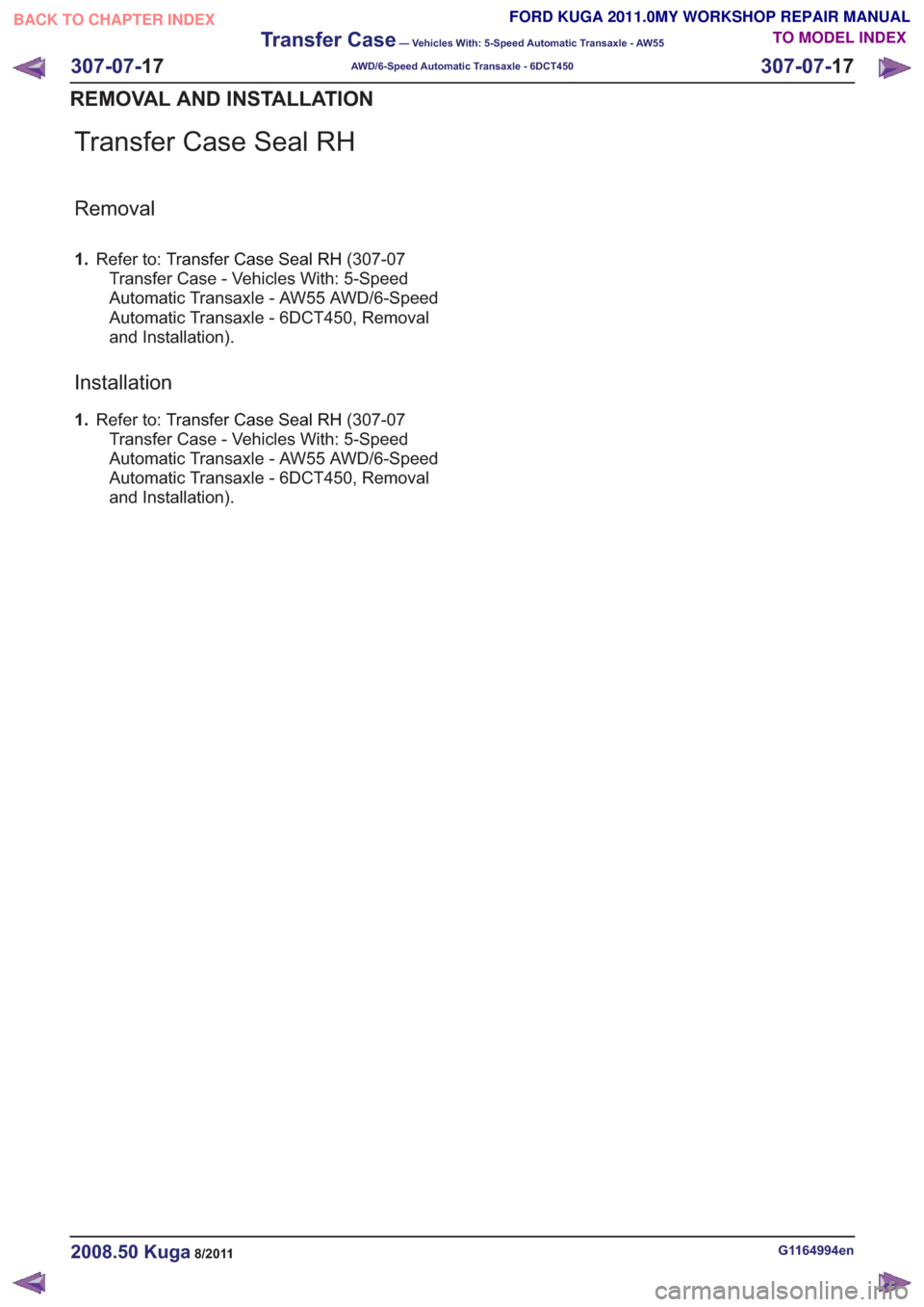

Page 1959 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer Case Seal RH Removal 1.Refer to: Transfer Case Seal RH (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, Removal and Install

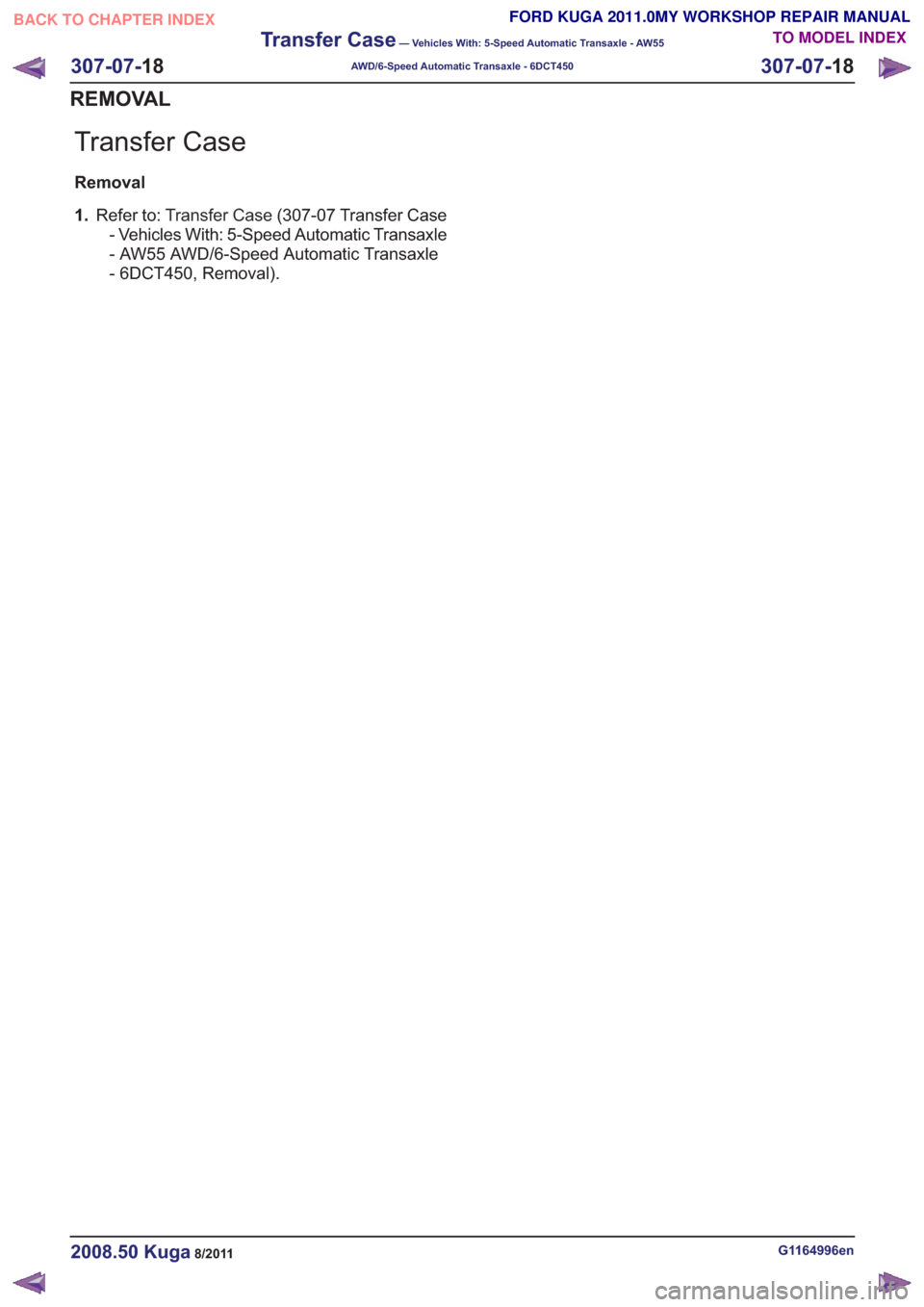

Page 1960 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer Case Removal 1.Refer to: Transfer Case (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, Removal). G1164996en2008.50 Kuga8/2
