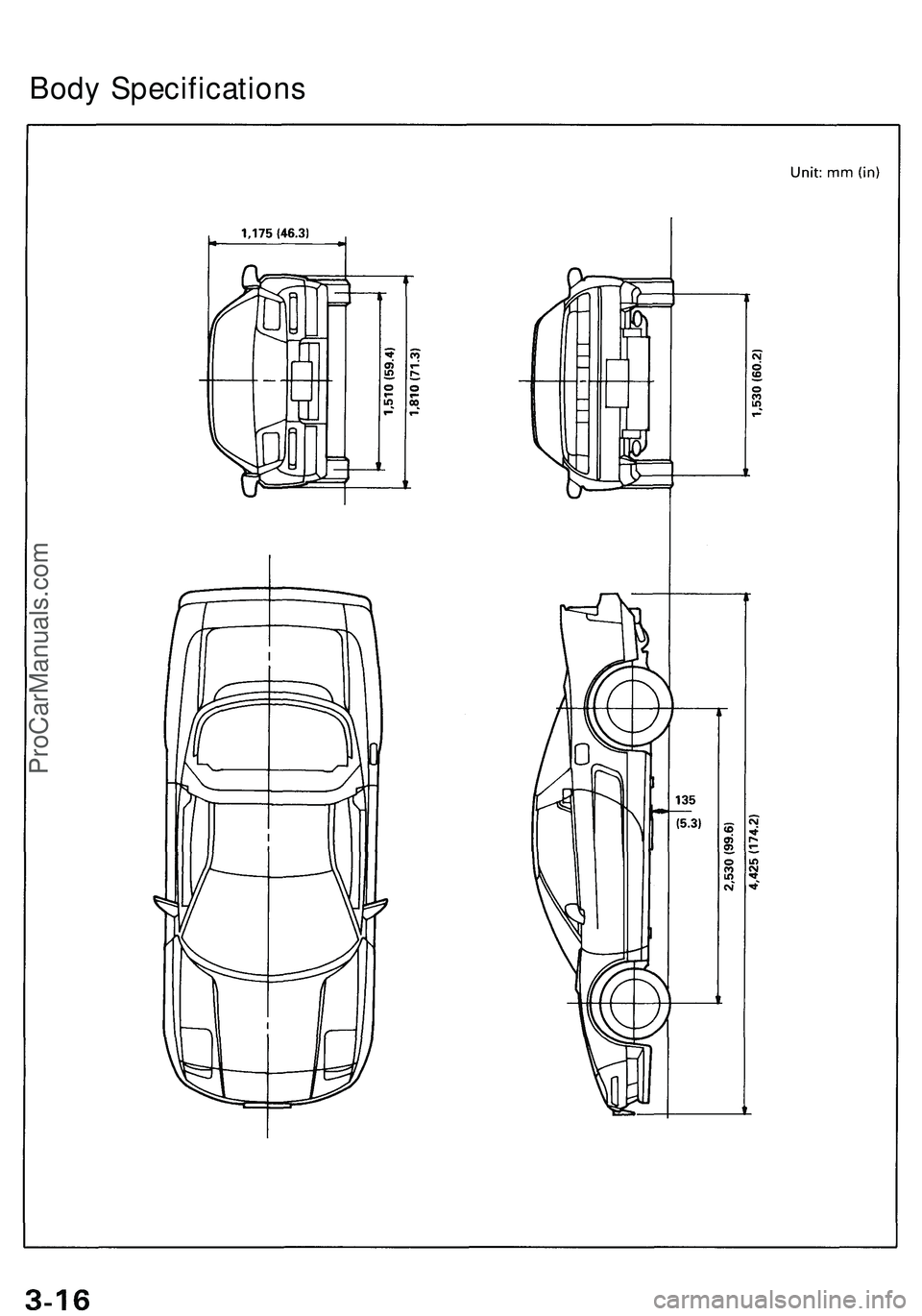

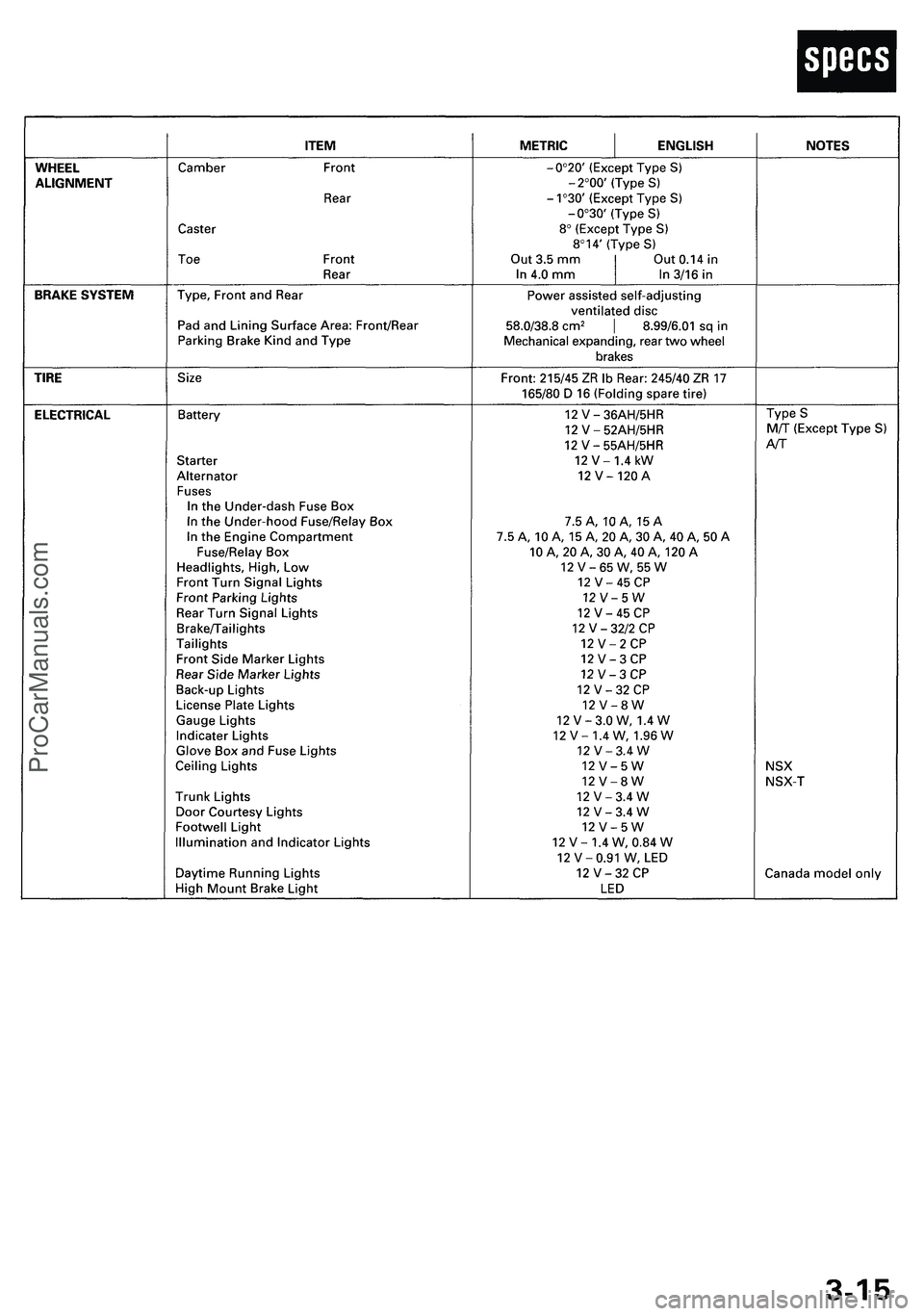

Body Specification s
ProCarManuals.com
Page 60 of 1503

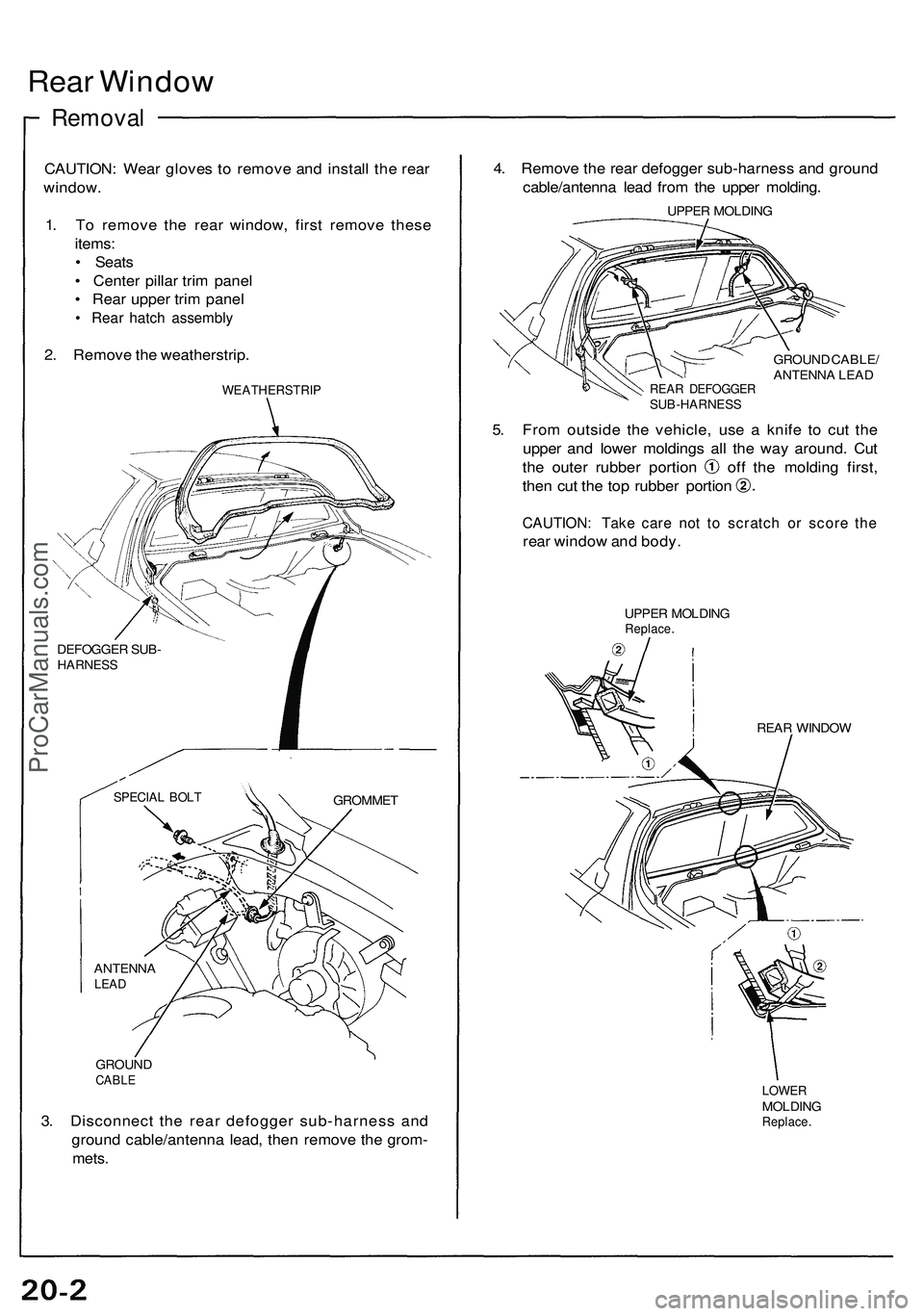

Rear Windo w
Remova l
CAUTION : Wea r glove s t o remov e an d instal l th e rea r
window .
1 . T o remov e th e rea r window , firs t remov e thes e
items :
• Seat s
• Cente r pilla r tri m pane l
• Rea r uppe r tri m pane l
• Rea r hatc h assembl y
2. Remov e th e weatherstrip .
GROUNDCABLE
3. Disconnec t th e rea r defogge r sub-harnes s an d
groun d cable/antenn a lead , the n remov e th e grom -
mets.
4. Remov e th e rea r defogge r sub-harnes s an d groun d
cable/antenn a lea d fro m th e uppe r molding .
UPPER MOLDIN G
GROUN D CABLE /
ANTENN A LEA D
REA R DEFOGGE RSUB-HARNES S
5. Fro m outsid e th e vehicle , us e a knif e t o cu t th e
uppe r an d lowe r molding s al l th e wa y around . Cu t
the oute r rubbe r portio n of f th e moldin g first ,
then cu t th e to p rubbe r portio n
CAUTION : Tak e car e no t t o scratc h o r scor e th e
rea r windo w an d body .
UPPE R MOLDIN GReplace.
REAR WINDO W
LOWERMOLDIN GReplace .
ANTENN ALEAD
SPECIA L BOL TGROMME T
DEFOGGE
R SUB -
HARNES S
WEATHERSTRI P
ProCarManuals.com
Page 61 of 1503

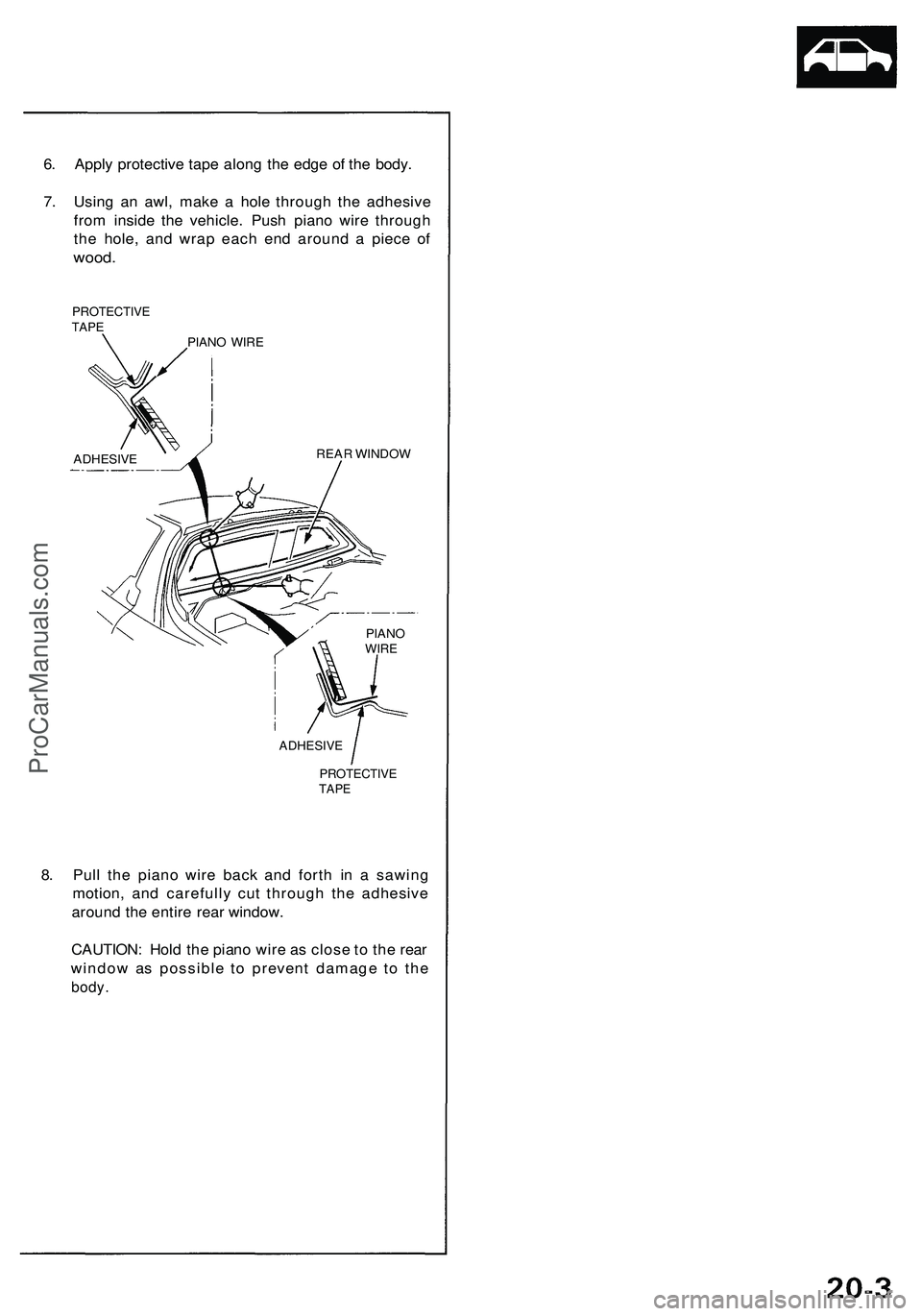

6. Apply protective tape along the edge of the body.
7. Using an awl, make a hole through the adhesive
from inside the vehicle. Push piano wire through
the hole, and wrap each end around a piece of
wood.
PROTECTIVE
TAPE
PIANO WIRE
ADHESIVE
REAR WINDOW
ADHESIVE
PROTECTIVE
TAPE
8. Pull the piano wire back and forth in a sawing
motion, and carefully cut through the adhesive
around the entire rear window.
CAUTION: Hold the piano wire as close to the rear
window as possible to prevent damage to the
body.
PIANO
WIREProCarManuals.com
Page 62 of 1503

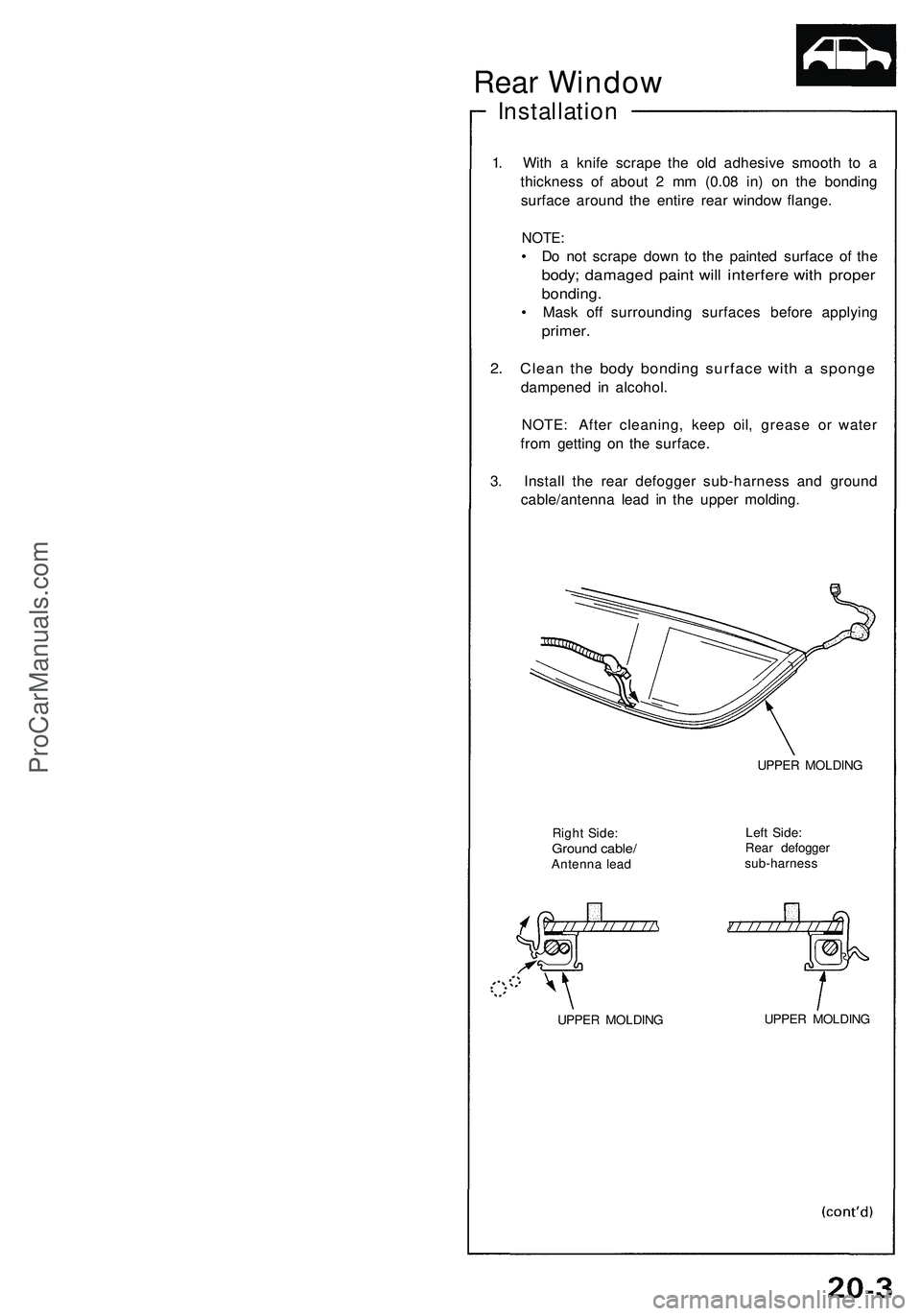

Installation
