Gauge Assembl y
Bulb Location s
ProCarManuals.com
Page 266 of 1503
DIMMER RELA Y (USA )
Test , pag e 23-45
HEADLIGH T HIG H BEA M RELA Y
Test , pag e 23-4 5
DAYTIM E RUNNIN G
LIGHT S CONTRO L
UNI T (Canad a )
Inpu t Test , pag e 23-4 0
HEADLIGH T LO W
BEA M RELA Y
Test , pag e 23-45
Lightin g Syste m
Componen t Locatio n Inde x
RIGH T HI D INVERTE R UNI T
Replacement , pag e 23-4 7
RIGH T HEADLIGH T
Replacement , pag e 23-4 7
HI D Bul b Removal ,
pag e 23-4 2
Adjustment , pag e 23-4 8
HID Troubleshooting ,page 23-4 4
Bul b Replacement ,
pag e 23-4 9
LEFT HEADLIGH T
Replacement , pag e 23-4 7
HI D Bul b Removal , pag e 23-4 2
Adjustment , pag e 23-4 8
HI D Troubleshooting , Pag e 23-4 4
Bul b Replacement , pag e 23-4 9
Test , pag e 23-4 6 Test
, pag e 23-4 6
Replacement
, pag e 23-4 7
ProCarManuals.com
Page 267 of 1503
Lighting Syste m
Daytim e Runnin g Light s Contro l Uni t Inpu t Tes t (Canada )
Remove th e glov e bo x lowe r pane l an d glov e box .
Disconnec t th e 14 P connecto r fro m th e daytim e running
light s contro l unit .
Inspec t th e connecto r an d socke t terminal s t o b e sur e
the y ar e al l makin g goo d contact .
• I f th e terminal s ar e bent , loose , o r corroded , repai r
the m a s necessary , an d rechec k th e system .
• I f th e terminal s loo k OK , mak e th e followin g inpu t
test s a t th e connector .
I f an y tes t indicate s a problem , fin d an d correc t th e
cause , the n rechec k th e system .
I f al l th e inpu t test s prov e OK , th e contro l uni t
mus t b e faulty ; replac e it .
ProCarManuals.com
Page 268 of 1503
Page 269 of 1503
Lighting Syste m

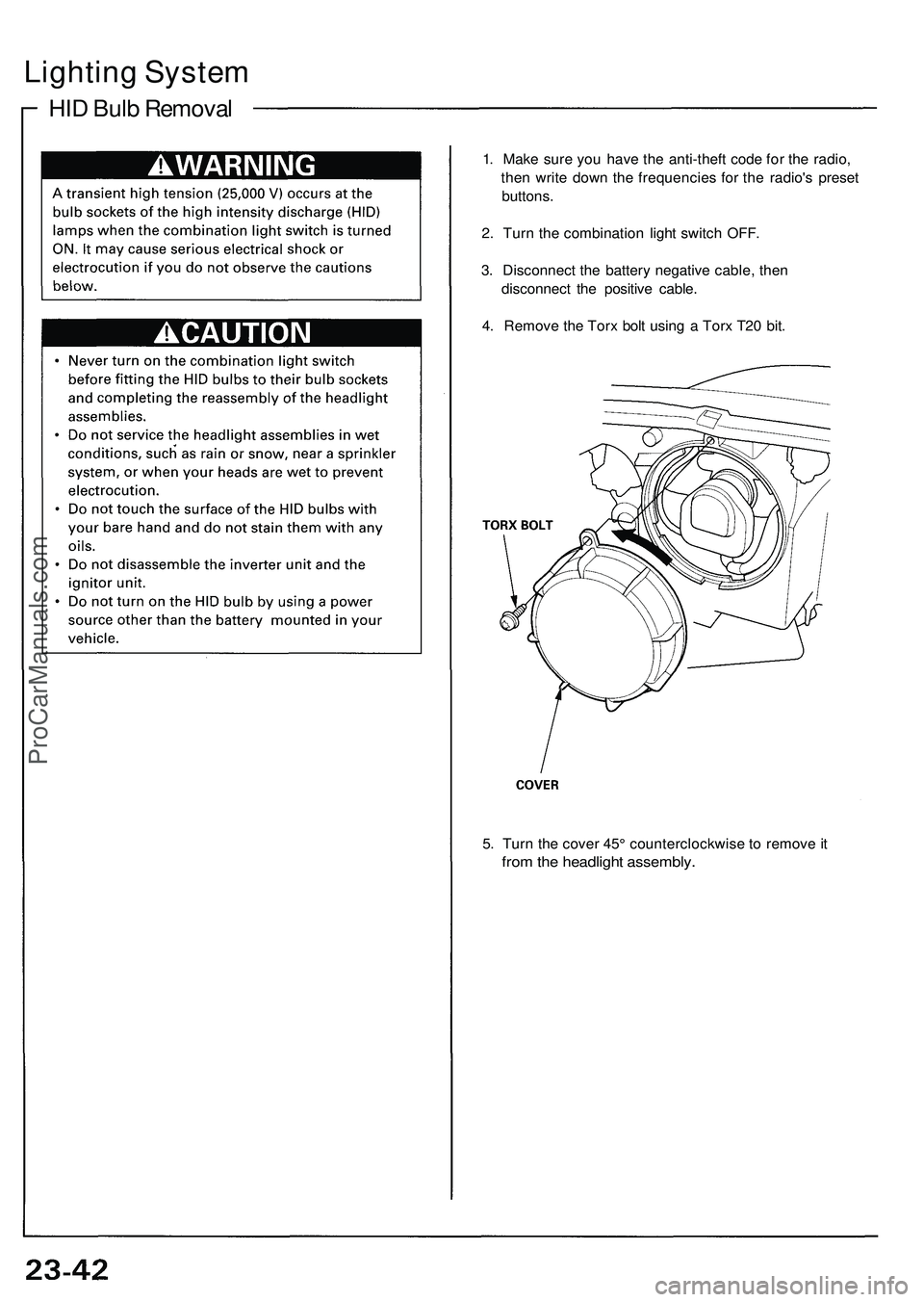

HID Bulb Removal
1. Mak e sur e yo u hav e th e anti-thef t cod e fo r th e radio ,
the n writ e dow n th e frequencie s fo r th e radio' s prese t
buttons .
2 . Tur n th e combinatio n ligh t switc h OFF .
3 . Disconnec t th e batter y negativ e cable , the n
disconnec t th e positiv e cable .
4 . Remov e th e Tor x bol t usin g a Tor x T2 0 bit .
5 . Tur n th e cove r 45 ° counterclockwis e to remov e it
fro m th e headligh t assembly .
ProCarManuals.com
Page 270 of 1503
6. Turn the socket 45° counterclockwise to remove it
from the bulb.
7. Pull the retaining spring away from the bulb (B), then
remove the bulb.
8. Install the new bulb in the reverse order of removal.
9. After reconnecting the battery, enter the anti-theft
code for the radio, then enter the customer's radio
station presets.ProCarManuals.com
Page 271 of 1503
Lighting System
HID Lamp System Troubleshooting
1. Check the No. 49 (20 A) or No. 52 (20 A) fuse in the
main under-hood fuse/relay box.
Are the fuses OK?
YES — Go to step 2.
NO — Replace the fuse (s), and recheck.
2. Substitute a known-good HID bulb and recheck.
Does the headlight low beam come on?
YES — Replace the HID bulb.
NO — Go to step 3.
3. Disconnect the 2P connector from the inverter unit.
4. Turn the combination light switch ON.
5. Measure the voltage between the No. 2 terminal of
the inverter unit 2P connector and body ground.
7. Check for continuity between the No. 1 terminal of
the inverter unit 2P connector and body ground.
Is there continuity?
YES — Substitute a known-good inverter, and
recheck. If the symptom/indication goes away,
replace the original inverter unit.
NO — Repair open in the wire between the inverter
unit and body ground. If the wire is OK, check for
poor ground at G202 or G302.ProCarManuals.com
Page 272 of 1503

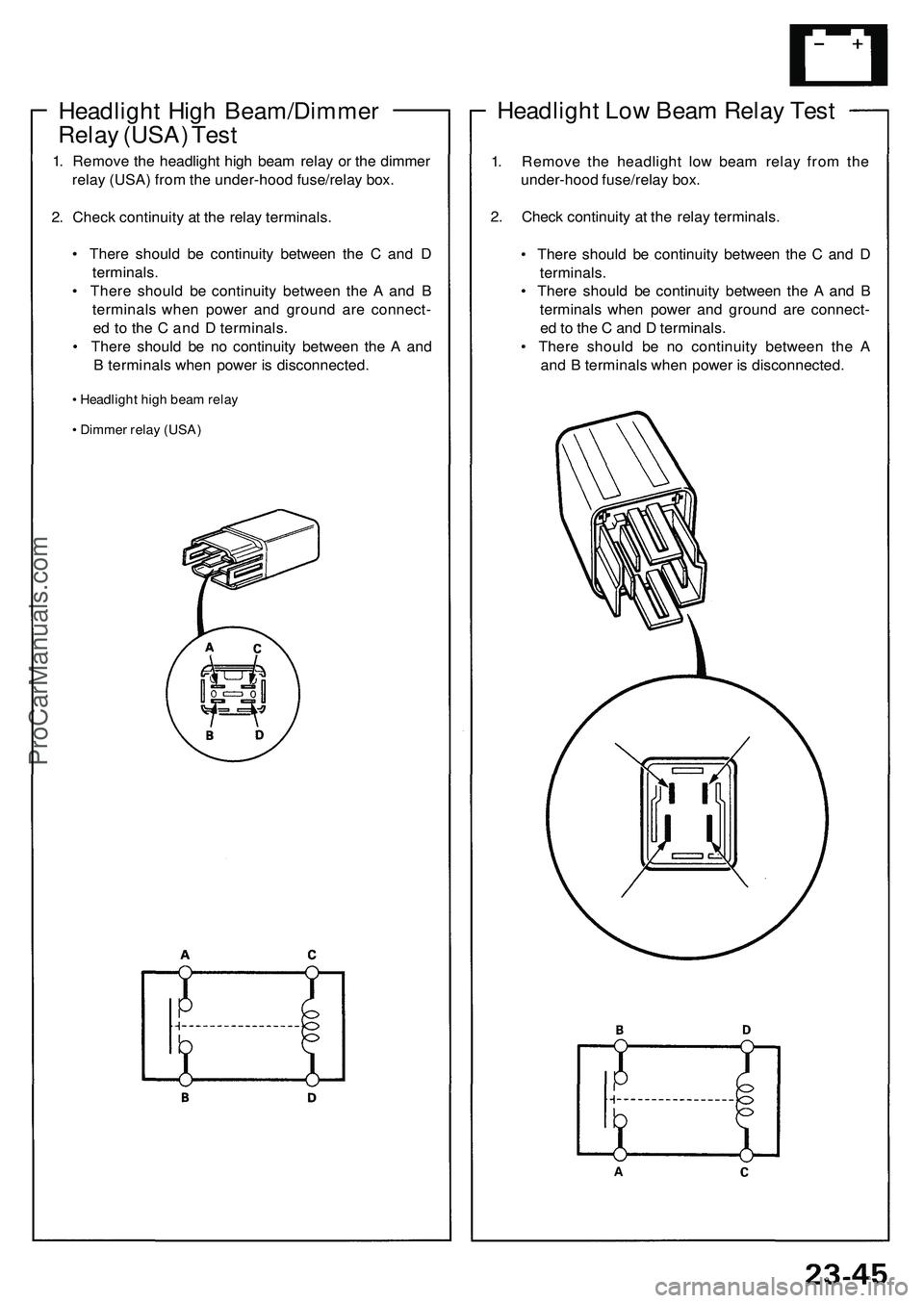

Headlight Low Beam Relay Test
