1997 ACURA NSX Service Repair Manual

Disassembly and Reassembly

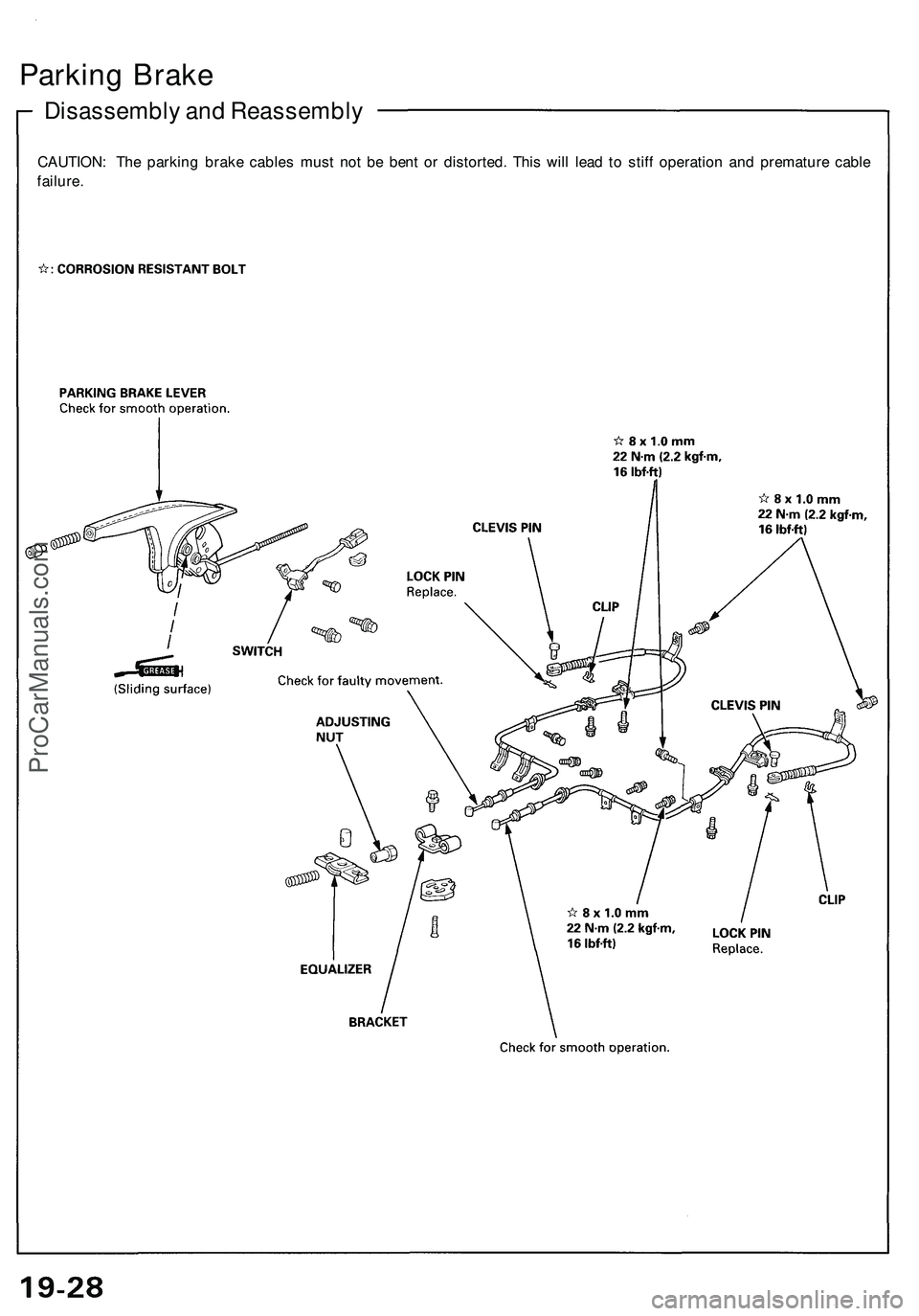

Parking Brake

CAUTION: The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable

failure.ProCarManuals.com

Features/Construction/Operation
Anti-lock Brake System (ABS) Description

General

In a conventional brake system, if the brake pedal is depressed excessively, the wheels can lock before the vehicle comes

to a stop. In such a case, the stability of the vehicle is reduced if the rear wheels are locked, and maneuverability of the

vehicle is reduced if the front wheels are locked, creating an extremely unstable condition.

The Anti-lock Brake System (ABS) modulates the pressure of the brake fluid applied to each caliper, thereby preventing

the locking of the wheels, whenever the wheels are likely to locked due to be excessive braking. It then restores normal

hydraulic pressure when there is no longer any possibility of wheel locking.

4-Channel Anti-lock Brake System (ABS) Features

• Increased braking stability can be achieved regardless of changing driving conditions.

• The maneuverability of the vehicle is improved as the system prevents the front wheels from locking.

• When the anti-lock brake system goes into action, kickback is felt on the brake pedal.

• The anti-lock brake system is equipped with a self-diagnosis function. When an abnormality is detected, the ABS indi-

cator light comes on. The location of the abnormality can be diagnosed from the frequency of the system indicator

light display blinks.

• This system has individual control of the front and rear wheels. Braking force is controlled on each of the four wheels

independently, resulting in optimum braking efects on the four wheels.

The system has a fail-safe function that allows normal braking if there's a problem with the anti-lock brake system.

Difference Between The 3-Channel And 4-Channel Anti-lock Brake System

Construction

In addition to the conventional braking system, the anti-lock brake system is composed of: gear pulsers attached to the

rotating part of individual wheels; wheel sensors, which generate pulse signals in correspondence to the revolution of the

gear pulsers; ABS control unit, which controls the working of the anti-lock brake system by performing calculations based

on the signals from the individual wheel sensors and the individual switches; a modulator unit, which adjusts the

hydraulic pressure applied to each caliper on the basis of the signals received from the ABS control unit; an accumulator,

in which high-pressure brake fluid is stored; a pressure switch, which detects the pressure in the accumulator and trans-

mits signals to the ABS control unit; a power unit, which supplies the high-pressure working fluid to the accumulator by

means of a pump; a motor relay for driving the power unit; a fail-safe relay, which cuts off the solenoid valve ground cir-

cuit when the fail-safe device is at work; and, an ABS indicator light.ProCarManuals.com

Features/Construction/Operation (cont'd)
Anti-lock Brake System (ABS) Description

Master Cylinder

1. Construction

A tandem master cylinder with center valves is used to improve braking system safety.

The master cylinder has one reservoir tank which is connected to the cylinder sections by two small holes. It has two

pistons - primary and secondary, which are crisscross connected with the calipers so that the fluid pressure works sep-

arately on each system (front right wheel & rear left wheel, and front left wheel & rear right wheel).

A stop bolt for controlling movement of the primary piston is provided at the side of the master cylinder body.

A reed switch for detecting the brake fluid volume is also provided on the cap of the reservoir tank.

2. Operation

When the brake pedal is depressed, the secondary piston is pushed through the brake booster and center valve B is

closed so that the fluid pressure is generated on the secondary side. At the same time, the primary piston is pushed by

the secondary fluid pressure and center valve A is closed so that braking fluid pressure is generated both on the primary

and secondary sides.

When the brake pedal is released, the primary and secondary pistons are returned to the original positions by the brake

fluid pressure and piston spring.ProCarManuals.com

3. Responses when fluid is leaking

(1) In case of leaking from the primary system

Since the fluid pressure on the primary side does not rise, the primary piston is pushed by the fluid pressure of the

secondary piston and the tension of the piston spring until the end hits on the cylinder; the braking is performed

by the fluid pressure on the secondary side.

(2) In case of leaking from the secondary system

The secondary piston does not produce fluid pressure, keeps moving ahead, hits on the end surface of the

primary piston so that the primary piston is pushed under the same condition as an ordinary rod; the braking is

performed by the fluid pressure on the primary side.ProCarManuals.com

Wheel Sensor

The wheel sensor is a contactless type, and it detects the rotating speeds of a wheel. It is composed of a permanent

magnet and coil. When the gear pulsers attached to the rotating parts of each wheel (rear wheel: outboard joint of the

driveshaft, front: hub bearing unit) turn, the magnetic flux around the coil in the wheel sensor alternates, generating volt-

ages with frequency in proportion to wheel rotating speed. These pulses are inputted into the ABS control unit, and the

ABS control unit identifies the wheel speeds.
Features/Construction/Operation (cont'd)
Anti-lock Brake System (ABS) DescriptionProCarManuals.com

ABS Control Unit

The ABS control unit consists of a main function section, which controls the operation of anti-lock brake system, and sub-

function, which controls the pump motor and "self-diagnosis."

1. Main Function

The main function section of the ABS control unit performs calculations on the basis of the signals from each wheel

sensor and controls the operation of the anti-lock brake system by putting into action the solenoid valves in the modu-

lator unit for each front and rear brake.

2. Sub-Function

The sub-function section gives driving signals to the pump motor and also gives "self-diagnosis" signals, necessary for

backing up the anti-lock brake system.

Self-Diagnostic Function

Since the anti-lock brake system modulates the braking pressure when a wheel is about to lock, regardless of the driver's

intention, the system operation and the braking power will be impaired if there is a malfunction in the system. To prevent

this possibility, at speeds above 6 mph (10 km/h), the self-diagnosis function monitors the main system functions. When

an abnormality is detected, the ABS indicator light comes on.

There is also a check mode of the self-diagnosis system itself: when the ignition switch is first turned on, the ABS indicator

light comes on and stays on for a few seconds after the engine starts, to signify that the self-diagnosis system is functional.

Fail-Safe Function

If an abnormality is detected, the ABS control unit turns off the fail-safe relays and motor relay. In this condition, the anti-

lock brake system is prevented from functioning, yet the basic brake system continues to operate normally.

The ABS Indicator Light Comes On

1. When the fluid pressure pump runs more than 120 seconds.

2. When the parking brake is applied for more than 30 seconds while the vehicle is being driven.

3. When the rear wheel(s) is (are) locked more than a specified time.

4. When the wheel rotation signal is not transmitted due to faulty wire or sensor.

5. When the operation time of the solenoid valve(s) exceeds a predetermined valve, and the ABS control unit finds an

open in the solenoid circuit.

6. When the output signals from both main functions in the ABS control unit are not transmitted to the solenoid valve(s).

(cont'd)ProCarManuals.com

Accumulator

The accumulator is a pneumatic type which accumulates high-pressure brake fluid fed from the pump incorporated in the

power unit. When the anti-lock brake system operates, the accumulator feeds high-pressure brake fluid to the modulator

valve via the inlet side of the solenoid valve.
Modulator Unit

Modulators and solenoid valves for each wheel are integrated in the modulator unit.

The modulators for front and rear brakes are of independent construction.

The solenoid valve features quick response (5 ms or less).

The inlet and outlet valves are integrated in the solenoid valve unit.
Features/Construction/Operation (cont'd)
Anti-lock Brake System (ABS) DescriptionProCarManuals.com

Pressure Switch

The pressure switch monitors the pressure accumulation (pressure from the pump) in the accumulator and is turned off

when the pressure becomes lower than a prescribed level. When the pressure switch is turned off, the switching signal is

sent to the ABS control unit. Upon receiving the signal, the ABS control unit activates the pump motor relay to operate the

motor. If the pressure doesn't reach the prescribed value, the ABS indicator light is turned on.

Operation

When the pressure in the accumulator rises, the Bourdon tube in the pressure switch deforms outwards. When the free

end of the Bourdon tube moves more than the prescribed amount, the micro-switch is activated by the force of the spring

attached to the sensing lever. When the pressure in the accumulator decreases due to anti-lock brake system operations,

the Bourdon tube moves in the direction opposite to the one described above, and the micro-switch is eventually turned

off. Upon receiving this signal, the ABS control unit activates the motor relay to operate the motor.

Power Unit

The power unit consists of a motor and a plunger-type pump. This unit transmits the revolution of the motor to the

plunger by way of an eccentric bearing and supplies high-pressure brake fluid to the accumulator by the effect of the

reciprocating movement of the plunger.

When the pressure in the accumulator drops below the prescribed pressure level, the pressure switch gives an OFF-signal.

The ABS control unit turns the motor relay ON to start the operation of the pump, upon the reception of this signal and a

signal from the wheel sensor that the vehicle is running at a speed greater than 6 mph (10 km/h). When the pressure in the

accumulator attains the prescribed pressure, the ABS control unit turns the motor relay OFF approximately three seconds

after the unit receives an ON-signal from the pressure switch. By this, the high-pressure in the accumulator is maintained.

The ABS control unit turns the pump off and lights the system indicator light if the accumulator pressure does not reach

the prescribed level after the pump has run continuously for 120 seconds.ProCarManuals.com
