1997 ACURA NSX Service Repair Manual

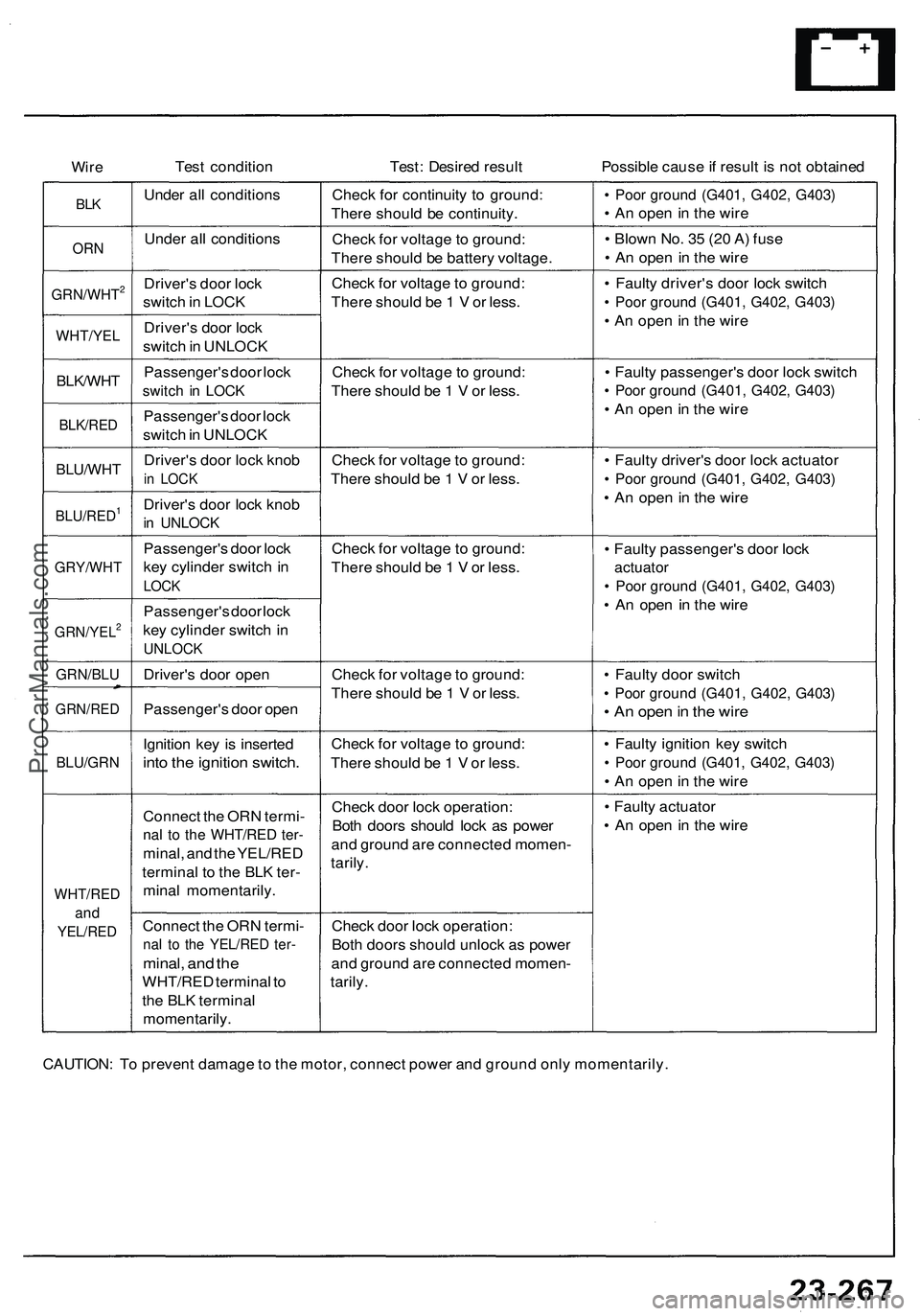

Wire
Test condition
Test: Desired result
Possible cause if result is not obtained

BLK
Under all conditions
Check for continuity to ground:

There should be continuity.
• Poor ground (G401, G402, G403)

• An open in the wire

ORN
Under all conditions

Check for voltage to ground:

There should be battery voltage.
• Blown No. 35 (20 A) fuse

• An open in the wire

GRN/WHT2
Driver's door lock

switch in LOCK
Check for voltage to ground:

There should be 1 V or less.

WHT/YEL
Driver's door lock

switch in UNLOCK
• Faulty driver's door lock switch

• Poor ground (G401, G402, G403)

• An open in the wire

BLK/WHT
Passenger's door lock

switch in LOCK
Check for voltage to ground:

There should be 1 V or less.

BLK/RED
Passenger's door lock

switch in UNLOCK
• Faulty passenger's door lock switch

• Poor ground (G401, G402, G403)

• An open in the wire

BLU/WHT
Driver's door lock knob

in LOCK
Check for voltage to ground:

There should be 1 V or less.

BLU/RED1
Driver's door lock knob

in UNLOCK
• Faulty driver's door lock actuator

• Poor ground (G401, G402, G403)

• An open in the wire

GRY/WHT
Passenger's door lock

key cylinder switch in

LOCK
Check for voltage to ground:

There should be 1 V or less.

GRN/YEL2
Passenger's door lock

key cylinder switch in

UNLOCK
• Faulty passenger's door lock

actuator

• Poor ground (G401, G402, G403)

• An open in the wire

GRN/BLU
Driver's door open

GRN/RED
Passenger's door open
Check for voltage to ground:

There should be 1 V or less.
• Faulty door switch

• Poor ground (G401, G402, G403)

• An open in the wire

BLU/GRN
Ignition key is inserted

into the ignition switch.
Check for voltage to ground:

There should be 1 V or less.
• Faulty ignition key switch

• Poor ground (G401, G402, G403)

• An open in the wire

WHT/RED

and

YEL/RED
Connect the ORN termi-

nal to the WHT/RED ter-

minal, and the YEL/RED

terminal to the BLK ter-

minal momentarily.
Check door lock operation:

Both doors should lock as power

and ground are connected momen-

tarily.
• Faulty actuator

• An open in the wire

Connect the ORN termi-

nal to the YEL/RED ter-

minal, and the

WHT/RED terminal to

the BLK terminal

momentarily.
Check door lock operation:

Both doors should unlock as power

and ground are connected momen-

tarily.

CAUTION: To prevent damage to the motor, connect power and ground only momentarily.ProCarManuals.com

Power Doo r Lock s

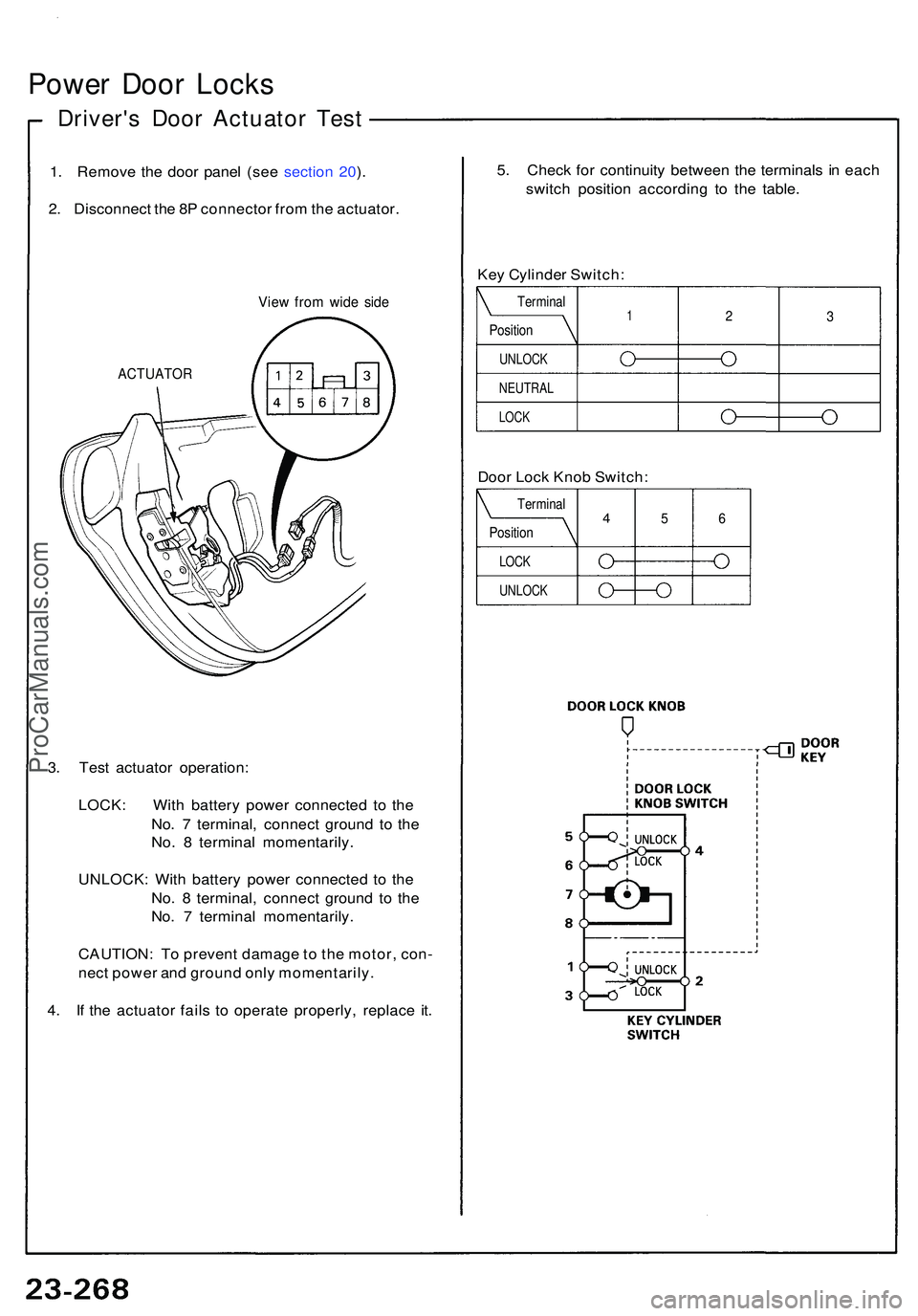

Driver' s Doo r Actuato r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8 P connecto r fro m th e actuator .
ACTUATO R
View fro m wid e sid e
3. Tes t actuato r operation :
LOCK : Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t ground to th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t ground to th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e t o th e motor , con -
nec t powe r an d groun d onl y momentarily .
4 . I f th e actuato r fail s t o operat e properly , replac e it . 5
. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
Doo r Loc k Kno b Switch :
Termina l
Position
UNLOC K
NEUTRA L
LOCK
321
654Termina l
Position
LOCK
UNLOC K
ProCarManuals.com

Passenger's Doo r Actuato r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8 P connecto r fro m th e actuator . 5
. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
View fro m wid e sid e
ACTUATO R
3. Tes t actuato r operation :
LOCK : Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t groun d t o th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t groun d t o th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e t o th e motor , con -
nec t powe r an d groun d onl y momentarily .
4 . I f th e actuato r fail s t o operat e properly , replac e it . Doo
r Loc k Kno b Switch :
Termina l
Position
LOCK
UNLOC K
45
Termina l
Position
UNLOC K
12
NEUTRA L
LOC K
3
ProCarManuals.com

Power Door Locks

Door Lock Switch Test

1. Remove the door grip assembly.

2. Disconnect the 3P connector from the switch.

3. Check for continuity between the terminals, in each

switch position, according to the table.

View from wire side

DOOR GRIP ASSEMBLY
DOOR LOCK SWITCH

Terminal

Position

LOCK

OFF

UNLOCK
1

2

3ProCarManuals.com

Power Window s
Componen t Locatio n Inde x
POWE R WINDO WRELAYTest, pag e 23-27 9
PASSENGER' S DOO R SWITC H DRIVER'
S DOO R SWITC H
Test , pag e 23-20 6
UNDER-HOO D FUSE/RELA YBOX
Test , pag e 23-20 6
PASSENGER' S MOTO R
Test , pag e 23-27 8
Replacement , sectio n 2 0
PASSENGER' S SWITC H
Test , pag e 23-27 6
Replacement , pag e 23-27 7
DRIVER'S MOTO R
Test , pag e 23-27 8
Replacement ,section 2 0
MASTE R SWITC H
Test , pag e 23-27 5
Replacement , pag e 23-27 6
POWE R WINDO W
CONTRO L UNI T
Inpu t test , pag e 23-27 4
UNDER-DAS H FUS E BO X KEY-OF
F TIME R CIRCUI T
(I n th e integrate d contro l unit )
Inpu t test , pag e 23-17 0
Descriptio n
Power Windo w Key-of f Time r Operation :
The powe r window s ca n stil l b e operate d fo r abou t te n minute s afte r th e ignitio n switc h is turne d fro m th e O N (II ) t o th e
AC C (I ) o r LOC K (O ) positio n a s lon g a s neithe r o f th e door s ha s bee n opened . Thi s provide s a convenienc e t o parke d
occupant s whil e offerin g a degre e o f securit y agains t unwante d o r accidenta l windo w operation .
ProCarManuals.com

Troubleshooting

NOTE: The numbers in the table show the troubleshooting sequence.ProCarManuals.com

Power Windows

Control Unit Input Test

NOTE: The control unit only controls the driver's door

window.

Remove the driver's door panel and disconnect the 4P

and 6P connectors from the control unit.

Inspect the connector and socket terminals to be sure

they are all making good contact.

If the terminals are bent, loose, or corroded, repair

them as necessary, and recheck the system.

If the terminals look OK, make the following input

tests at the connector.

— If any test indicates a problem, find and correct the

cause, then recheck the system.

— If all the input tests prove OK, the control unit

must be faulty; replace it.
POWER WINDOW

MASTER SWITCH
POWER WINDOW

CONTROL UNIT

Wire
Test condition

Test: Desired result
Possible cause if result is not obtained

BLK1
Under all conditions
Check for continuity to ground:

There should be continuity.
• Poor ground (G401, G402, G403)

• An open in the wire

Ignition switch ON (II)

Check for voltage to ground:

There should be battery voltage.

WHT/YEL
• Blown No. 50 (20 A) fuse

• Faulty power window relay

• Faulty key-off timer system

• Poor ground (G201)

• An open in the wire

BLK/YEL
Ignition switch ON (II)

and driver's switch UP

BLK/GRN
Ignition switch ON (II) and

driver's switch DOWN
Check for voltage to ground:

There should be battery voltage as

the switch is pushed.
• Faulty driver's switch

• An open in the wire

RED/GRN
Ignition switch ON (

and driver's switch

DOWN (AUTO)

BLU and

BLK2
Connect the WHT/YEL

terminal to the RED/BLU

terminal, and the BLK1

terminal to the RED/YEL

terminal.
Check for voltage between the BLU (+)

and BLK2 (-) terminals with an analog

voltmeter: It should indicate between

3-8 volts as the motor runs.
• Faulty pulser

• Faulty driver's motor

• An open in the wireProCarManuals.com

Master Switc h Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 12 P connector .
3 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e tables .
View fro m wir e sid e MASTE
R
SWITCH
Driver' s Switc h
Termina l
Position
UP
OF F
DOW N
DOW N (AUTO )
Passenger' s Switc h
Termina l
Position
UP
OF F
DOW N
Main Switc h
ON
OF F
ON
OF F
ON
OF F
Switc h Ligh t
B
12
10
251
91 14
7
