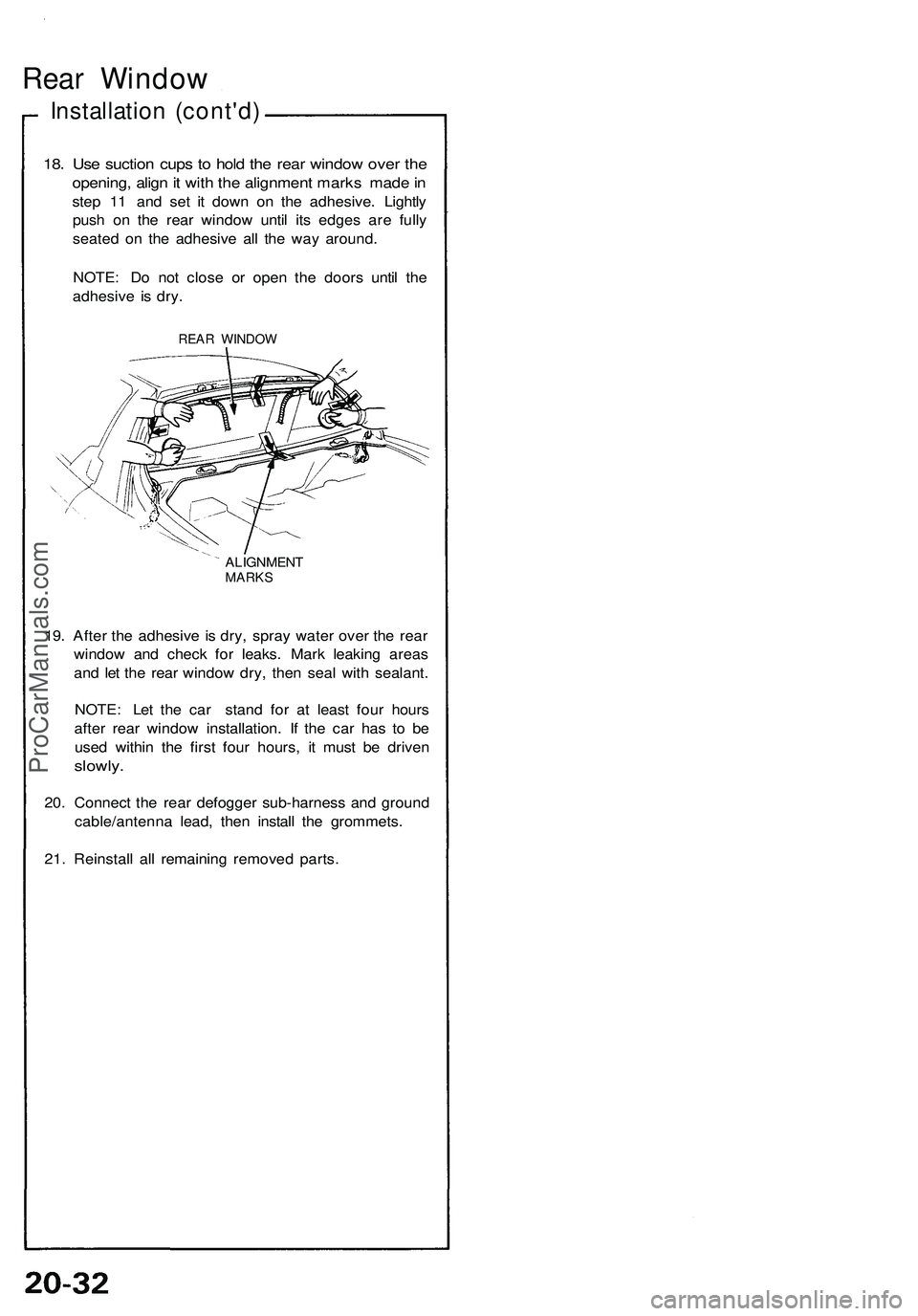

Page 1089 of 1503
Rear Window
Installation (cont'd)
18. Use suction cups to hold the rear window over the
opening, align it with the alignment marks made in
step 11 and set it down on the adhesive. Lightly
push on the rear window until its edges are fully
seated on the adhesive all the way around.
NOTE: Do not close or open the doors until the
adhesive is dry.
REAR WINDOW
ALIGNMENT
MARKS
19. After the adhesive is dry, spray water over the rear
window and check for leaks. Mark leaking areas
and let the rear window dry, then seal with sealant.
NOTE: Let the car stand for at least four hours
after rear window installation. If the car has to be
used within the first four hours, it must be driven
slowly.
20. Connect the rear defogger sub-harness and ground
cable/antenna lead, then install the grommets.
21. Reinstall all remaining removed parts.ProCarManuals.com
Page 1090 of 1503

Rear Hatc h Glas s
Remova l
CAUTION :
• Us e cover s t o avoi d damagin g th e body .
• Wea r glove s t o remov e an d instal l th e glass .
• D o no t damag e th e defroste r gri d lines .
• Tak e car e no t scratc h o r scor e th e molding .
1 . Remov e th e rea r hatc h assembl y fro m th e bod y
(se e pag e 20-64 ).
2 . Usin g a n awl , mak e a hol e throug h th e adhesiv e
an d outer/inne r rubbe r dam s fro m th e inside , a t th e
top o f th e glass . Pus h pian o wir e throug h th e hole ,
and wra p eac h en d aroun d a piec e o f wood .
3 . Appl y th e protectiv e tap e alon g th e edg e o f th e rea r
hatc h fram e a s shown .
4. Wit h a helpe r holdin g th e glass , pul l th e pian o wir e
back an d fort h i n a sawin g motio n an d carefull y cu t
throug h th e adhesiv e alon g th e to p an d th e side s o f
th e glass .
CAUTION : Hol d th e pian o wir e a s clos e t o th e
glas s a s possibl e t o preven t damag e t o th e rea r
hatc h frame .
REAR HATC H ASSEMBL Y
REA R HATC H
FRAM E
PROTECTIV E
TAP E
INNE R RUBBE R
DAM ADHESIV E
PIANOWIRE
OUTE R RUBBE RDAM
GLAS SPROTECTIV
E
COVERPROTECTIV E
TAP E
ProCarManuals.com
Page 1091 of 1503
Rear Hatc h Glas s
Installatio n
NOTE:
• D o no t scrap e dow n t o th e painte d surfac e of the
hatc h frame ; damage d pain t wil l interfer e wit h pro -
per bonding .
• Mas k of f surroundin g surface s befor e painting .
1. Us e a putt y knif e t o scrap e of f al l trace s of old
adhesiv e an d outer/inne r rubbe r dams , the n clea n
th e rea r hatc h fram e an d glas s (new ) surfac e wit h
alcoho l wher e ne w adhesiv e i s t o b e applied .
NOTE : Mak e sur e th e bondin g surfac e i s kep t fre e
o f water , oi l an d grease .
CAUTION : Avoi d settin g th e glas s o n it s edges ;
smal l chip s ma y late r develop into cracks .
GLASS
REAR HATC H
FRAM E
Clean th e oute rsurface .
Clean th eshadowe darea.
ProCarManuals.com
Page 1092 of 1503

Rear Hatc h Glas s
Installatio n (cont'd )
2. Instal l th e rea r hatc h frame , an d adjus t i t fi t t o th e
weatherstri p an d engin e cove r seal .
NOTE : D o no t instal l th e suppor t struts .
REAR HATC H FRAM E
SUPPOR T STRUT S
3. Glu e th e oute r an d inne r rubbe r dam s t o th e insid e
fac e o f th e glass , a s shown , t o contai n th e adhesiv e
durin g installation .
NOTE:
• Alig n th e cente r of the gluin g surfac e wit h th e
printe d dots .
• B e carefu l no t t o touc h th e glas s wher e adhesiv e
wil l b e applied .
• Mas k of f surroundin g surface s befor e applyin g
primer .
GLASS
OUTERRUBBE
RDAM
INNE R RUBBE R DA M
4. Plac e th e glas s gentl y o n th e rea r hatc h frame , the n
cente r i t i n th e opening . Mak e alignmen t mark s b y
markin g line s acros s th e glas s an d bod y wit h a
greas e penci l a t th e fou r point s shown .
NOTE : Pu t severa l spacer s betwee n glas s an d
rea r hatc h ai r scoo p t o preven t th e glas s fro m
slidin g down .
8 m m (0. 3 in)
GLAS S
SPACE R
REARHATC HAIR SCOO P
Apply glas s prime r here .
GLAS S
ENGIN
E COVE R
GLAS SPRINTE
D DOT S GLAS
S
ALIGNMEN T MARK S
5. Wit h a brush , appl y a ligh t coa t of glas s prime r t o
th e glas s a s shown , the n lightl y wip e i t of f wit h
gauz e o r cheesecloth .
NOTE:
• D o no t appl y bod y prime r t o th e glass , an d d o
no t ge t bod y an d glas s prime r brushe s mixe d up .
• Neve r touc h th e prime d surface s wit h you r
hands . I f yo u do , th e adhesiv e ma y no t bon d t o
th e glas s properly , causin g a lea k afte r th e glas s
is installed .
• Kee p water , dust , an d abrasiv e material s awa y
fro m th e prime d surface .
REAR HATC H
FRAM E
GLAS
S
ProCarManuals.com
Page 1093 of 1503

REAR HATCH
FRAME
INSIDE
7. Thoroughly mix the adhesive and hardener
together on a glass or metal plate.
NOTE:
• Clean the plate with a sponge and alcohol before
mixing.
• Follow the instructions that came with the
adhesive.
8. Before filling a cartridge, cut the end of the nozzle
as shown.
Cut nozzle end
as shown.
10 mm
(0.39
in)
7 mm
(0.3
in)
9. Pack adhesive into the cartridge without air
pockets to ensure continuous delivery. Put the car-
tridge in a calking gun, and run a bead of adhesive
around the edge of the glass as shown.
GLASS
10. Use suction cups to hold the glass over the open-
ing, align it with the alignment marks made in step
4 and set it down on the adhesive. Lightly push on
the glass until its edges are fully seated on the
adhesive all the way around.
NOTE: Do not open or close the doors until the
adhesive is dry.
ALIGNMENT MARKS
GLASS
6. With a brush, apply a light coat of body primer to
the original adhesive remaining around the rear
hatch frame.
NOTE:
• Make sure the surface is kept free of water, oil
and grease.
• Do not apply glass primer to the body, and be
careful not to mix up glass and body primer
brushes.
• Never touch the primed surfaces with your
hands.
Apply body primer here.
ADHESIVE
ADHESIVE
GLASS
REAR HATCH
FRAME
OUTSIDEProCarManuals.com
Page 1094 of 1503
Rear Hatch Glass
Installation (cont'd)
11. Scrape or wipe the excess adhesive off with a put-
ty knife or towel.
NOTE: Use a soft shop towel dampened with
alcohol to remove adhesive from a painted surface
or glass.
1 2. After the adhesive is dry, spray water over the
glass and check for leaks. Mark leaking areas and
let the glass dry, then seal with sealant.
NOTE: Let the car stand for at least four hours
after glass installation. If the car has to be used
within the first four hours, it must be driven slowly.
13. Remove the spacers.
14. Install the support struts.ProCarManuals.com
Page 1095 of 1503
Rear Hatc h Glas s Moldin g
Replacemen t
CAUTION:
• Wea r glove s t o replac e th e molding .
• D o no t damag e th e glas s an d defroste r gri d lines .
1 . Remov e th e rea r hatc h assembl y (se e pag e 20-64 ).
2 . Plac e th e rea r hatc h assembl y o n it s surfac e a s
shown .
CAUTION : Avoi d settin g th e glas s o n it s edges ;
smal l chip s ma y late r develo p int o cracks .
3. Wit h a helpe r holdin g th e rea r hatc h assembly ,
carefully cu t of f th e molding .
REAR HATC H ASSEMBLY
PROTECTIVE
COVE R
MOLDIN G
MOLDING
GLASS
GLAS S
4. Tur n th e glas s over , the n cu t th e oute r sid e rubbe r
portion o f th e molding .
MOLDING
GLASS
ProCarManuals.com

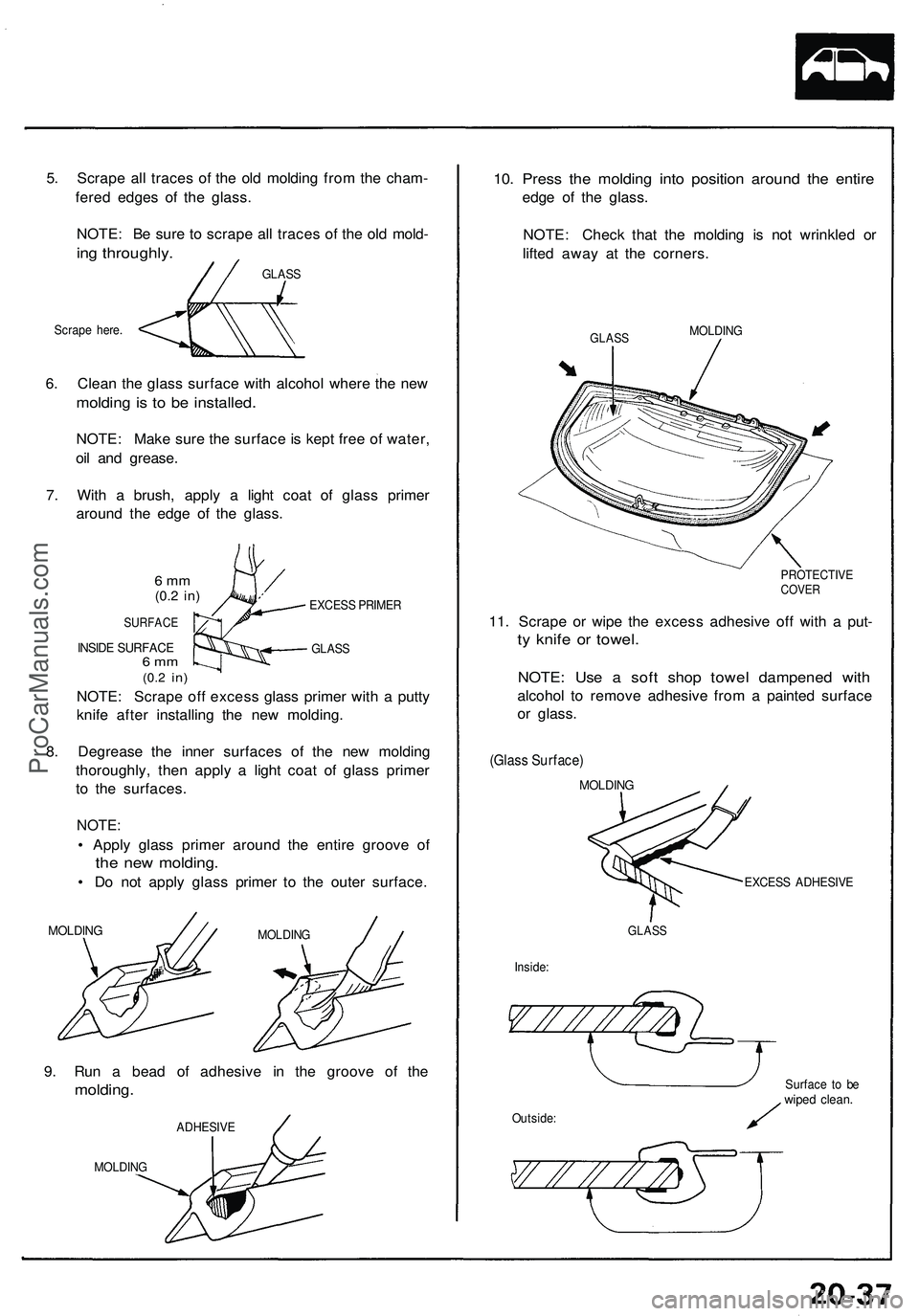

Page 1096 of 1503

6. Clea n th e glas s surfac e wit h alcoho l wher e th e ne w
moldin g is t o b e installed .
NOTE: Mak e sur e th e surfac e is kep t fre e o f water ,
oi l an d grease .
7 . Wit h a brush , appl y a ligh t coa t o f glas s prime r
aroun d th e edg e of the glass .
6 m m(0. 2 in )
SURFAC E
INSIDE SURFAC E6 m m(0. 2 in )
EXCES S PRIME R
GLAS S
NOTE : Scrap e of f exces s glas s prime r wit h a putt y
knif e afte r installin g th e ne w molding .
8 . Degreas e th e inne r surface s o f th e ne w moldin g
thoroughly , the n appl y a ligh t coa t o f glas s prime r
t o th e surfaces .
NOTE:
• Appl y glas s prime r aroun d th e entir e groov e o f
the ne w molding .
• D o no t appl y glas s prime r t o th e oute r surface .
MOLDINGMOLDIN G
9. Ru n a bea d of adhesiv e i n th e groov e o f th e
molding .
ADHESIV E
MOLDIN G
10. Pres s th e moldin g int o positio n aroun d th e entir e
edge of the glass .
NOTE : Chec k tha t th e moldin g i s no t wrinkle d o r
lifte d awa y a t th e corners .
GLASS MOLDIN G
PROTECTIV ECOVER
11. Scrap e o r wip e th e exces s adhesiv e of f wit h a put -
ty knif e o r towel .
NOTE: Us e a sof t sho p towe l dampene d wit h
alcoho l t o remov e adhesiv e fro m a painte d surfac e
o r glass .
(Glass Surface )
MOLDING
EXCESS ADHESIV E
GLASS
Inside:
Surface t o b e
wipe d clean .
5. Scrap e al l trace s o f th e ol d moldin g fro m th e cham -
fere d edge s o f th e glass .
NOTE : B e sur e t o scrap e al l trace s o f th e ol d mold -
ing throughly .
Scrape here . GLAS
S
Outside:
