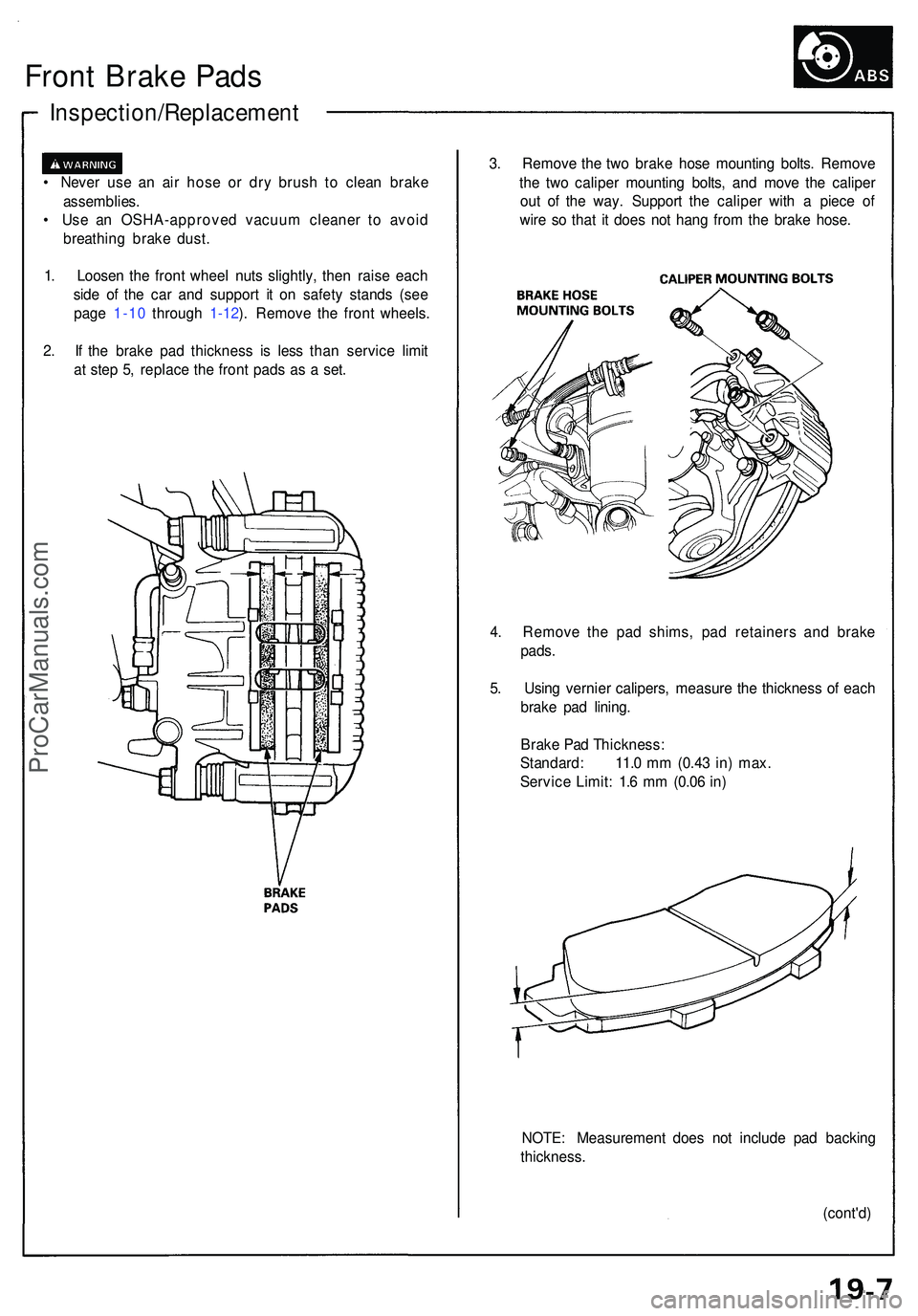

Front Brak e Pad s
Inspection/Replacemen t
• Neve r us e a n ai r hos e o r dr y brus h t o clea n brak e
assemblies .
• Us e a n OSHA-approve d vacuu m cleane r t o avoi d
breathin g brak e dust .
1 . Loose n th e fron t whee l nut s slightly , the n rais e eac h
sid e o f th e ca r an d suppor t i t o n safet y stand s (se e
pag e 1-10 throug h 1-12 ). Remov e th e fron t wheels .
2 . I f th e brak e pa d thicknes s i s les s tha n servic e limi t
a t ste p 5 , replac e th e fron t pad s a s a set . 3
. Remov e th e tw o brak e hos e mountin g bolts . Remov e
th e tw o calipe r mountin g bolts , an d mov e th e calipe r
ou t o f th e way . Suppor t th e calipe r wit h a piec e o f
wir e s o tha t i t doe s no t han g fro m th e brak e hose .
4 . Remov e th e pa d shims , pa d retainer s an d brak e
pads .
5 . Usin g vernie r calipers , measur e th e thicknes s o f eac h
brak e pa d lining .
Brak e Pa d Thickness :
Standard : 11. 0 m m (0.4 3 in ) max .
Servic e Limit : 1. 6 m m (0.0 6 in )
NOTE : Measuremen t doe s no t includ e pa d backin g
thickness .
(cont'd)
ProCarManuals.com
Page 986 of 1503

Inspection/Replacement (cont'd )
Front Brak e Pad s
6. Clea n th e calipe r thoroughly ; remov e an y rust , an d
chec k fo r groove s an d cracks .
7 . Instal l th e pa d retainers . 11
. Pus h i n th e piston s s o tha t th e calipe r wil l fi t ove r
th e brak e pads .
12 . Se t th e calipe r dow n int o position , the n instal l th e
brak e hos e mountin g bolt s an d th e calipe r mount -
in g bolts . Tighte n th e bolt s t o th e specifie d torque .
8 . Appl y Molykot e M7 7 t o bot h side s o f calipe r bracke t
an d th e bac k o f th e pads . Wip e exces s greas e of f
the shim .
9. Instal l th e brak e pads .
• Whe n reusin g th e pads , alway s reinstal l th e
brak e pad s i n thei r origina l position s t o preven t
los s o f brakin g efficiency .
• Contaminate d brak e disc s o r pad s reduc e stop -
pin g ability . Kee p greas e of f th e brak e disc s o r
pads .
NOTE :
• Instal l th e inne r pa d wit h it s wea r indicator fac-
in g upward .
• Appl y Molykot e M7 7 t o th e shim s (se e pag e
19-6 ). Wip e exces s greas e of f th e shims .
10 . Instal l th e brak e pa d shim s correctly . 13
. Depres s th e brak e peda l severa l time s t o mak e sur e
th e brake s work , the n test-driv e th e vehicle .
NOTE: Engagemen t o f th e brak e ma y requir e a
greate r peda l strok e immediatel y afte r th e brak e
pad s hav e bee n replace d a s a set . Severa l applica -
tion s of the brak e peda l wil l restor e th e norma l
peda l stroke .
14 . Instal l th e fron t wheel s an d toqu e th e whee l nuts .
NOTE : Clea n th e matin g surfac e o f th e whee l an d
hu b befor e installin g th e wheel .
ProCarManuals.com
Page 987 of 1503

Disassembly
Front Caliper
• Never use an air hose or dry brush to clean brake
assemblies.
• Use an OSHA-approved vacuum cleaner to avoid
breathing brake dust.
CAUTION:
• Do not spill brake fluid on the vehicle; it may damage
the paint; if brake fluid does contact the paint, wash
it off immediately with water.
• To prevent spills, cover the hose joints with rags or
shop towels.
• Clean all parts in brake fluid and air dry; blow out all
passages with compressed air.
1. Remove the banjo bolt, and disconnect the brake
hose from the caliper.
2. Remove the caliper mounting bolts, then remove
the caliper.
4. If necessary, apply compressed air to the caliper
fluid inlet to get the pistons out. Place a shop rag or
wooden block as shown to cushion the pistons
when there are expelled. Use low pressure air in
short spurts.
• Do not place your fingers in front of the piston.
• Do not use high air pressure; use an OSHA-
approved 30 PSI nozzle.
3. Remove the pad spring from the caliper body.
5. Remove the piston boots and piston seals.
CAUTION: Take care not to damage the cylinders.ProCarManuals.com
Page 988 of 1503

Reassembly
Front Calipe r
CAUTION :
• Befor e reassembling , chec k tha t al l part s ar e fre e o f
dus t an d othe r foreig n particles .
• Replac e part s wit h ne w one s wheneve r specifie d t o
do so .
• Alway s us e Genuin e Hond a DO T 3 Brak e Fluid . Usin g
a non-Hond a brak e flui d ca n caus e corrosio n an d
decreas e th e lif e o f th e system .
• Mak e sur e n o dir t o r othe r foreig n matte r i s allowe d
t o contaminat e th e brak e fluid .
• D o no t spil l brak e flui d o n th e vehicle ; i t ma y damag e
th e paint ; i f brak e flui d doe s contac t th e paint , was h
i t of f immediatel y wit h water .
1 . Clea n th e piston s an d calipe r bore s wit h brak e fluid ,
an d inspec t fo r wea r an d damage .
2 . Appl y silicon e greas e t o ne w pisto n seals , the n
instal l th e pisto n seal s i n th e cylinde r grooves .
3 . Appl y silicon e greas e t o ne w pisto n boots , the n
instal l th e pisto n boot s i n th e cylinde r grooves .
Run-Out Inspectio n
Front Brak e Dis c
1. Rais e eac h sid e of the vehicle , an d suppor t i t o n
safet y stan d (se e pag e 1-10 throug h 1-12 ). Remov e th e
fron t wheels .
2 . Remov e th e brak e dis c pad s (se e pag e 19-7 ).
3 . Inspec t th e dis c surfac e fo r crack s an d rust . Clean
th e dis c thoroughly , an d remov e al l rust .
4 . Us e th e whee l nut s an d plai n washer s t o hol d th e
dis c securel y agains t th e hub , the n moun t a dia l
indicato r a s shown .
Brake Dis c Runout :
Servic e Limit : 0.1 0 m m (0.00 4 in )
5. I f th e dis c is beyon d th e servic e limit , refinis h it .
Max . Refinishin g Limit : 26. 0 m m (1.0 2 in )
4 . Lubricat e th e calipe r cylinder s an d piston s wit h
brak e fluid , the n instal l th e piston s i n th e cylinder s
wit h th e dishe d en d facin g in .
5 . Reinstal l th e calipe r i n th e revers e orde r o f removal .
Always reinstal l th e brak e pad s in thei r
origina l position s to preven t los s o f brakin g efficiency .
6 . Fil l th e brak e reservoi r up , an d blee d th e brak e sys -
te m (se e pag e 19-11 ). NOTE
: A ne w dis c shoul d b e refinishe d i f it s runou t
i s greate r tha n 0.1 0 m m (0.00 4 in) .
ProCarManuals.com
Page 989 of 1503
Thickness an d Parallelis m
Inspectio n
1. Rais e eac h sid e o f th e vehicle , an d suppor t i t o n
safet y stand s (se e pag e 1-10 throug h 1-12 ). Remov e th e
fron t wheels .
2. Remov e th e brak e dis c pad s (se e pag e 19-7 ).
3 . Usin g a micrometer , measur e dis c thicknes s a t
eigh t points , approximatel y 45 ° apar t an d 1 0 m m
(0.4 in ) i n fro m th e oute r edg e o f th e disc .
Brak e dis c thickness :
Standard : 28. 0 m m (1.1 0 in ) max .
Servic e Limit : 26. 0 m m (1.0 2 in )
Brak e Dis c Parallelism :
Th e differenc e betwee n an y thicknes s measure -
ment s shoul d no t b e mor e tha n 0.01 5 m m (0.000 6
in).
4. I f th e dis c i s beyon d th e limit s fo r parallelism , refin -
ish it .
Max . Refinishin g Limit : 26. 0 m m (1.0 2 in )
ProCarManuals.com
Page 990 of 1503

Bleeding
CAUTION:
• Always use Genuine Honda DOT 3 Brake Fluid. Using
a non-Honda brake fluid can cause corrosion and
decrease the life of the system.
• Make sure no dirt or other foreign matter is allowed
to contaminate the brake fluid.
• Do not spill brake fluid on the vehicle, it may damage
the paint; if brake fluid does contact the paint, wash
it off immediately with water.
NOTE: The reservoir on the master cylinder must be full
at the start of bleeding procedure, and checked after
bleeding each brake caliper. Add fluid as required.
Always use Genuine Honda DOT 3 Brake Fluid. Using a
non-Honda brake fluid can cause corrosion and
decrease the life of the system.
BLEEDING SEQUENCE:
1. Have someone slowly pump the brake pedal several
times, then apply steady pressure.
2. Loosen the brake bleed screw to allow air to escape
from the system. Then tighten the bleed screw
securely.
3. Repeat the procedure for each wheel in the
sequence shown above, until air bubbles no longer
appear in the fluid.ProCarManuals.com
Page 991 of 1503
(cont'd)
FRONT:
Bleeding
REAR:ProCarManuals.com
Page 992 of 1503
Master Cylinde r an d Brak e Booste r
Index/Torqu e
BRAKE BOOSTE R
D o no t disassemble .
Tests , pag e 19-1 5
Pushro d Clearanc e Adjustment , pag e 19-1 6
MASTE R CYLINDE R
Inspection , pag e 19-1 4
