Page 1377 of 1503

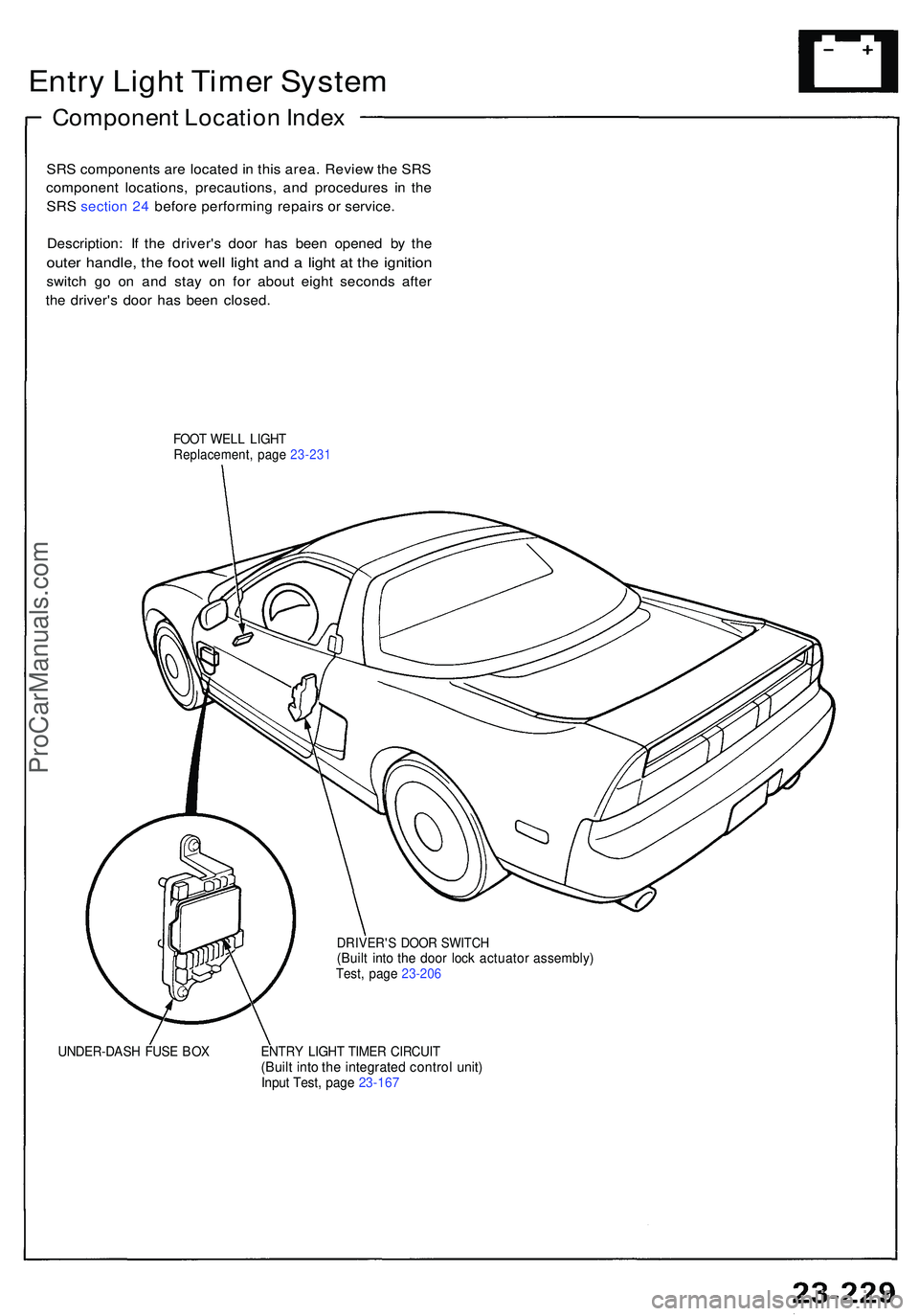

Entry Ligh t Time r Syste m
Componen t Locatio n Inde x
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S sectio n 24 befor e performin g repair s o r service .
Description : I f th e driver' s doo r ha s bee n opene d b y th e
oute r handle , th e foo t wel l ligh t an d a ligh t a t th e ignitio n
switch g o o n an d sta y o n fo r abou t eigh t second s afte r
th e driver' s doo r ha s bee n closed .
FOOT WEL L LIGH TReplacement , pag e 23-23 1
UNDER-DAS H FUS E BO X
DRIVER' S DOO R SWITC H(Built into the doo r loc k actuato r assembly )Test, pag e 23-20 6
ENTRY LIGH T TIME R CIRCUI T(Built into the integrate d contro l unit )Input Test , pag e 23-16 7
ProCarManuals.com
Page 1378 of 1503

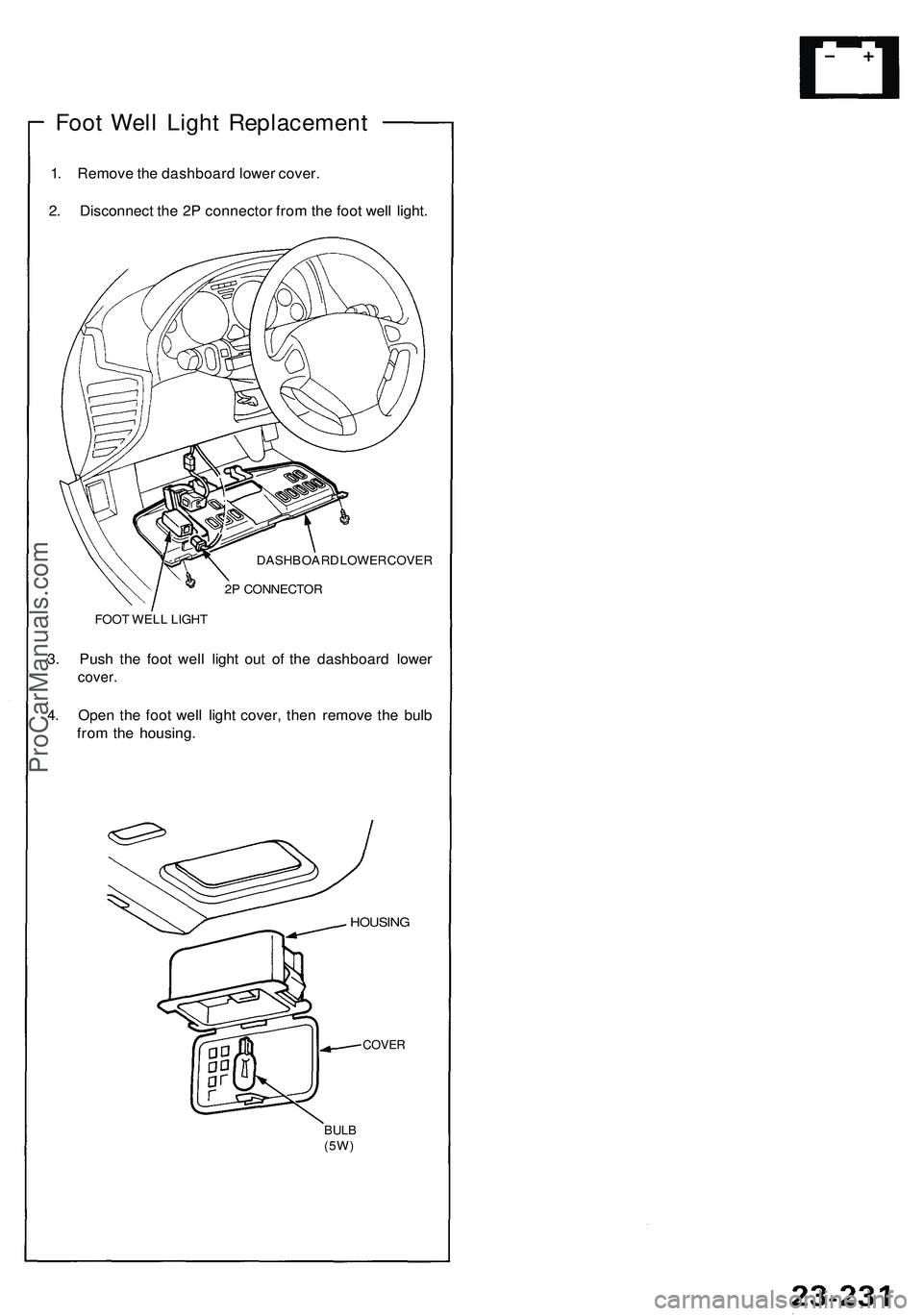

Foot Well Light Replacement
1. Remove the dashboard lower cover.
2. Disconnect the 2P connector from the foot well light.
DASHBOARD LOWER COVER
2P CONNECTOR
FOOT WELL LIGHT
3. Push the foot well light out of the dashboard lower
cover.
4. Open the foot well light cover, then remove the bulb
from the housing.
HOUSING
COVER
BULB
(5W)ProCarManuals.com
Page 1379 of 1503
Removal
CAUTION: Be careful not to damage the center air vent
or clock.
1. Pull the clock out with your fingers (if necessary, use
a screwdriver).
2. Disconnect the 4P connector from the clock.
4P CONNECTOR
CENTER AIR VENT
Terminals
Terminal Wire Connects to
A
B
C
D
BLK
RED/BLK
WHT/YEL
YEL
Ground
Lights-on signal
Constant power (Time
memory)
IG1 (Main clock power supply)
23-233
CLOCKProCarManuals.com
Page 1380 of 1503

Replacement
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
1. Remov e th e cloc k (se e pag e 23-233 ).
2 . Remov e th e tw o screw s behin d th e clock , the n
remov e th e cente r ai r ven t (se e sectio n 20 ).
3 . Remov e th e fou r screws , the n remov e th e cente r
armrest .
4 . Tak e ou t th e ashtray .
5 . Remov e th e fiv e screw s an d cente r consol e panel ,
the n disconnec t th e 3 P connecto r an d 4 P connecto r
fro m th e floo r wir e harness .
ASHTRA YCENTER AIR VENT
4P CONNECTOR
3P CONNECTOR
CENTER ARMRES T
6. Disconnec t th e therm o fus e cas e fro m th e en d o f
th e cigarett e lighte r socket .
7 . Remov e th e rin g nut , an d separat e th e cigarett e
lighte r socke t fro m th e therma l protector .
8 . Whe n installin g th e cigarett e lighter , alig n eac h lu g
o n th e fac e panel , illuminatio n rin g an d cigarett e
lighte r socke t wit h th e groov e i n th e hole , the n posi -
tion th e bul b housin g o n th e therma l protecto r
between th e stop s o n th e cente r consol e panel .
9 . Mak e sur e tha t th e ground , bul b socke t an d therm o
fus e cas e ar e seate d agains t th e cigarett e lighte r
assembly .
CIGARETT E
LIGHTE R
SOCKE T
ILLUMINATIO NRING
FACE PANE L
THERMA LPROTECTO R
GROUNDWIRE
RING NU T
THERM O FUS E CAS E
CIGARETT E LIGHTE R
LIGH T (1. 4 W )
CENTE R CONSOL E
PANE L ASHTRA
Y LIGH T (1. 4 W )
CENTE
R
CONSOL E
PANEL
ProCarManuals.com
Page 1381 of 1503

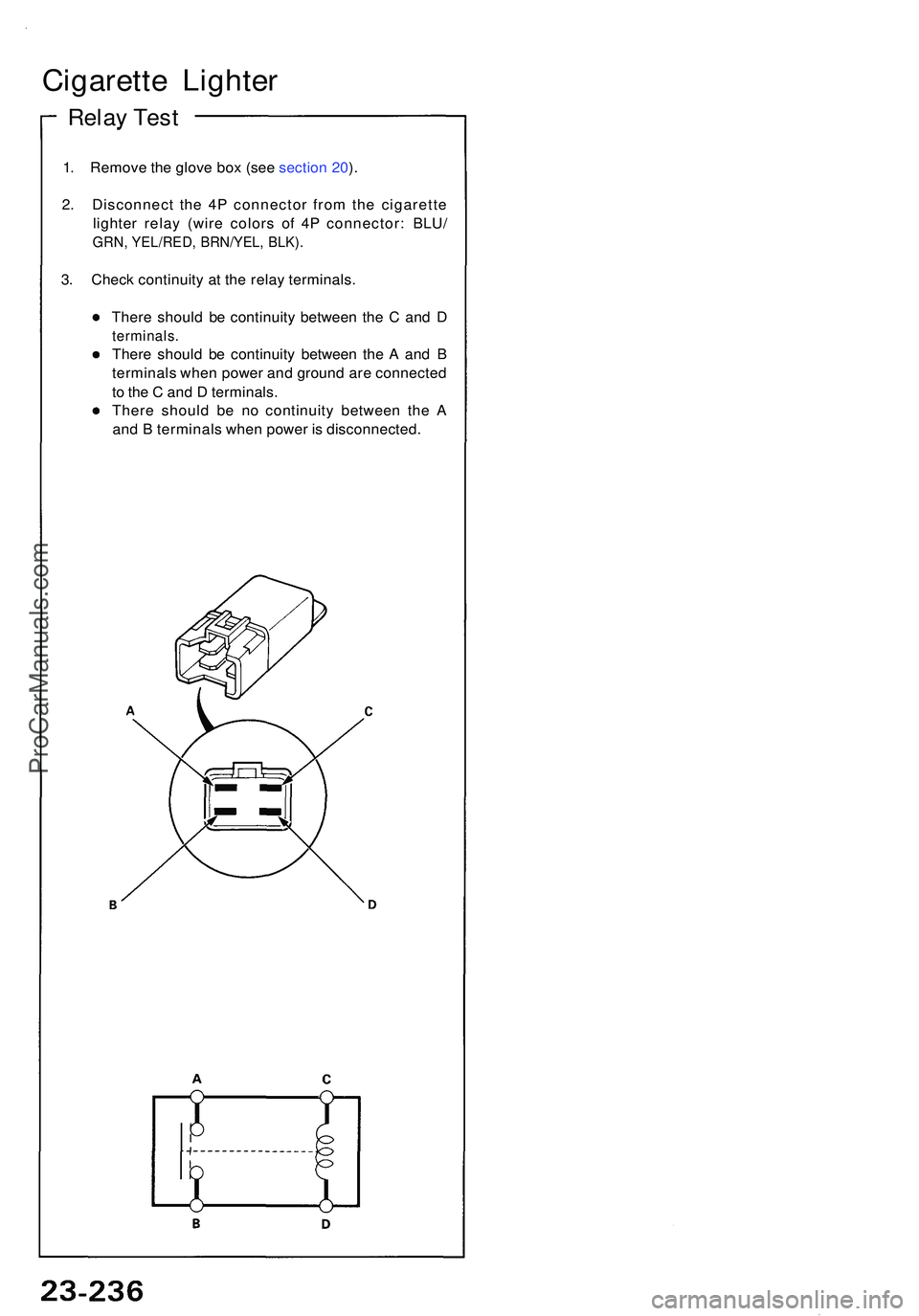

1. Remov e th e glov e bo x (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e cigarett e
lighte r rela y (wir e color s of 4P connector : BLU /
GRN, YEL/RED , BRN/YEL , BLK) .
3. Chec k continuit y a t th e rela y terminals .
Ther e shoul d b e continuit y betwee n th e C an d D
terminals .
There shoul d b e continuit y betwee n th e A an d B
terminal s whe n powe r an d groun d ar e connecte d
t o th e C an d D terminals .
Ther e shoul d b e n o continuit y betwee n th e A
an d B terminal s whe n powe r i s disconnected .
Cigarette Lighte r
Relay Tes t
ProCarManuals.com
Page 1382 of 1503

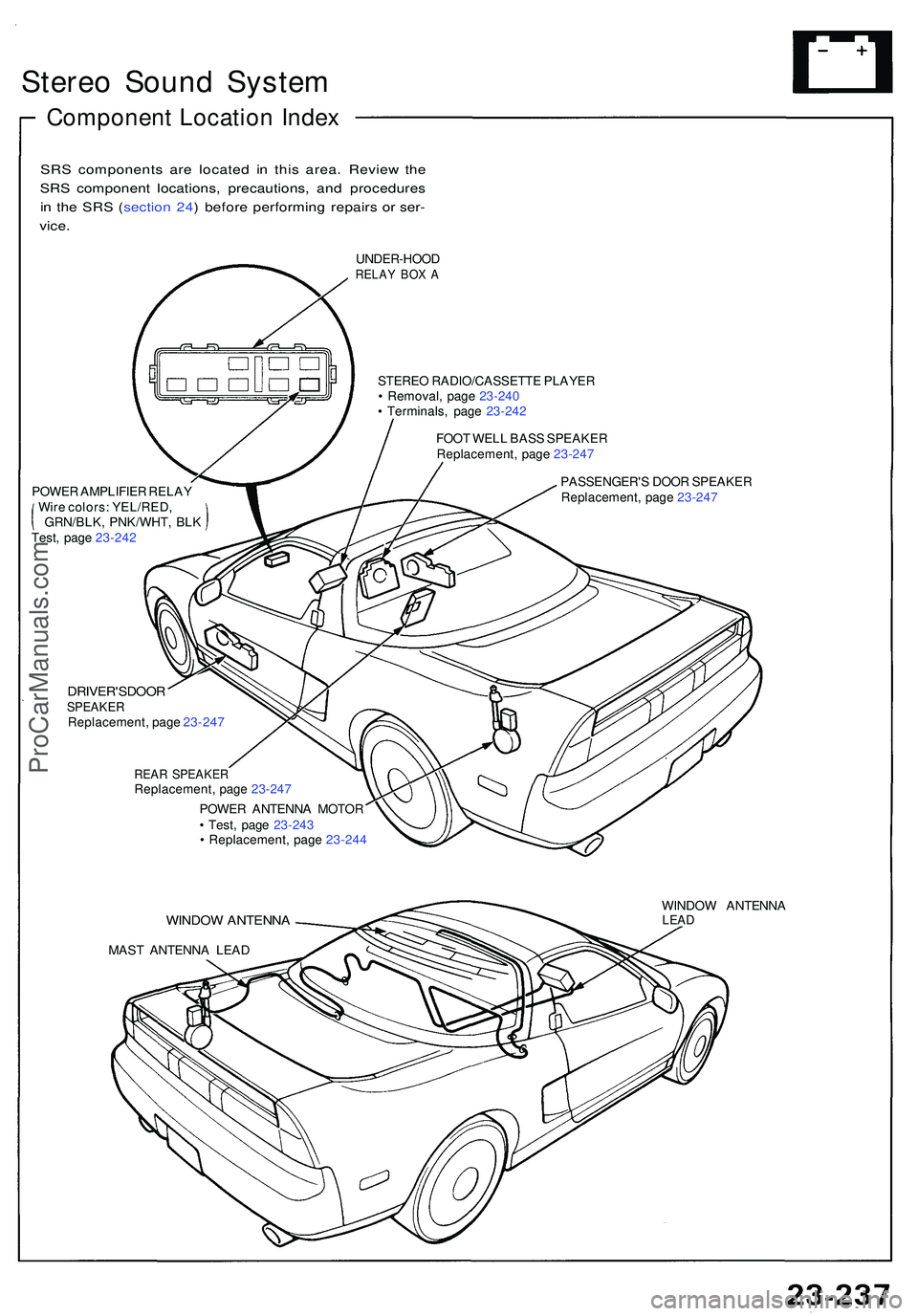

Stereo Soun d Syste m
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S ( sectio n 24 ) befor e performin g repair s o r ser -
vice .
UNDER-HOO DRELAY BO X A
STERE O RADIO/CASSETT E PLAYE R
• Removal , pag e 23-24 0
• Terminals , pag e 23-24 2
FOO T WEL L BAS S SPEAKE R
Replacement , pag e 23-247
POWE R AMPLIFIE R RELA Y
Wir e colors : YEL/RED ,
GRN/BLK , PNK/WHT , BL K
Test , pag e 23-24 2 PASSENGER'
S DOO R SPEAKE R
Replacement , pag e 23-24 7
DRIVER'SDOO RSPEAKERReplacement , pag e 23-24 7
REAR SPEAKE RReplacement , pag e 23-24 7
POWE R ANTENN A MOTO R
• Test , pag e 23-24 3
• Replacement , pag e 23-24 4
WINDO W ANTENN A
MAST ANTENN A LEA D WINDO
W ANTENN A
LEAD
ProCarManuals.com
Page 1383 of 1503

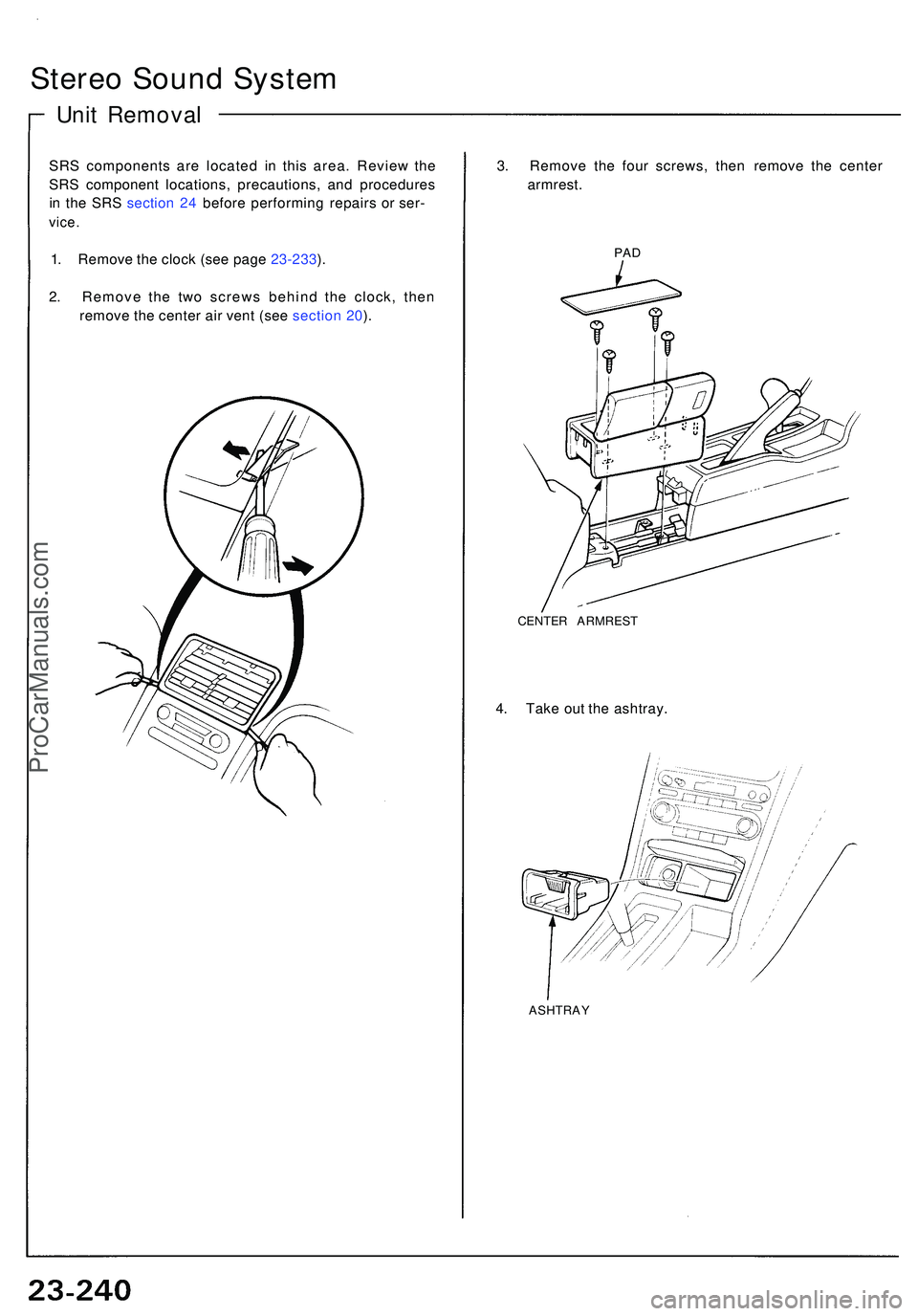

Stereo Soun d Syste m
Unit Remova l
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
1. Remov e th e cloc k (se e pag e 23-233 ).
2 . Remov e th e tw o screw s behin d th e clock , the n
remov e th e cente r ai r ven t (se e sectio n 20 ). 3
. Remov e th e fou r screws , the n remov e th e cente r
armrest .PAD
CENTE R ARMRES T
4. Tak e ou t th e ashtray .
ASHTRA Y
ProCarManuals.com
Page 1384 of 1503
5. Remove the five screws and center console panel,
then disconnect the 3P connector and 4P connector
from the floor wire harness.
CENTER CONSOLE PANEL
4P
CONNECTOR
3P CONNECTOR
6. Remove the four screws, then disconnect the 14P
and 30P connectors from the floor wire harness and
take out the climate control unit.
CLIMATE
CONTROL UNIT
30P CONNECTOR
14P CONNECTOR
7. Remove the four screws, then disconnect the 16P
connector, mast antenna lead, and window antenna
lead and take out the stereo radio/cassette player.
STEREO RADIO/
CASSETTE PLAYER
16P CONNECTOR
WINDOW ANTENNA LEAD
MAST ANTENNA LEADProCarManuals.com
