Page 649 of 1503
Flywheel, Flywhee l Bearin g
Replacemen t
1. Remov e th e flywhee l mountin g bolt s in a crisscros s
patter n in severa l steps , the n remov e th e flywheel . 3
. Driv e th e ne w flywhee l bearin g int o th e flywhee l
usin g th e specia l tools .
DRIVE R07749-001000 0
ATTACHMENT , 3 7 x 40 m m
07746-001020 0
4. Alig n th e hol e i n th e flywhee l wit h th e crankshaf t
dowe l pi n an d instal l th e flywheel .
Instal l th e bolt s finge r tight .
5 . Instal l th e specia l tool , the n torqu e th e flywhee l
mountin g bolt s in a crisscros s patter n a s shown .
RING GEA R HOLDE R07LAB-PV0010 0 o r
0792 4-PD2000 3
RING GEA R HOLDE R07LAB-PV0010 0 o r
07924-PD2000 3
2. Remov e th e flywhee l bearin g fro m th e flywheel .
ProCarManuals.com
Page 650 of 1503
Pressure Plate , Clutc h Dis c
Installatio n
1. Instal l th e rin g gea r holder .
2 . Appl y greas e t o th e spline s o f th e clutc h disc , the n
instal l th e clutc h dis c usin g th e specia l tool s a s
shown .
HANDL E07936-371010 0
CLUTCH ALIGNMEN T SHAF T
07MAF-PR8010 0
RIN G GEA R HOLDE R
07LAB-PV0010 0 o r
0792 4-PD2000 3
3. Instal l th e releas e bearin g o n th e pressur e plate .
4 . Instal l th e pressur e plate . Mak e sur e th e releas e
bearin g doe s no t com e off .
6. Remov e th e specia l tools .
7 . Reinstal l th e transmissio n (se e sectio n 13 ).
5
. Torqu e th e mountin g bolt s i n a crisscros s patter n
a s shown . Tighte n the m in severa l step s t o preven t
warpin g th e diaphrag m spring . Mak e sur e th e
releas e bearin g doe s no t com e off .
ProCarManuals.com
Page 651 of 1503
13-47
13-4 7
13-4 5
13-4 4
13-45
13-47
13-4 7
13-44 , 13-4 5
Specia l Tool s
ProCarManuals.com
Page 652 of 1503

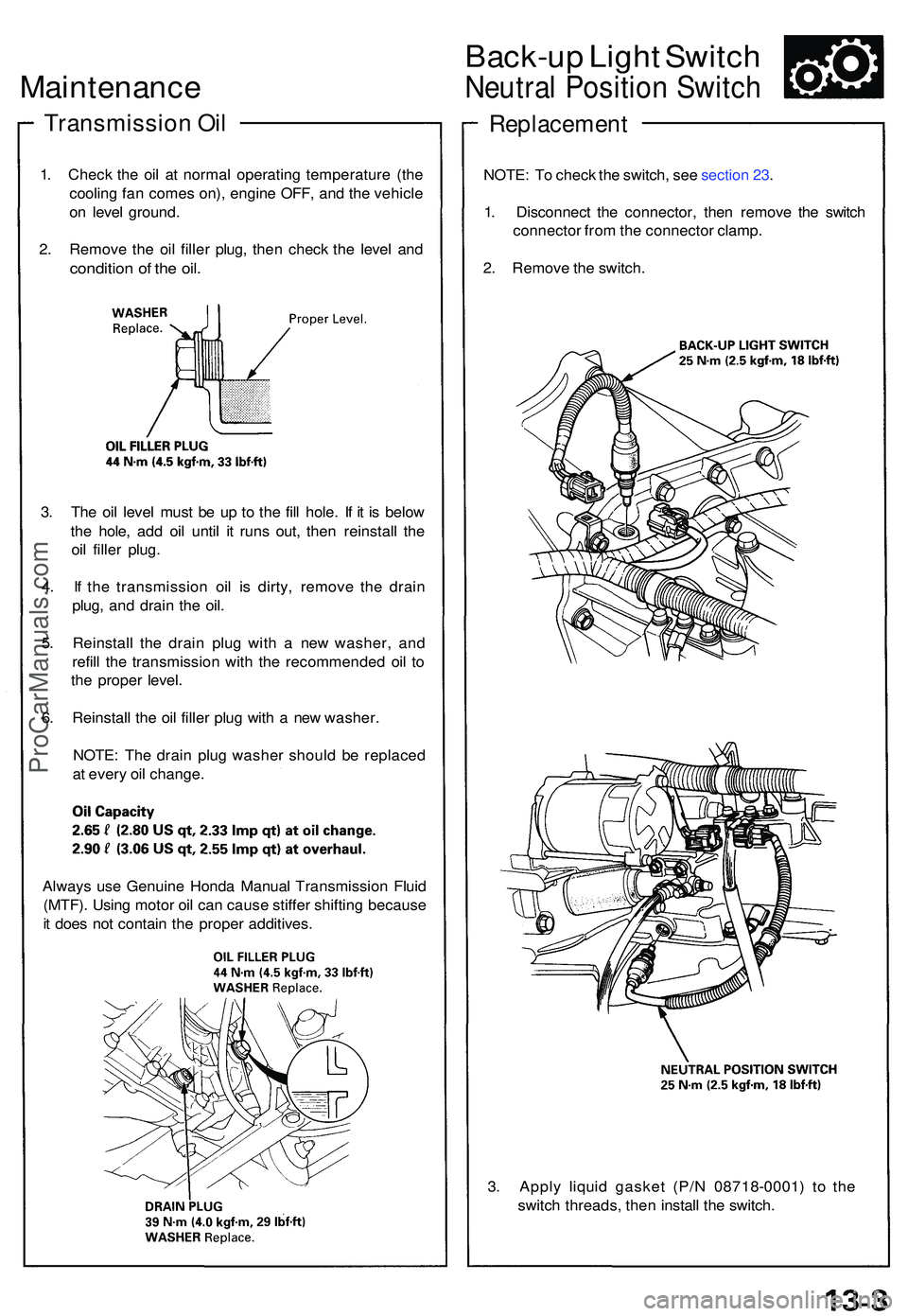

Maintenance
Transmissio n Oi l
1. Chec k th e oi l a t norma l operating temperatur e (th e
coolin g fa n come s on) , engin e OFF , an d th e vehicl e
o n leve l ground .
2 . Remov e th e oi l fille r plug , the n chec k th e leve l an d
conditio n o f th e oil .
3. Th e oi l leve l mus t b e u p t o th e fil l hole . I f i t i s belo w
th e hole , ad d oi l unti l i t run s out , the n reinstal l th e
oi l fille r plug .
4 . I f th e transmissio n oi l i s dirty , remov e th e drai n
plug , an d drai n th e oil .
5 . Reinstal l th e drai n plu g wit h a ne w washer , an d
refil l th e transmissio n wit h th e recommende d oi l t o
th e prope r level .
6 . Reinstal l th e oi l fille r plu g wit h a ne w washer .
NOTE : Th e drai n plu g washe r shoul d b e replace d
a t ever y oi l change .
Back-up Ligh t Switc h
Neutra l Positio n Switc h
Replacemen t
NOTE: T o chec k th e switch , se e sectio n 23 .
1 . Disconnec t th e connector , the n remov e th e switc h
connecto r fro m th e connecto r clamp .
2 . Remov e th e switch .
3 . Appl y liqui d gaske t (P/ N 0871 8-0001 ) t o th e
switc h threads , the n instal l th e switch .
Alway
s us e Genuin e Hond a Manua l Transmissio n Flui d
(MTF) . Usin g moto r oi l ca n caus e stiffe r shiftin g becaus e
i t doe s no t contai n th e prope r additives .
ProCarManuals.com
Page 653 of 1503
REVERSE LOCKOU T RELA YSee sectio n 2 3
Revers e Lockou t Syste m
Componen t Locatio n
ProCarManuals.com
Page 654 of 1503
Description
At a vehicle speed of 19 mph (30 km/h) or more, a signal from the vehicle speed sensor (VSS) activates the reverse lockout
solenoid, which causes the select lock pin to extend. As a result, the interlock cannot rotate to the reverse shift piece mak-
ing it impossible to select reverse gear.
At a vehicle speed of 16 mph (25 km/h) or less, the signal from the VSS is interrupted which turns off the reverse lockout
solenoid. The select lock return spring pulls the select lock pin back, enabling the interlock to move freely so that reverse
gear can be selected.ProCarManuals.com
Page 655 of 1503
Troubleshooting
(To pag e 13-8 )
Perfor m th e indicate d PGM-F Isystem troubleshootin g (se e sectio n 11 ).
Remov e th e revers e lockou t rela y
fro m th e under-hoo d rela y bo x A ,
an d tes t th e rela y ( sectio n 23 ).
ProCarManuals.com
Page 656 of 1503
Reverse Lockou t Syste m
Troubleshootin g (cont'd )
(From pag e 13-7 )
Measur e th e voltag e betwee n
ECM connecto r termina l A1 7 an dbod y ground . (Se e sectio n 1 1 fo rhow to us e th e Backprov e Sets. )
(T o pag e 13-9 )
