1997 ACURA NSX Service Repair Manual

Reassembly

NOTE:

• If the limited slip differential clutch set was replaced,

the 65 mm shim (differential housing cover side) and

1 1 2 mm shim (differential housing cover side) must

be adjusted.

• Reassemble the parts in the same order and direction

they were before disassembly.

• Lubricate the clutch disc surface with transmission oil.

1. Reassemble the parts as shown below. Position the

65 mm shim with the thickness stamp mark facing

up.

CLUTCH

PLATES
102 mm WASHER

CLUTCH

DISCS

112
mm SHIM

65 mm SHIM

THRUST NEEDLE

BEARING

WASHER

STOP PLATE

DIFFERENTIAL

HOUSINGProCarManuals.com

Differential
Reassembl y
2. Instal l th e carrie r assembly .
CARRIERASSEMBL Y
DIFFERENTIA L
HOUSING
3. Instal l th e fina l drive n gear . Alig n th e mar k o n th e
differentia l housin g cove r wit h th e mar k o n th e fina l
drive n gear .
FINAL DRIVE N GEA R
MARK
4. Instal l th e washers , thrus t needl e bearing , an d cen -
tra l gear .
CENTRA L GEA R
WASHER S THRUS
T NEEDL E
BEARIN G
• 6 5 m m shi m adjustmen t
5 .
Clean the gear end surface on the central gear.
6. Set the plastigauge (Blue) strip on the central gear
a t fou r point s i n a crisscros s pattern .
PLASTIGAUGE S
MAR K
ProCarManuals.com

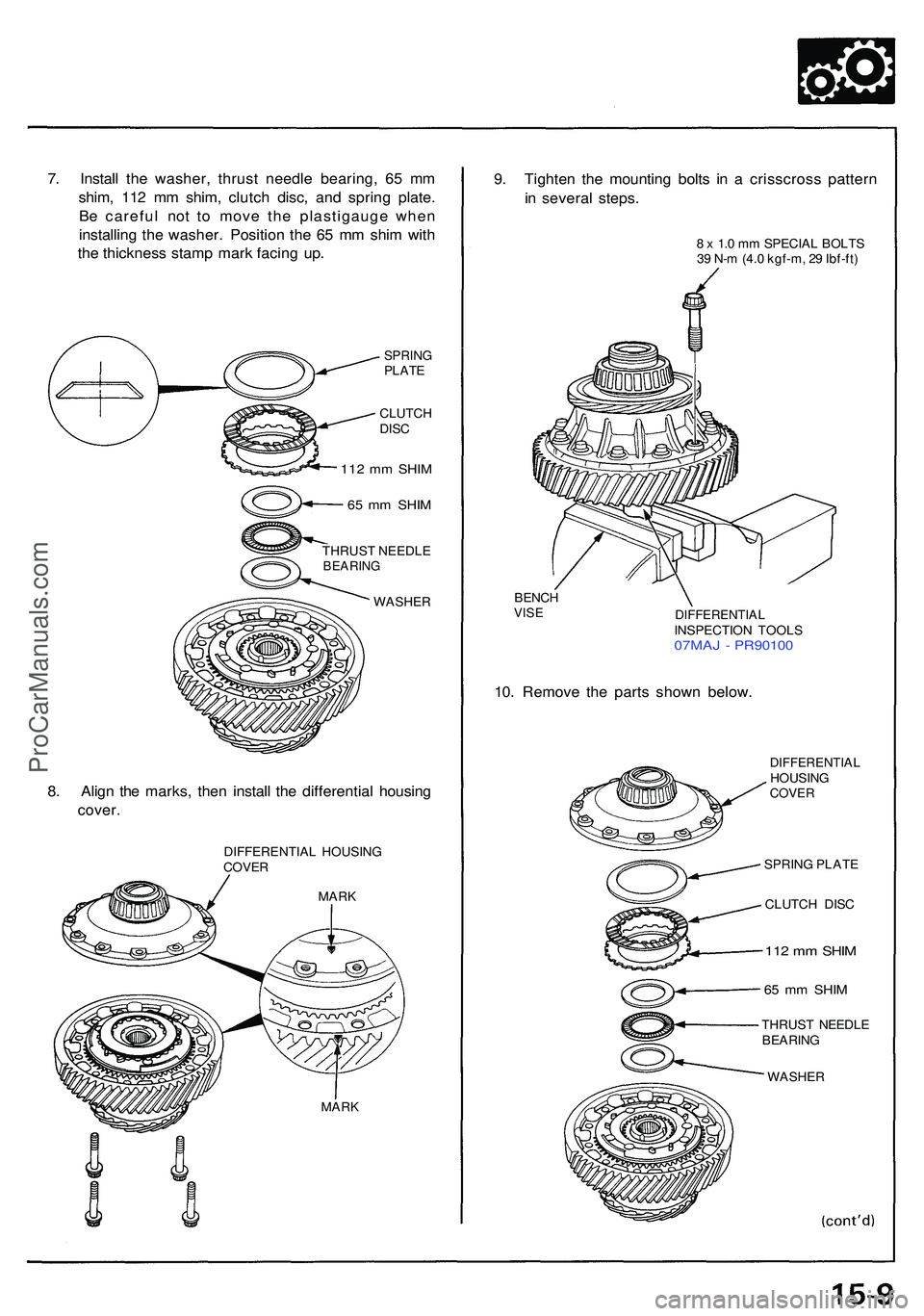

7. Instal l th e washer , thrus t needl e bearing , 6 5 m m
shim , 11 2 m m shim , clutc h disc , an d sprin g plate .
B e carefu l no t t o mov e th e plastigaug e whe n
installin g th e washer . Positio n th e 6 5 m m shi m wit h
th e thicknes s stam p mar k facin g up .
SPRIN GPLATE
CLUTC H
DIS C
112 m m SHI M
65 m m SHI M
THRUS T NEEDL EBEARIN G
WASHER
8. Alig n th e marks , the n instal l th e differentia l housin g
cover .
DIFFERENTIA L HOUSIN GCOVER
MARK
MARK
9. Tighte n th e mountin g bolt s i n a crisscros s patter n
i n severa l steps .
8 x 1. 0 m m SPECIA L BOLT S
3 9 N- m (4. 0 kgf-m , 2 9 Ibf-ft )
BENC H
VISEDIFFERENTIA LINSPECTION TOOL S07MAJ - PR9010 0
10. Remov e th e part s show n below .
DIFFERENTIA LHOUSINGCOVER
CLUTC H DIS C
112 m m SHI M
65 m m SHI M
THRUS T NEEDL E
BEARIN G
WASHE R
SPRING PLAT E
ProCarManuals.com

Differential

Reassembly

11. Measure the widest part of the plastigauge.

Standard:
0.18-0.229
mm

PLASTIGAUGE STRIP

• If the plastigauge measures within the standard,

go to step 14.

• If the plastigauge does not measure within the

standard, continue with step 12.

1 2. Select the proper 65 mm shim based on the follow-

ing table.

• If the measurement was less than 0.18 mm, in-

stall a thinner shim.

• If the measurement was more than 0.229 mm,

install a thicker shim.

65 mm shim

1 3. After installing a thinner or thicker shim, be sure to

recheck the measurement with plastigauge.
• After installing a thinner shim:

If the measured value is less than 0.18 mm, select

the next thinner shim, and recheck.

If the new value is more than 0.229 mm, the

selected shim is OK.

• After installing a thicker shim:

If the measured value is more than 0.229 mm,

select the next thicker shim, and recheck.

If the new value is less than 0.18 mm, take the

shim you chose at the step 12.

14. Install the washer, thrust needle bearing, 65 mm

shim, 112 mm shim, clutch plate, clutch disc, and

spring plate. Position the 65 mm shim with the

thickness stamp mark facing up.

SPRING

PLATE

CLUTCH

DISC

112 mm SHIM

65 mm SHIM

THRUST NEEDLE

BEARING

WASHER

1 5. Align the marks, then install the differential housing

cover.

DIFFERENTIAL HOUSING

COVER

MARK

MARKProCarManuals.com

16. Tighte n th e mountin g bolt s i n a crisscros s patter n
i n severa l steps .
8 x 1. 0 m m SPECIA L BOLT S
3 9 N- m (4. 0 kgf-m , 2 9 Ibf-ft )
BENC H
VIS E
DIFFERENTIAL
INSPECTIO N TOOL S
07MAJ-PR9010 0
17. Measur e th e prese t torqu e (se e pag e 15-4 ).
Standard : 59-13 7 N- m (6-1 4 kgf-m ,
43-10 1 Ibf-ft )
11 2 m m SHI M
Standard shi m
• I f th e prese t torqu e i s mor e tha n th e standard ,
selec t a thinne r 11 2 m m shim , an d rechec k th e
prese t torque .
• I f th e prese t torqu e i s les s tha n th e standard ,
selec t a thicke r 11 2 m m shim , an d rechec k th e
prese t torque .
ProCarManuals.com

Oil Seal

Removal

1. Remove the differential assembly.

2. Remove the oil seal from the transmission housing.

OIL SEAL

Replace.

TRANSMISSION HOUSING

3. Remove the oil seal from the clutch housing.

CLUTCH HOUSING
OIL SEAL

Replace.ProCarManuals.com

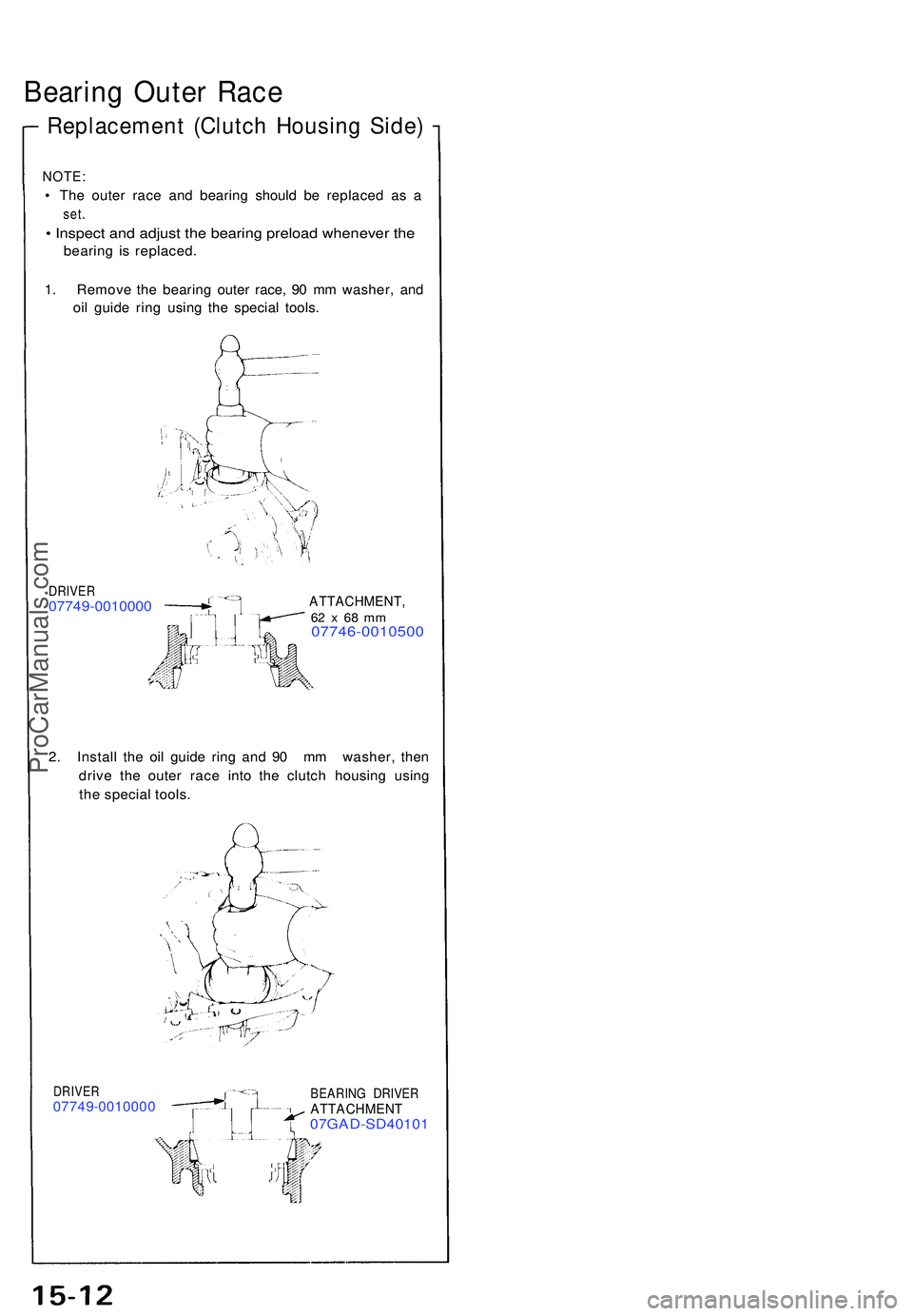

Bearing Oute r Rac e
Replacemen t (Clutc h Housin g Side )
NOTE :
• Th e oute r rac e an d bearin g shoul d b e replace d a s a
set .
• Inspect and adjust the bearing preload whenever the
bearin g i s replaced .
1 . Remov e th e bearin g oute r race , 9 0 m m washer , an d
oi l guid e rin g usin g th e specia l tools .
DRIVE R07749-0010000 ATTACHMENT ,62 x 68 m m07746-001050 0
2. Instal l th e oi l guid e rin g an d 9 0 mm washer , the n
driv e th e oute r rac e int o th e clutc h housin g usin g
th e specia l tools .
DRIVE R07749-0010000BEARIN G DRIVE RATTACHMEN T07GAD-SD4010 1
ProCarManuals.com

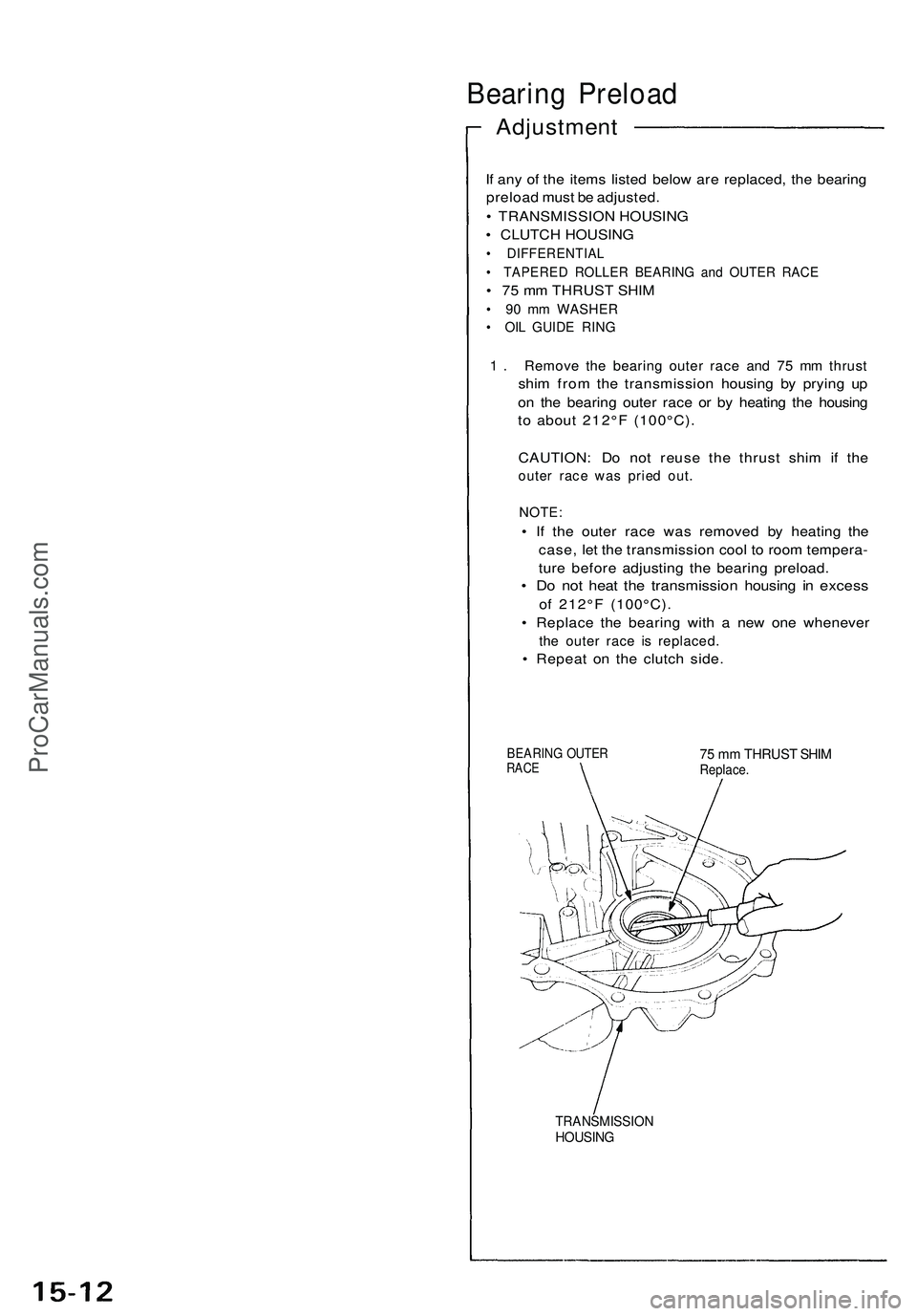

Bearing Preload

Adjustment

If any of the items listed below are replaced, the bearing

preload must be adjusted.

• TRANSMISSION HOUSING

• CLUTCH HOUSING

• DIFFERENTIAL

• TAPERED ROLLER BEARING and OUTER RACE

• 75 mm THRUST SHIM

• 90 mm WASHER

• OIL GUIDE RING

1 . Remove the bearing outer race and 75 mm thrust

shim from the transmission housing by prying up

on the bearing outer race or by heating the housing

to about 212°F (100°C).

CAUTION: Do not reuse the thrust shim if the

outer race was pried out.

NOTE:

• If the outer race was removed by heating the

case, let the transmission cool to room tempera-

ture before adjusting the bearing preload.

• Do not heat the transmission housing in excess

of 212°F (100°C).

• Replace the bearing with a new one whenever

the outer race is replaced.

• Repeat on the clutch side.

BEARING OUTER

RACE
75 mm THRUST SHIM

Replace.

TRANSMISSION

HOUSINGProCarManuals.com
