Page 129 of 1503

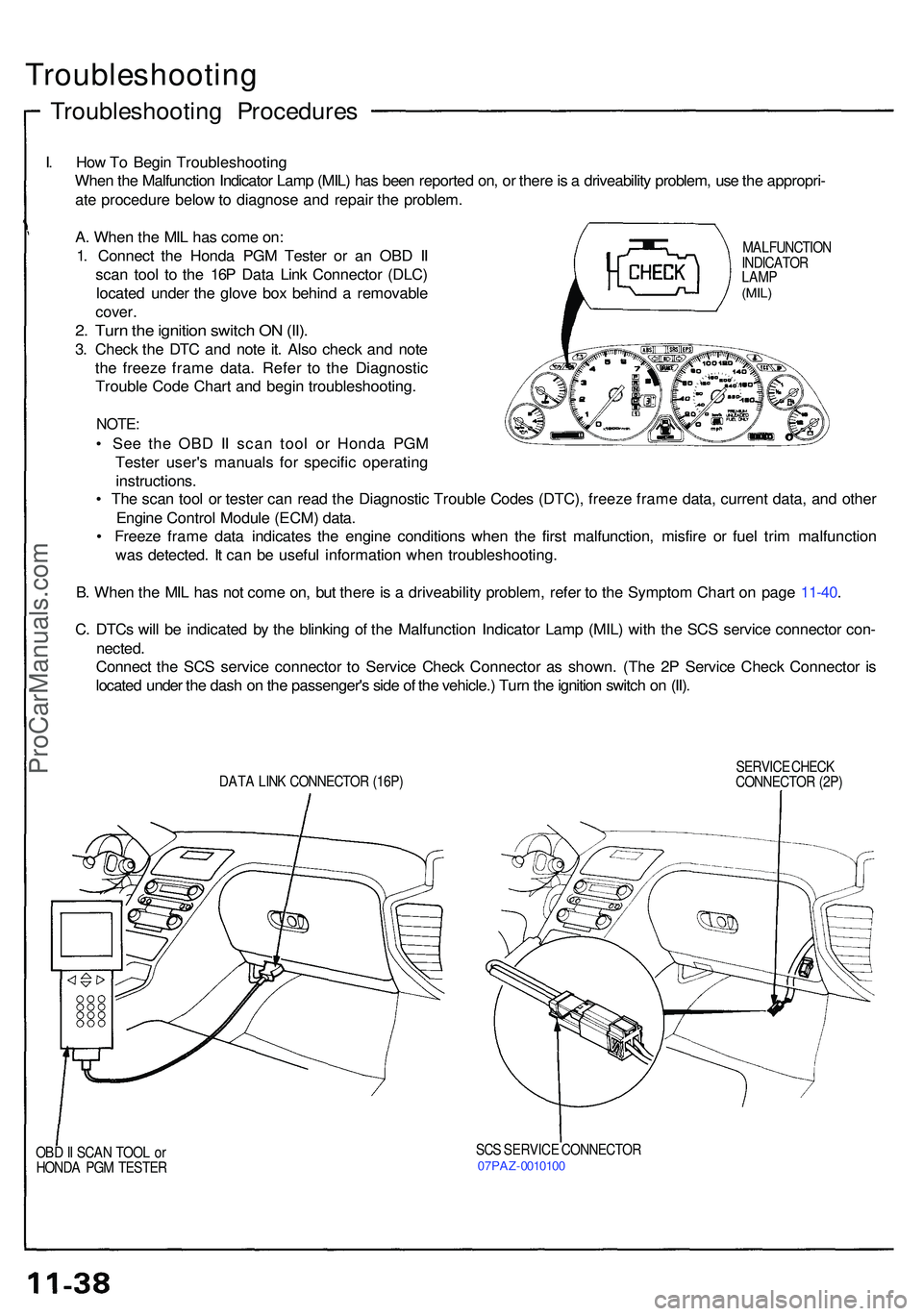

Troubleshooting
Troubleshooting Procedure s
I. Ho w T o Begi n Troubleshootin g
Whe n th e Malfunctio n Indicato r Lam p (MIL ) ha s bee n reporte d on , o r ther e is a driveabilit y problem , us e th e appropri -
at e procedur e belo w to diagnos e an d repai r th e problem .
MALFUNCTIO N
INDICATO R
LAM P
(MIL)
A. Whe n th e MI L ha s com e on :
1 . Connec t th e Hond a PG M Teste r o r a n OB D II
sca n too l t o th e 16 P Dat a Lin k Connecto r (DLC )
locate d unde r th e glov e bo x behin d a removabl e
cover.
2. Tur n th e ignitio n switc h O N (II) .
3. Chec k th e DT C an d not e it . Als o chec k an d not e
th e freez e fram e data . Refe r t o th e Diagnosti c
Troubl e Cod e Char t an d begi n troubleshooting .
NOTE:
• Se e th e OB D I I sca n too l o r Hond a PG M
Teste r user' s manual s fo r specifi c operatin g
instructions .
• Th e sca n too l o r teste r ca n rea d th e Diagnosti c Troubl e Code s (DTC) , freez e fram e data , curren t data , an d othe r
Engin e Contro l Modul e (ECM ) data .
• Freez e fram e dat a indicate s th e engin e condition s whe n th e firs t malfunction , misfir e o r fue l tri m malfunctio n
wa s detected . I t can be usefu l informatio n whe n troubleshooting .
B . Whe n th e MI L ha s no t com e on , bu t ther e is a driveabilit y problem , refe r t o th e Sympto m Char t o n pag e 11-40 .
C . DTC s wil l b e indicate d b y th e blinkin g o f th e Malfunctio n Indicato r Lam p (MIL ) wit h th e SC S servic e connecto r con -
nected .
Connec t th e SC S servic e connecto r t o Servic e Chec k Connecto r a s shown . (Th e 2 P Servic e Chec k Connecto r i s
locate d unde r th e das h o n th e passenger' s sid e o f th e vehicle. ) Tur n th e ignitio n switc h o n (II) .
DAT A LIN K CONNECTO R (16P ) SERVIC
E CHEC K
CONNECTO R (2P )
OB D II SCA N TOO L o r
HOND A PG M TESTE R SC
S SERVIC E CONNECTO R
07PAZ-001010 0
ProCarManuals.com
Page 130 of 1503

II. Engine Control Module (ECM) Reset Procedure
Either of the following actions, will reset the ECM.
• Using the OBD II scan tool or Honda PGM Tester to clear the ECM's memory.
NOTE: See the OBD II scan tool or Honda PGM Tester user's manuals for specific operating instructions.
• Turn the ignition switch OFF. Remove the CLOCK (7.5 A) fuse from the under-hood fuse/relay box for 10 seconds.
NOTE: If the CLOCK (7.5 A) fuse is removed when the ignition switch is in the ON (II) position, the MIL will come
on and the ECM will store a DTC.
UNDER-HOOD
FUSE/RELAY BOX
CLOCK
(7.5 A) FUSE
III. Final Procedure (this procedure must be done after any troubleshooting)
1. Remove the SCS Service Connector if it is connected. If the SCS service connector is connected and there are no
DTCs stored in the ECM, the MIL will stay on when the ignition switch is turned on.
2. Do the ECM Reset Procedure.
3. Turn the ignition switch OFF.
4. Disconnect the OBD II scan tool or Honda PGM Tester from the Data Link Connector (16P).
IV. Known-Good ECM Substitution
The ECM is part of the immobilizer system. If you substitute a known-good ECM, the ECM will have a different immo-
bilizer code. In order for the engine to start, you must rewrite the immobilizer code with the Honda PGM Tester.ProCarManuals.com
Page 131 of 1503
Troubleshooting
Troubleshootin g Procedure s (cont'd )
Sympto m Char t
Listed belo w ar e symptom s an d probabl e cause s fo r problem s tha t d o no t caus e th e Malfunctio n Indicato r Lam p (MIL ) t o
com e on .
I f th e MI L wa s reporte d on , g o t o pag e 11-38 .
Troubleshoo t eac h probabl e caus e in th e orde r liste d (fro m lef t t o right ) unti l th e sympto m is eliminated .
The probabl e caus e an d troubleshootin g pag e referenc e ca n b e foun d o n th e nex t page .
Othe r Probabl e Causes :
Engine wil l no t star t
— Compressio n
— Engin e locke d u p
— Timin g bel t
— Startin g syste m
— Overheatin g
— Batter y
ProCarManuals.com
Page 132 of 1503
Probable Caus e Lis t (Fo r th e DT C chart , se e pag e 11-52 .)
Sectio n 2 3
11-5 8
See DTC chart
ProCarManuals.com
Page 133 of 1503
Troubleshooting
Engine Control Module Terminal Arrangement
ECM CONNECTOR A (26P)
ECM CONNECTOR A (26P)
Wire side of female terminals
NOTE: Standard battery voltage is 12 V.ProCarManuals.com
Page 134 of 1503
ECM CONNECTOR B (16P)
Wire side of female terminals
NOTE: Standard battery voltage is 12 V.
*: M/T
ECM CONNECTOR B (16P)ProCarManuals.com
Page 135 of 1503

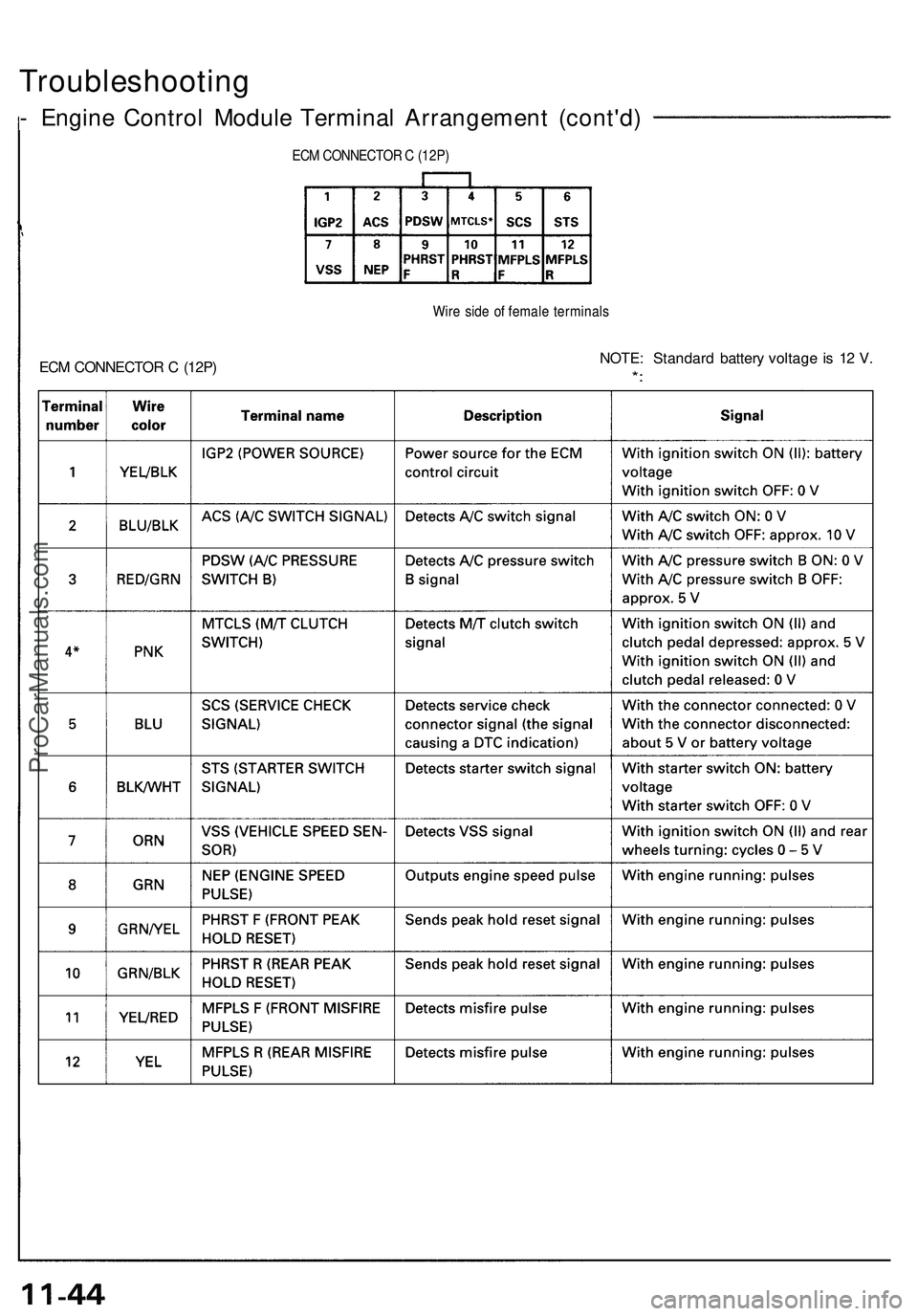

Troubleshooting
- Engin e Contro l Modul e Termina l Arrangemen t (cont'd )
ECM CONNECTO R C (12P )
Wir e sid e o f femal e terminal s
ECM CONNECTO R C (12P ) NOTE
: Standar d batter y voltag e i s 1 2 V .*:
ProCarManuals.com
Page 136 of 1503
ECM CONNECTO R D (22P )
ECM CONNECTO R D (22P) Wir
e sid e o f femal e terminal s
NOTE : Standar d batter y voltag e is 1 2 V .
