Page 497 of 1503

BEARING CA P
BRIDG E
CAP BRIDG E BOL T
11 x 1. 5 m m65 N- m (6. 6 kgf-m ,
4 8 Ibf-ft )
SID E BOL T
10 x 1.2 5 m m49 N- m (5. 0 kgf-m ,
3 6 Ibf-ft ) CA
P BOL T
9 x 1.2 5 mm39 N- m (4. 0 kgf-m ,
2 9 Ibf-ft )
8. Appl y liqui d gaske t t o th e bloc k matin g surfac e o f
the lef t sid e cove r an d oi l pum p case , an d instal l
them o n th e engine block.
NOTE : Th e sea l surfac e o n th e bloc k shoul d b e
dry . Appl y a ligh t coa t o f oi l t o th e crankshaf t an d
t o th e li p o f seal .
LEF T SIDE :
Apply liqui dgaske t t o bloc kmatin g surface .
LEFT SID E COVE R
SPECIA L BOLT S6 x 1. 0 m m12 N- m (1. 2 kgf-m ,8.7 Ibf-ft )Replace .
OIL PUM P SIDE :
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
BAFFL E PLAT E OI
L SCREE N
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
OI L PAS S
PIPE
OIL PUM PApply liqui dgaske t t o bloc k
matin g surfaces .
NOTE:
SPECIA L BOLT S6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
Replace .
SPECIAL BOLT S8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft )
Replace .
• Us e liqui d gasket . Par t No . 0871 8-000 1 o r 0871 8
- 0003 .
• Chec k tha t th e matin g surface s ar e clea n an d
dry befor e applyin g liqui d gasket .
• Appl y liqui d gaske t evenly , bein g carefu l t o cove r
all o f th e matin g surface .
• T o preven t leakag e o f oil , appl y liqui d gaske t t o
th e inne r thread s o f th e bol t holes .
DOWE L PI N
DOWE L PI N
ProCarManuals.com
Page 498 of 1503
Crankshaft
Installation (cont'd )
LEFTSIDE COVE R
Apply liqui d gaske talong th e broke n line .
OIL PUM PApply liqui d gaske t
alon g th e broke n line .
• D o no t instal l th e part s i f fiv e minute s o r mor e
hav e elapse d sinc e applyin g liqui d gasket .
Instea d reappl y liqui d gaske t afte r removin g ol d
residue .
• Afte r assembly , wai t a t leas t 2 0 minute s befor e
filling th e engin e wit h oil .
9. Instal l th e oi l pas s pip e an d joint .
10 . Instal l th e baffl e plate .
11 . Instal l th e oi l screen .
12 . Instal l th e oi l pa n (se e pag e 8-10 ).
CAUTION : Wheneve r an y crankshaf t o r connec -
tin g ro d bearin g i s replaced , afte r reassembly , ru n
th e engin e a t idlin g spee d unti l i t reache s norma l
operatin g temperature , the n continu e t o ru n fo r
approximatel y 1 5 minutes .
ProCarManuals.com
Page 499 of 1503
Special Tool s
8-9
8- 5
ProCarManuals.com
Page 500 of 1503
Engine Lubricatio n
Illustrated Index
NOTE:
• Us e ne w O-ring s whe n reassembling .
• Appl y oi l t o O-ring s befor e installation .
• Us e liqui d gasket , Par t No . 0871 8-000 1 o r 0871 8-
0003 .
• I f th e botto m o f th e oi l pa n i s deformed , i t shoul d b e
repaire d o r th e oi l pa n shoul d b e replace d t o retai n
prope r clearanc e betwee n th e scree n an d th e bottom .
OIL CONTRO L ORIFIC ERemove wit h 6 m m
bol t an d clean .
O-RIN GReplace .
OIL FILTE R BAS EIllustrate d Index ,
pag e 8-1 2
OIL FILTE ROne tur n o r22 N- m (2. 2 kgf-m ,16 Ibf-ft )Replacemen t 8- 5
OI L PUM P
Illustrate d index , pag e 8- 7
Inspection , pag e 8 -8
Appl y liqui d gaske t t o
matin g surfac e o f engin e block .
OIL PA N GASKE TReplace.
OIL PA N• D o no t defor m
th e bottom .
• Refe r t o pag e 8-1 0whe n installing .
ProCarManuals.com
Page 501 of 1503

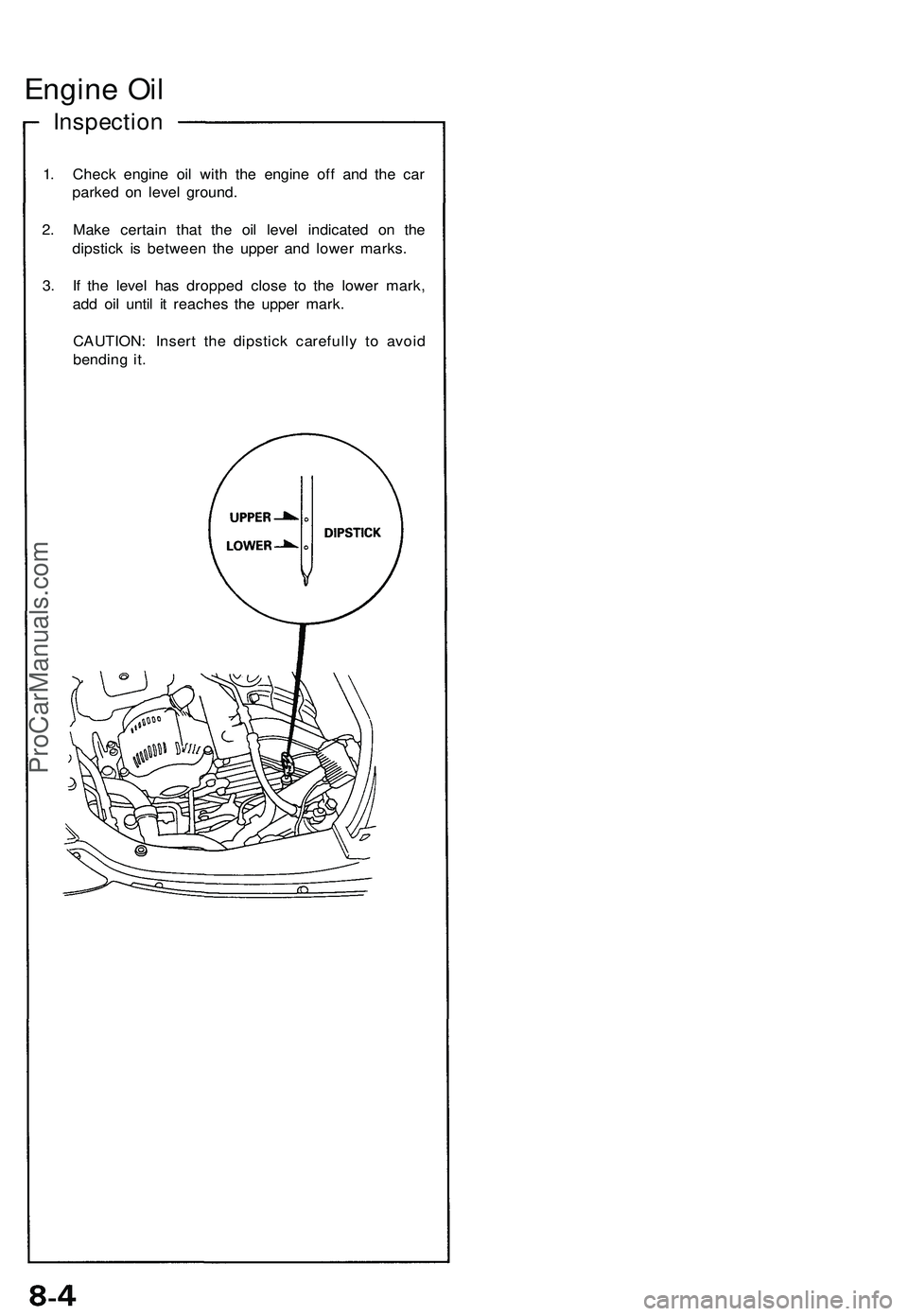

Engine Oil
Inspection
1. Check engine oil with the engine off and the car
parked on level ground.
2. Make certain that the oil level indicated on the
dipstick is between the upper and lower marks.
3. If the level has dropped close to the lower mark,
add oil until it reaches the upper mark.
CAUTION: Insert the dipstick carefully to avoid
bending it.ProCarManuals.com
Page 502 of 1503
Replacement
CAUTION: Remove the drain plug carefully while the en-
gine is hot, the hot oil may cause scalding.
1. Warm up the engine.
2. Drain the engine oil.
3. Reinstall the drain plug with a new washer, and refill
with the recommended oil.
NOTE: Under normal conditions, the oil filter should be
replaced at every other oil change. Under severe condi-
tions, the oil filter should be replaced at each oil change.ProCarManuals.com
Page 503 of 1503
The number s i n th e middl e o f th e AP I Servic e labe l tel l
yo u th e oil' s SA E viscosit y o r weight . Selec t th e oi l fo r
you r vehicl e accordin g t o thi s chart :
A n oi l wit h a viscosit y o f 10 W-3 0 i s preferre d fo r
improve d fue l econom y an d year-roun d protection in th e
vehicle .
Yo u ma y us e a 5 W-3 0 oi l i f th e climat e i n you r are a i s
limite d t o th e temperatur e rang e show n o n th e chart .
4 . Fil l th e engin e wit h oi l u p t o th e specifie d level , ru n
th e engin e fo r mor e tha n thre e minutes , the n chec k
for oi l leakag e an d oi l level .
ProCarManuals.com
Page 504 of 1503
Oil Filte r
Replacemen t
CAUTION: Loose n th e oi l filte r carefull y whil e th e
engin e is hot , the hot oi l ma y cause scalding .
1 . Remov e th e oi l filte r wit h th e specia l too l a s shown .
OIL FILTE R WRENC H07912-611000 1Torque: On e tur n(22 N- m (2. 2 kgf-m , 1 6 Ibf-ft) )
2. Inspec t th e thread s an d rubbe r sea l o n th e ne w filter .
Wip e of f th e sea t o n oi l filte r base , the n appl y a ligh t
coa t o f oi l t o th e rubber seal an d instal l th e filter .
3 . Afte r th e rubbe r sea l i s seate d agains t th e base ,
tighte n th e oi l filte r b y turnin g i t approximatel y on e
turn .
Torque : On e tur n (2 2 N- m (2. 2 kgf-m , 1 6 Ibf-ft) )
4 . Star t th e engine , an d chec k th e filte r fo r oi l leakage .
