1997 ACURA NSX Service Repair Manual

Bearing Preloa d
Adjustmen t (cont'd )
6. Measur e th e startin g torqu e o f th e differentia l
assembl y wit h a specia l too l an d a torqu e wrench .
Measur e th e bearin g preloa d a t norma l roo m tem -
peratur e in bot h directions .
Standard: 3. 3 - 4. 5 N- m (3 3 - 4 5 kgf-cm ,
29 - 3 9 Ibf-in )
TORQU E WRENC H
DIFFERENTIA L
INSPECTIO N TOOL S
07MAJ - PR90100
7. I f th e bearin g preloa d i s no t withi n th e standard ,
selec t
the shi m tha t will giv e you th e correc t
preload , an d recheck .
Changin g
one o f th e shim s to th e nex t size will
increas e o r decreas e preloa d abou t 0. 3 - 0. 4 N- m (3
- 4 kgf-cm , 2.6 0 - 3.4 7 Ibf-in )
ProCarManuals.com

Oil Seal
Installation
1. Instal l th e oi l sea l int o th e transmissio n housin g
usin g th e specia l tools .
DRIVE R07749 - 001000 0OIL SEA LReplace .BEARINGDRIVER ATTACHMEN T07965 - SA0060 0
PILOT, 3 2 x 50 m m
07MA D - PR9020 0
2. Instal l th e oi l sea l int o th e torqu e converte r housin g
using th e specia l tools .
DRIVE R07749-001000 0
SEAL DRIVE RATTACHMEN T
0794 7 - SD9010 0 o r
07947-SD9010 1
OIL SEA LReplace .
PILOT, 3 2 x 50 m m07MAD-PR9020 0
ProCarManuals.com

Special Tool s
16-13 , 16-14 , 16 , 1 7
16-1 6
16-1 6
16-16
16-1 7
16-1 4
16-14 , 16-16 , 16-1 7
ProCarManuals.com

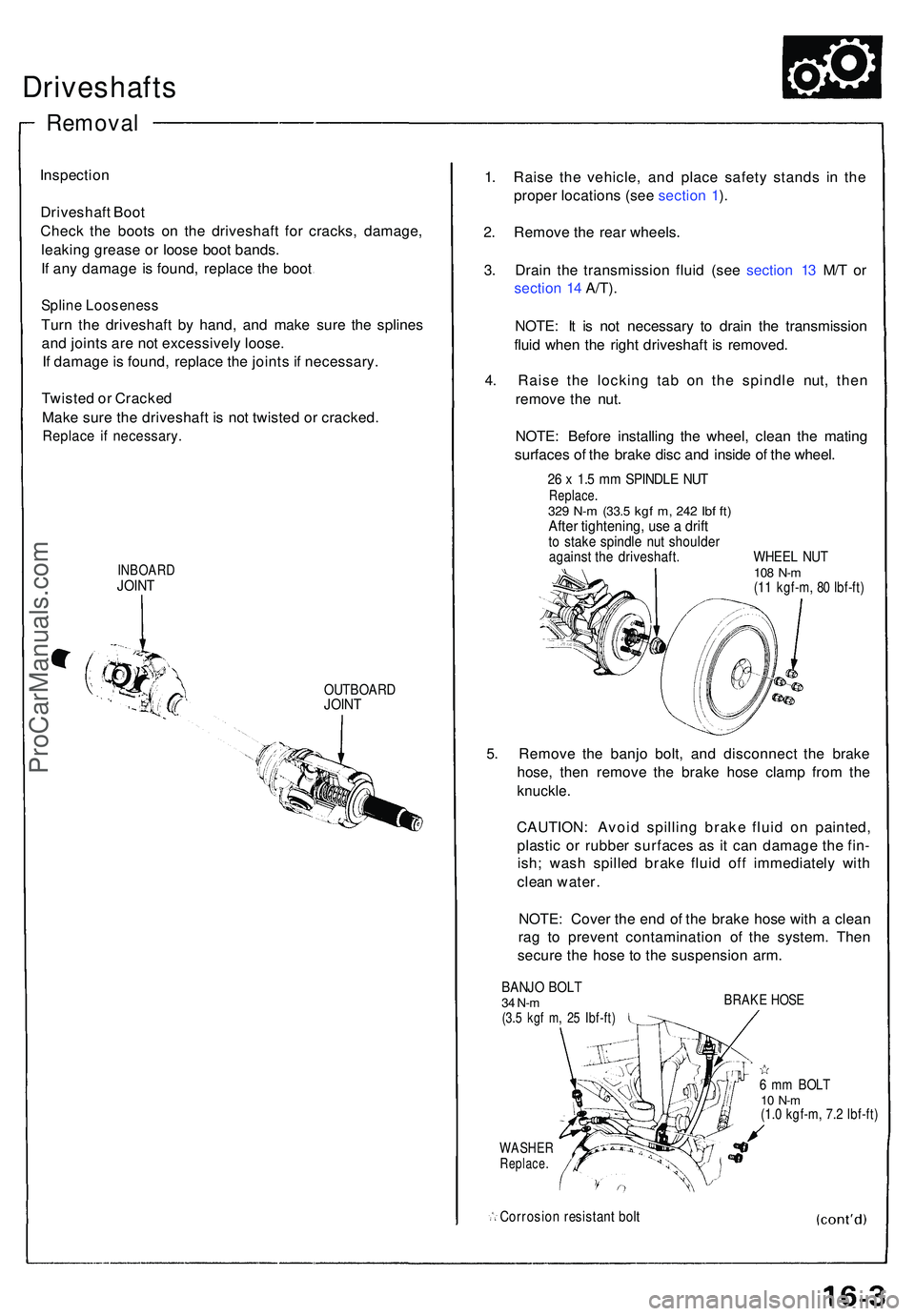

Driveshafts
Inspection
Driveshaf t Boo t
Chec k th e boot s o n th e driveshaf t fo r cracks , damage ,
leakin g greas e o r loos e boo t bands .
I f an y damag e i s found , replac e th e boo t
Splin e Loosenes s
Turn th e driveshaf t b y hand , an d mak e sur e th e spline s
an d joint s ar e no t excessivel y loose .
I f damag e is found , replac e th e joint s i f necessary .
Twiste d o r Cracked
Mak e sur e th e driveshaf t i s not twiste d o r cracked .
Replace i f necessary .
INBOARDJOINT
OUTBOAR DJOINT
1. Rais e th e vehicle , an d plac e safet y stand s i n th e
prope r location s (se e sectio n 1 ).
2 . Remov e th e rea r wheels .
3 . Drai n th e transmissio n flui d (se e sectio n 1 3 M/ T o r
sectio n 1 4 A/T) .
NOTE : I t i s no t necessar y t o drai n th e transmissio n
flui d whe n th e righ t driveshaf t i s removed .
4 . Rais e th e lockin g ta b o n th e spindl e nut , the n
remov e th e nut .
NOTE : Befor e installin g th e wheel , clea n th e matin g
surface s o f th e brak e dis c an d insid e o f th e wheel .
26 x 1. 5 m m SPINDL E NU TReplace .329 N- m (33. 5 kgf m , 24 2 Ib f ft )Afte r tightening , us e a drif tto stak e spindl e nu t shoulde ragainst th e driveshaft . WHEE L NU T108 N- m(11 kgf-m , 8 0 Ibf-ft )
5. Remov e th e banj o bolt , an d disconnec t th e brak e
hose , the n remov e th e brak e hos e clam p fro m th e
knuckle .
CAUTION : Avoi d spillin g brak e flui d o n painted ,
plasti c o r rubbe r surface s a s i t ca n damag e th e fin -
ish ; was h spille d brak e flui d of f immediatel y wit h
clea n water .
NOTE : Cove r th e en d o f th e brak e hos e wit h a clea n
ra g t o preven t contaminatio n o f th e system . The n
secur e th e hos e t o th e suspensio n arm .
BANJ O BOL T34 N-m(3.5 kg f m , 2 5 Ibf-ft )
WASHE RReplace .
Corrosio n resistan t bol t
BRAK E HOS E
6 m m BOL T10 N- m(1.0 kgf-m , 7. 2 Ibf-ft )
Remova l
ProCarManuals.com

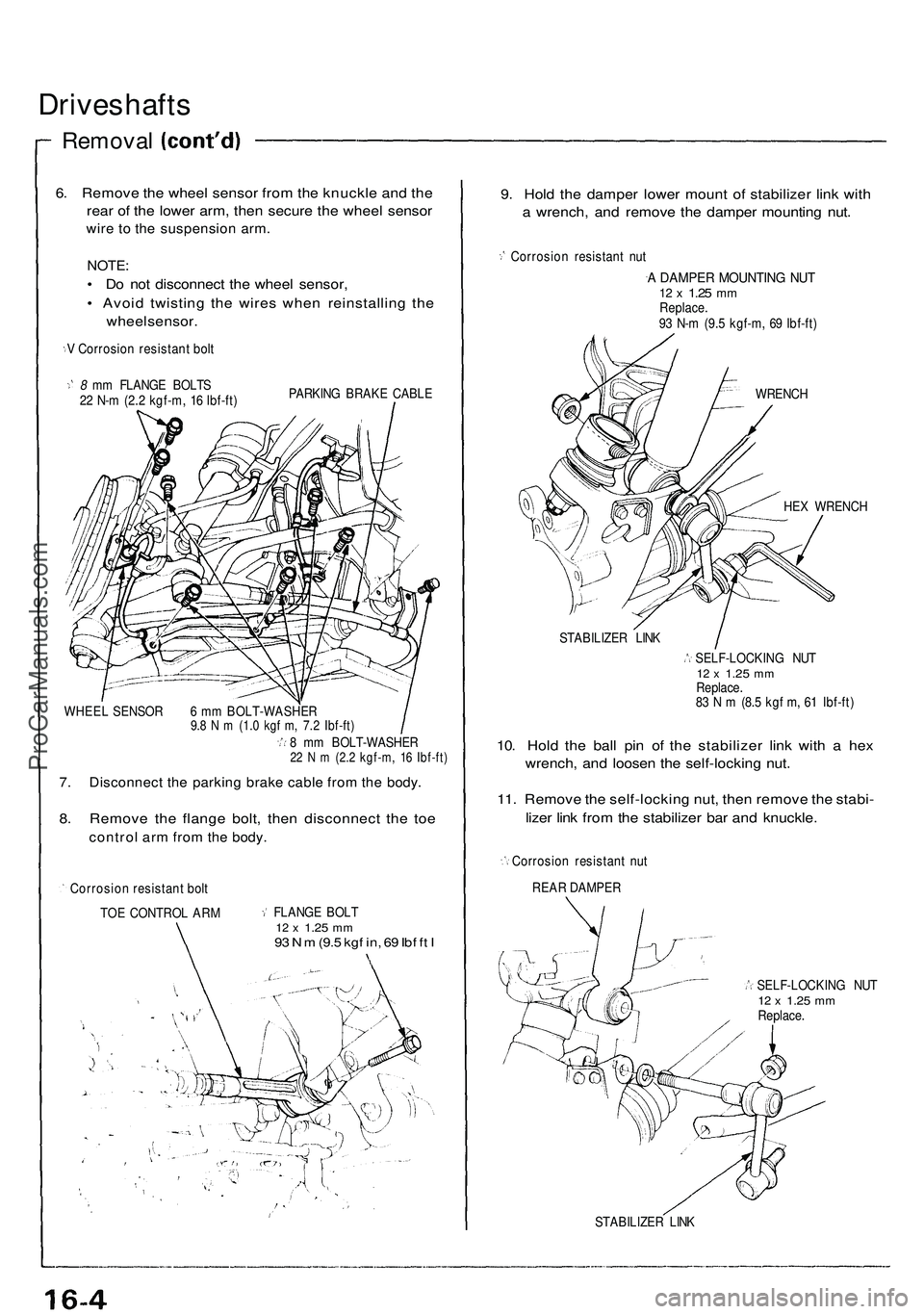

Driveshafts

Removal

6. Remove the wheel sensor from the knuckle and the

rear of the lower arm, then secure the wheel sensor

wire to the suspension arm.

NOTE:

• Do not disconnect the wheel sensor,

• Avoid twisting the wires when reinstalling the

wheel sensor.

V Corrosion resistant bolt

8 mm FLANGE BOLTS

22 N-m (2.2 kgf-m, 16 Ibf-ft)
PARKING BRAKE CABLE

WHEEL SENSOR 6 mm BOLT-WASHER

9.8 N m (1.0 kgf m, 7.2 Ibf-ft)

8 mm BOLT-WASHER

22 N m (2.2 kgf-m, 16 Ibf-ft)

7. Disconnect the parking brake cable from the body.

8. Remove the flange bolt, then disconnect the toe

control arm from the body.

Corrosion resistant bolt

TOE CONTROL ARM
FLANGE BOLT

12 x
1.25
mm

93 N m
(9.5
kgf in, 69 Ibf ft I
9. Hold the damper lower mount of stabilizer link with

a wrench, and remove the damper mounting nut.

Corrosion resistant nut

A DAMPER MOUNTING NUT

12 x
1.25
mm

Replace.

93 N-m (9.5 kgf-m, 69 Ibf-ft)

WRENCH

HEX WRENCH

STABILIZER LINK

SELF-LOCKING NUT

12 x
1.25
mm

Replace.

83 N m (8.5 kgf m, 61 Ibf-ft)

10. Hold the ball pin of the stabilizer link with a hex

wrench, and loosen the self-locking nut.

11. Remove the self-locking nut, then remove the stabi-

lizer link from the stabilizer bar and knuckle.

Corrosion resistant nut

REAR DAMPER

SELF-LOCKING NUT

12 x
1.25
mm

Replace.

STABILIZER LINKProCarManuals.com

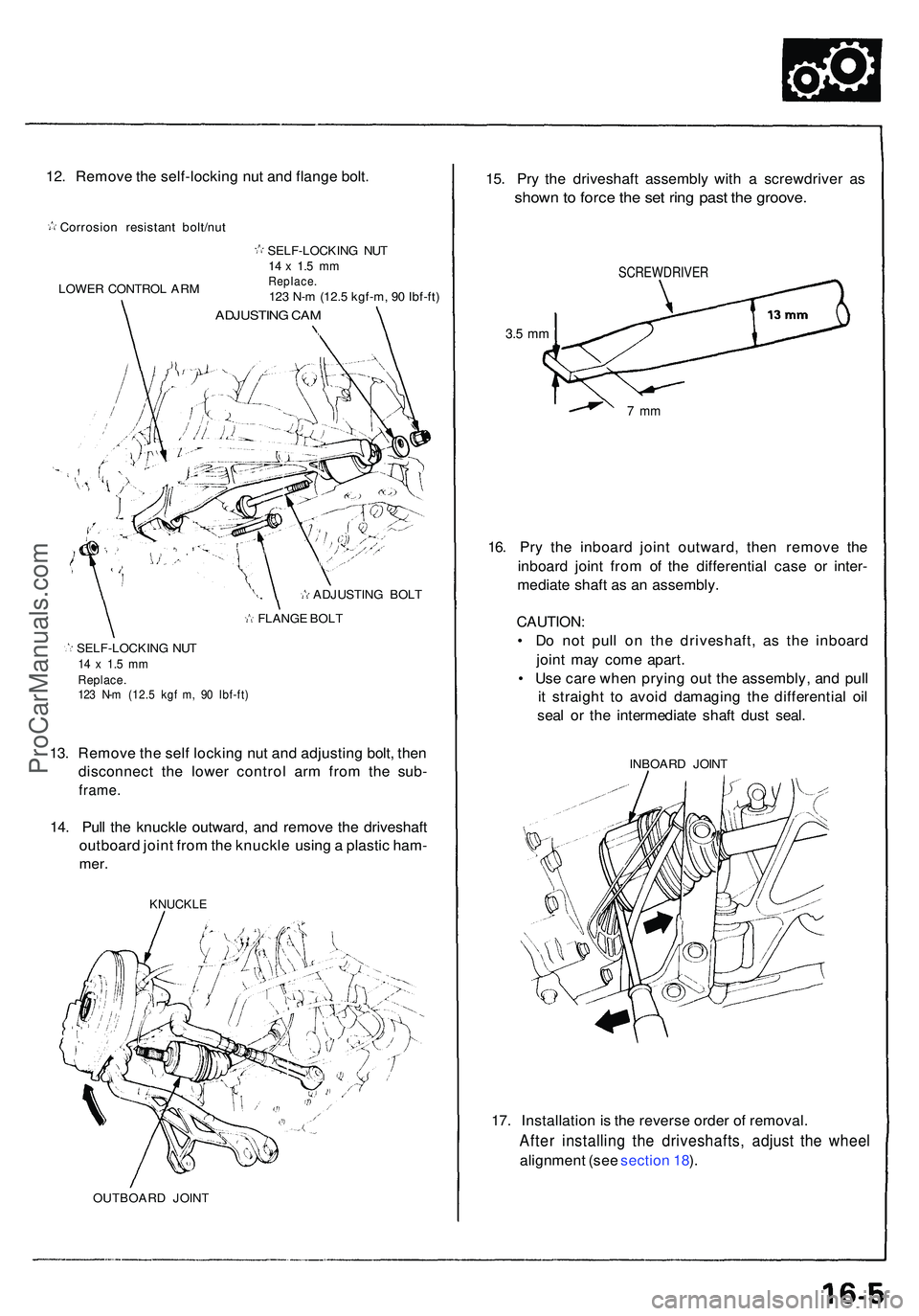

12. Remov e th e self-lockin g nu t an d flang e bolt .
Corrosio n resistan t bolt/nu t
LOWE R CONTRO L AR M SELF-LOCKIN
G NU T
14 x 1. 5 m mReplace .123 N- m (12. 5 kgf-m , 9 0 Ibf-ft )
ADJUSTIN G CA M
ADJUSTIN G BOL T
FLANG E BOL T
SELF-LOCKIN G NU T
14 x 1. 5 m mReplace .123 N- m (12. 5 kg f m , 9 0 Ibf-ft )
13. Remov e th e sel f lockin g nu t an d adjustin g bolt , the n
disconnec t th e lowe r contro l ar m fro m th e sub -
frame .
14. Pul l th e knuckl e outward , an d remov e th e driveshaf t
outboar d join t fro m th e knuckl e usin g a plasti c ham -
mer.
KNUCKL E
OUTBOAR D JOIN T
15. Pr y th e driveshaf t assembl y wit h a screwdrive r a s
show n to forc e th e se t rin g pas t th e groove .
SCREWDRIVE R
3.5 m m
7 m m
16. Pr y th e inboar d join t outward , the n remov e th e
inboar d join t fro m o f th e differentia l cas e o r inter -
mediat e shaf t a s a n assembly .
CAUTION :
• D o no t pul l o n th e driveshaft , a s th e inboar d
join t ma y com e apart .
• Us e car e whe n pryin g ou t th e assembly , an d pul l
i t straigh t t o avoi d damagin g th e differentia l oi l
sea l o r th e intermediat e shaf t dus t seal .
INBOAR D JOIN T
17. Installatio n is th e revers e orde r o f removal .
After installin g th e driveshafts , adjus t th e whee l
alignmen t (se e sectio n 18 ).
ProCarManuals.com

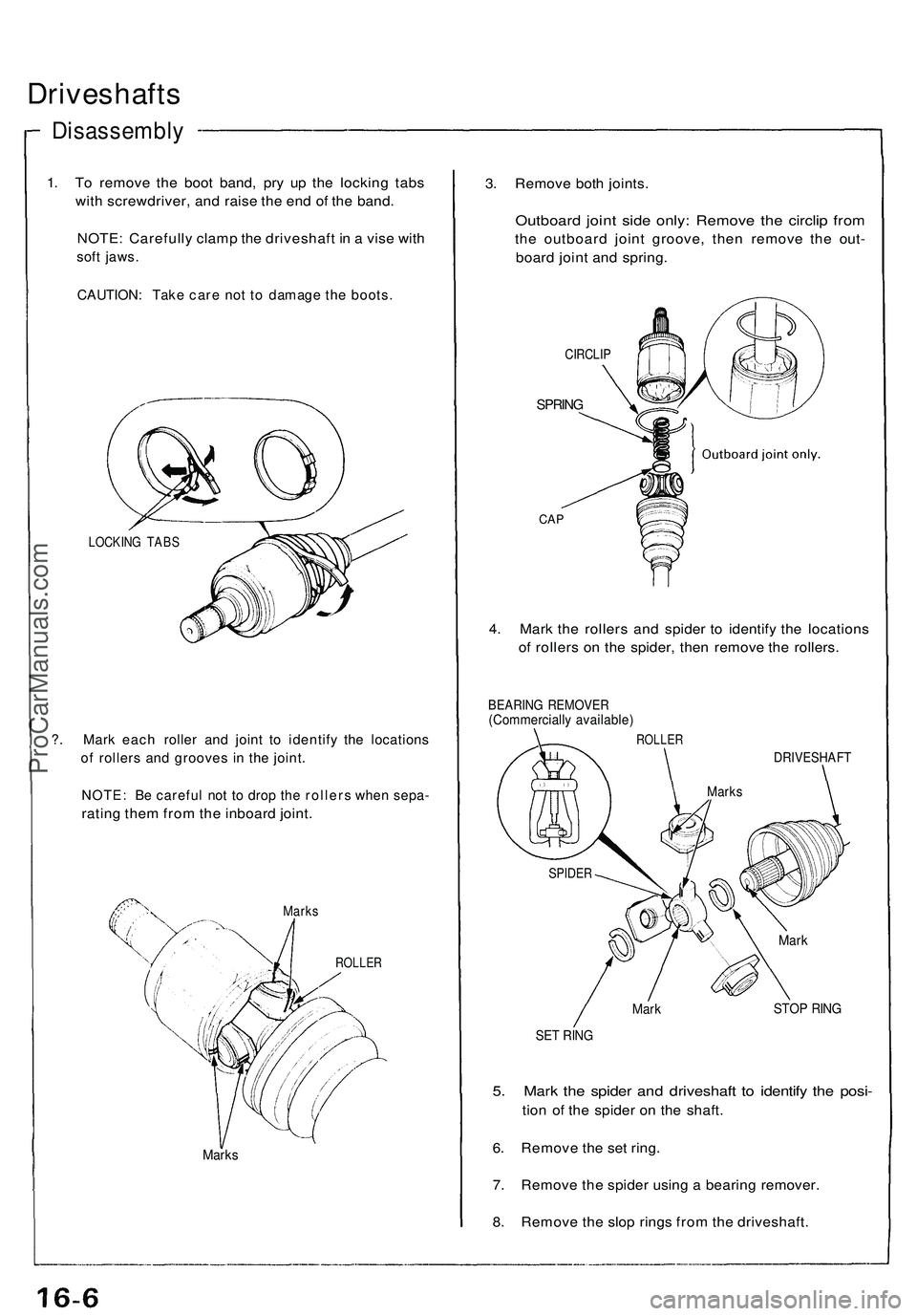

Driveshafts

Disassembly

1. To remove the boot band, pry up the locking tabs

with screwdriver, and raise the end of the band.

NOTE: Carefully clamp the driveshaft in a vise with

soft jaws.

CAUTION: Take care not to damage the boots.

LOCKING TABS

?. Mark each roller and joint to identify the locations

of rollers and grooves in the joint.

NOTE: Be careful not to drop the rollers when sepa-

rating them from the inboard joint.

Marks

ROLLER

Marks
3. Remove both joints.

Outboard joint side only: Remove the circlip from

the outboard joint groove, then remove the out-

board joint and spring.

CIRCLIP

SPRING

CAP

4. Mark the rollers and spider to identify the locations

of rollers on the spider, then remove the rollers.

BEARING REMOVER

(Commercially available)

ROLLER

DRIVESHAFT

Mark
STOP RING

SET RING

5. Mark the spider and driveshaft to identify the posi-

tion of the spider on the shaft.

6. Remove the set ring.

7. Remove the spider using a bearing remover.

8. Remove the slop rings from the driveshaft.
SPIDER
Marks

MarkProCarManuals.com

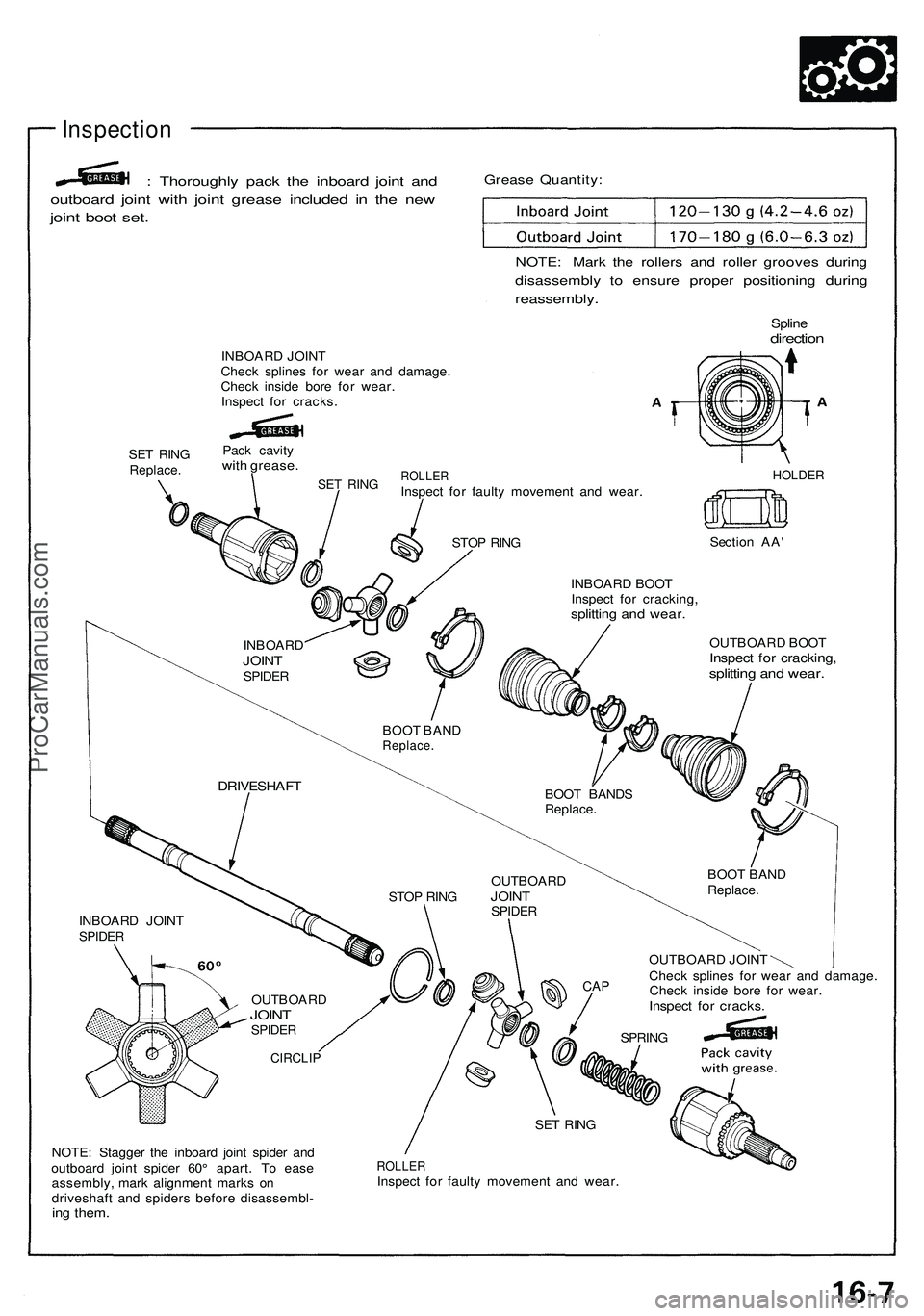

Inspection
: Thoroughl y pac k th e inboar d join t an d
outboar d join t wit h join t greas e include d i n th e ne w
joint boo t set .
Greas e Quantity :
NOTE: Mar k th e roller s an d rolle r groove s durin g
disassembl y t o ensur e prope r positionin g durin g
reassembly .
Splinedirectio n
INBOAR D JOIN T
Chec k spline s fo r wea r an d damage .
Chec k insid e bor e fo r wear .
Inspec t fo r cracks .
SE T RIN G
Replace .
Pack cavit ywith grease .
SET RIN GROLLE RInspect fo r fault y movemen t an d wear .HOLDE R
STOP RIN G Sectio
n AA '
INBOAR D BOO T
Inspec t fo r cracking ,
splitting an d wear .
OUTBOAR D BOO TInspec t fo r cracking ,splitting an d wear .
OUTBOAR D JOIN T
Chec k spline s fo r wea r an d damage .
Chec k insid e bor e fo r wear .
Inspec t fo r cracks .
NOTE: Stagge r th e inboar d join t spide r an d
outboar d join t spide r 60 ° apart . T o eas e
assembly , mar k alignmen t mark s o n
driveshaf t an d spider s befor e disassembl -
ing them .
ROLLE RInspect fo r fault y movemen t an d wear .
INBOAR
D
JOINTSPIDE R
BOOT BAN DReplace .
BOOT BAND S
Replace .
BOOT BAN D
Replace .
DRIVESHAF T
STOP RIN G OUTBOAR
DJOINTSPIDE R
CAP
SPRIN G
SE T RIN G
CIRCLI P
OUTBOAR DJOINTSPIDE R
INBOAR D JOIN TSPIDE R
