Page 1249 of 1503
Starting Syste m
Descriptio n
Starter Interloc k Syste m (M/T) :
Th e starte r interloc k syste m prevent s th e engin e fro m startin g unles s th e clutc h peda l i s full y depressed .
The clutc h interloc k switc h turn s o n a t th e positio n wher e th e clutc h disengages : 1 5 - 2 0 m m (0.5 9 - 0.7 9 in ) fro m full y
depresse d position .
NOTE: A ful l strok e o f th e clutc h peda l i s 12 5 m m (4.9 2 in ) fro m th e full y release d position .
CLUTCH INTERLOC K SWITC H
Full y Release d
Positio n
CLUTC
H PEDA L
ProCarManuals.com
Page 1250 of 1503

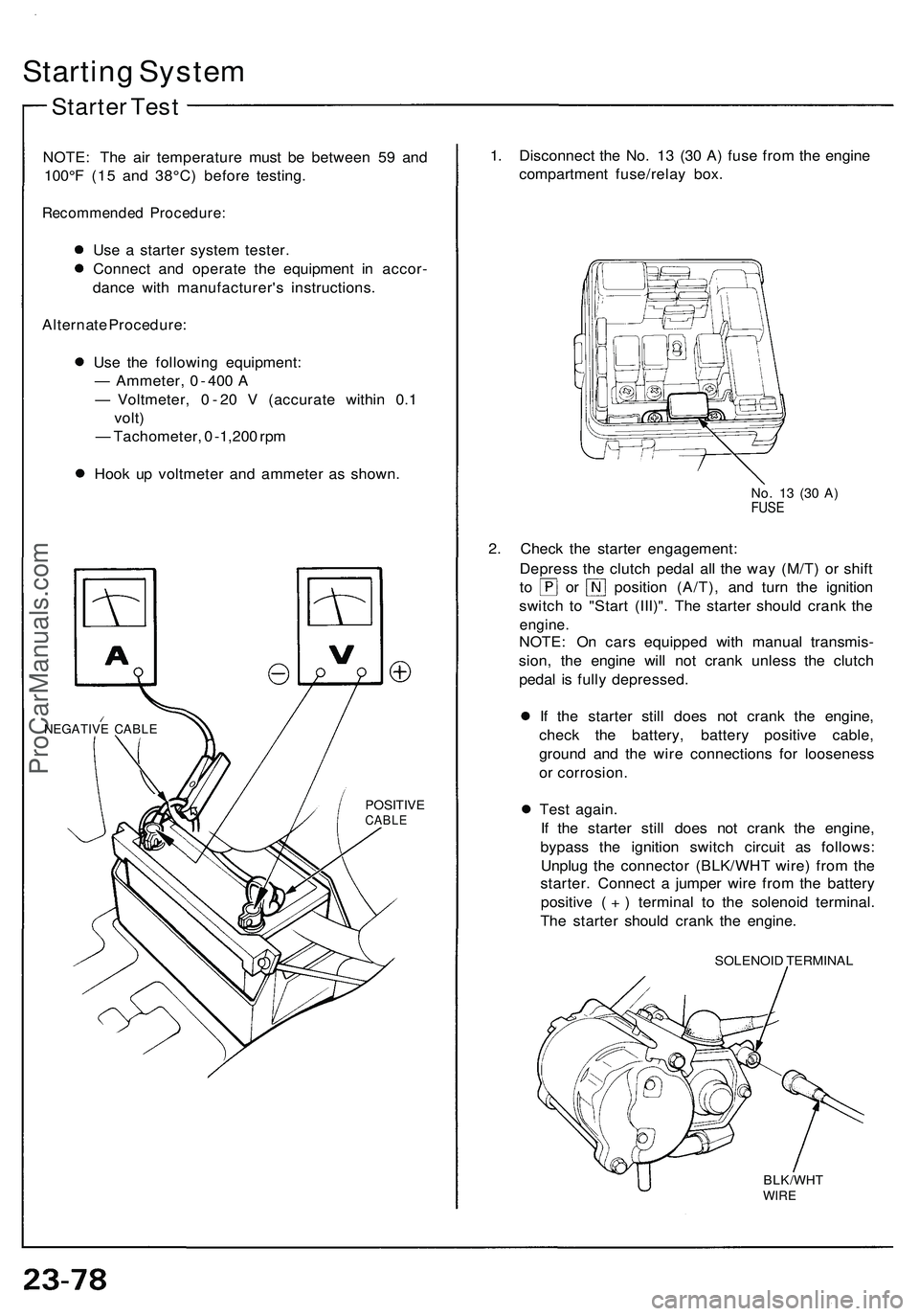

Starting Syste m
Starte r Tes t
NOTE : Th e ai r temperatur e mus t b e betwee n 5 9 an d
100° F (1 5 an d 38°C ) befor e testing .
Recommende d Procedure :
Use a starte r syste m tester .
Connec t an d operat e th e equipmen t i n accor -
danc e wit h manufacturer' s instructions .
Alternat e Procedure :
Us e th e followin g equipment :
— Ammeter , 0 - 40 0 A
— Voltmeter , 0 - 2 0 V (accurat e withi n 0. 1
volt )
— Tachometer , 0 -1,20 0 rp m
Hoo k u p voltmete r an d ammete r a s shown .
NEGATIV E CABL E
POSITIV ECABLE
1. Disconnec t th e No . 1 3 (3 0 A ) fus e fro m th e engin e
compartmen t fuse/rela y box .
No. 1 3 (3 0 A )FUS E
2. Chec k th e starte r engagement :
Depres s th e clutc h peda l al l th e wa y (M/T ) o r shif t
to o r positio n (A/T) , an d tur n th e ignitio n
switc h t o "Star t (III)" . Th e starte r shoul d cran k th e
engine .
NOTE: O n car s equippe d wit h manua l transmis -
sion , th e engin e wil l no t cran k unles s th e clutc h
peda l i s full y depressed .
I f th e starte r stil l doe s no t cran k th e engine ,
chec k th e battery , batter y positiv e cable ,
ground and th e wir e connection s fo r loosenes s
o r corrosion .
Tes t again .
If th e starte r stil l doe s no t cran k th e engine ,
bypas s th e ignitio n switc h circui t a s follows :
Unplu g th e connecto r (BLK/WH T wire ) fro m th e
starter . Connec t a jumpe r wir e fro m th e batter y
positiv e ( + ) termina l t o th e solenoi d terminal .
Th e starte r shoul d cran k th e engine .
SOLENOI D TERMINA L
BLK/WHTWIRE
ProCarManuals.com
Page 1251 of 1503

— If the starter still does not crank the engine,
remove the starter and diagnose its internal
problems.
— If the starter cranks the engine, check for an
open in the BLK/WHT wire and connectors be-
tween the starter and ignition switch. Check the
ignition switch.
On cars with automatic transmission, check the
A/T gear position switch (neutral position
switch) and connector.
On cars with manual transmission, check the
starter cut relay, clutch interlock switch and
connectors.
NOTE: Check the No. 29 (50 A) fuse and the
starter cut relay, and inspect the security alarm
system.
3. Check for wear or damage:
The starter should crank the engine smoothly and
steadily.
If the starter engages, but cranks the engine er-
ratically, remove the starter motor. Inspect the
starter, drive gear and flywheel ring gear for
damage.
Check the drive gear overrunning clutch for binding
or slipping when the armature is rotated with the
drive gear held. Replace the gears if damaged.
4. Check cranking voltage and current draw:
Voltage should be no less than 8.5 volts.
Current should be no more than 350 amperes.
If voltage is too low, or current draw too high,
check for:
Low battery.
Open circuit in starter armature commutator
segments.
Starter armature dragging.
Shorted armature winding.
Excessive drag in engine.
5. Check cranking rpm:
Engine speed during cranking should be above 100
rpm.
If speed is too low, check for:
Loose battery or starter terminals.
Excessively worn starter brushes.
Open circuit in commutator segments.
Dirty or damaged helical spline or drive gear.
Defective drive gear overrunning clutch.
6. Check the starter disengagement:
Depress the clutch pedal all the way (M/T) or shift to
or position (A/T), turn the ignition switch to
"Start (III)", and release to ON (II).
The starter drive gear should disengage from the
flywheel ring gear.
If the drive gear hangs up on the flywheel ring gear,
check:
Solenoid plunger and switch for malfunction.
Drive gear assembly for dirt or damaged over-
running clutch.ProCarManuals.com
Page 1252 of 1503

Starting Syste m
Starter Cu t Rela y Tes t
1. Remov e th e glov e bo x (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e starte r cu t
relay .
(Wire color s o f 4 P connector : BLK/GRN , BLK/WHT ,
BLK/BLU an d BLK/WHT )
3. Chec k continuit y a t th e rela y terminals .
Ther e shoul d b e continuit y betwee n th e C an d D
terminals .
Ther e shoul d b e continuit y betwee n th e A an d B
terminal s whe n powe r an d groun d ar e connect -
e d t o th e C an d D terminals .
Ther e shoul d b e n o continuit y betwee n th e A an d
B terminal s whe n powe r i s disconnected .
Clutch Interloc k Switc h Tes t (M/T ) -
1 . Remov e th e dashboar d lowe r cover , the n disconnec t
th e 2 P connecto r fro m th e switch .
2 . Chec k fo r continuit y betwee n th e terminal s accord -
in g t o th e table .
CLUTC HINTERLOC KSWITCH
CLUTC H PEDA L
3. I f necessary , replac e th e switc h o r adjus t th e switc h
positio n (se e sectio n 12 ).
RELEASE D
PUSHED
Clutch Peda l
Termina lAB
ProCarManuals.com
Page 1253 of 1503
Starter Solenoid Test
1. Check the hold-in coil for continuity between the S
terminal and the armature housing (ground).
The coil is OK if there is continuity.
ARMATURE HOUSING
(GROUND)
2. Check the pull-in coil for continuity between the S
and M terminals.
The coil is OK if there is continuity.
Starter Replacement
1. Disconnect the battery negative cable.
2. Remove the engine wire harness from the harness
clip on the starter motor.
3. Disconnect the starter cable and the BLK/WHT
wire.
4. Remove the two bolts holding the starter, and
remove the starter.
UPPER MOUNTING BOLT
75 N-m (7.6 kgf-m, 55 Ibf-ft)
B TERMINAL MOUNTING NUT
9 N-m (0.9 kgf-m, 6.5 Ibf-ft)
STARTER CABLE
LOWER MOUNTING BOLT
75 N-m (7.6 kgf-m, 55 Ibf-ft)
BLK/WHT WIREProCarManuals.com
Page 1254 of 1503
Starting Syste m
Starter Overhau l
CAUTION : Disconnec t th e groun d cabl e fro m th e bat -
tery befor e removin g th e starter .SOLENOI DPLUNGERInspection , pag e 23-8 6
STARTE RSOLENOI D
Test , pag e 23-8 1
OVERRUNNIN G
CLUTC H ASSEMBL Y
BRUS H HOLDE R
ARMATUR E
IDLER GEA R
PINION GEAR
EN D COVE R
O-RING
Replace .
FIELD WINDING /ARMATUR E HOUSIN G
Test , pag e 23-8 6
BRUS H HOLDE R
Test , pag e 23-8 3
BRUSH
Inspection ,page 23-8 3
O-RING
Replace .
ARMATUR EInspection an d Test ,
pag e 23-8 4
HARNES S CLI P BRACKE T STEE
L BAL L
Whe n reassemblin g
install stee l bal lfrom clutc h side .
MOLYBDENU MDISULFIDE ROLLE
R BEARING S
an d CAG E
Se t thes e asid e s o yo u won' t los e them .
MOLYBDENU M DISULFID E
OVERRUNNIN G CLUTC H ASSEMBL Y
Inspection , pag e 23-8 7
GEAR HOUSIN GMOLYBDENU MDISULFIDE
SOLENOI D HOUSIN G IDLE
R GEA R
ProCarManuals.com
Page 1255 of 1503

Starter Brus h Holde r Tes t
1. Chec k tha t ther e i s n o continuit y betwee n th e
and brus h holders .
I f continuit y exists , replac e th e brus h holde r
assembly .
BRUSH HOLDE R BRUSH HOLDE R
BRUSH HOLDE RBRUSH HOLDE R
2. Inser t th e brus h int o th e brus h holder , an d brin g th e
brus h int o contac t wit h th e commutator , the n at -
tac h a sprin g scal e t o th e spring . Measur e th e
sprin g tensio n a t th e momen t th e sprin g lift s of f th e
brush .
Spring Tension :
18.0-24.0 N (1.80-2.4 0 kg , 4.0-5. 3 Ibs )
SPRIN G SCAL E
BRUS H
SPRIN G
Starter Brus h Inspectio n
Measure th e brus h length . I f no t withi n th e servic e limit ,
replac e th e armatur e housin g an d brus h holde r
assembly .
Brus h Lengt h
Standar d (New) : 15.0-15. 5 m m (0.59 1 -0.61 0 in )
Servic e Limit : 10. 0 m m (0.39 4 in )
BRUS H
NOTE : T o sea t ne w brushe s afte r installin g the m i n
their holders , sli p a stri p o f #50 0 o r #60 0 sandpaper ,
with th e gri t sid e up , ove r th e commutator , an d
smoothl y rotat e th e armature . Th e contac t surfac e o f
th e brushe s wil l b e sande d t o th e sam e contou r a s th e
commutator .
23-83
ProCarManuals.com
Page 1256 of 1503

Starting Syste m
Armatur e Inspectio n an d Tes t
1. Inspec t th e armatur e fo r wea r o r damag e du e t o
contac t wit h th e fiel d coi l magnets .
Inspect fo rdamage .
2. A dirty o r burn t commutato r surfac e ma y b e resur -
faced wit h emer y clot h o r a lath e withi n th e follow -
ing specifications .
Commutato r Diamete r
Standar d (New) : 29.9—30. 0 m m
(1.177-1.18 1 in )
Servic e Limit : 29. 0 m m (1.14 2 in )
VERNIE R CALIPE R
COMMUTATO R
Commutator Runou t
Standar d (New) : 0-0.0 2 m m (0-0.000 8 in )
Servic e Limit : 0.0 5 m m (0.00 2 in )
DIA LINDICATO R
3.
COMMUTATO R
3. I f th e commutato r runou t an d diamete r ar e withi n
limits, chec k th e commutato r fo r damag e o r fo r car -
bo n dus t o r bras s chip s betwee n th e segments .
4. I f th e surfac e is dirty , reconditio n it wit h a #50 0 o r
#60 0 sandpaper . Then , chec k mic a depth . I f
necessary , undercu t mic a wit h a hacksa w blad e t o
achiev e prope r depth .
COMMUTATO R
SANDPAPER
MICA DEPT H
Commutato r Mic a Dept h
Standar d (New) : 0.5-0. 8 m m (0.02-0.0 3 in )
Servic e Limit : 0. 2 m m (0.00 8 in )
