Page 561 of 1503
NOTE: Differen t wire s wit h th e sam e colo r hav e bee n give n a numbe r suffi x t o distinguis h the m (fo r example , YEU/BLK1
an d YEL/BLK2 ar e no t th e same) .
Related to Fue l an d Emission s System .
— Connecto r wit h mal e terminal s (doubl e outline) : Vie w fro m termina l sid e
— Connecto r wit h femal e terminal s (singl e outline) : Vie w fro m wir e sid e (cont'd )
ProCarManuals.com
Page 562 of 1503
System Description
System Connectors [Front Compartment and Under-dash] (cont'd)
UNDER-HOOD
FUSE/RELAY
BOX
SUB RELAY
BOX A
FRONT
COMPARTMENT
WIRE
HARNESS
UNDER-DASH
FUSE
BOX
SIDE
WIRE
HARNESS
FLOOR
WIRE
HARNESSProCarManuals.com
Page 563 of 1503
NOTE: Differen t wire s wit h th e sam e colo r hav e bee n give n a numbe r suffi x t o distinguis h the m (fo r example , YEU/BLK1
an d YEU/BLK2 ar e no t th e same) .
Related t o Fue l an d Emission s System .
— Connecto r wit h mal e terminal s (doubl e outline) : Vie w fro m termina l sid e
— Connecto r wit h femal e terminal s (singl e outline) : Vie w fro m wir e sid e
ProCarManuals.com
Page 564 of 1503

Troubleshooting
Troubleshooting Procedure s
I. Ho w T o Begi n Troubleshootin g
Whe n th e Malfunctio n Indicato r Lam p (MIL ) ha s bee n reporte d on , o r ther e i s a driveabilit y problem , us e th e appropri -
at e procedur e belo w to diagnose and repai r th e problem .
MALFUNCTIO NINDICATORLAMP(MIL)
A. Whe n th e MI L ha s com e on :
1 . Connec t th e Hond a PG M Teste r o r a n OB D II
sca n too l t o th e 16 P Dat a Lin k Connecto r (DLC )
locate d unde r th e glov e bo x behin d a removabl e
cover .
2. Tur n th e ignitio n switc h O N (II) .
3. Chec k th e DT C an d not e it . Als o chec k an d not e
th e freez e fram e data . Refe r t o th e Diagnosti c
Troubl e Cod e Char t an d begi n troubleshooting .
NOTE:
See th e OB D I I sca n too l o r Hond a PG M
Teste r user' s manual s fo r specifi c operatin g
instructions .
Th e sca n too l o r teste r ca n rea d th e Diagnosti c Troubl e Code s (DTC) , freez e fram e data , curren t data , an d othe r
Engin e Contro l Modul e (ECM ) data .
Freez e fram e dat a indicate s th e engin e condition s whe n th e firs t malfunction , misfir e o r fue l tri m malfunctio n
was detected . I t ca n b e usefu l informatio n whe n troubleshooting .
B . Whe n th e MI L ha s no t com e on , bu t ther e i s a driveabilit y problem , refe r t o th e Sympto m Char t o n pag e 11-42 .
C . DTC s wil l b e indicate d b y th e blinkin g o f th e Malfunctio n Indicato r Lam p (MIL ) wit h th e SC S servic e connecto r con -
nected .
Connec t th e SC S servic e connecto r t o Servic e Chec k Connecto r a s shown . (Th e 2 P Servic e Chec k Connecto r i s
locate d unde r th e das h o n th e passenger' s sid e o f th e vehicle. ) Tur n th e ignitio n switc h o n (II) .
DAT A LIN K CONNECTO R (16P )SERVIC E CHEC KCONNECTO R (2P )
OBD II SCA N TOO L o r
HOND A PG M TESTE RSCS SERVIC E CONNECTO R07PAZ-001010 0
ProCarManuals.com
Page 565 of 1503

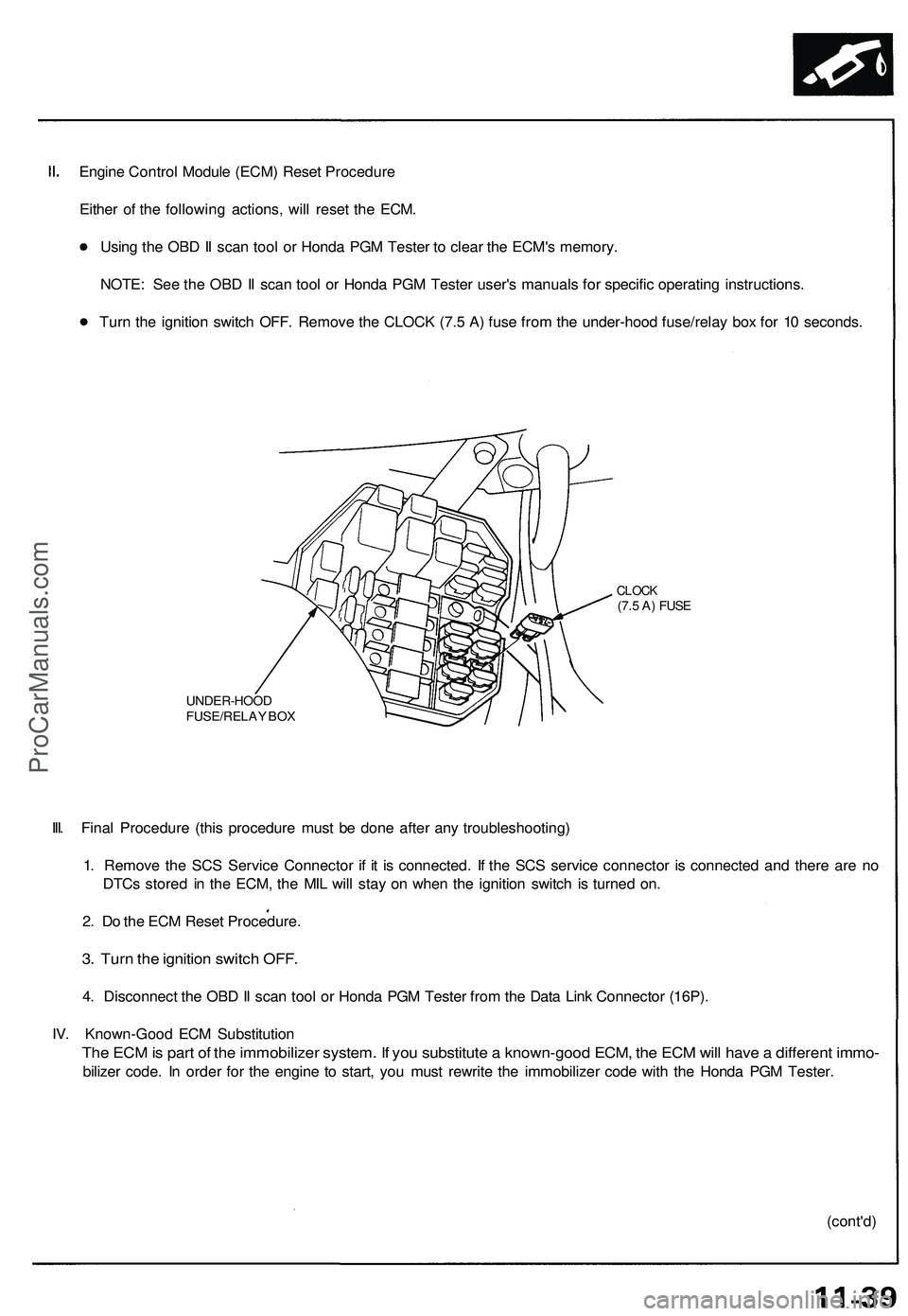

Engine Control Module (ECM) Reset Procedure
Either of the following actions, will reset the ECM.
Using the OBD II scan tool or Honda PGM Tester to clear the ECM's memory.
NOTE: See the OBD II scan tool or Honda PGM Tester user's manuals for specific operating instructions.
Turn the ignition switch OFF. Remove the CLOCK (7.5 A) fuse from the under-hood fuse/relay box for 10 seconds.
UNDER-HOOD
FUSE/RELAY BOX
CLOCK
(7.5 A) FUSE
III. Final Procedure (this procedure must be done after any troubleshooting)
1. Remove the SCS Service Connector if it is connected. If the SCS service connector is connected and there are no
DTCs stored in the ECM, the MIL will stay on when the ignition switch is turned on.
2. Do the ECM Reset Procedure.
3. Turn the ignition switch OFF.
4. Disconnect the OBD II scan tool or Honda PGM Tester from the Data Link Connector (16P).
IV. Known-Good ECM Substitution
The ECM is part of the immobilizer system. If you substitute a known-good ECM, the ECM will have a different immo-
bilizer code. In order for the engine to start, you must rewrite the immobilizer code with the Honda PGM Tester.
(cont'd)ProCarManuals.com
Page 566 of 1503
Troubleshooting
Troubleshooting Procedure s (cont'd )
If th e inspectio n fo r a particula r cod e require s voltag e o r resistanc e check s a t th e EC M connectors , remov e th e bulkhea d
panels . Unbol t th e ECM . Chec k th e syste m accordin g t o th e procedur e describe d fo r th e appropriat e code(s ) liste d o n th e
followin g pages .
ECM
BULKHEA DPANELS
How to Us e th e Backprob e Set s
Connec t th e backprob e adapter s t o th e stackin g patc h cords , an d connec t th e cord s t o a multimeter . Usin g th e wir e insula -
tio n a s a guid e fo r th e contoure d ti p o f th e backprob e adapter , gentl y slid e th e ti p int o th e connecto r fro m th e wir e sid e
unti l i t come s i n contac t wit h termina l en d o f th e wire .
DIGITA L MULTIMETE R(Commerciall y available ) o rKS - AH M - 3 2 - 00 3
STACKIN G PATC HCORD
BACKPROB E SE T
07SA Z - 001000 A (tw o required ) BACKPROB E ADAPTE R
ProCarManuals.com
Page 567 of 1503
CAUTION:
Puncturing the insulation on a wire can cause poor or intermittent electrical connections.
Bring the tester probe into contact with the terminal from the connector side of wire harness connectors in the engine
compartment. For female connectors, just touch lightly with the tester probe and do not insert the probe.
RUBBER SEAL
WIRE HARNESS
TERMINAL
TESTER PROBEProCarManuals.com
Page 568 of 1503

Troubleshooting
Troubleshooting Procedure s (cont'd )
Sympto m Char t
Liste d belo w ar e symptom s an d probabl e cause s fo r problem s tha t D O NO T caus e th e Malfunctio n Indicato r Lam p (MIL ) t o
com e on .
I f th e MI L wa s reporte d on , g o to pag e 11-38 .
Troubleshoo t eac h probabl e caus e in th e orde r liste d (fro m lef t t o right ) unti l th e sympto m is eliminated .
Th e probabl e caus e an d troubleshootin g pag e referenc e ca n b e foun d o n nex t page .
Othe r Probabl e Causes :
Engin e wil l no t start
— Compressio n
— Engin e locke d u p
— Timin g bel t
— Startin g syste m
— Overheatin g
— Batter y Troubleshoo
t fo r misfir e o n page s 11-90 , 11-9 4
PROBABL E CAUS ESYMPTO M
Engine wil l no t start
Har d startin g
Col d fas t idl e to o lo w
Col d fas t idl e to o hig h
Idl e spee d fluctuate s
Misfir e o r roug h runnin g
Lo w powe r
Engin e stall s4,2,3,5,19,13, 1
2,4,10,12,1 8
7,6
7,9, 8
7,9,8
2,8,9 , 11,16 , 15,17,1 0
2,4,10 , 19,7,5 , 1 4
