Page 609 of 1503

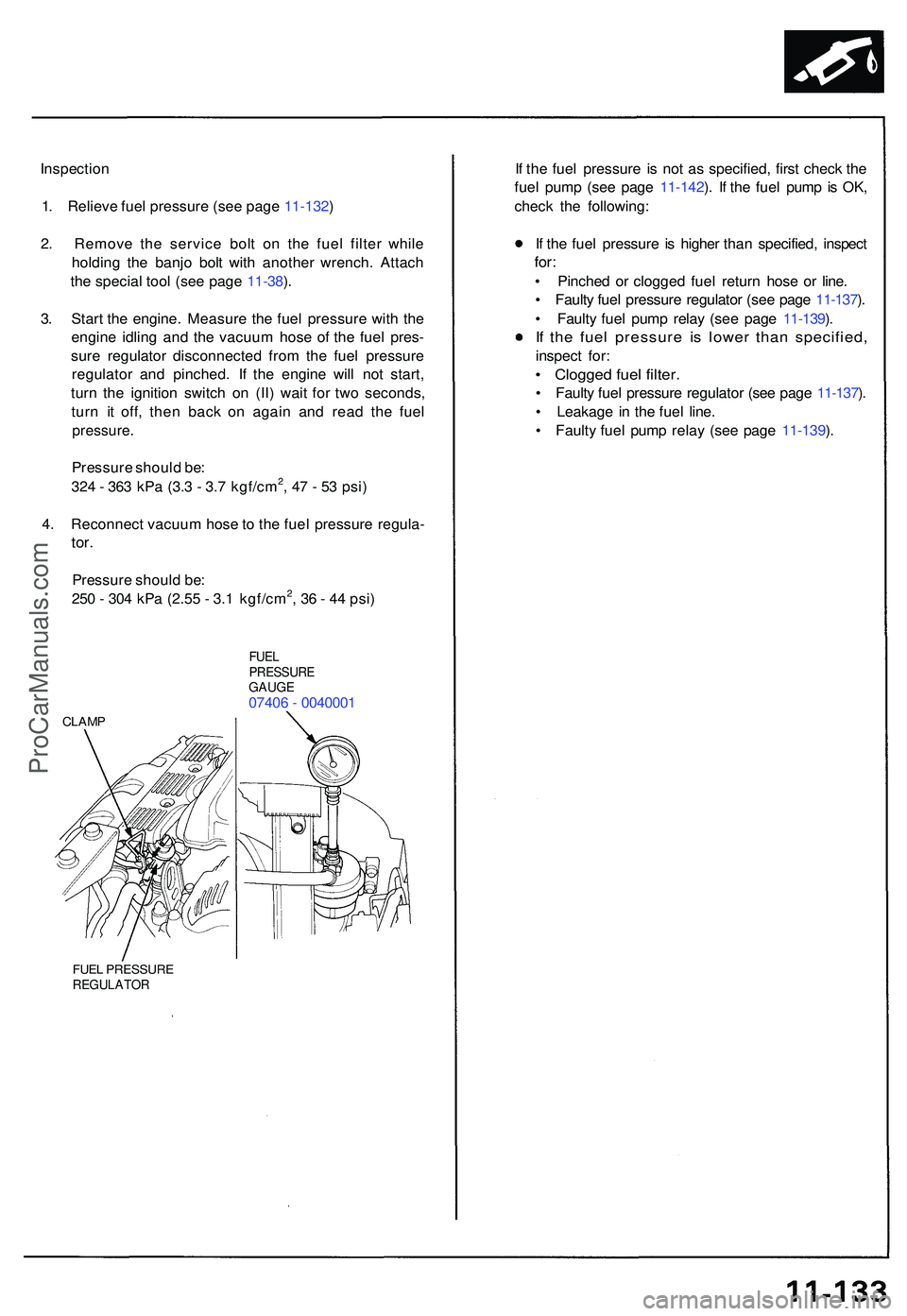

Inspection
1 . Reliev e fue l pressur e (se e pag e 11-132 )
2 . Remov e th e servic e bol t o n th e fue l filte r whil e
holdin g th e banj o bol t wit h anothe r wrench . Attac h
th e specia l too l (se e pag e 11-38 ).
3 . Star t th e engine . Measur e th e fue l pressur e wit h th e
engin e idlin g an d th e vacuu m hos e o f th e fue l pres -
sur e regulato r disconnecte d fro m th e fue l pressur e
regulato r an d pinched . I f th e engin e wil l no t start ,
tur n th e ignitio n switc h o n (II ) wai t fo r tw o seconds ,
tur n i t off , the n bac k o n agai n an d rea d th e fue l
pressure .
Pressure shoul d be :
32 4 - 36 3 kP a (3. 3 - 3. 7 kgf/cm2, 4 7 - 5 3 psi )
4 . Reconnec t vacuu m hos e to th e fue l pressur e regula -
tor.
Pressur e shoul d be :
25 0 - 30 4 kP a (2.5 5 - 3. 1 kgf/cm2, 3 6 - 4 4 psi )
FUE LPRESSUR EGAUGE07406 - 004000 1
CLAMP
FUEL PRESSUR EREGULATO R
If th e fue l pressur e i s no t a s specified , firs t chec k th e
fue l pum p (se e pag e 11-142 ). I f th e fue l pum p is OK ,
chec k th e following :
I f th e fue l pressur e i s highe r tha n specified , inspec t
for:
• Pinche d o r clogge d fue l retur n hos e o r line .
• Fault y fue l pressur e regulato r (se e pag e 11-137 ).
• Fault y fue l pum p rela y (se e pag e 11-139 ).
If th e fue l pressur e i s lowe r tha n specified ,
inspect for :
• Clogge d fue l filter .
• Fault y fue l pressur e regulato r (se e pag e 11-137 ).
• Leakag e i n th e fue l line .
• Fault y fue l pum p rela y (se e pag e 11-139 ).
ProCarManuals.com
Page 610 of 1503

Fuel Suppl y Syste m
Fuel Injector s
Replacemen t
Do no t smok e durin g th e work . Kee p ope n flame s awa y fro m you r wor k area .
1 . Reliev e fue l pressur e (se e pag e 11-132 ).
2 . Remov e th e intak e manifol d covers .
3 . Disconnec t th e connector s fro m th e fue l injector s an d th e IA T sensor .
4 . Plac e a ra g o r sho p towe l ove r th e vacuu m hos e an d fue l retur n hose , the n disconnec t the m fro m th e fue l pres -
sur e regulator .
5 . Disconnec t th e fue l hos e fro m th e fue l rail .
6 . Remov e th e retaine r nut s fro m th e fue l rai l an d harnes s holder .
7 . Disconnec t th e fue l rail .
8 . Remov e th e fue l injector s fro m th e intak e manifold .
INTAKEMANIFOL DCOVERS
12 N- m(1.2 kgf-m ,8.7 Ibf-ft )
FUELPRESSUR EREGULATO R
O-RINGReplace .
CUSHIO N
RIN G
Replace .
SEAL RIN GReplace .
FUEL INJECTO R
INSULATO R
Replace.
9. Slid e ne w cushio n ring s ont o th e fue l injectors .
10 . Coa t ne w O-ring s wit h clea n engin e oil , an d pu t the m o n th e fue l injectors .
11 . Inser t th e fue l injector s int o th e fue l rai l first .
12 . Coa t ne w sea l ring s wit h clea n engin e oil , an d pres s the m int o th e intak e manifold .
FUEL RAI L
HARNES SHOLDER
ProCarManuals.com
Page 611 of 1503
13. To prevent damage to the O-rings, install the fuel injectors in the fuel rail first, then install them in the intake mani-
fold.
FUEL
RAILS
FUEL RAIL
INSULATOR
FUEL RAIL
14. Align the center line on the connector with the mark on the fuel rail.
15. Install and tighten the retainer nuts.
16. Connect the fuel hose to the fuel rail.
17. Connect the vacuum hose and fuel return hose to the fuel pressure regulator.
18. Install the connectors on the fuel injectors and the IAT sensor.
19. Install the intake manifold covers.
20. Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs for approximately two seconds,
the fuel pressure in the fuel line rises. Repeat this two or three times, then check whether there is any fuel leakage.
MARKINGSProCarManuals.com
Page 612 of 1503
Fuel Supply System
Fuel Injector Resistor (A/T)
Description
The fuel injector resistor lowers the current supplied to
the fuel injectors to prevent damage to the fuel injector
coils. This allows a faster response time of the fuel injec-
tors.
Testing
1. Disconnect the fuel injector resistor connector.
2. Check for resistance between each of the fuel injec-
tor resistor terminals (2, 3, 4, 6, 7 and 8) and the
power terminal (5).
Terminal side of male terminals
Replace the fuel injector resistor with a new one if
any of the resistances are outside of the specifica-
tion.ProCarManuals.com
Page 613 of 1503

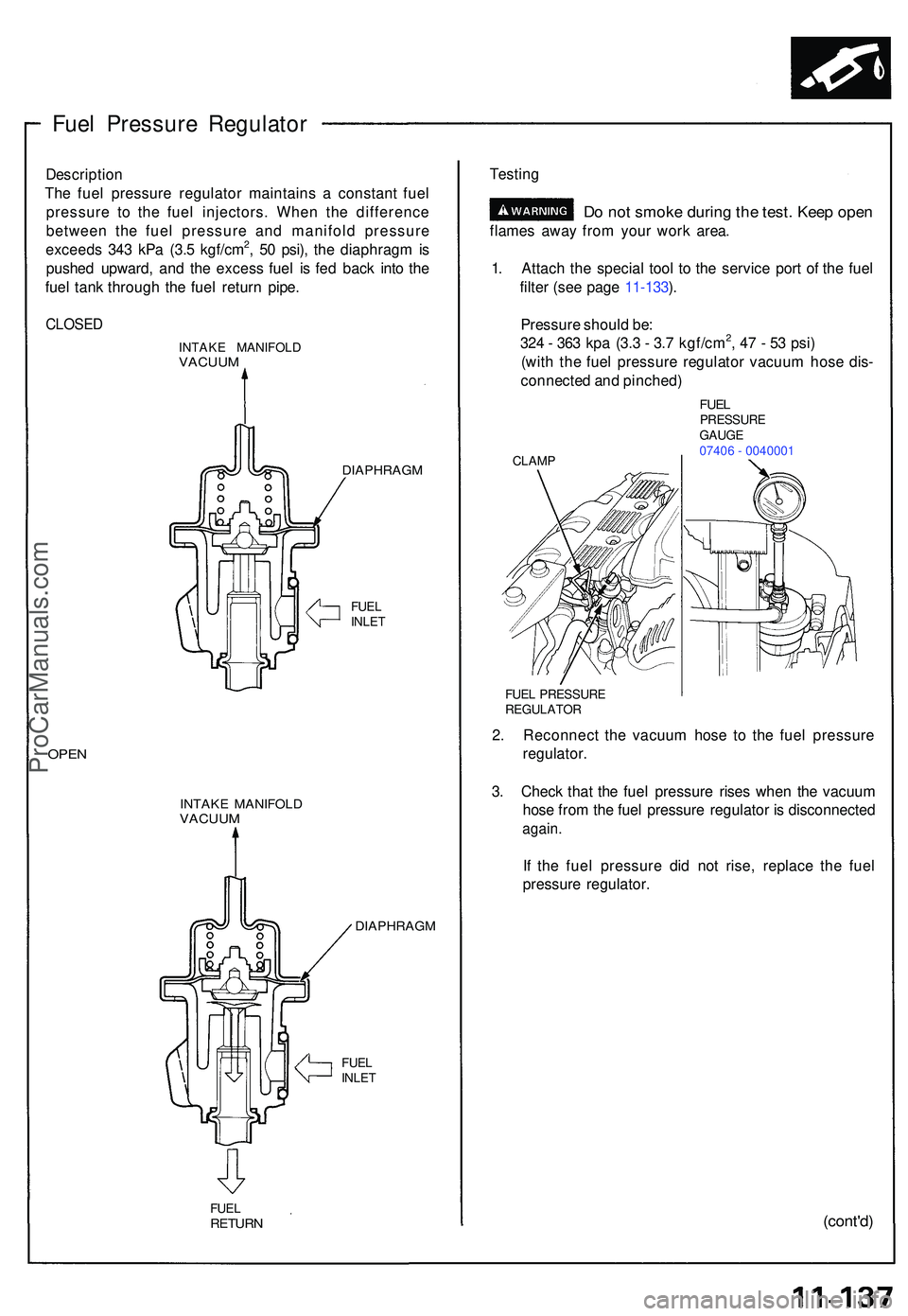

Fuel Pressur e Regulato r
Descriptio n
Th e fue l pressur e regulato r maintain s a constan t fue l
pressur e t o th e fue l injectors . Whe n th e differenc e
betwee n th e fue l pressur e an d manifol d pressur e
exceed s 34 3 kP a (3. 5 kgf/cm
2, 5 0 psi) , th e diaphrag m is
pushe d upward , an d th e exces s fue l i s fe d bac k int o th e
fue l tan k throug h th e fue l retur n pipe .
CLOSE D
INTAKE MANIFOL DVACUUM
DIAPHRAG M
FUEL
INLE T
OPEN
INTAK E MANIFOL DVACUUM
DIAPHRAG M
FUEL
INLE T
FUE L
RETUR N
FUEL PRESSUR EREGULATO R
2. Reconnec t th e vacuu m hos e t o th e fue l pressur e
regulator .
3 . Chec k tha t th e fue l pressur e rise s whe n th e vacuu m
hos e fro m th e fue l pressur e regulato r i s disconnecte d
again.
If th e fue l pressur e di d no t rise , replac e th e fue l
pressur e regulator .
(cont'd)
1. Attac h th e specia l too l t o th e servic e por t o f th e fue l
filte r (se e pag e 11-133 ).
Pressur e shoul d be :
32 4 - 36 3 kp a (3. 3 - 3. 7 kgf/cm
2, 4 7 - 5 3 psi )
(wit h th e fue l pressur e regulato r vacuu m hos e dis -
connecte d an d pinched )
Testin
g
Do no t smok e durin g th e test . Kee p ope n
flame s awa y fro m you r wor k area .
CLAM P
FUELPRESSUR E
GAUG E
07406 - 0040001
ProCarManuals.com
Page 614 of 1503
Fuel Suppl y Syste m
Fuel Pressur e Regulato r (cont'd )
Replacemen t
Do no t smok e whil e workin g o n fue l sys -
tem . Kee p ope n flam e awa y fro m you r wor k area .
1 . Plac e a sho p towe l unde r fue l pressur e regulator ,
the n reliev e fue l pressur e (se e pag e 11-132 ).
2 . Disconnec t th e vacuu m hos e an d fue l retur n hose .
3 . Remov e th e tw o 6 m m retaine r bolts .
4 . Instal l th e fue l pressur e regulato r i n th e revers e
orde r o f removal , an d not e thes e items :
• Replac e th e O-ring .
• Appl y clea n engin e oi l t o th e O-rin g an d assem -
bl e i t int o it s prope r position , takin g car e no t t o
damag e th e O-ring .
ProCarManuals.com
Page 615 of 1503
Fuel Suppl y Syste m

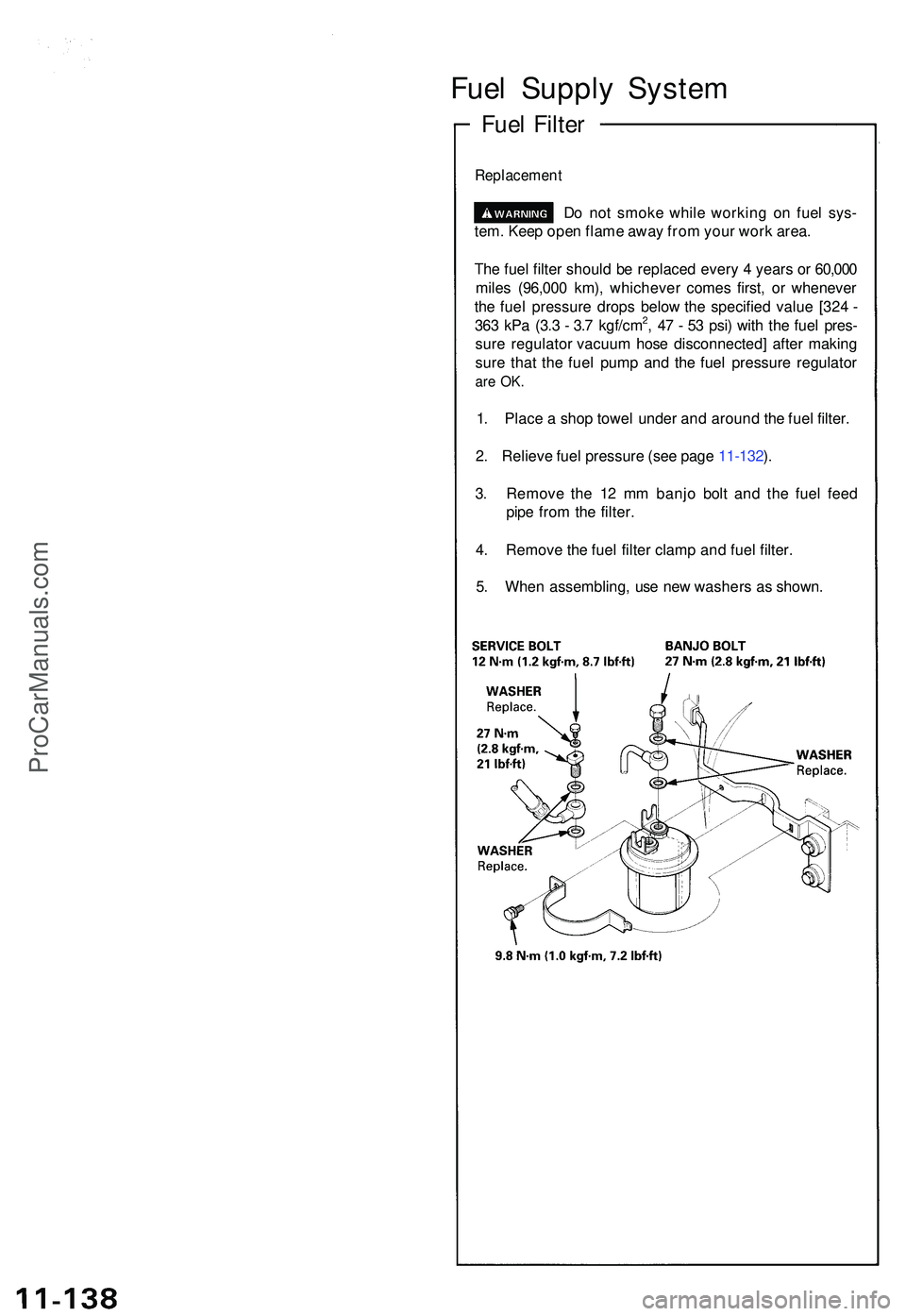

Fuel Filte r
Replacemen t
Do no t smok e whil e workin g o n fue l sys -
tem . Kee p ope n flam e awa y fro m you r wor k area .
Th e fue l filte r shoul d b e replace d ever y 4 year s o r 60,00 0
mile s (96,00 0 km) , whicheve r come s first , o r wheneve r
th e fue l pressur e drop s belo w th e specifie d valu e [32 4 -
36 3 kP a (3. 3 - 3. 7 kgf/cm
2, 4 7 - 5 3 psi ) wit h th e fue l pres -
sur e regulato r vacuu m hos e disconnected ] afte r makin g
sur e tha t th e fue l pum p an d th e fue l pressur e regulato r
are OK .
1. Plac e a sho p towe l unde r an d aroun d th e fue l filter .
2 . Reliev e fue l pressur e (se e pag e 11-132 ).
3 . Remov e th e 1 2 m m banj o bol t an d th e fue l fee d
pip e fro m th e filter .
4 . Remov e th e fue l filte r clam p an d fue l filter .
5 . Whe n assembling , us e ne w washer s a s shown .
ProCarManuals.com
Page 616 of 1503

Fuel Suppl y Syste m
Fuel Pum p

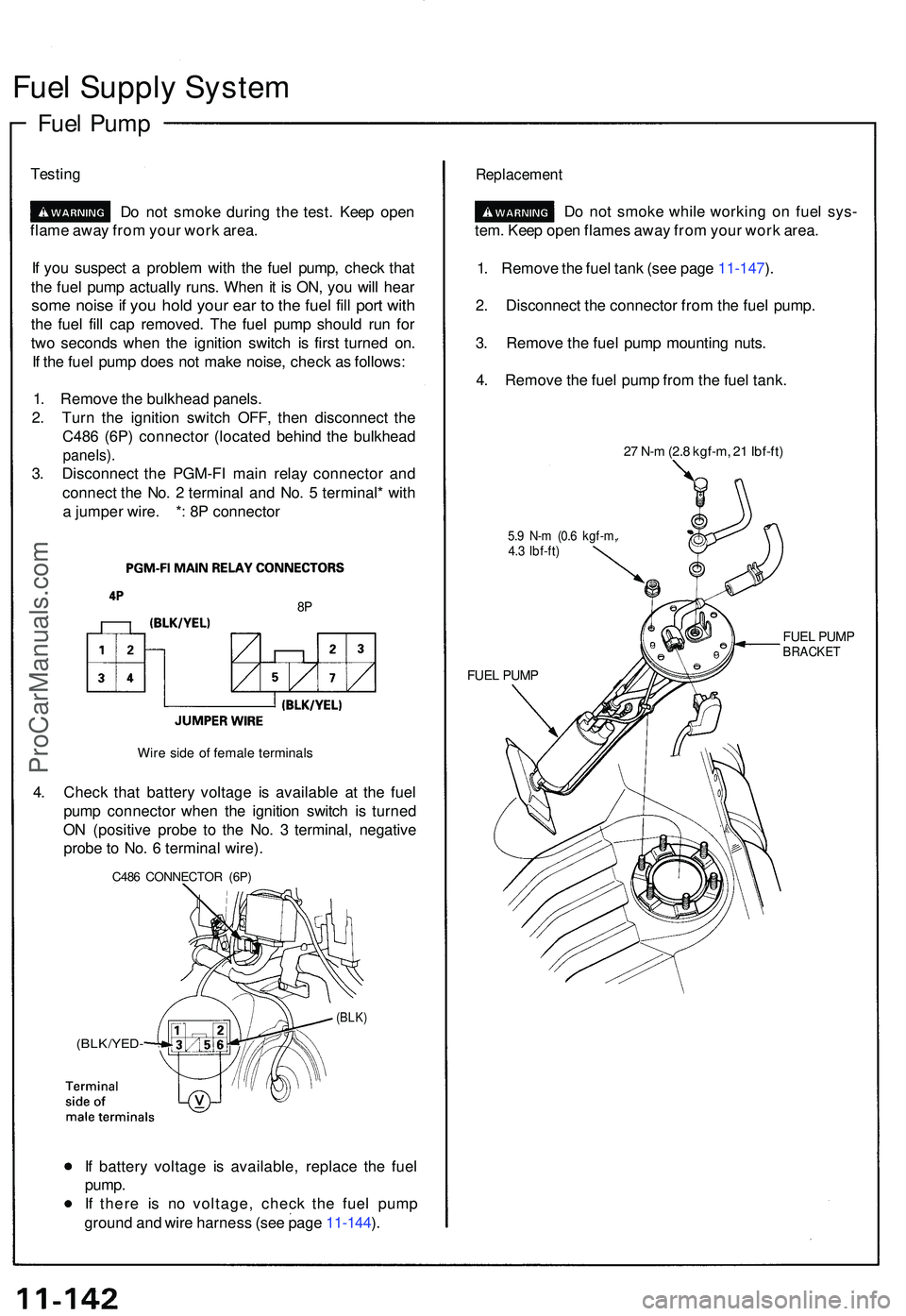

Testin g
