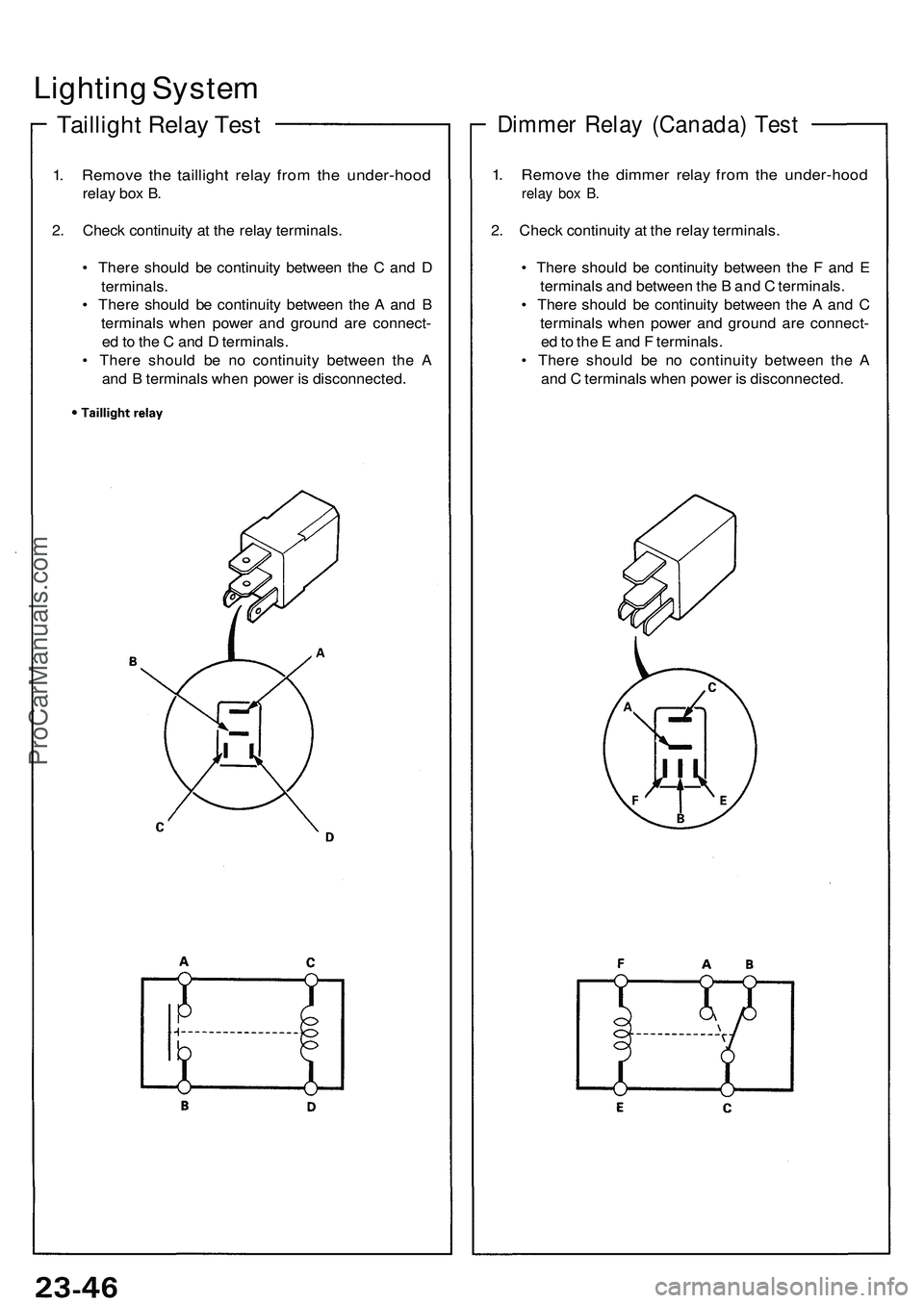

Lighting Syste m
Tailligh t Rela y Tes t
1. Remov e th e tailligh t rela y fro m th e under-hoo d
relay bo x B .
2 . Chec k continuit y a t th e rela y terminals .
• Ther e shoul d b e continuit y betwee n th e C an d D
terminals .
• Ther e shoul d b e continuit y betwee n th e A an d B
terminal s whe n powe r an d groun d ar e connect -
e d to th e C an d D terminals .
• Ther e shoul d b e n o continuit y betwee n th e A
an d B terminal s whe n powe r i s disconnected .
Dimmer Rela y (Canada ) Tes t
1. Remov e th e dimme r rela y fro m th e under-hoo d
relay bo x B .
2. Chec k continuit y a t th e rela y terminals .
• Ther e shoul d b e continuit y betwee n th e F an d E
terminal s an d betwee n th e B an d C terminals .
• Ther e shoul d b e continuit y betwee n th e A an d C
terminal s whe n powe r an d groun d ar e connect -
e d to th e E an d F terminals .
• Ther e shoul d b e n o continuit y betwee n th e A
an d C terminal s whe n powe r i s disconnected .
