1997 ACURA NSX Service Repair Manual

ProCarManuals.com

System Descriptio n
System Connector s [Behin d th e bulkhea d panels ] (cont'd )
ProCarManuals.com

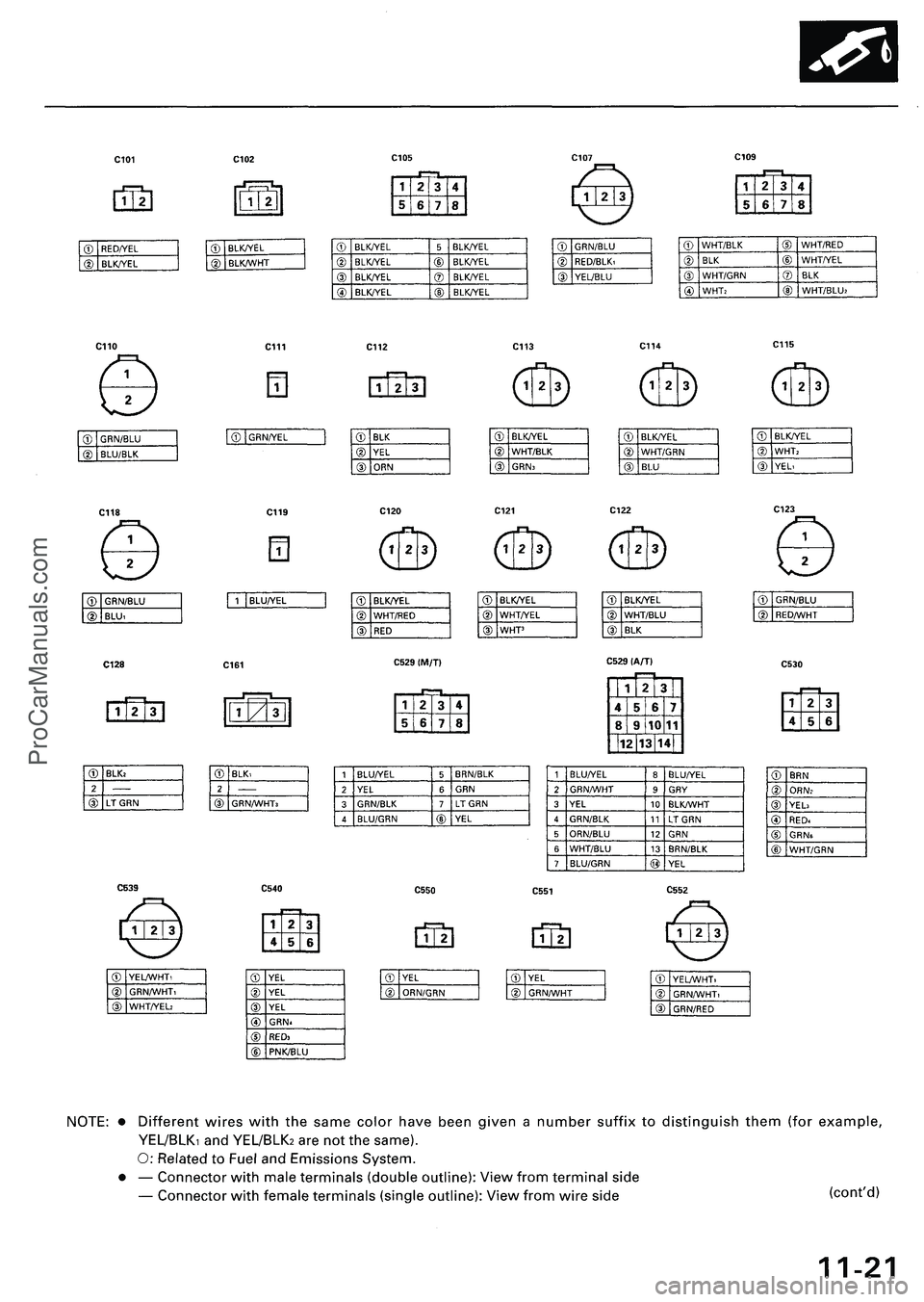

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire sideProCarManuals.com

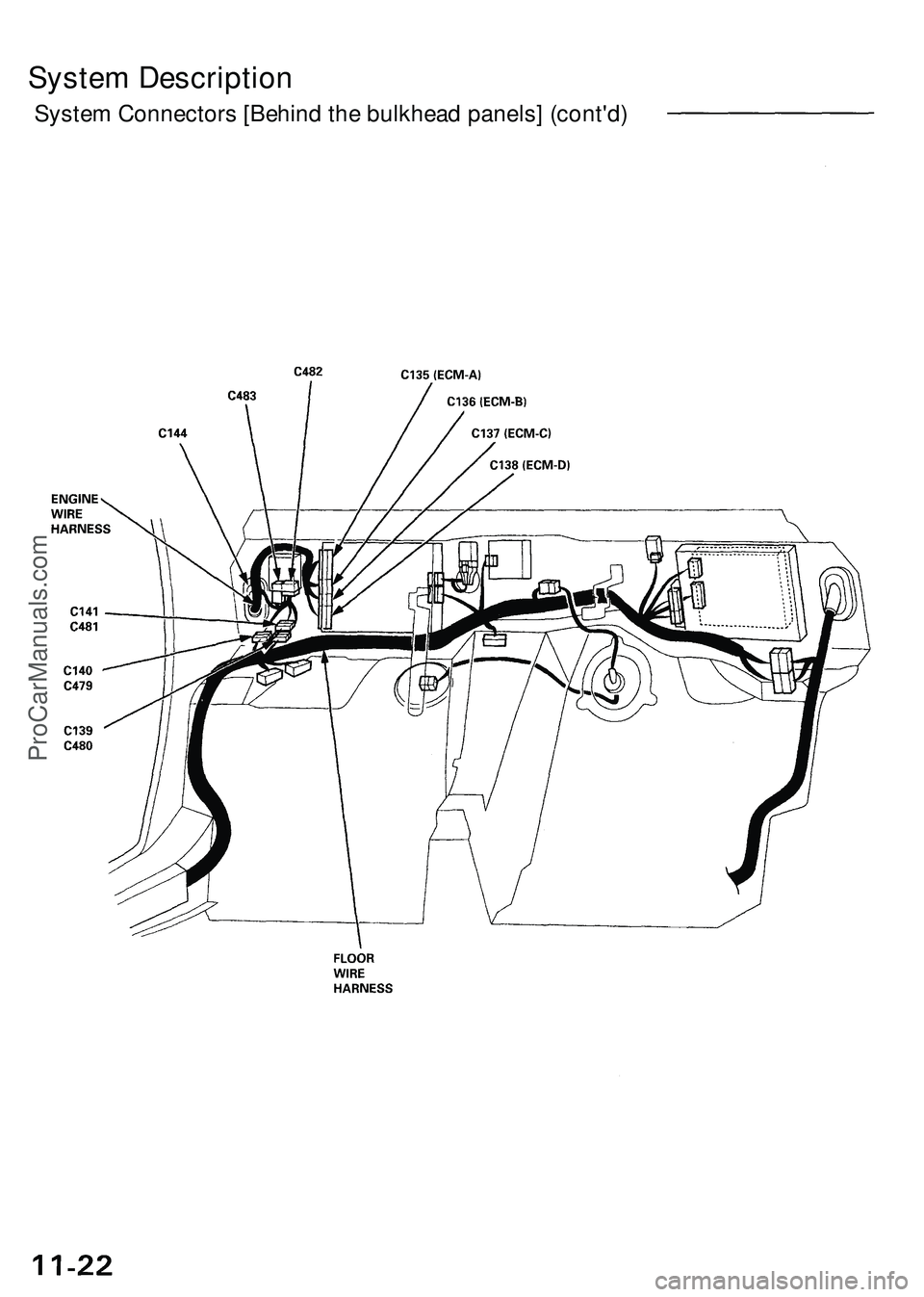

System Description
System Connectors [Behind the bulkhead panels] (cont'd)
ProCarManuals.com

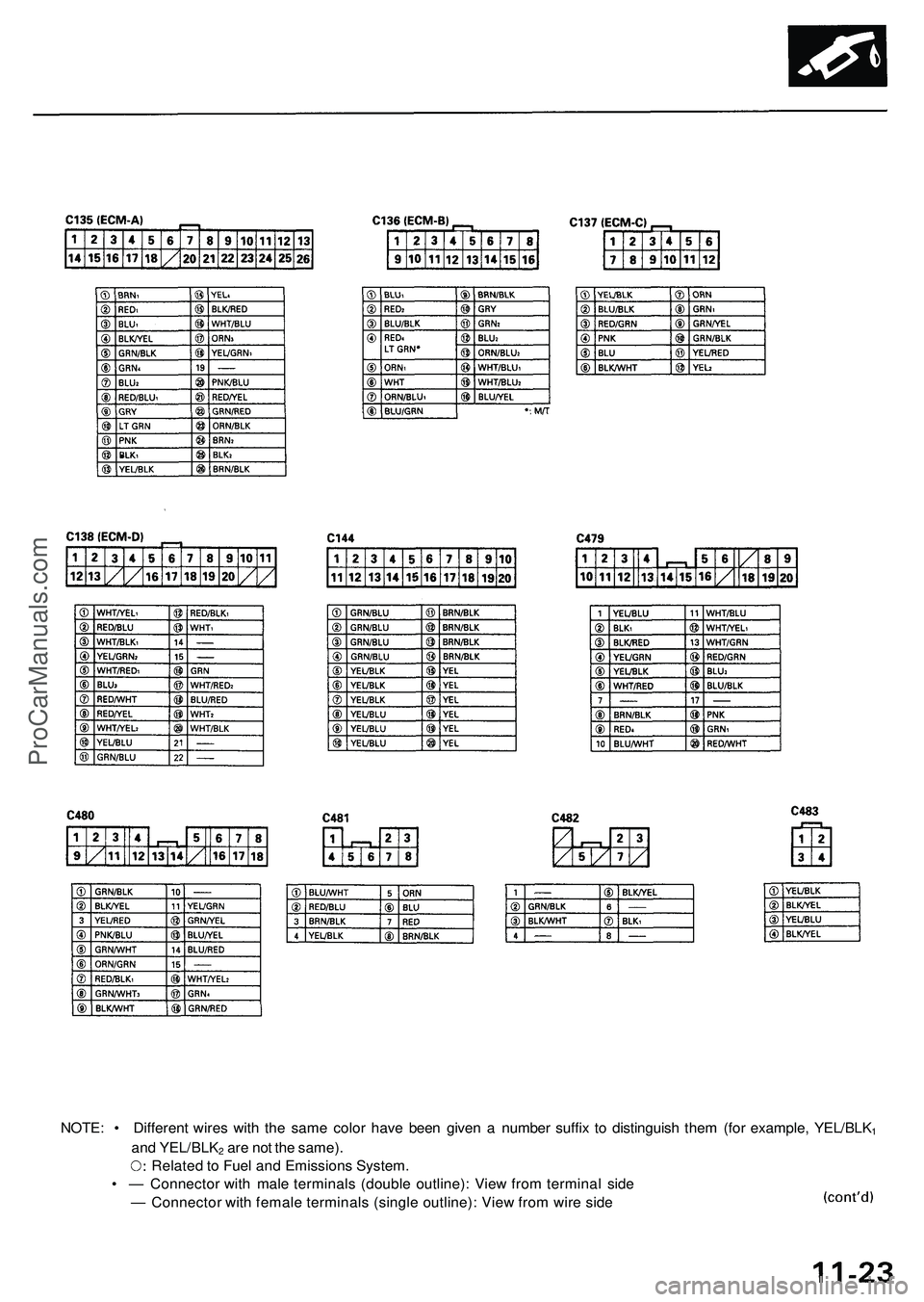

NOTE: • Differen t wire s wit h th e sam e colo r hav e bee n give n a numbe r suffi x t o distinguis h the m (fo r example , YEL/BLK1an d YEL/BLK2 ar e no t th e same) .
Related to Fue l an d Emission s System .
Connecto r wit h mal e terminal s (doubl e outline) : Vie w fro m termina l sid e
Connecto r wit h femal e terminal s (singl e outline) : Vie w fro m wir e sid e (cont'd )
ProCarManuals.com

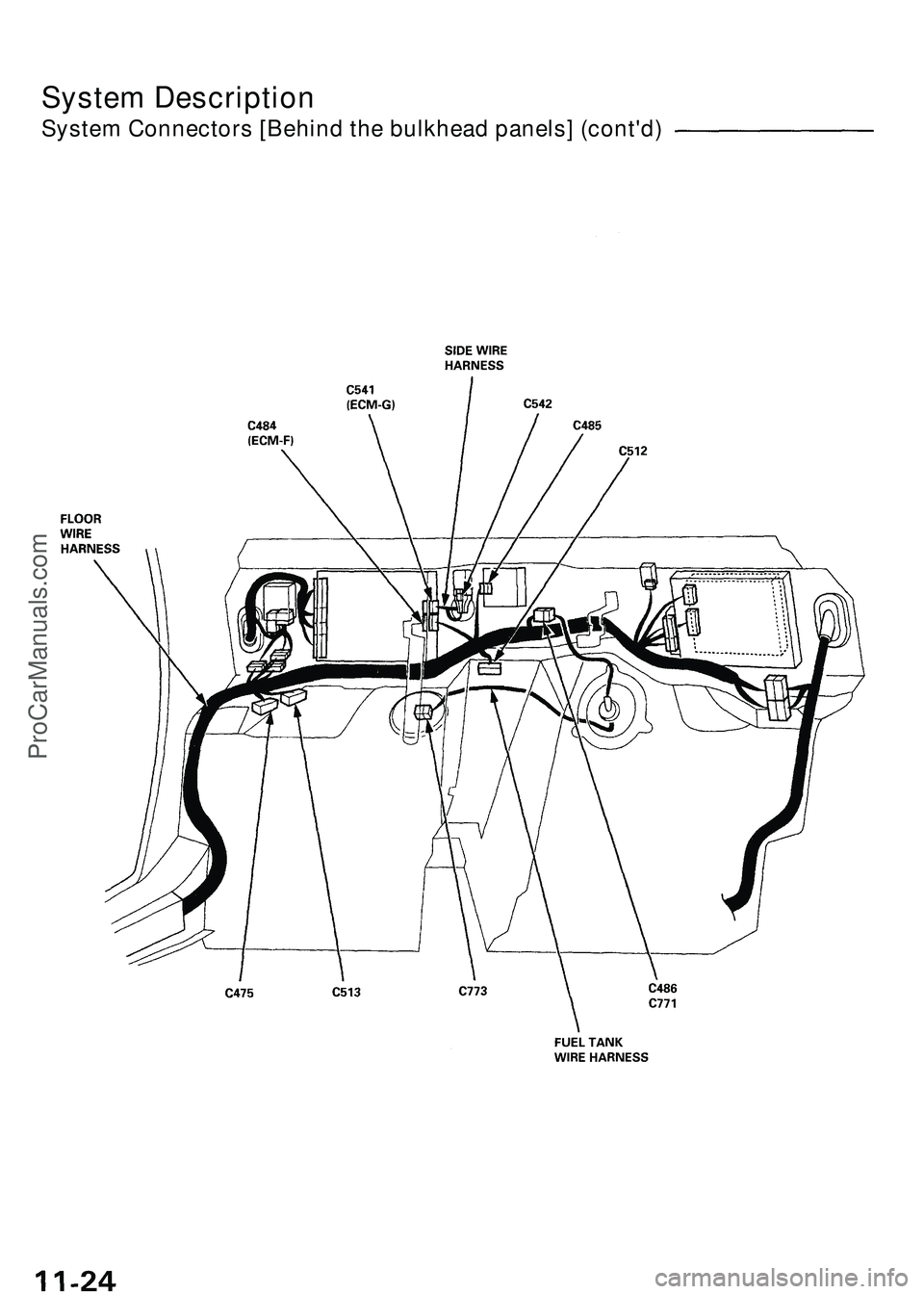

System Description

System Connectors [Behind the bulkhead panels] (cont'd)ProCarManuals.com

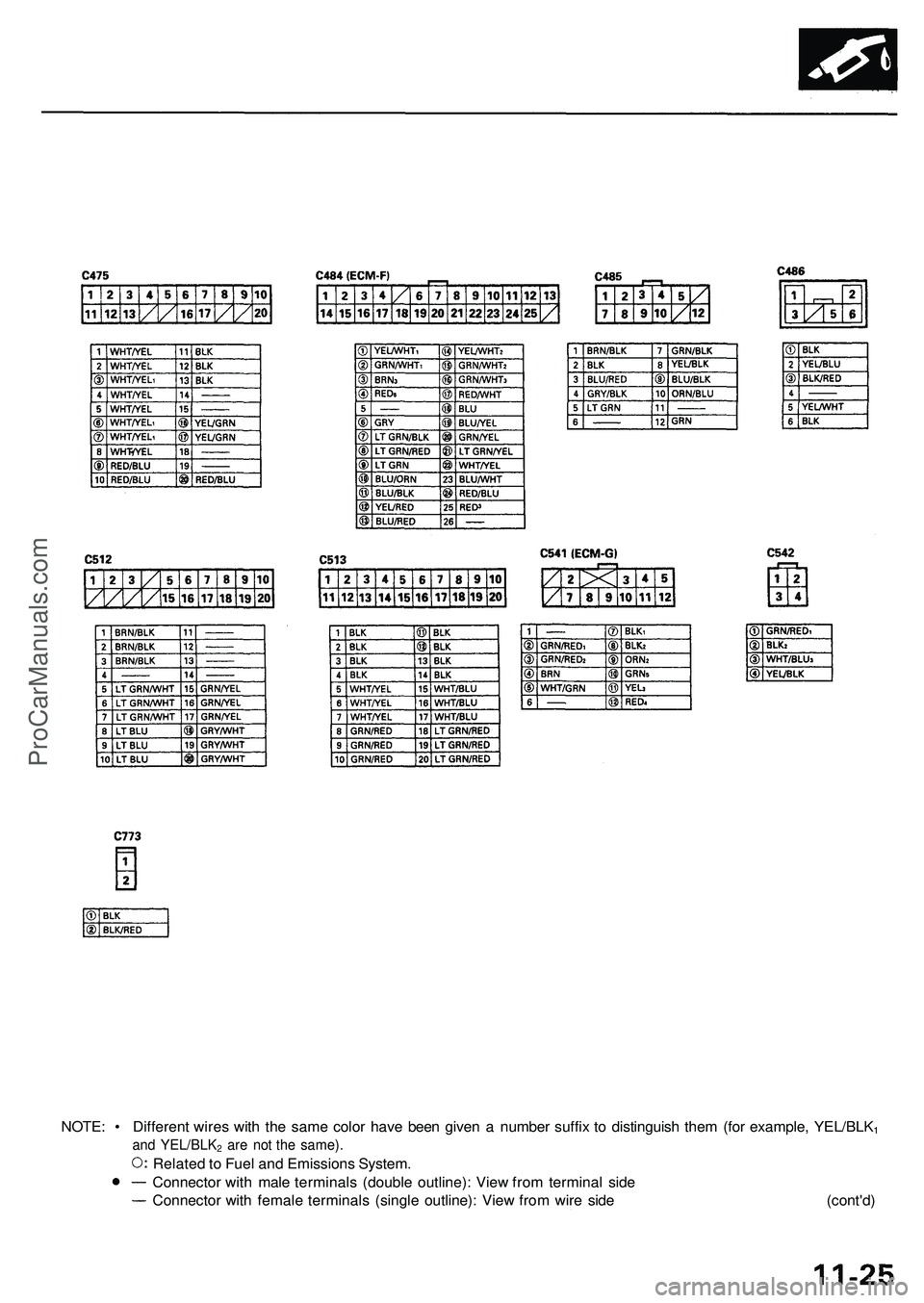

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

Connector with male terminals (double outline): View from terminal side

Connector with female terminals (single outline): View from wire side (cont'd)ProCarManuals.com

System Description

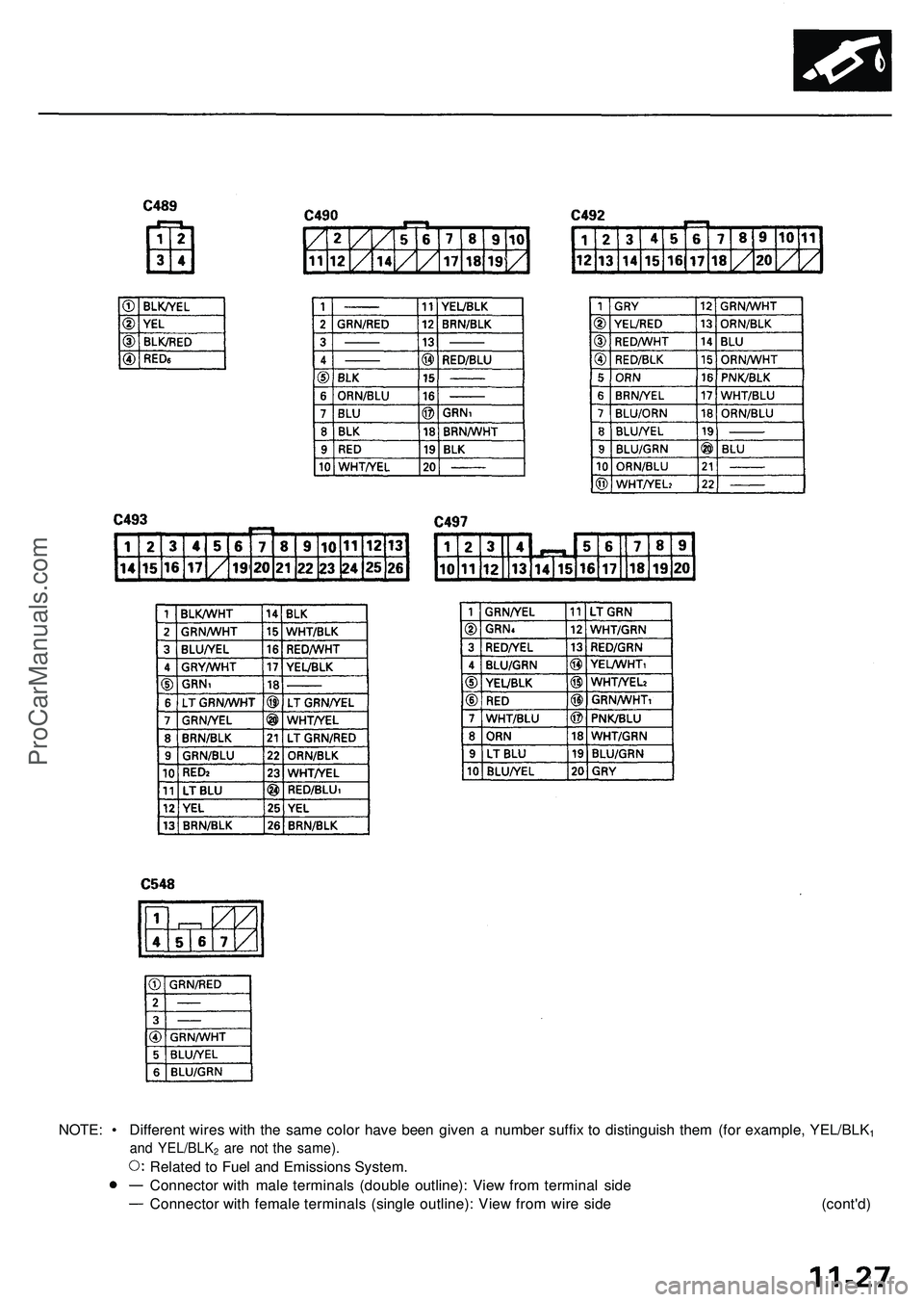

System Connectors [Front Compartment and Under-dash] (cont'd)ProCarManuals.com
