1997 ACURA NSX Service Repair Manual

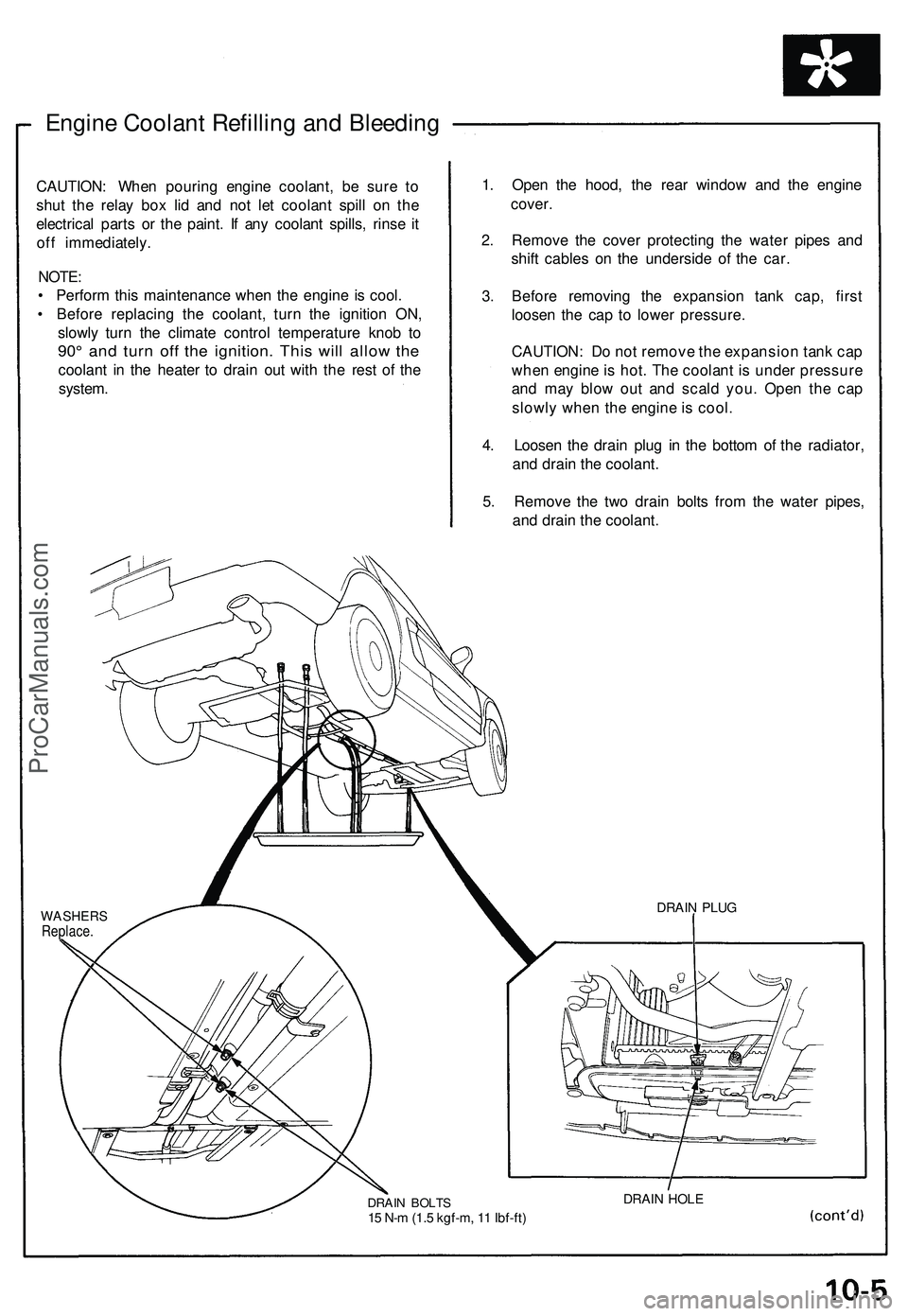

Engine Coolant Refilling and Bleeding

CAUTION: When pouring engine coolant, be sure to

shut the relay box lid and not let coolant spill on the

electrical parts or the paint. If any coolant spills, rinse it

off immediately.

NOTE:

• Perform this maintenance when the engine is cool.

• Before replacing the coolant, turn the ignition ON,

slowly turn the climate control temperature knob to

90° and turn off the ignition. This will allow the

coolant in the heater to drain out with the rest of the

system.
1. Open the hood, the rear window and the engine

cover.

2. Remove the cover protecting the water pipes and

shift cables on the underside of the car.

3. Before removing the expansion tank cap, first

loosen the cap to lower pressure.

CAUTION: Do not remove the expansion tank cap

when engine is hot. The coolant is under pressure

and may blow out and scald you. Open the cap

slowly when the engine is cool.

4. Loosen the drain plug in the bottom of the radiator,

and drain the coolant.

5. Remove the two drain bolts from the water pipes,

and drain the coolant.

WASHERS

Replace.

DRAIN BOLTS

15 N-m (1.5 kgf-m, 11 Ibf-ft)
DRAIN HOLE
DRAIN PLUGProCarManuals.com

Radiator
Engine Coolan t Refillin g an d Bleedin g (cont'd)
6. Instal l rubbe r hose s o n th e drai n bolt s a t th e fron t
an d rea r o f th e engin e unde r th e cylinde r banks .
Loose n th e drai n bolt s t o drai n th e coolant .
• Drainin g ca n b e don e mor e quickl y i f al l th e blee d
bolt s an d plu g ar e als o opened . Befor e openin g
them , mak e sur e th e coolan t leve l i n th e expan -
sio n tan k ha s com e dow n completel y s o tha t th e
coolan t wil l no t pou r ou t o f th e blee d bolt s an d
plug .
7. Whe n th e coolan t stop s draining , tighte n th e
radiato r drai n plug , wate r pip e drai n bolt s an d
engin e drai n bolts .
• B e sur e t o replac e th e wate r pip e drai n bol t
washer s wit h ne w ones .
REAR ENGIN E DRAI N BOL T
9. 8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
8. Ope n al l fou r bleeders .
1 ) Loose n th e radiato r blee d plug .
2 ) Remov e th e heate r pip e blee d bolt .
3 ) Loose n th e wate r pip e blee d bolt .
4 ) Loose n th e engin e blee d bol t o n th e therm o
cover .
9 . Mi x th e recommende d antifreeze/coolan t wit h a n
equa l amoun t o f wate r i n a clea n container .
NOTE:
• Alway s us e Genuin e Hond a Antifreeze/Coolant .
Usin g a non-Hond a coolan t ca n resul t i n corro -
sion , causin g th e coolin g syste m to malfunctio n
o r fail .
• Fo r bes t corrosio n protection , th e coolan t con -
centration s mus t b e maintaine d year-roun d a t
50 % minimum . Coolan t concentration s les s tha n
50 % ma y no t provid e sufficien t protectio n
agains t corrosio n o r freezing .
• Coolan t concentration s greate r tha n 60 % wil l
impai r coolin g efficienc y an d ar e no t recom -
mended .
CAUTION :
• D o no t mi x differen t brand s o f antifreeze/coolant .
• D o no t us e additiona l rus t inhibitor s o r anti-rus t
products ; the y ma y no t b e compatibl e wit h th e
recommende d coolant .
Engin e Coolan t
Refill Capacity : Includin g expansion
tank 2. 1 (2. 2 U S qt , 1. 8 Im p qt )
Manual : 12. 0 (12. 7 U S qt , 10. 6 Im p qt )
Automatic : 12. 0 (12. 7 U S qt , 10. 6 Im p qt )
FRON T ENGIN E DRAI N BOL T9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
ProCarManuals.com

10. Fill the expansion tank with engine coolant. As

coolant starts to run out in a steady stream without

bubbles, tighten the bleeders in sequence: thermo

cover bleed bolt, radiator bleed plug, heater pipe

bleed and water pipe bleed bolt.

11. After tightening all the bleeding bolts and plug, fill

the expansion tank with coolant up to the MAX line.

12. Loosen the thermo cover bleed bolt to remove any

remaining air.

13. When bleeding is completed, retighten the thermo

cover bleed bolt and fill the expansion tank up to

0.5
(0.53
US qt,
0.44
Imp qt) or 30 mm
(1.2
in)

over the MAX line.
14. Install the expansion tank cap, and turn it 60 degrees

(where it engages the first lock tab of filler neck).

1 5. Start the engine, and let it run until warmed up (until

the thermostat opens and the radiator cooling fan

runs).

16. Turn off the engine. Check the expansion tank and,

if needed, add engine coolant to bring it up to the

MAX line.

17. Tighten the expansion tank cap securely.

18. Reinstall the cover on the car's underside.ProCarManuals.com

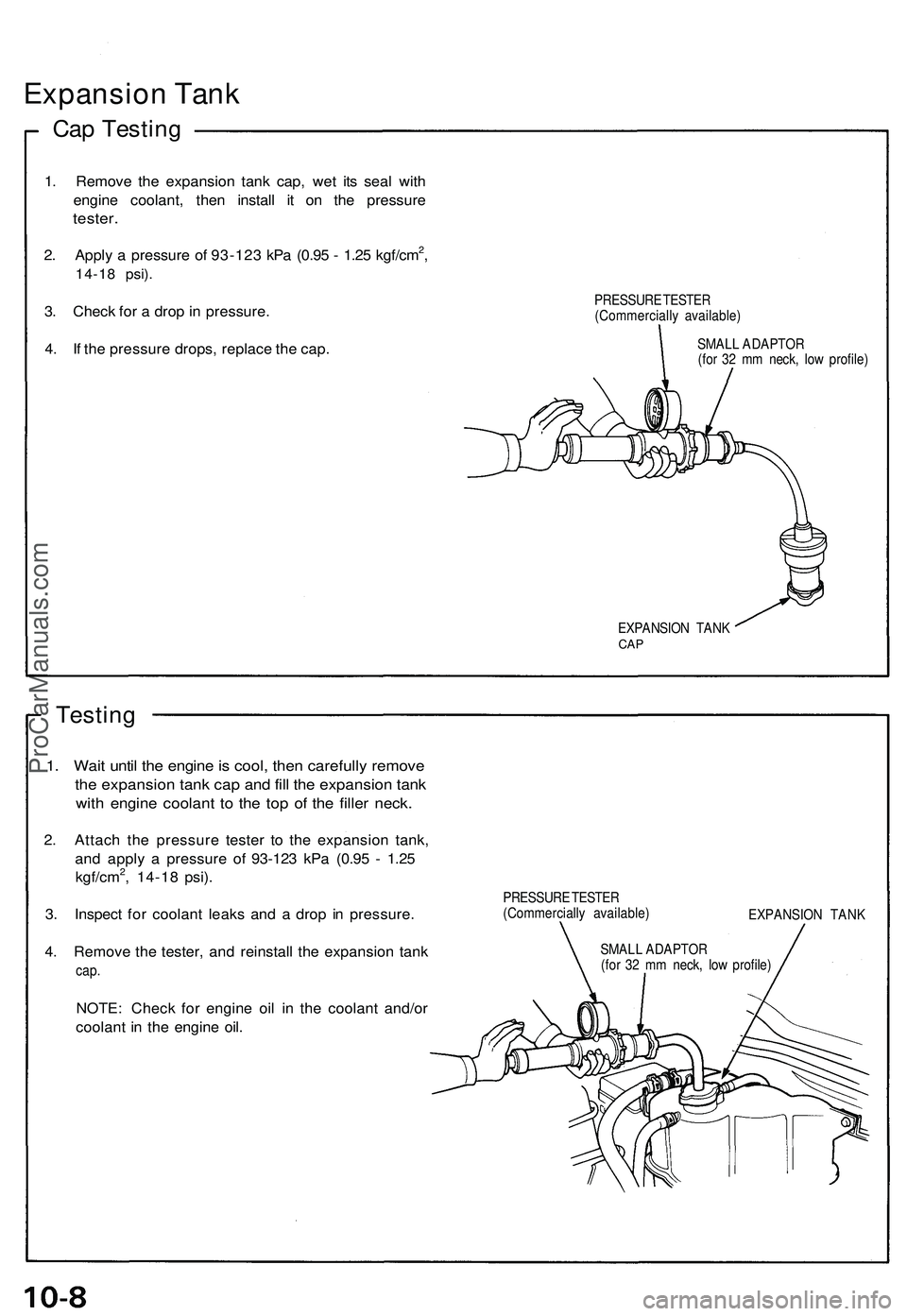

Expansion Tan k
Cap Testin g
1. Remov e th e expansio n tan k cap , we t it s sea l wit h
engin e coolant , the n instal l i t o n th e pressur e
tester.
2. Appl y a pressur e o f 93-12 3 kP a (0.9 5 - 1.2 5 kgf/cm2,
14-1 8 psi) .
3. Chec k fo r a dro p in pressure .
4 . I f th e pressur e drops , replac e th e cap .PRESSUR E TESTE R
(Commerciall y available )
SMAL L ADAPTO R
(fo r 3 2 m m neck , lo w profile )
EXPANSIO N TAN K
CAP
Testin g
1. Wai t unti l th e engin e is cool , the n carefull y remov e
the expansio n tan k ca p an d fil l th e expansio n tan k
with engin e coolan t t o th e to p of the fille r neck .
2. Attac h th e pressur e teste r t o th e expansio n tank ,
an d appl y a pressur e o f 9 3-12 3 kP a (0.9 5 - 1.2 5
kgf/cm
2, 14-1 8 psi) .
3 . Inspec t fo r coolan t leak s an d a dro p i n pressure .
4 . Remov e th e tester , an d reinstal l th e expansio n tan k
cap.
NOTE : Chec k fo r engin e oi l i n th e coolan t and/o r
coolan t i n th e engin e oil .
PRESSUR E TESTE R
(Commerciall y available )
EXPANSION TAN K
SMAL L ADAPTO R
(fo r 3 2 m m neck , lo w profile )
ProCarManuals.com

Thermostat
Replacemen t
NOTE: Us e ne w gasket s an d O-ring s whe n reassem -
bling.
COOLAN TTEMPERATUR E GAUG ESENDIN G UNI T
9 N- m (0. 9 kgf-m , 7 Ibf-ft )
Appl y liqui d gaske t
t o th e threads .
WATE R PASSAG E
BLEED BOL T9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft )
RADIATO R FA N
CONTRO L SENSO R
2 7 N- m (2. 8 kgf-m ,
20 Ibf-ft )
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,8.7 Ibf-ft )
THERMOSTAT
Install wit h pi n up .
THERM O COVE R
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
O-RIN G Replace .
Testing
Replac e thermosta t i f i t i s ope n a t roo m temperature .
T o tes t a close d thermostat :
1 . Suspen d th e thermosta t i n a containe r o f wate r a s
shown .
2. Hea t th e water , an d chec k th e temperatur e wit h a
thermometer . Chec k th e temperatur e a t whic h th e
thermosta t firs t open s an d a t ful l lift .
CAUTION : D o no t le t thermomete r touc h th e botto m
o f th e ho t container .
3 . Measur e lif t heigh t o f th e thermosta t whe n full y open .
STANDAR D THERMOSTA T
Lif t height : abov e 1 0 m m (0.3 9 in )
Start s opening :
169-176° F (76-80°C)
Fully open : 194° F (90°C )
THERMOMETE R
THERMOSTA T
O-RINGSReplace .
ProCarManuals.com

Water Pum p
Illustrate d Inde x
NOTE : Us e ne w O-ring s an d ne w specia l bolt s whe n
reassembling .
RADIATOR FA N
CONTRO L SENSO R
2 7 N- m (2. 8 kgf-m ,
2 0 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft ) O-RIN
G
Replace .
O-RING
Replace . COOLAN
T
TEMPERATUR E GAUG E
SENDIN G UNI T9 N- m (0. 9 kgf-m , 7 Ibf-ft )Apply liqui d gaske tto th e threads .
BLEED BOL T9.8 N- m(1.0 kgf-m , 7. 2 Ibf-ft )
CONNECTIN G PIP E
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
WATE R PASSAG E
O-RIN G
Replace .
ENGINE COOLAN T
TEMPERATUR E (ECT )
SWITC H
1 8 N- m (1. 8 kgf-m , 1 3 Ibf-ft )
WATE R PUM P
Inspection , pag e 10-1 1 O-RIN
G
Replace .
SPECIAL BOL T
6 x 1. 0 mm : 7 BOLT S
1 2 N- m (1.2 kgf-m , 8. 7 Ibf-ft )
Replace .
DRAIN BOLT S
9. 8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
Us e rubbe r hose s
when draining .
SPECIAL BOL T
8 x 1.2 5 mm : 2 BOLT S
2 2 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
Replace .
DOWELPIN
DOWE L PI N
O-RIN G
Replace .
ProCarManuals.com

Inspection
1. Remov e th e timin g bel t (se e pag e 6-15 ).
2 . Tur n th e wate r pum p pulle y counterclockwise . Chec k
tha t i t turn s freely .
3. Chec k fo r sign s o f sea l leakage .
NOTE: A smal l amoun t o f "weeping " fro m th e blee d
hol e is normal .
Turns counterclockwis e
BLEED HOL E BLEE
D HOL E
Replacemen t
1. Remov e th e timin g bel t (se e pag e 6-15 ).
2 . Unscre w th e bolts , the n remov e th e wate r pump .
NOTE : Inspec t an d clea n th e O-rin g groov e an d
matin g surfac e wit h th e cylinde r block .
DOWE L PI N
SPECIA L BOLT S
6 x 1. 0 mm : 7 BOLT S
12 N- m(1.2 kgf-m , 8. 7 Ibf-ft )
Replace .
O-RINGReplace .
SPECIA L BOLT S
8 x 1.2 5 mm : 2 BOLT S
2 2 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
Replace .
3. Instal l th e wate r pum p i n th e revers e orde r o f
removal .
NOTE:
• Kee p th e O-rin g i n positio n whe n installing .
• Clea n u p spille d engin e coolant .
WATER PUM P
ProCarManuals.com

Special Tool s
11-151,11-155, 11-163,
11-164, 11-172, 11-173,
11-175, 11-178, 11-139
11-173
11-38, 11-60, 11-62, 11-64,
11-81,11-91,11-129,11-160,
11-162, 11-163, 11-38c
11-40
11-133, 11-137
Note: Refer to page 11-2c or 11-2g for further page references
