Thickness an d Parallelis m
Inspectio n
1. Rais e bot h side s o f th e vehicle , an d suppor t i t o n
safet y stand s (se e pag e 1- 10 throug h 1-12 ).
Remov e th e rea r wheels .
2 . Mov e th e calipe r an d pad s ou t o f th e wa y a s
describe d o n th e precedin g page .
3 . Usin g a micrometer , measur e dis c thicknes s a t
eigh t points , approximatel y 45 ° apar t an d 1 0 m m
(0. 4 in ) i n fro m th e oute r edg e o f th e disc .
Brak e Dis c Thickness :
Standard : 23. 0 m m (0.9 1 in ) max .
Servic e Limit : 21. 0 m m (0.8 3 in )
Brak e Dis c Parallelism :
Th e differenc e betwee n an y thicknes s measure -
ment s shoul d no t b e mor e tha n 0.01 5 m m (0.000 6
in).
4. I f th e brak e dis c i s beyon d th e limit s parallelism ,
refinis h th e disc .
Max . Refinishin g Limit : 19. 0 m m (0.7 5 in )
ProCarManuals.com
Page 1002 of 1503

Rear Calipe r
Disassembl y
• Neve r us e a n ai r hos e o r dr y brus h t o clea n brak e
assemblies .
• Us e a n OSHA-approve d vacuu m cleane r t o avoi d
breathin g brak e dust .
CAUTION :
• D o no t spil l brak e flui d o n th e vehicle ; i t ma y damag e
th e paint ; i f brak e flui d doe s contac t th e paint , was h
it of f immediatel y wit h water .
• T o preven t spills , cove r th e hos e joint s wit h rag s o r
sho p towels .
• Clea n al l part s i n brak e flui d an d ai r dry ; blo w ou t al l
passage s wit h compresse d air .
1 . Remov e th e calipe r shiel d (se e pag e 19-18 ).
2 . Disconnec t th e parkin g cabl e (se e pag e 19-18 ).
3 . Remov e th e banj o bol t an d tw o sealin g washers .
4 . Remov e th e tw o calipe r mountin g bolt s an d calipe r
bod y fro m th e bracket .
5 . Remov e th e pa d sprin g fro m th e caliper .
6. Remov e th e pisto n an d pisto n boo t whil e rotatin g
the pisto n wit h a commercially-availabl e locknu t
wrench.
CAUTION : Avoi d damagin g th e pisto n an d pisto n
boot .
ProCarManuals.com
Page 1003 of 1503
Disassembly (cont'd )
Rear Calipe r
7. Remov e th e circlip , washer , adjustin g sprin g A , an d
th e adjustin g nu t fro m th e piston . 9
. Adjus t th e specia l too l a s shown .
BRAKE SPRIN GCOMPRESSO R
07HA E - SG0010 0
10. Instal l th e specia l too l betwee n th e calipe r bod y an d
sprin g guid e a s shown .
11 . Compres s th e adjustin g sprin g B by turnin g th e
shaf t o f th e specia l tool , the n remov e th e circli p
wit h sna p rin g pliers .
8
. Remov e th e pisto n seal .
CAUTION : Tak e car e no t t o damag e th e cylinde r
bore.
SNAP RIN GPLIER S07914-SA5000 0BRAKE SPRIN GCOMPRESSO R07HAE - SG0010 0
ProCarManuals.com
Page 1004 of 1503
12. Remove the adjusting bolt.
13. Remove the spring cover, adjusting spring B, spacer,
bearing A and cup from the adjusting bolt.
15. Remove the return spring.
16. Remove the parking lever and cam as an assembly
from the caliper body.
CAUTION: Do not loosen the parking nut with the
cam installed in the caliper body. If the lever and
shaft must be separated, hold the lever in a vise
and loosen the parking nut.
17. Remove the cam boot.
14. Remove the sleeve piston, and remove the pin from
the
cam.ProCarManuals.com
Page 1005 of 1503

Reassembly
Rear Calipe r
CAUTION :
• Mak e sur e al l part s ar e clea n befor e reassembly .
• Us e onl y ne w replacemen t parts .
• Alway s us e Genuin e Hond a DO T 3 Brak e Fluid . Usin g
a non-Hond a brak e flui d ca n caus e corrosio n an d
decreas e th e lif e o f th e system .
• D o no t allo w dir t o r othe r foreig n matte r t o contami -
nat e th e brak e fluid .
• Avoi d spillin g brak e flui d o n painted , plasti c o r rub -
be r surface s a s i t ca n damag e th e finish . Was h
spille d brak e flui d of f immediatel y wit h clea n water .
1 . Pac k al l cavitie s o f th e needl e bearin g wit h a com -
mercially-availabl e assembl y lube .
2 . Coa t th e ne w ca m boo t wit h a commercially-avail -
abl e assembl y lub e an d instal l i n th e caliper .
3 . Appl y commercially-availabl e assembl y lub e t o th e
pi n contactin g are a o f th e cam , an d instal l th e ca m
an d leve r assembl y int o th e calipe r body .
4 . Instal l th e retur n spring .
CAUTION :
• Whe n th e ca m an d leve r wer e separated , b e sur e
t o assembl e the m befor e installin g th e ca m in
th e calipe r body . Instal l th e leve r an d sprin g
washer , appl y lockin g agen t t o th e threads , an d
tighte n th e parkin g nu t whil e holdin g th e leve r
wit h a vise .
• Avoi d damagin g th e ca m boo t sinc e i t mus t b e
installe d befor e th e cam .
• Whe n installin g th e cam , d o no t allo w th e ca m
boo t lip s t o tur n outsid e in .5. Instal l th e pi n in th e cam .
6. Instal l a ne w O-rin g o n th e sleev e piston .
7. Instal l th e sleev e pisto n s o th e hol e i n th e botto m o f
the pisto n i s aligne d wit h th e pi n i n th e cam , an d
the tw o pin s o n th e pisto n ar e aligne d wit h th e
hole s i n th e caliper .
ProCarManuals.com
Page 1006 of 1503
8. Instal l a ne w cu p wit h it s groov e facin g th e bearin g
A sid e o n th e adjustin g bolt .
9 . Fi t th e bearin g A , spacer , adjustin g sprin g B an d
sprin g cove r o n th e adjustin g bolt , an d instal l i n th e
calipe r cylinder .
NOTE: Instal l th e bearin g A wit h it s ope n en d fac -
ing th e spacer .
11. Instal l th e specia l too l a s shown .
12 . Compres s th e sprin g unti l i t bottom s out .
13 . Chec k tha t th e flare d en d o f th e sprin g cove r i s
belo w th e circli p groove .
14 . Instal l th e circlip , the n remov e th e brak e sprin g
compressor .
NOTE: Chec k tha t th e circli p is seate d in th e groov e
properly .
SNAP RIN G PLIER S07914-SA5000 0
BRAKE SPRIN GCOMPRESSO R07HAE - SG0010 0
15. Instal l th e adjustin g nut , adjustin g sprin g A , an d
washer , the n secur e wit h th e circlip .
10
. Adjus t th e specia l too l a s shown .
BRAKE SPRIN G COMPRESSO R07HAE-SG0010 0
ProCarManuals.com
Page 1007 of 1503

Reassembly (cont'd )
Rear Calipe r

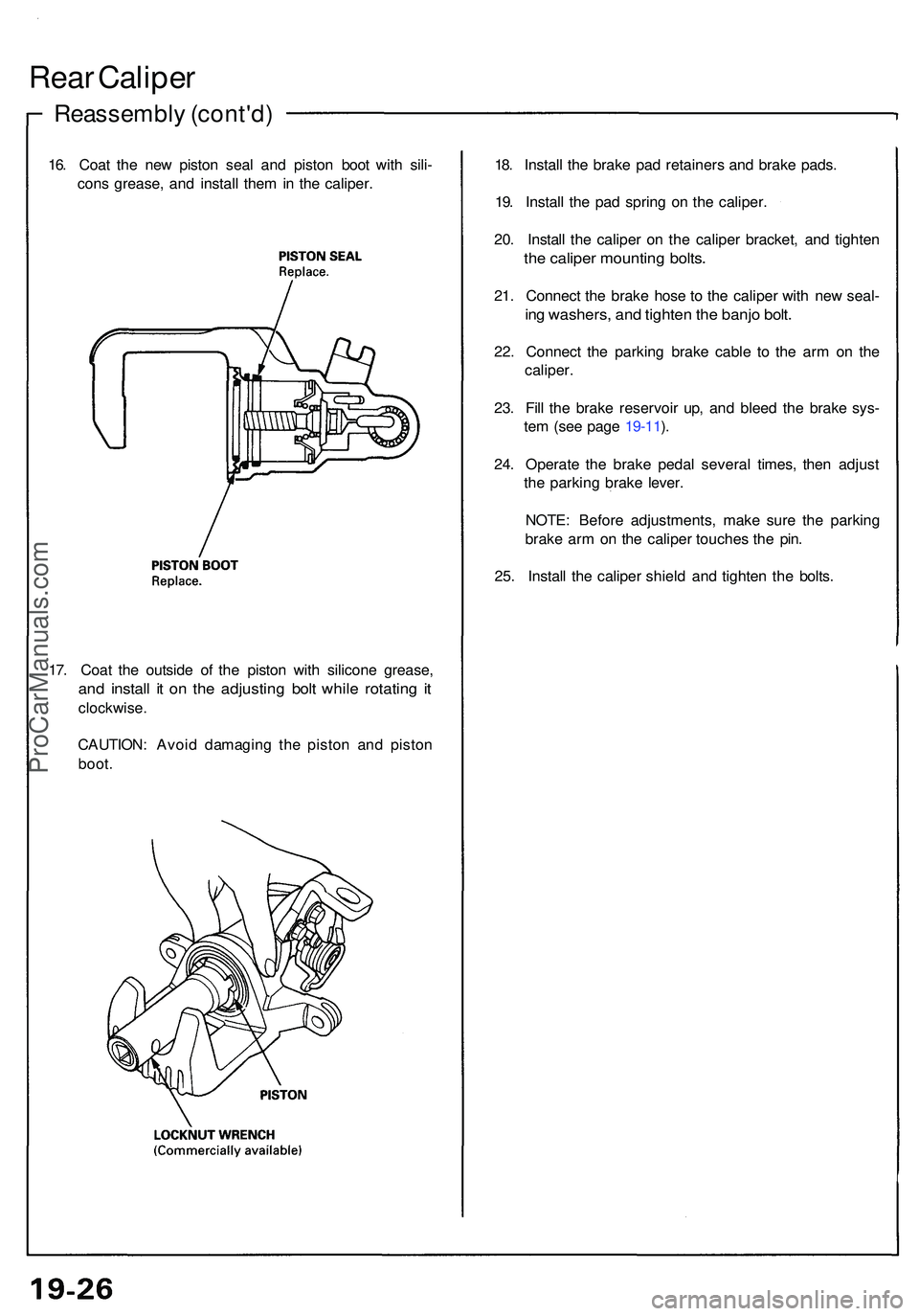

16. Coa t th e ne w pisto n sea l an d pisto n boo t wit h sili -
con s grease , an d instal l the m in th e caliper . 18
. Instal l th e brak e pa d retainer s an d brak e pads .
19 . Instal l th e pa d sprin g o n th e caliper .
20 . Instal l th e calipe r o n th e calipe r bracket , an d tighte n
the calipe r mountin g bolts .
21. Connec t th e brak e hos e t o th e calipe r wit h ne w seal -
ing washers , an d tighte n th e banj o bolt .
22. Connec t th e parkin g brak e cabl e t o th e ar m o n th e
caliper .
23 . Fil l th e brak e reservoi r up , an d blee d th e brak e sys -
te m (se e pag e 19-11 ).
24 . Operat e th e brak e peda l severa l times , the n adjus t
th e parkin g brak e lever .
NOTE : Befor e adjustments , mak e sur e th e parkin g
brak e ar m o n th e calipe r touche s th e pin .
25 . Instal l th e calipe r shiel d an d tighte n th e bolts .
17 . Coa t th e outsid e o f th e pisto n wit h silicon e grease ,
and instal l i t o n th e adjustin g bol t whil e rotatin g i t
clockwise .
CAUTION : Avoi d damagin g th e pisto n an d pisto n
boot .
ProCarManuals.com
Page 1008 of 1503
Brake Hoses/Lines
Inspection
1. Inspect the brake hoses for damage, deterioration, leaks, interference or twisting.
2. Check the brake lines for damage, rusting and leakage. Also check for bent brake lines.
3. Check for leaks at hose and line joints or connections, and retighten if necessary.
4. Check the master cylinder and ABS modulator unit for damage and leakage.
