Page 697 of 1503
Clearance Inspection
1. Check the clearance between the transmission mat-
ing surface of the clutch housing and the oil pump
gear.
3. Check the radial clearance on the pump rotor.
2. Check the axial clearance on the pump rotor.
Inner Rotor-to-Outer Rotor Radial clearance
Standard: 0.14 mm (0.006 in) max.
Service Limit: 0.2 mm (0.008 in)
4. Check the radial clearance between the clutch hous-
ing and the outer rotor.
Clutch Housing-to-Rotor Radial clearance
Standard: 0.1 - 0.2 mm
(0.004-0.008 in)
Service Limit: 0.22 mm (0.009 in)
Standard: 0.3 - 0.8 mm (0.012 - 0.031 in)
Service Limit: 0.9 mm (0.035 in)
Clutch Housing-to-Rotor Axial clearance
Standard: 0.03-0.1 mm
(0.001 - 0.004 in)
Service Limit: 0.15 mm (0.006 in)ProCarManuals.com
Page 698 of 1503
Mainshaft Oi l Sea l (Clutc h Housing )
Replacemen t
1. Remov e th e releas e bearin g guid e cover , an d
releas e bearin g guide . 3
. Driv e a ne w oi l sea l fro m th e clutc h sid e usin g th e
specia l tool s a s shown .
DRIVER07749-001000 0
ATTACHMENT ,52 x 5 5 m m07746-001040 0
4. Instal l th e releas e bearin g guide , an d releas e bear -
in g guid e cover .
2
. Remov e th e oi l seal .
ProCarManuals.com
Page 699 of 1503
Countershaft Bearin g (Clutc h Housing )
Replacemen t
1. Remov e th e bearin g retainin g plate .
3. Positio n th e oi l guid e plat e an d ne w needl e bearin g
i n th e bor e o f th e clutc h housing . Positio n th e nee -
dl e bearin g wit h th e oi l hol e facin g up .
4 . Driv e th e needl e bearin g usin g th e specia l tools .
2 . Remov e th e needl e bearin g wit h th e specia l tool ,
the n remov e th e oi l guid e plate .
ADJUSTABL E BEARIN G
PULLER , 25-40 mm07736-A01000 A
DRIVER07749-001000 0ATTACHMENT , 6 2 x 68 m m07746-001050 0
5. Instal l th e bearin g retainin g plate , an d stak e th e bol t
head s in th e groov e in th e bearin g retainin g plate .
ProCarManuals.com
Page 700 of 1503
Mainshaft Thrust Shim
Adjustment
1. Remove the thrust shim and oil guide plate from the
transmission housing.
2. Install the mainshaft in the transmission housing.
Do not install the clutch housing side ball bearing.
3. Measure between the end of the
transmission housing and mainshaft. Use a straight
edge and feeler gauge, and measure at three loca-
tions and average the readings.
5. Select the proper thrust shim on the basis of the
following calculations. Do not use more than two
thrust shims.
4. Set the mainshaft ball bearing in the clutch hous-
ing, and measure distance between the sur-
faces of the clutch housing and the bearing in-
ner race. Use a straight edge and feeler gauge, and
measure at three locations and average the read-
ings. Do not install the spring washer.ProCarManuals.com
Page 701 of 1503

NOTE: Clea n al l th e part s thoroughl y befor e installation .
6 . Instal l th e oi l guid e plat e an d thrus t shi m int o th e
transmissio n housing .
DRIVER, 4 0 m m I.D .07746 -003010 0
7. Instal l th e bal l bearin g ont o th e mainshaf t usin g th e
specia l tools .
ATTACHMENT , 3 5 m m I.D .
0774 6-003040 0
8. Instal l th e 7 5 m m sprin g washe r an d mainshaf t
assembl y int o th e clutc h housing .
9. Instal l th e transmissio n housing .
Torque: 4 4 N- m (4. 5 kgf-m , 3 3 Ibf-ft )
10. Chec k th e thrus t clearanc e in th e manne r describe d
below . Carr y ou t th e measuremen t a t norma l roo m
temperature .
a . Slid e th e mainshaf t bas e ove r th e mainshaft ,
b . Attac h th e mainshaf t holde r t o th e mainshaf t a s
follows : f
. Tur n th e mainshaf t holde r bol t clockwise ; sto p
turnin g whe n th e dia l gaug e ha s reache d it s
maximu m movement . Th e readin g o n th e dia l
gaug e is th e amoun t o f mainshaf t en d play .
CAUTION : Turnin g th e shaf t holde r bol t mor e
the n 6 0 degree s afte r th e needl e o f th e dia l
gaug e stop s movin g ma y damag e th e transmis -sion.
g. I f th e readin g i s withi n th e standard , th e
clearanc e is correct .
I f th e readin g i s no t withi n th e standard , rechec k
th e shi m thickness .
Standard : 0.1 4 - 0.2 1 m m (0.00 6 - 0.00 8 in )
•
Back-ou t th e mainshaf t holde r bol t an d
loose n th e tw o he x bolts .
• Fi t th e holde r ove r th e mainshaf t s o it s li p i s
toward s th e transmission .
• Alig n th e mainshaf t holder' s li p aroun d th e
groov e a t th e insid e o f th e mainshaf t splines ,
the n tighte n th e he x bolts .
MAINSHAF T BAS E07GA J-PG2013 0
MAINSHAF THOLDER07GAJ-PG2011 0
c. Sea t th e mainshaf t ful l b y tappin g it s en d
wit h a plasti c hammer ,
d. Threa d th e mainshaf t holde r bol t i n unti l i t
jus t contact s th e wid e surfac e o f th e mainshaf t
base.
e. Zer o a dia l gaug e o n th e en d o f th e mainshaft .
ProCarManuals.com
Page 702 of 1503
Transmission
Reassembly
1. Install the oil seal, shift arm, and shift lever in the
transmission housing.
3. Install the oil seal, select arm, and select lever in the
clutch housing.
2. Install the shift detent spring and spring set plate.
4. Install the differential assembly into the clutch
housing.ProCarManuals.com
Page 703 of 1503
5. Install the spring washer, then insert the mainshaft
and countershaft into the shift forks and install
them as an assembly. Tape the mainshaft splines
before installation.
7. Install the reverse idle gear shaft assembly.
6. Install the change holder assembly in the clutch
housing. Place the interlock finger in the groove of
the select arm.
8. Shift the reverse synchro sleeve to the driven gear
side, then install the reverse shift fork assembly.ProCarManuals.com

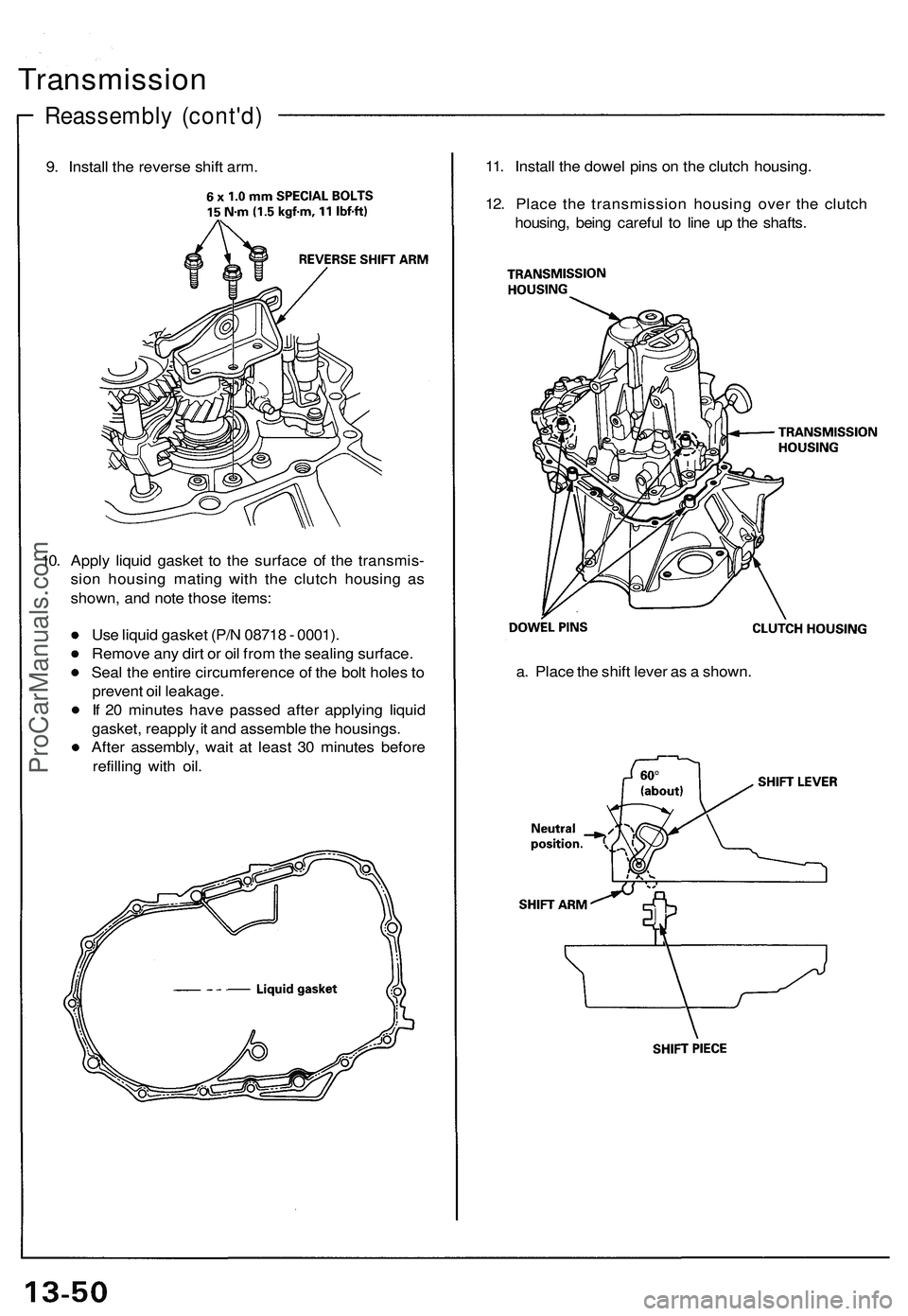

Page 704 of 1503
Transmission
Reassembly (cont'd)
9. Install the reverse shift arm.
11. Install the dowel pins on the clutch housing.
12. Place the transmission housing over the clutch
housing, being careful to line up the shafts.
10. Apply liquid gasket to the surface of the transmis-
sion housing mating with the clutch housing as
shown, and note those items:
Use liquid gasket (P/N 08718 - 0001).
Remove any dirt or oil from the sealing surface.
Seal the entire circumference of the bolt holes to
prevent oil leakage.
If 20 minutes have passed after applying liquid
gasket, reapply it and assemble the housings.
After assembly, wait at least 30 minutes before
refilling with oil.
a. Place the shift lever as a shown.ProCarManuals.com
