Page 1417 of 1503
Power Window s
Passenger' s Switc h Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8 P connector .
View fro m wir e sid e
3. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table.
Maste r Switc h Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e fou r screws , the n remov e th e powe r
windo w maste r switc h fro m th e doo r panel .
DOOR PANE L
MASTE R
SWITC H
SWITCH
UP
OF F
DOW N
38127Termina l
Position
ProCarManuals.com
Page 1418 of 1503

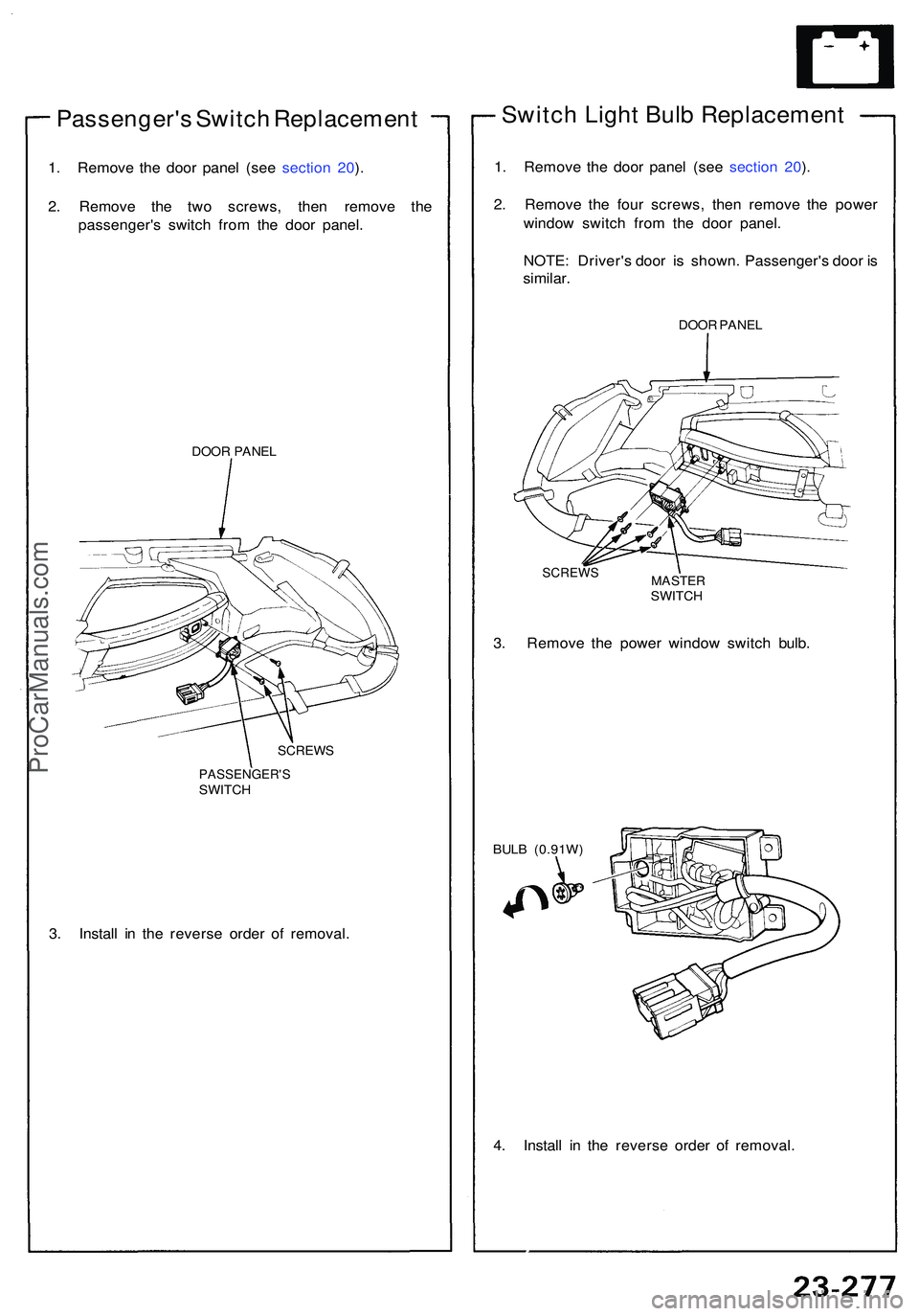

Passenger's Switc h Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e tw o screws , the n remov e th e
passenger' s switc h fro m th e doo r panel .
DOOR PANE L
SCREW S
PASSENGER' SSWITCH
3. Instal l i n th e revers e orde r o f removal .
Switch Ligh t Bul b Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e fou r screws , the n remov e th e powe r
windo w switc h fro m th e doo r panel .
NOTE : Driver' s doo r is shown . Passenger' s doo r i s
similar .
DOOR PANE L
SCREW SMASTERSWITCH
3. Remov e th e powe r windo w switc h bulb .
BULB (0.91W )
4. Instal l i n th e revers e orde r of removal .
ProCarManuals.com
Page 1419 of 1503

Power Window s
Driver's Windo w Moto r Tes t
Moto r Test :
1 . Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e driver' s motor .
View fro m
wir e sid e
3. Tes t th e moto r b y connectin g batter y powe r t o th e
No . 4 termina l an d groun d t o th e No . 3 terminal .
Tes t th e moto r i n eac h direction , b y switchin g th e
lead s fro m th e battery .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t run , replac e it .
Pulse r Test :
Connec t th e tes t lead s of an analo g ohmmete r t o th e
No . 1 an d No . 2 terminal s an d chec k fo r needl e move -
ment whil e runnin g th e moto r b y connectin g batter y
power t o th e No . 4 an d groun d t o th e No . 3 terminal .
Th e analo g ohmmete r needl e shoul d mov e bac k an d
fort h alternately .
PULSER
Passenger' s Windo w Moto r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 2 P connecto r fro m th e motor .
View fro m wir e sid e
3. Tes t th e moto r b y connectin g batter y powe r t o th e
No . 1 termina l an d groun d t o th e No . 2 terminal .
Test th e moto r i n eac h direction , b y switchin g th e
leads .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t run , replac e it .
ProCarManuals.com
Page 1420 of 1503
Relay Test
1. Remove the power window relay in the under-hood
fuse/relay box.
2. Check continuity at the relay terminals.
There should be continuity between the C and D
terminals.
There should be continuity between the A and B
terminals when power and ground are connect-
ed to the C and D terminals.
There should be no continuity between the A and
B terminals when power is disconnected.ProCarManuals.com
Page 1421 of 1503
Power Seat s
Componen t Locatio n Inde x
PASSENGER' S SEA T
RECLIN E MOTO R
Test , pag e 23-28 3 DRIVER'
S SEA T
POWER SEA T SWITC H
Test , pag e 23-28 2
SLID E MOTO R
Test , pag e 23-28 3
ProCarManuals.com
Page 1422 of 1503
Power Seats
Seat Switch Test
CAUTION: Be careful not to damage the seats, the
interior trim or the body.
1. Remove the two screws, then remove the power
seat switch from the power seat.
2. Disconnect the 5P connectors from each power seat
switch.
3. Check for continuity between the terminals, in each
switch position, according to the table.
RECLINE
SWITCH
SLIDE
SWITCH
SLIDE
RECLINE
Position
Terminal
FORWARD
NEUTRAL
BACKWARD
FORWARD
NEUTRAL
BACKWARDProCarManuals.com
Page 1423 of 1503

Motor Test
CAUTION: Be careful not to damage the seats, the
interior trim or the body.
1. Remove the power seat, then disconnect the 2P con-
nector from the slide motor.
2. Remove the two screws, then remove the power seat
switch from the power seat.
3. Disconnect the 5P connector from the power seat
switch (recline switch side).
View from
wire side
RECLINE
MOTOR
SLIDE
MOTOR
View from
wire side
4. Test motor operation.
CAUTION: When the motor stops running, discon-
nect power immediately.
FORWARD
SLIDE: Connect battery power to the No. 6
terminal and ground to the No. 7
terminal.
BACKWARD
SLIDE: Connect battery power to the No. 7
terminal and ground to the No. 6
terminal.
FORWARD
RECLINE: Connect battery power to the No. 4
terminal and ground to the No. 1
terminal.
BACKWARD
RECLINE: Connect battery power to the No. 1
terminal and ground to the No. 4
terminal.
NOTE: If a motor does not run, reverse the power
and ground connections. If the motor still does not
run, the motor or the wire harness is faulty.
2P CONNECTOR
5P CONNECTORProCarManuals.com
Page 1424 of 1503

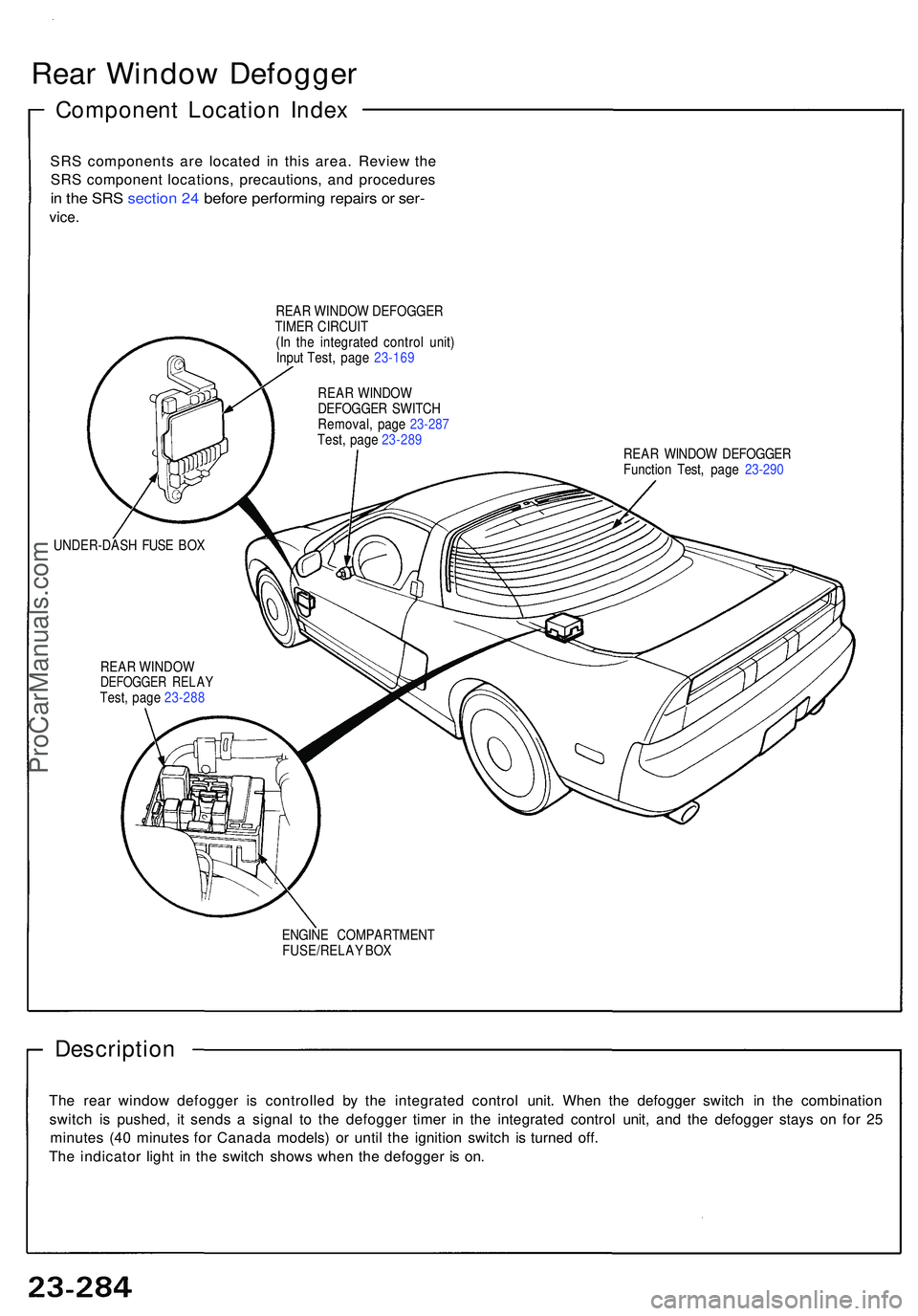

Rear Windo w Defogge r
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
in th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
REA R WINDO W DEFOGGE R
TIME R CIRCUI T
(I n th e integrate d contro l unit )
Inpu t Test , pag e 23-16 9
REAR WINDO W DEFOGGE R
Functio n Test , pag e 23-29 0
UNDER-DAS H FUS E BO X REA
R WINDO W
DEFOGGE R SWITC H
Removal , pag e 23-28 7
Test , pag e 23-28 9
REA R WINDO W
DEFOGGE R RELA YTest, pag e 23-28 8
ENGINE COMPARTMEN T
FUSE/RELA Y BO X
Descriptio n
The rea r windo w defogge r i s controlle d b y th e integrate d contro l unit . Whe n th e defogge r switc h i n th e combinatio n
switc h i s pushed , i t send s a signa l t o th e defogge r time r i n th e integrate d contro l unit , an d th e defogge r stay s o n fo r 2 5
minute s (4 0 minute s fo r Canad a models ) o r unti l th e ignitio n switc h i s turne d off .
Th e indicato r ligh t i n th e switc h show s whe n th e defogge r i s on .
