System Descriptio n
Major Component s
The Electrica l Powe r Steerin g syste m is compose d o f th e followin g majo r components :
• A steerin g gearbo x tha t convert s rotar y operatio n o f th e steerin g whee l int o transvers e operatio n vi a a rac k an d pinio n
mechanism . Steerin g sensor s an d a n actuatin g moto r ar e incorporated .
• A contro l uni t tha t compute s th e optimu m amoun t o f powe r assistance , takin g int o accoun t steerin g torque , an d vehi -
cl e speed . Self-diagnosi s function s ar e included .
• A powe r modul e i n th e EP S contro l uni t tha t drive s th e moto r accordin g t o th e signal s fro m th e EP S contro l unit . A cur -
ren t senso r i s buil t i n t o giv e feedbac k informatio n t o th e EP S contro l unit . Tw o relay s shu t of f th e powe r i f a proble m
i n th e syste m occurs .
• Th e countershaf t spee d senso r o n th e automati c transmissio n o r th e differentia l spee d senso r o n th e manua l transmis -
sio n send s a vehicl e spee d signa l t o th e EP S contro l unit . Als o th e speedomete r send s a vehicl e spee d signa l t o th e EP S
contro l unit . Th e tw o signal s ar e use d a s a double-check .
ProCarManuals.com

System Operatio n
Manual Steerin g Operatio n
Steerin g whee l inpu t rotate s th e pinio n o f th e gearbo x throug h a universa l joint . Du e t o th e rac k an d pinio n mechanism ,
th e rotatio n o f pinio n is converte d int o a transvers e motio n a t th e rack , whic h steer s th e fron t wheel s through t th e tie-rod s
an d knuckle s th e sam e a s a n ordinar y rac k an d pinio n system .
Assistin g Operatio n
In additio n t o th e manual steering operation , th e steerin g senso r o n th e pinio n shaf t transmit s a signa l t o th e EP S contro l
uni t whe n i t receive s a steerin g input . Th e EP S contro l uni t calculate s a n adequat e moto r contro l wit h additio n o f vehicl e
spee d signals . Base d o n th e signa l fro m th e sensors , th e EP S contro l uni t drive s th e moto r insid e th e gearbox . Th e torqu e
generate d b y th e moto r i s transmitte d t o a bal l screw , throug h gears , an d converte d int o a n assistin g thrus t i n th e axia l
directio n o f rack . Th e assistin g thrus t act s i n th e steerin g directio n an d lessen s th e steerin g forc e require d a t th e steerin g
wheel.
ProCarManuals.com

System Description

Function and Operation

Steering Sensor

The steering sensor consists of a torque sensor, an

interface.

Torque Sensor

The torque sensor converts steering torque input and its

direction to voltage signals, in conjunction with the

interface.

A torsional force caused by steering operation is con-

verted to an axial movement of a slider core. A variable

differential transformer is installed around the slider

core.

Within the transformer are three coils, a primary coil on

the inside, and two secondary coils, one for right turns

and one for left turns.

Alternating current is passed through the primary coil

when the system is energized. The amount of mutual

induction from the primary coil to the secondary coils

changes depending on the position of the slider coil.

The input shaft and the slider are one piece. Rotation of

the shaft moves the slider in a circular direction. The

pinion is turned via the torsion bar. The slider core is

installed on the pinion shaft on grooves, and turns with

the pinion shaft.

When there is little resistance, the input shaft torsion

bar, pinion shaft, and the slider core turn together to the

same angle. The slider core does not move up/down.

When there is resistance on the input shaft (hard to steer situation), and the slider pin is turned at an angle by the steering

wheel, the torsion bar is twisted due to the resistance. Accordingly, the pinion shaft turns at a smaller angle. The differ-

ence in the turning angles changes the position of the slider pin in the groove, forcing the slider core upward or down-

ward, depending on the direction of the direction of the turn.ProCarManuals.com

Interface Circuit

The interface circuit is housed inside the steering gearbox near the pinion. It rectifies and amplifies the signals from the

torque sensor, and transmits the steering signals to the EPS control unit.ProCarManuals.com

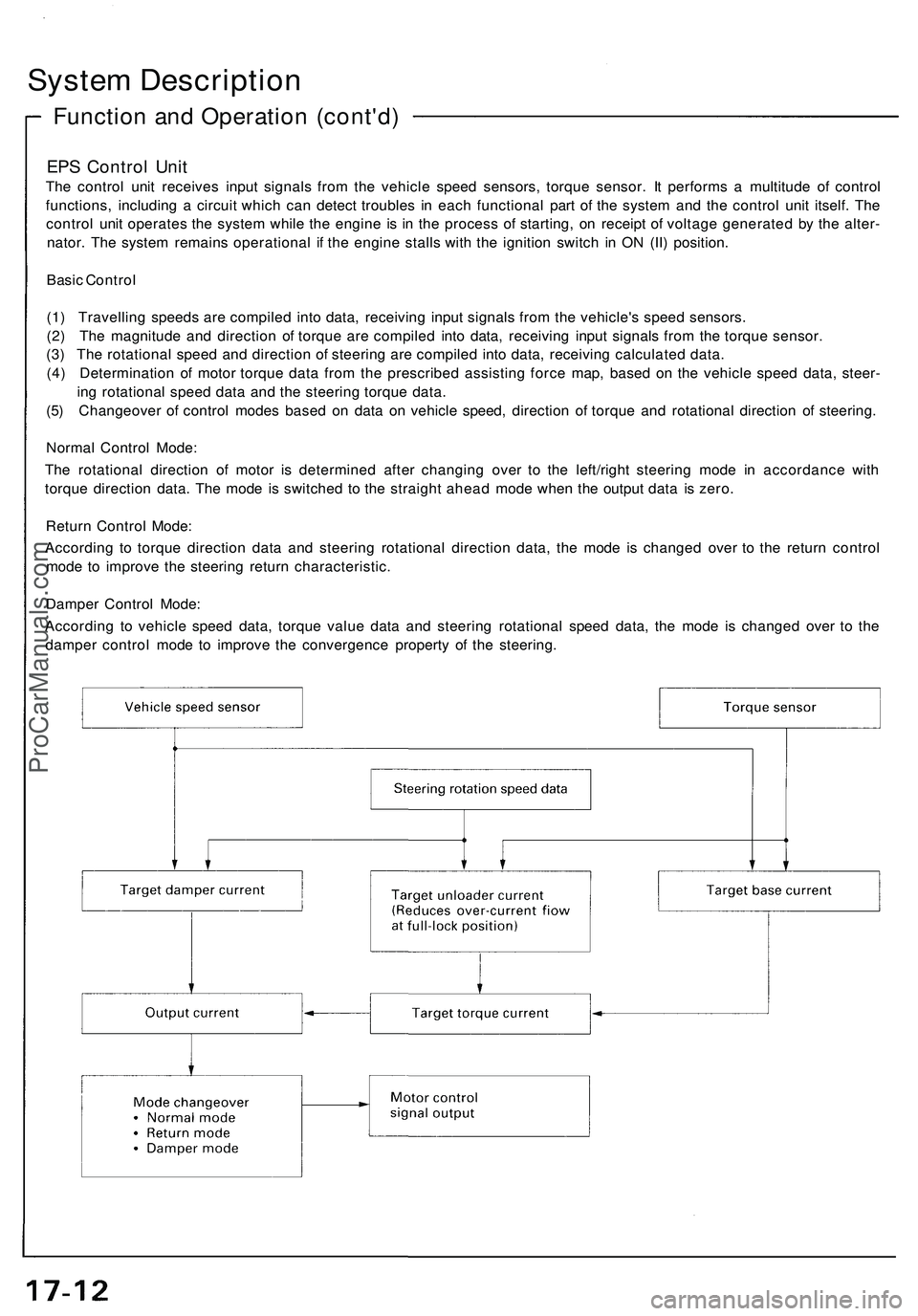

System Description

Function and Operation (cont'd)

EPS Control Unit

The control unit receives input signals from the vehicle speed sensors, torque sensor. It performs a multitude of control

functions, including a circuit which can detect troubles in each functional part of the system and the control unit itself. The

control unit operates the system while the engine is in the process of starting, on receipt of voltage generated by the alter-

nator. The system remains operational if the engine stalls with the ignition switch in ON (II) position.

Basic Control

(1) Travelling speeds are compiled into data, receiving input signals from the vehicle's speed sensors.

(2) The magnitude and direction of torque are compiled into data, receiving input signals from the torque sensor.

(3) The rotational speed and direction of steering are compiled into data, receiving calculated data.

(4) Determination of motor torque data from the prescribed assisting force map, based on the vehicle speed data, steer-

ing rotational speed data and the steering torque data.

(5) Changeover of control modes based on data on vehicle speed, direction of torque and rotational direction of steering.

Normal Control Mode:

The rotational direction of motor is determined after changing over to the left/right steering mode in accordance with

torque direction data. The mode is switched to the straight ahead mode when the output data is zero.

Return Control Mode:

According to torque direction data and steering rotational direction data, the mode is changed over to the return control

mode to improve the steering return characteristic.

Damper Control Mode:

According to vehicle speed data, torque value data and steering rotational speed data, the mode is changed over to the

damper control mode to improve the convergence property of the steering.ProCarManuals.com

Self-Diagnosis Function

The EPS control unit monitors the system inputs and outputs, and the driving current of the motor. If there is a problem in

the system, the control unit turns the system off by actuating the relay. Power assist stops and normal manual steering

operation resumes. The control unit also turns the EPS indicator light on to alert the driver, and memorizes the problem in

the form of a code. Connecting the terminals of the service check connector with the SCS service connector (special tool)

enables the EPS indicator light to blink the problem code when the ignition switch is turned on (II).

Unloader Control

If the steering wheel is turned fully and held in the full-lock position, the steering torque reaches the maximum point, and

an over-current flows to the motor. The control unit detects this and reduces the current flow to the motor.

Average Moving Current Control

The electric current flow to the motor is estimated from the current values detected by the current sensor, and the average

current is obtained at two second intervals. The motor driving current is suppressed when the average current value

exceeds a predetermined marginal value. The control unit regulates the motor current during continuous loading to sup-

press any excessive temperature rise in the motor.ProCarManuals.com

System Description

Function and Operation (cont'd)

The power module in the EPS control unit consists of a driving circuit, current sensor, field effect transistor (FET) bridge

circuit, and two relays. It receives control signals from the central processing unit (CPU) and controls the driving current of

the motor. The driving circuit controls the rotational direction and speed of the motor by driving the FET bridge circuit

with a pulse width modulation (PWM) method on receipt of an input of driving signals from the CPU.

Rotational Speed Control

The PWM driving signal is a digital signal repeating the process of voltage ON/OFF at a constant frequency, which

changes the ratio of ON time per one cycle of this signal. The ratio is called the duty ratio. When there is a change in duty

ratio, the average voltage changes as smoothly as an analog type. The ratio of digital signal voltage (E) and the average

voltage (V) is called the duty Its relationship is expressed by When the duty ratio is low, the rotational

speed of motor is slow. As the duty ratio increases, the rotational speed increases to increase the torque.

Rotational Direction Control

Normal Mode Control:

The table below shows the normal control mode to con-

trol the flow of current from the battery:

("PWM" in the table indicates PWM control based on

torque sensor data).

Return Control Mode:

Return control mode improves the steering return char-

acteristics. ("PWM" in the table denotes PWM control

based on torque sensor data while "PWM-r" PWM con-

trol based on steering rotation speed data).

Damper Control Mode:

The damper mode control, which improves the convergence of steering, is performed with damper mode signals from the

CPU.

Motor Driving Current Control

A current sensor, power relay and fail-safe relay are built into the control unit. The current sensor detects motor driving

current. If there is a problem in the system, a cut-off signal is sent from the CPU to relay, then the relay cuts off motor cur-

rent to switch to manual steering operation.ProCarManuals.com

Steering Gearbox

Motor and Power Assist Mechanism

A motor is housed inside the gearbox housing. It consists of a yoke with a permanent magnet fixed in it, a rotor with a

field coil, and brushes which pass electricity to rotor commutators. The motor is on the rack shaft of the steering gearbox.

The drive current from the control unit flows through the power relay and fail-safe relay to the brushes of the motor.

The drive current flows to rotor commutators through brushes, exciting the field coil of the rotor and rotates the rotor with

the magnetic action of the permanent magnet inside the yoke. The rotor rotates in the opposite direction when the direc-

tion of drive current is reversed.

The rotation torque of the motor is transmitted to the ball screw throught the helical gear. The rotation torque on the ball

screw is converted into assist thrust in the direction of steering rack by the recirculating ball screw. The mechanical advan-

tage of the recirculating ball screw, compaired to a conventional rack and pinion, acts to reduce the steering force to the

steering rack through the joint, to lessen the steering effort required at the steering wheel.

Recirculating Ball Screw

The recirculating ball screw is constructed so that steel balls roll between the screw shaft and the nut, and those coming

out of the screw face enter the screw groove again through a tube for recirculation. The rotation torque on the shaft is

converted into thrust in an axial direction as the slope of the screw shaft presses against the nut through the steel balls.

Since the torque conversion is made in this method through the screw shaft and the steel balls, the friction is small, high

transmission efficiency is obtained for both the forward and backward directions, and the steering feels identical to the

ordinary manual steering.

Furthermore, since the force from the backward direction (force pressing the steering rack) is converted into the rotation

torque of the screw shaft, instantaneous kick-back from the road surface will rapidly rotate the motor. In such a rapid rota-

tion, the inertia of the motor increases, which acts to reduce the kick-back. Any great kick-back will be transmitted from the

steering rack to the torque sensor on the pinion, which acts to twist the pinion shaft in the same direction as the input

direction of kick-back. As a result, the motor operates the kick-back to reduce assist force.ProCarManuals.com
