Page 1217 of 1503
Condenser
Overhaul
1. Remove the four bolts and nuts. Then separate the condenser duct from the condenser shroud, and remove the
condenser.
2. Remove the three mounting screws, then remove the condenser fan from the condenser shroud.
CONDENSER
CONDENSER
DUCT
NUTS
6 x 1.0 mm
9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
CONDENSER FAN
SCREW
CONDENSER
SHROUD
SPACER
3. Assemble the condenser in the reverse order of disassembly. Be careful not to damage the tabs on the condenser
shroud when you attach it to the air intake duct.ProCarManuals.com
Page 1218 of 1503
Compressor
Description
This compresso r i s a DENS O pisto n typ e fo r R-134a . A revolvin g incline d dis c drive s th e surroundin g 1 0 reciprocatin g pis -
tons . A s th e incline d dis c revolved , i t pushe s th e pistons , protecte d b y a cerami c shoe , thu s compressin g th e refrigerant .
RELIEF VALVE
PISTON S
FIEL D COI L
ProCarManuals.com
Page 1219 of 1503
Compressor
Illustrated Inde x
RELIE F VALV E
Replacement , pag e 22-8 7
2 5 N- m (2. 6 kgf-m , 1 9 Ibf-ft ) CENTE
R BOL T
PRESSUR E PLAT EInspection , pag e 22-8 5
SHIM(S )
SNA P RIN G B
Replace .
PULLEYInspection , pag e 22-8 5
SNA P RIN G A
Replace .
FIELD COI LInspection , pag e 22-8 5
O-RIN G
Replace .
SUCTIO N SERVIC E VALV E
COMPRESSO R(Do no t disassembly )
ProCarManuals.com
Page 1220 of 1503

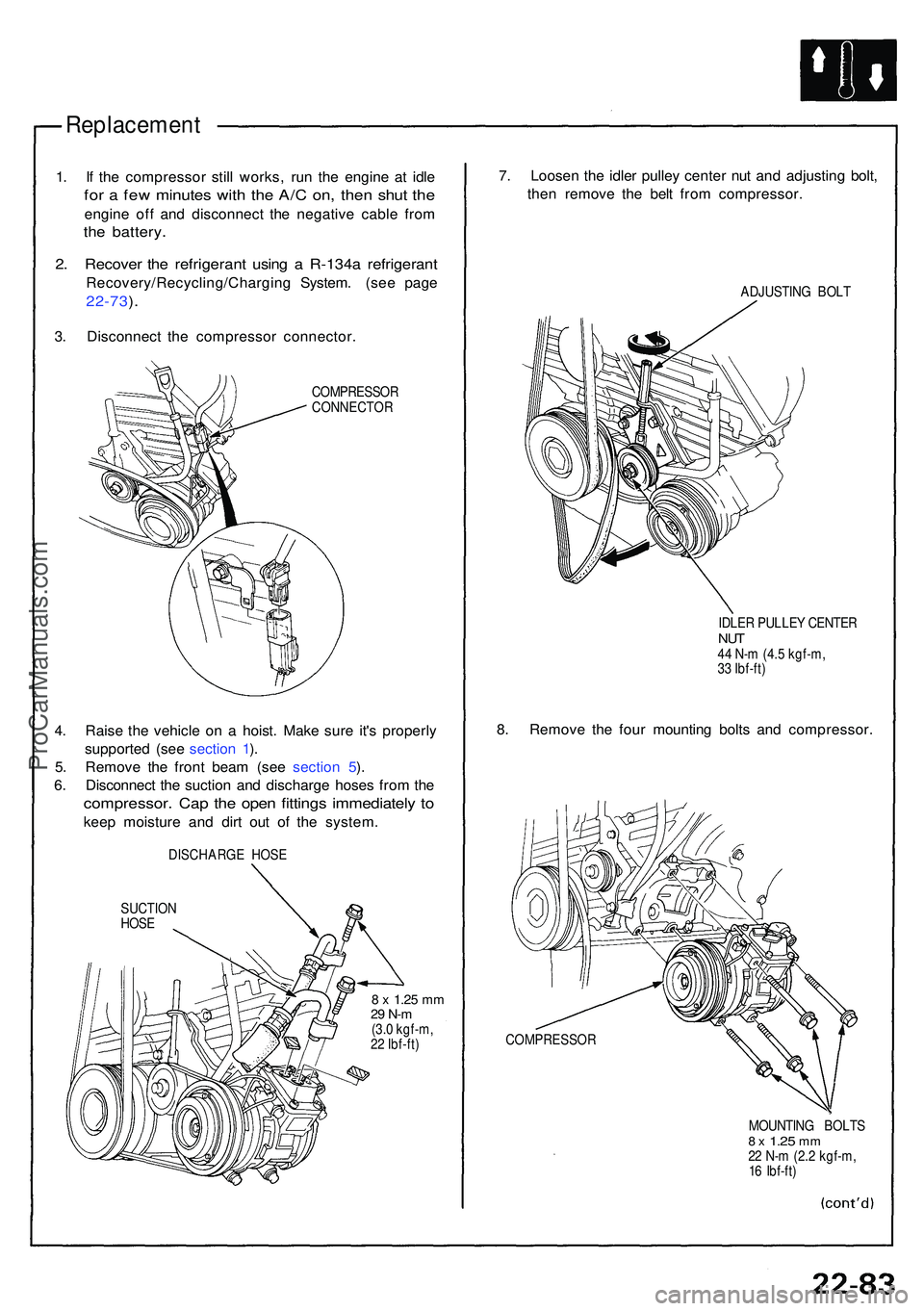

Replacement
1. I f th e compresso r stil l works , ru n th e engin e a t idl e
for a fe w minute s wit h th e A/ C on , the n shu t th e
engin e of f an d disconnec t th e negativ e cabl e fro m
the battery .
2. Recove r th e refrigeran t usin g a R-134 a refrigeran t
Recovery/Recycling/Chargin g System . (se e pag e
22-73 ).
3 . Disconnec t th e compresso r connector .
COMPRESSO R
CONNECTO R
4. Rais e th e vehicl e o n a hoist . Mak e sur e it' s properl y
supporte d (se e sectio n 1 ).
5 . Remov e th e fron t bea m (se e sectio n 5 ).
6 . Disconnec t th e suctio n an d discharg e hose s fro m th e
compressor . Ca p th e ope n fitting s immediatel y t o
kee p moistur e an d dir t ou t o f th e system .
DISCHARG E HOS E
SUCTIO N
HOS E
8 x 1.2 5 mm29 N- m(3.0 kgf-m ,
2 2 Ibf-ft )
7. Loose n th e idle r pulle y cente r nu t an d adjustin g bolt ,
the n remov e th e bel t fro m compressor .
ADJUSTING BOL T
IDLE R PULLE Y CENTE R
NUT44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
8. Remov e th e fou r mountin g bolt s an d compressor .
COMPRESSO R
MOUNTING BOLT S8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
ProCarManuals.com
Page 1221 of 1503

Compressor
Replacemen t
9. I f necessary , remov e th e on e bol t fro m th e idle r
pulle y bracket , the n remov e th e fou r mountin g
bolt s an d th e compresso r bracket .
10 x 1.25 mm49 N- m (5. 0 kgf-m ,36 Ibf-ft )
IDLE R PULLE Y
BRACKE T BOL T
10 x 1.2 5 mm44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
COMPRESSO R
BRACKET
10. I f necessary , remov e th e tw o othe r bolt s i n th e idle r
pulle y assembly .
IDLER PULLE Y
ASSEMBL Y
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft )
11. Chec k th e idle r pulle y bearin g fo r pla y an d drag .
Replac e i t wit h a ne w on e i f it' s nois y o r ha s exces -
siv e pla y o r drag .
44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
12. Instal l th e compresso r i n th e revers e orde r o f
removal ; and :
• I f you'r e installin g a ne w compressor , drai n al l
th e refrigeran t oi l ou t o f th e ol d compresso r an d
measur e it s volume . Subtrac t th e volum e o f ol d
oil fro m 16 0 ( 5 1/ 3 fl-oz , 5, 6 Imp-oz) ; th e resul t
i s th e amoun t o f oi l yo u shoul d drai n fro m th e
ne w compresso r (throug h th e suctio n fitting) .
• Replac e O-ring s wit h ne w one s a t eac h fitting ,
an d appl y refrigeran t oi l t o them .
NOTE : B e sur e t o us e th e righ t O-ring s fo r
R-134 a to avoi d leakage .
• Us e (ND-OI L 8 ) oi l fo r R-134 a DENS O pisto n typ e
compressor s only .
• D o no t retur n th e oi l t o th e containe r onc e
dispense d an d neve r mi x wit h othe r refrigeran t
oil s t o avoi d contamination .
• Immediatel y afte r usin g th e oil, replac e th e ca p
o n th e containe r an d sea l i t t o avoi d moistur e
absorption .
• D o no t spil l th e refrigeran t oi l o n th e vehicle ; i t
ma y damag e th e paint ; i f th e refrigeran t oi l con -
tact s th e paint , was h i t of f immediately .
13 . Adjus t th e compresso r bel t (se e pag e 22-88 ).
Afte r adjustin g th e belt , tighte n th e idle r pulle y
center nut .
The n tighte n th e adjustin g bol t securely .
14 . Charg e th e syste m (se e pag e 22-91 ).
15 . Tes t syste m performanc e (se e pag e 22-70 ).
ProCarManuals.com
Page 1222 of 1503

Clutch Inspectio n
Check th e plate d part s o f th e pressur e plat e fo r colo r
changes , peelin g o r othe r damage . I f ther e i s dam -
age , replac e th e clutc h set .
Chec k th e pulle y bearin g pla y an d dra g b y rotatin g
th e pulle y b y hand . Replac e th e clutc h se t wit h a ne w
on e i f i t i s nois y o r ha s excessiv e play/drag .
PULLEY
Measur e th e clearanc e betwee n th e pulle y an d th e
pressur e plat e al l th e wa y around . I f th e clearanc e i s
no t withi n specifie d limits , th e pressur e plat e mus t b e
remove d an d shim s adde d o r remove d a s required ,
followin g th e procedur e o n pag e 22-86 .
Clearance : 0. 5 ± 0.1 5 m m (0.02 0 ± 0.00 6 in )
NOTE : Th e shim s ar e availabl e i n thre e thicknesses :
0.1 mm , 0. 3 m m an d 0. 5 mm .
Chec k resistanc e o f th e fiel d coil .
Fiel d Coi l Resistance : 3. 6 ± 0. 2 ohm s a t 68° F (20°C )
I f resistanc e i s no t withi n specifications , replac e th e
field coil .
ProCarManuals.com
Page 1223 of 1503
Compressor
Clutch Overhau l
1. Remov e th e cente r bol t whil e holdin g th e pressur e
plate .
CENTE R BOL T14 N- m (1. 4 kgf-m , 1 0 Ibf-ft )
A/C CLUTC H HOLDE RCommerciall y availabl eRobinair: P/ N 1020 4Kent-Moore : P/ N J3787 2
2. Remov e th e pressur e plat e an d shim(s) , takin g car e
no t t o los e th e shims .
PRESSUR EPLATE
SHIM(S )
3. Us e sna p rin g plier s t o remov e sna p rin g B , the n
remov e th e pulley .
NOTE:
• B e carefu l no t t o damag e th e pulle y an d com -
presso r durin g removal/installation .
• Onc e th e sna p rin g B wa s removed , replac e i t
wit h a ne w one .
SNA P RIN G BReplace .
PULLEY
ProCarManuals.com
Page 1224 of 1503
4. Remove the snap ring A and the field coil.
NOTE:
• Be careful not to damage the field coil and com-
pressor during removal/installation.
• Once the snap ring A was removed, replace it
with a new one.
SNAP RING A
Replace.
FIELD
COIL
5. Install parts in the reverse order of removal, and:
• Install the field coil with the wire side facing
down (see above).
• Clean the pulley and compressor sliding surfaces
with non-petroleum solvent.
• Check the pulley bearings for excessive play.
• Make sure the snap rings are in the groove
properly.
• Apply locking agent to the threads on the center
bolt.
• Make sure that the pulley turns smoothly after it's
reassembled.ProCarManuals.com
