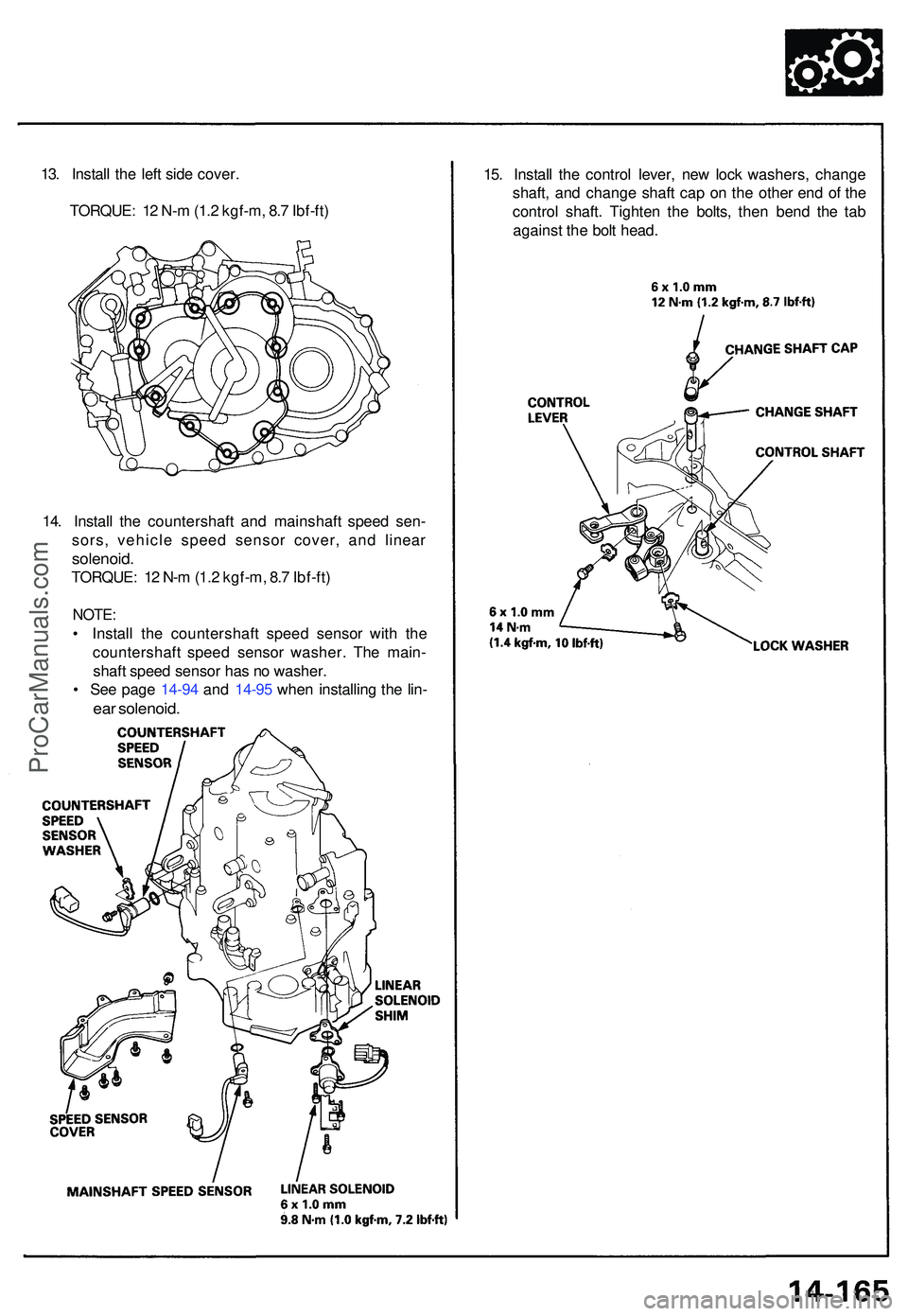

13. Instal l th e lef t sid e cover .
TORQUE : 1 2 N- m (1. 2 kgf-m , 8. 7 Ibf-ft ) 15
. Instal l th e contro l lever , ne w loc k washers , chang e
shaft , an d chang e shaf t ca p o n th e othe r en d o f th e
contro l shaft . Tighte n th e bolts , the n ben d th e ta b
agains t th e bol t head .
14 . Instal l th e countershaf t an d mainshaf t spee d sen -
sors , vehicl e spee d senso r cover , an d linea r
solenoid .
TORQUE : 1 2 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
NOTE :
• Instal l th e countershaf t spee d senso r wit h th e
countershaf t spee d senso r washer . Th e main -
shaf t spee d senso r ha s n o washer .
• Se e pag e 14-9 4 an d 14-9 5 whe n installin g th e lin -
ear solenoid .
ProCarManuals.com

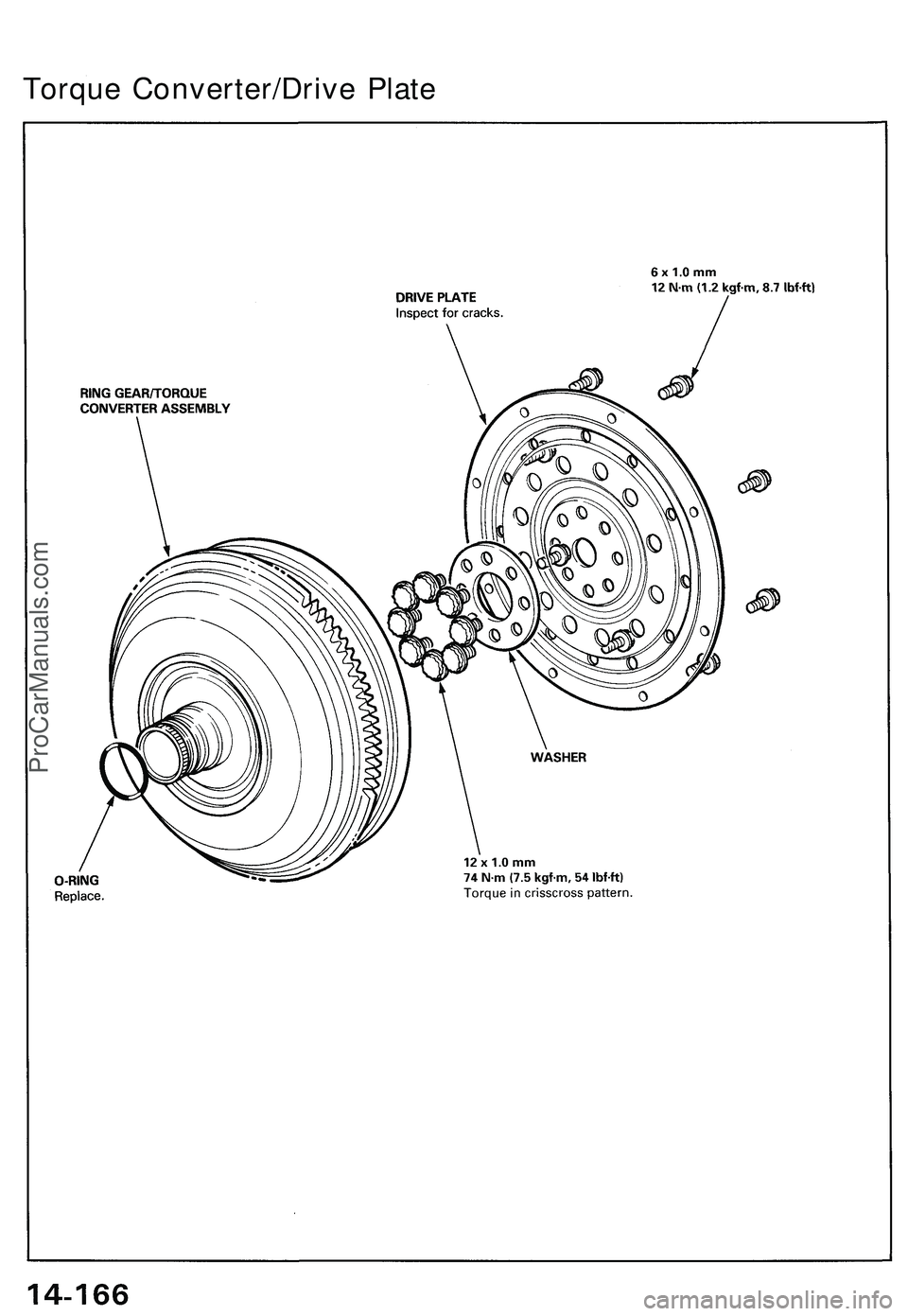

Torque Converter/Driv e Plat e
ProCarManuals.com

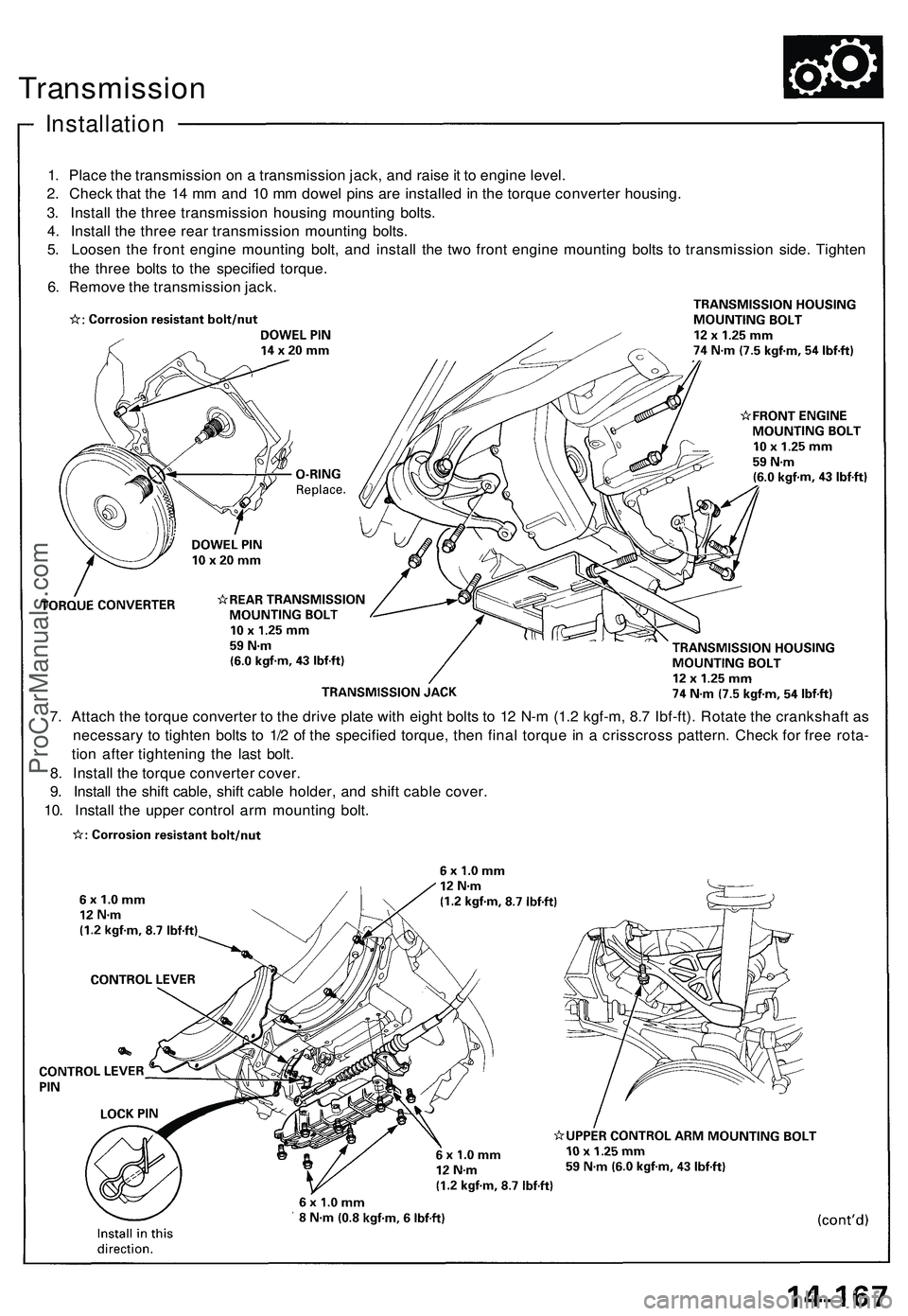

Transmission

Installation

1. Place the transmission on a transmission jack, and raise it to engine level.

2. Check that the 14 mm and 10 mm dowel pins are installed in the torque converter housing.

3. Install the three transmission housing mounting bolts.

4. Install the three rear transmission mounting bolts.

5. Loosen the front engine mounting bolt, and install the two front engine mounting bolts to transmission side. Tighten

the three bolts to the specified torque.

6. Remove the transmission jack.

7. Attach the torque converter to the drive plate with eight bolts to 12 N-m (1.2 kgf-m, 8.7 Ibf-ft). Rotate the crankshaft as

necessary to tighten bolts to 1/2 of the specified torque, then final torque in a crisscross pattern. Check for free rota-

tion after tightening the last bolt.

8. Install the torque converter cover.

9. Install the shift cable, shift cable holder, and shift cable cover.

10. Install the upper control arm mounting bolt.ProCarManuals.com

Installation (cont'd)
Transmission

11. Install a new set ring on the end of the left driveshaft and intermediate shaft. Apply a light film of grease around the

set ring grooves, then center the new set ring on the shafts. The grease keeps the set ring centered, making shaft

installation easier.

12. Install the left driveshaft.

13. Install the lower control arm to the side beam.

CAUTION: Line up the reference marks on the adjusting bolt, adjusting cam, and lower control arm.

14. Install the damper fork bolt.

15. Install the toe control arm to the side beam.

CAUTION: Make sure that the reference marks on the toe control arm are aligned.

16. Install the wheel sensor wire clamp and parking brake cable holder.

17. Install the intermediate shaft, and tighten the intermediate shaft mounting bolts to the intermediate shaft support

base.

18. Install the intermediate shaft heat shield cover.ProCarManuals.com

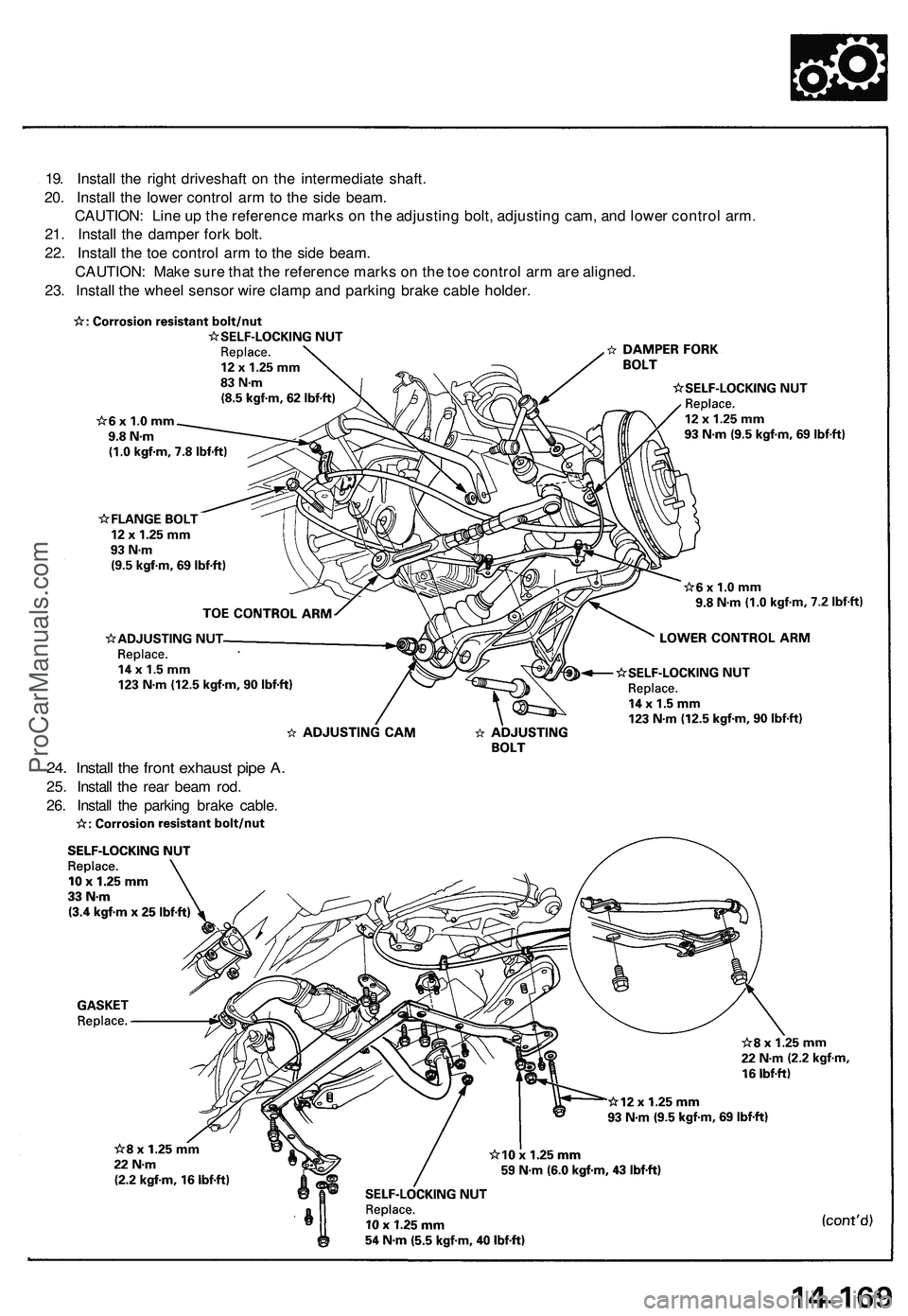

19. Install the right driveshaft on the intermediate shaft.

20. Install the lower control arm to the side beam.

CAUTION: Line up the reference marks on the adjusting bolt, adjusting cam, and lower control arm.

21. Install the damper fork bolt.

22. Install the toe control arm to the side beam.

CAUTION: Make sure that the reference marks on the toe control arm are aligned.

23. Install the wheel sensor wire clamp and parking brake cable holder.

24. Install the front exhaust pipe A.

25. Install the rear beam rod.

26. Install the parking brake cable.ProCarManuals.com

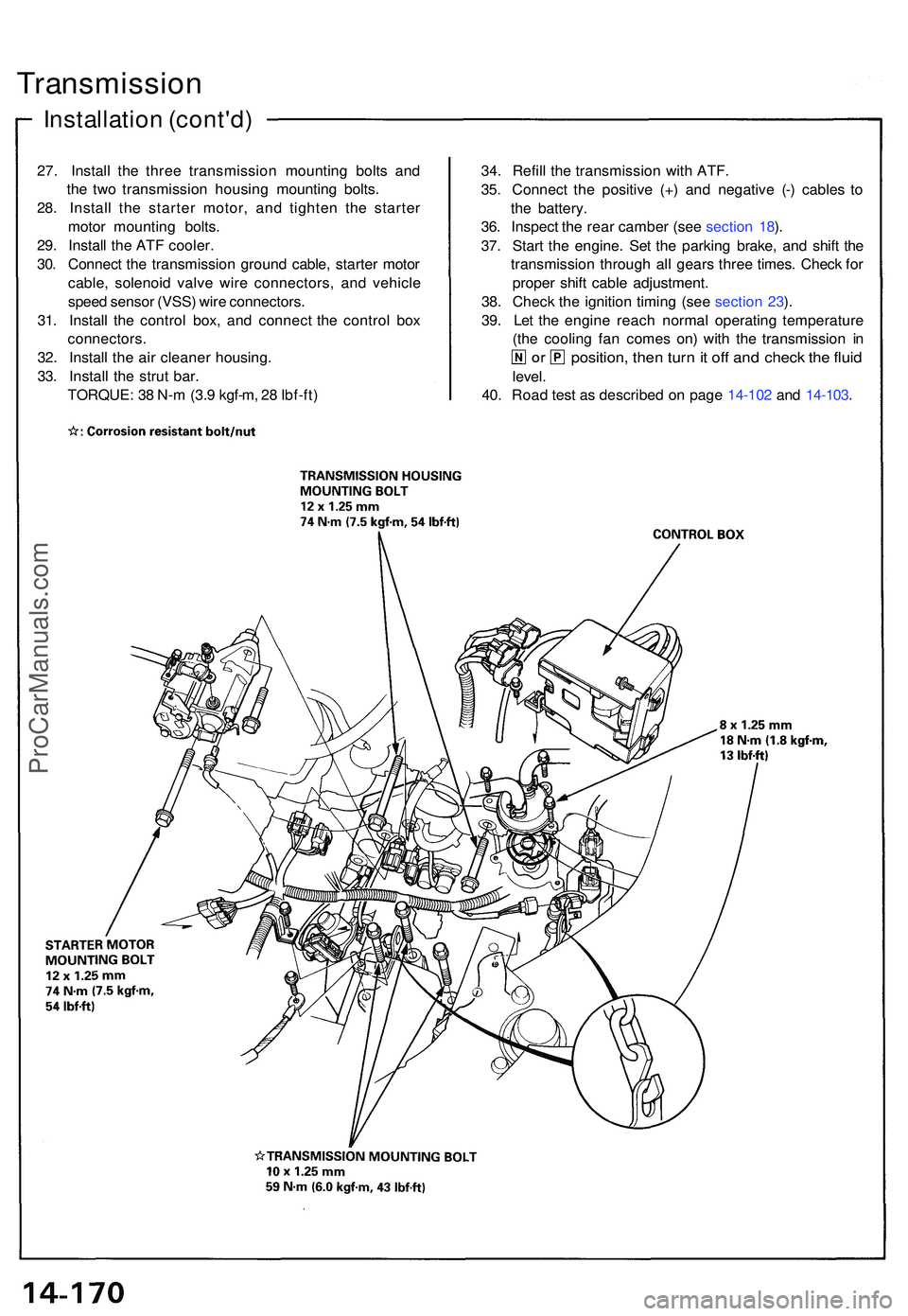

Installation (cont'd )
Transmissio n
27. Instal l th e thre e transmissio n mountin g bolt s an d
th e tw o transmissio n housin g mountin g bolts .
28 . Instal l th e starte r motor , an d tighte n th e starte r
moto r mountin g bolts .
29 . Instal l th e AT F cooler .
30 . Connec t th e transmissio n groun d cable , starte r moto r
cable , solenoi d valv e wir e connectors , an d vehicl e
spee d senso r (VSS ) wir e connectors .
31 . Instal l th e contro l box , an d connec t th e contro l bo x
connectors .
32 . Instal l th e ai r cleane r housing .
33 . Instal l th e stru t bar .
TORQUE : 3 8 N- m (3. 9 kgf-m , 2 8 Ibf-ft ) 34
. Refil l th e transmissio n wit h ATF .
35 . Connec t th e positiv e (+ ) an d negativ e (- ) cable s t o
th e battery .
36 . Inspec t th e rea r cambe r (se e sectio n 18 ).
37 . Star t th e engine . Se t th e parkin g brake , an d shif t th e
transmissio n throug h al l gear s thre e times . Chec k fo r
prope r shif t cabl e adjustment .
38 . Chec k th e ignitio n timin g (se e sectio n 23 ).
39 . Le t th e engin e reac h norma l operating temperatur e
(th e coolin g fa n come s on ) wit h th e transmissio n i n
position , the n tur n it of f an d chec k th e flui d
level .
40 . Roa d tes t a s describe d o n pag e 14-10 2 an d 14-103 .
ProCarManuals.com

Shift Cabl e
Adjustmen t
1. Rais e th e vehicl e (se e sectio n 1 ).
2 . Shif t t o th e position .
3. Remov e th e shif t cabl e cover .
4 . Remov e th e contro l leve r pi n an d loc k pi n fro m th e
contro l lever .
6. Chec k tha t th e hol e i n th e contro l leve r i s perfectl y
aligned wit h th e hol e in th e shif t cable .
7. I f th e hol e i s no t perfectl y aligned , loose n th e lock -
nu t o n th e shif t cabl e an d adjus t i f a s needed .
5. Shif t th e contro l leve r t o th e position .
8. Tighte n th e locknut .
9 . Instal l th e contro l leve r pi n an d loc k pin .
NOTE :
• I f yo u fee l th e contro l leve r pi n bindin g a s yo u
reinstal l it , th e cabl e i s stil l ou t o f adjustmen t an d
mus t b e readjusted .
• Instal l th e loc k pi n a s show n i n ste p 4 .
10 . Instal l th e shif t cabl e cover .
11 . Star t th e engine , an d chec k th e shif t leve r i n al l
gears . I f an y gea r doe s no t wor k properly , refe r t o
Troubleshootin g o n page s 14-9 8 thr u 14-101 .
ProCarManuals.com

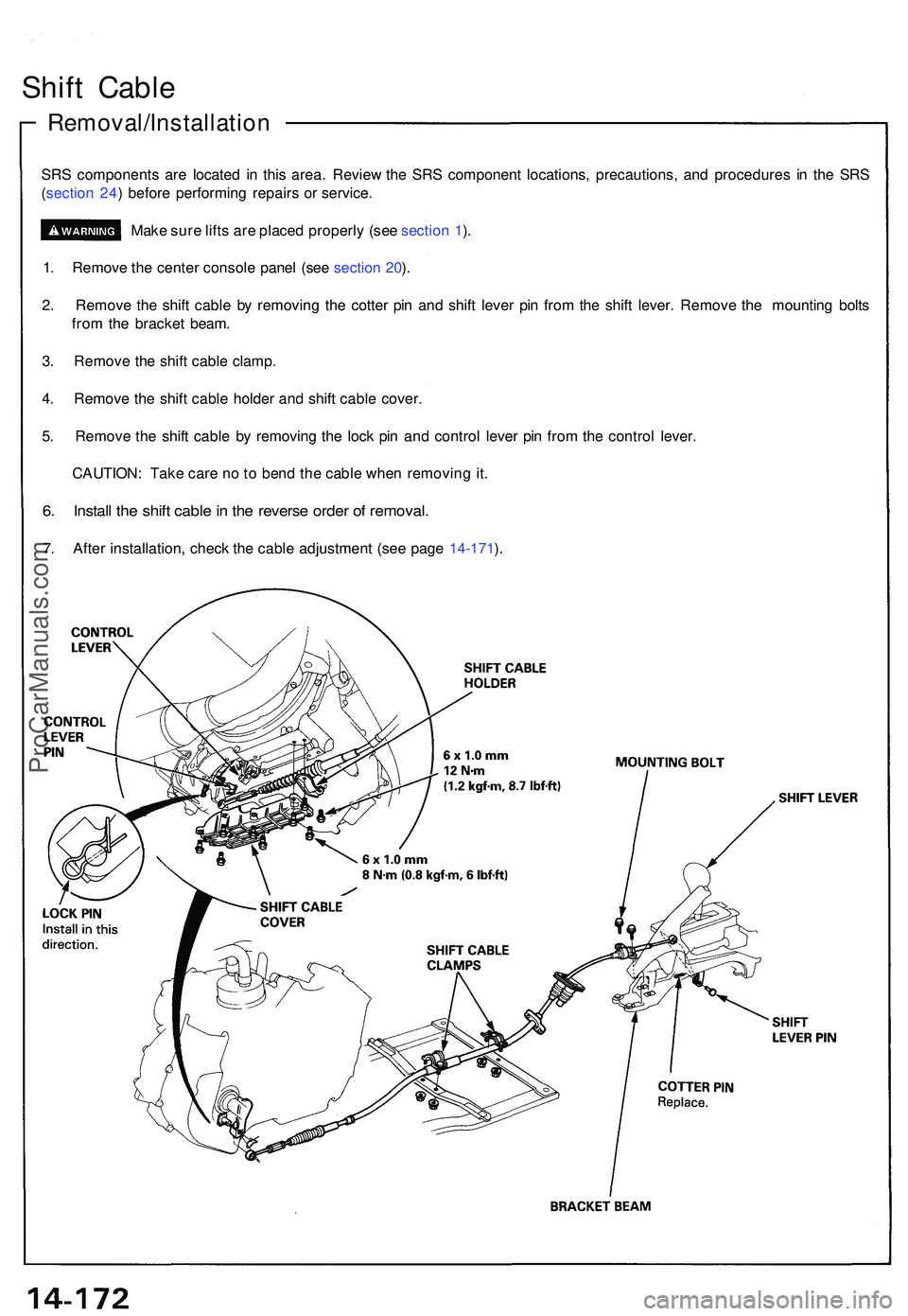

Shift Cabl e
Removal/Installatio n
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
Make sur e lift s ar e place d properl y (se e sectio n 1 ).
1 . Remov e th e cente r consol e pane l (se e sectio n 20 ).
2 . Remov e th e shif t cabl e b y removin g th e cotte r pi n an d shif t leve r pi n fro m th e shif t lever . Remov e th e mountin g bolt s
fro m th e bracke t beam .
3 . Remov e th e shif t cabl e clamp .
4 . Remov e th e shif t cabl e holde r an d shif t cabl e cover .
5 . Remov e th e shif t cabl e b y removin g th e loc k pi n an d contro l leve r pi n fro m th e contro l lever .
CAUTION : Tak e car e n o to ben d th e cabl e whe n removin g it .
6. Instal l th e shif t cabl e in th e revers e orde r o f removal .
7. Afte r installation , chec k th e cabl e adjustmen t (se e pag e 14-171 ).
