Page 1337 of 1503
Lighting Syste m

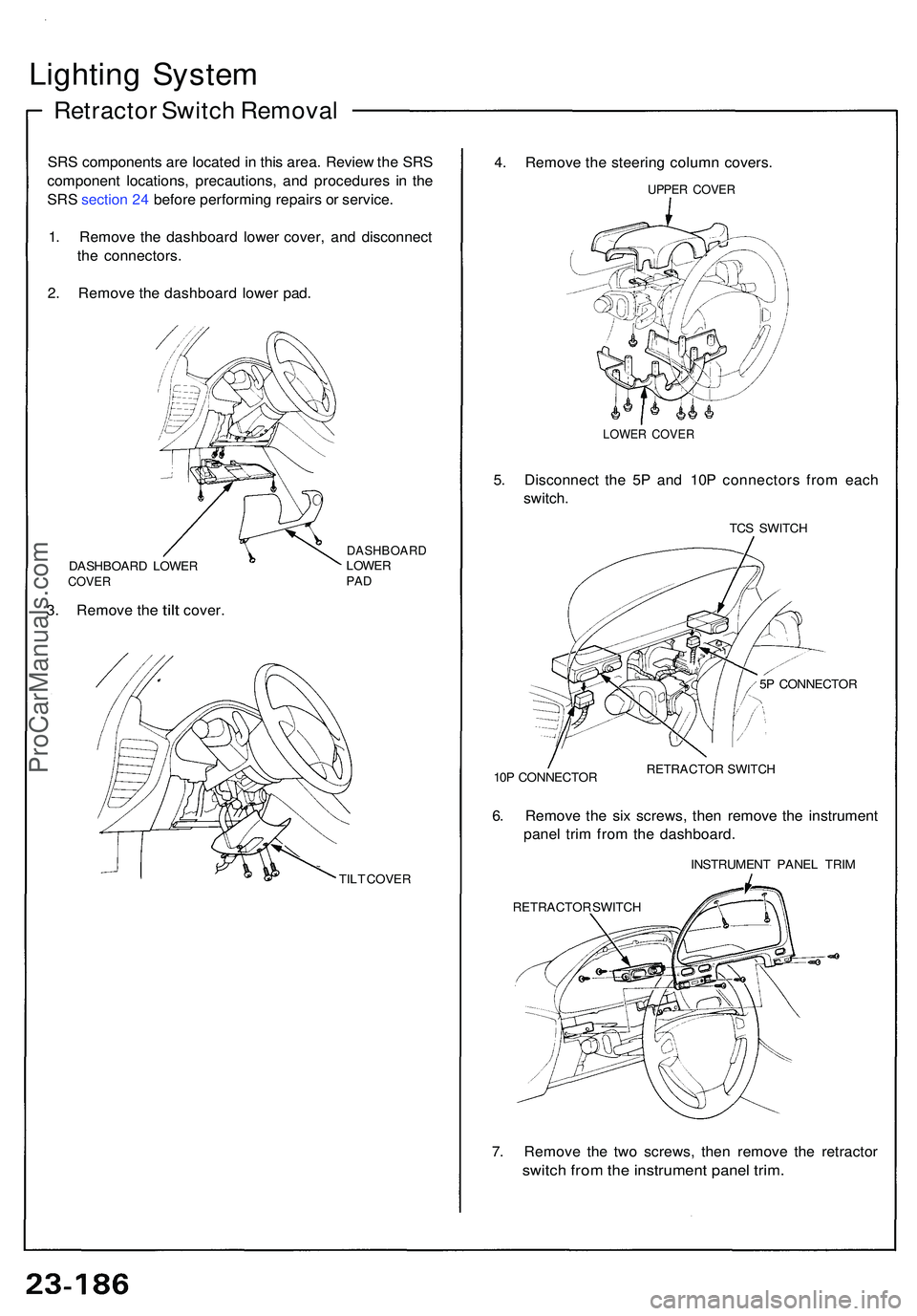

Retracto r Switc h Remova l
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S sectio n 24 befor e performin g repair s o r service .
1 . Remov e th e dashboar d lowe r cover , an d disconnec t
th e connectors .
2 . Remov e th e dashboar d lowe r pad .
DASHBOAR D LOWE RCOVER
3. Remov e the tilt cover .
DASHBOAR DLOWERPAD
TIL T COVE R
4. Remov e th e steerin g colum n covers .
UPPER COVE R
LOWER COVE R
5. Disconnec t th e 5 P an d 10 P connector s fro m eac h
switch .
TCS SWITC H
5 P CONNECTO R
10 P CONNECTO R
RETRACTOR SWITC H
6. Remov e th e si x screws , the n remov e th e instrumen t
pane l tri m fro m th e dashboard .
INSTRUMEN T PANE L TRI M
RETRACTO R SWITC H
7. Remov e th e tw o screws , the n remov e th e retracto r
switch fro m th e instrumen t pane l trim .
ProCarManuals.com
Page 1338 of 1503

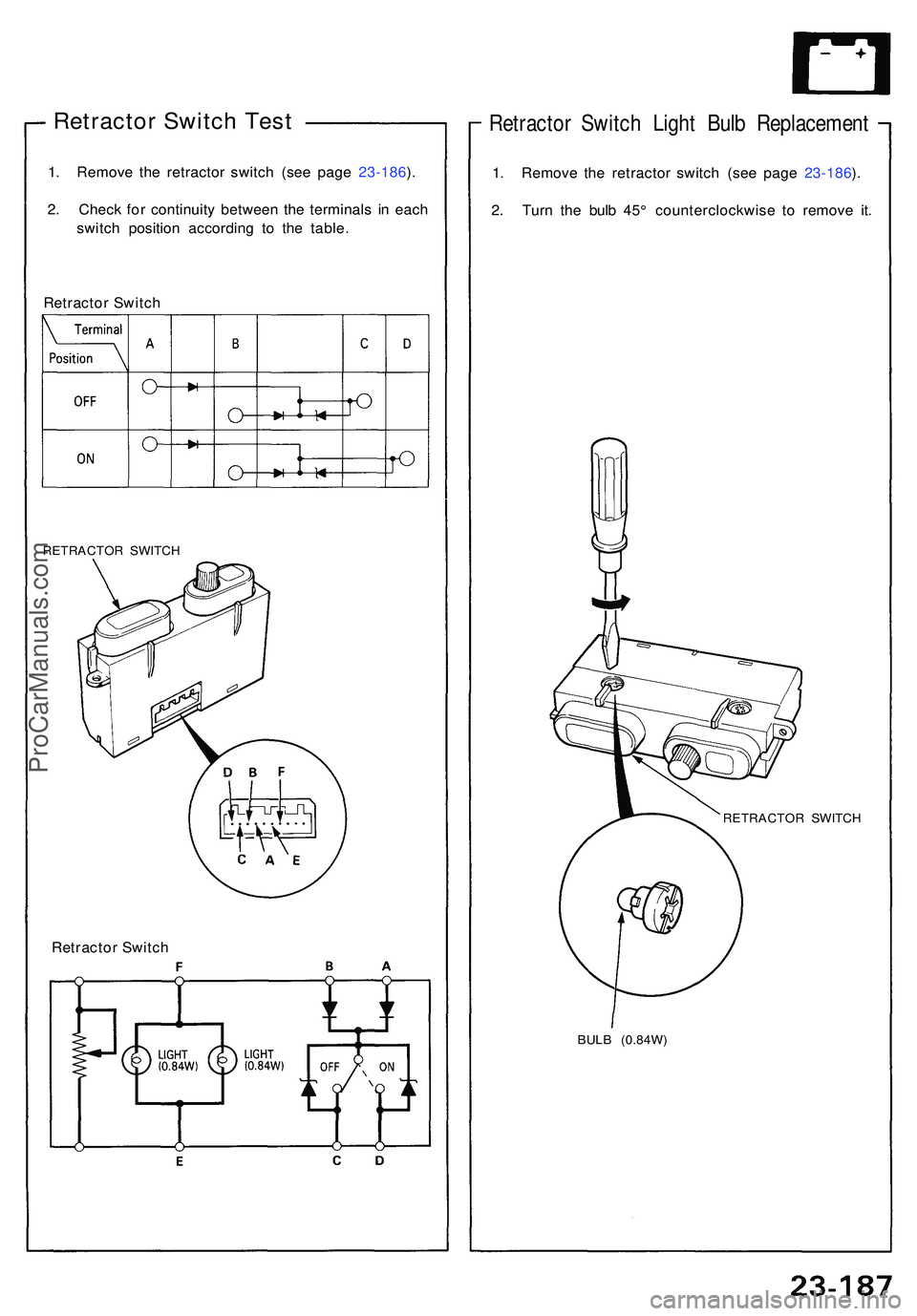

Retractor Switc h Tes t
1. Remov e th e retracto r switc h (se e page 23-186 ).
2 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
Retracto r Switc h
RETRACTO R SWITC H
Retracto r Switc h
Retracto r Switc h Ligh t Bul b Replacemen t
1. Remov e th e retracto r switc h (se e page 23-186 ).
2 . Tur n th e bul b 45 ° counterclockwis e t o remov e it .
RETRACTO R SWITC H
BUL B (0.84W )
ProCarManuals.com
Page 1339 of 1503
Lighting System
Retractor Motor Replacement
CAUTION:
Halogen headlights can become very hot in use; do
not touch them or the attaching hardware immediately
after they have been turned off.
Do not try to replace or clean headlights with the lights
1. Remove the No. 42 (15 A) and No. 43 (15 A) fuses
from the under-hood fuse/relay box.
No. 43
(15A)
FUSE
No. 42
(15A)
FUSE
UNDER-HOOD FUSE/RELAY BOX
2. Turn the knob clockwise to raise the headlight.
CAP
3. Remove the two caps, four screws, and cowl clips.
COWL CLIP
CAP
4. Slide the headlight housing forward and up.
NOTE: Be careful not to damage the front bumper
or the headlight housing.
HEADLIGHT HOUSING
PROTECTIVE TAPE
5. Disconnect the 6P connector from the headlight
unit.
6P CONNECTOR
MOUNTING
BOLTS
HEADLIGHT UNIT
6. Remove the four mounting bolts, then remove the
unit.
KNOB
SCREWProCarManuals.com
Page 1340 of 1503

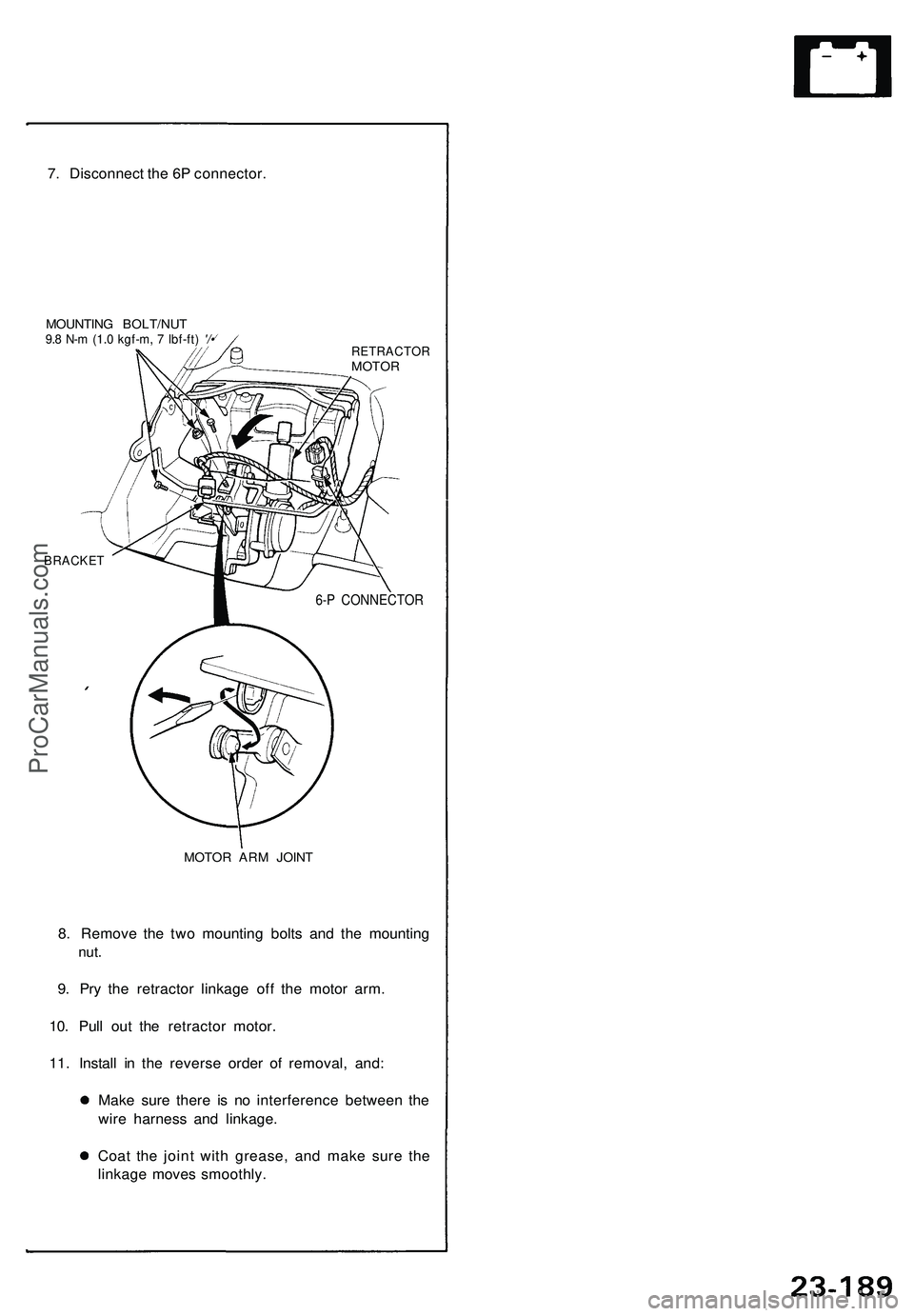

7. Disconnect the 6P connector.
MOUNTING BOLT/NUT
9.8 N-m (1.0 kgf-m, 7 Ibf-ft) '/•
RETRACTOR
MOTOR
BRACKET
6-P CONNECTOR
MOTOR ARM JOINT
8. Remove the two mounting bolts and the mounting
nut.
9. Pry the retractor linkage off the motor arm.
10. Pull out the retractor motor.
11. Install in the reverse order of removal, and:
Make sure there is no interference between the
wire harness and linkage.
Coat the joint with grease, and make sure the
linkage moves smoothly.ProCarManuals.com
Page 1341 of 1503

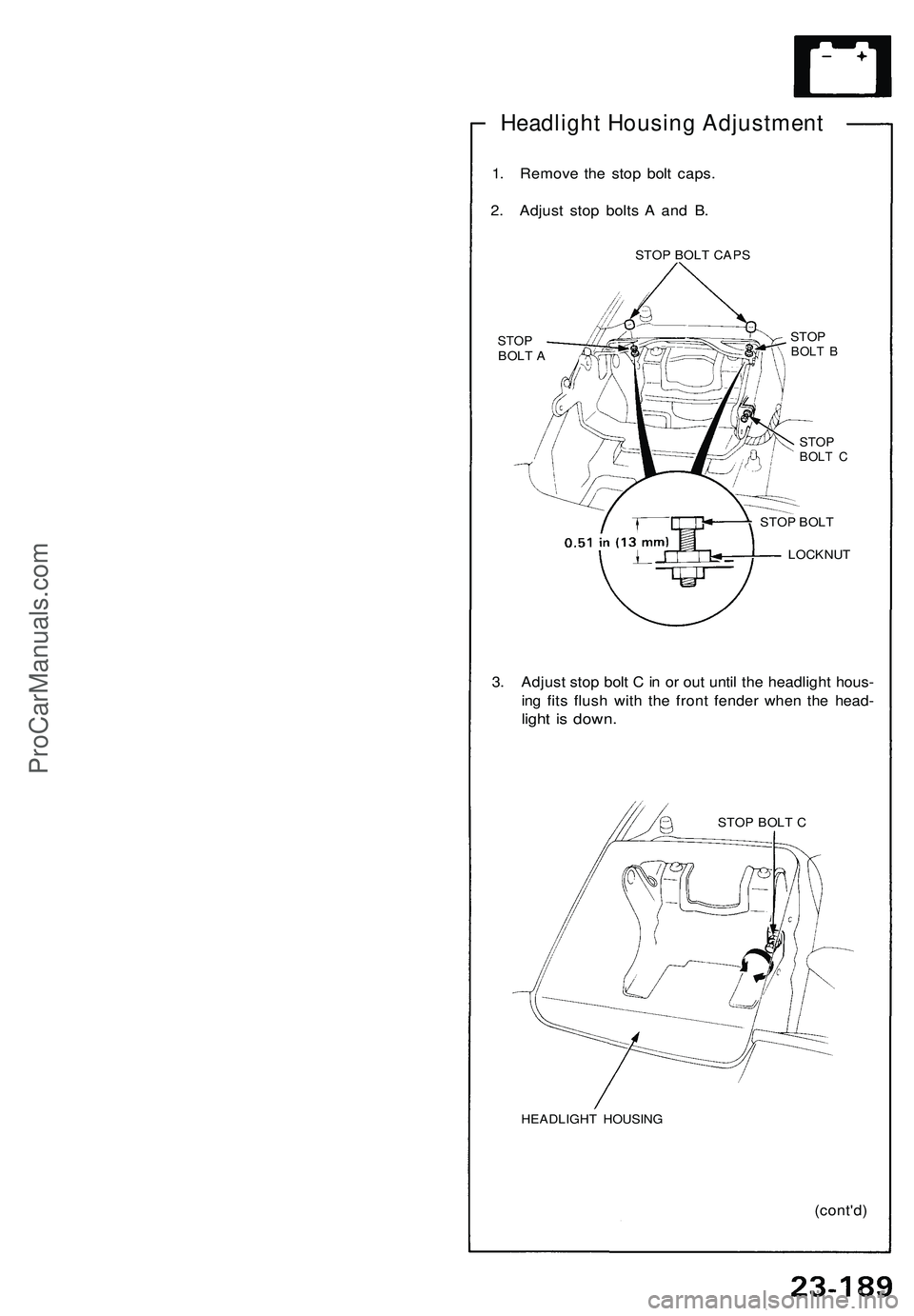

1. Remov e th e sto p bol t caps .
2 . Adjus t sto p bolt s A an d B .
STO P BOL T CAP S
STOPBOLT A
STO PBOL T B
STO PBOL T C
STO P BOL T
LOCKNU T
3. Adjus t sto p bol t C in o r ou t unti l th e headligh t hous -
in g fit s flus h wit h th e fron t fende r whe n th e head -
light i s down .
STOP BOL T C
HEADLIGH T HOUSIN G
(cont'd)
Headlight Housing Adjustment
ProCarManuals.com
Page 1342 of 1503
Lighting System

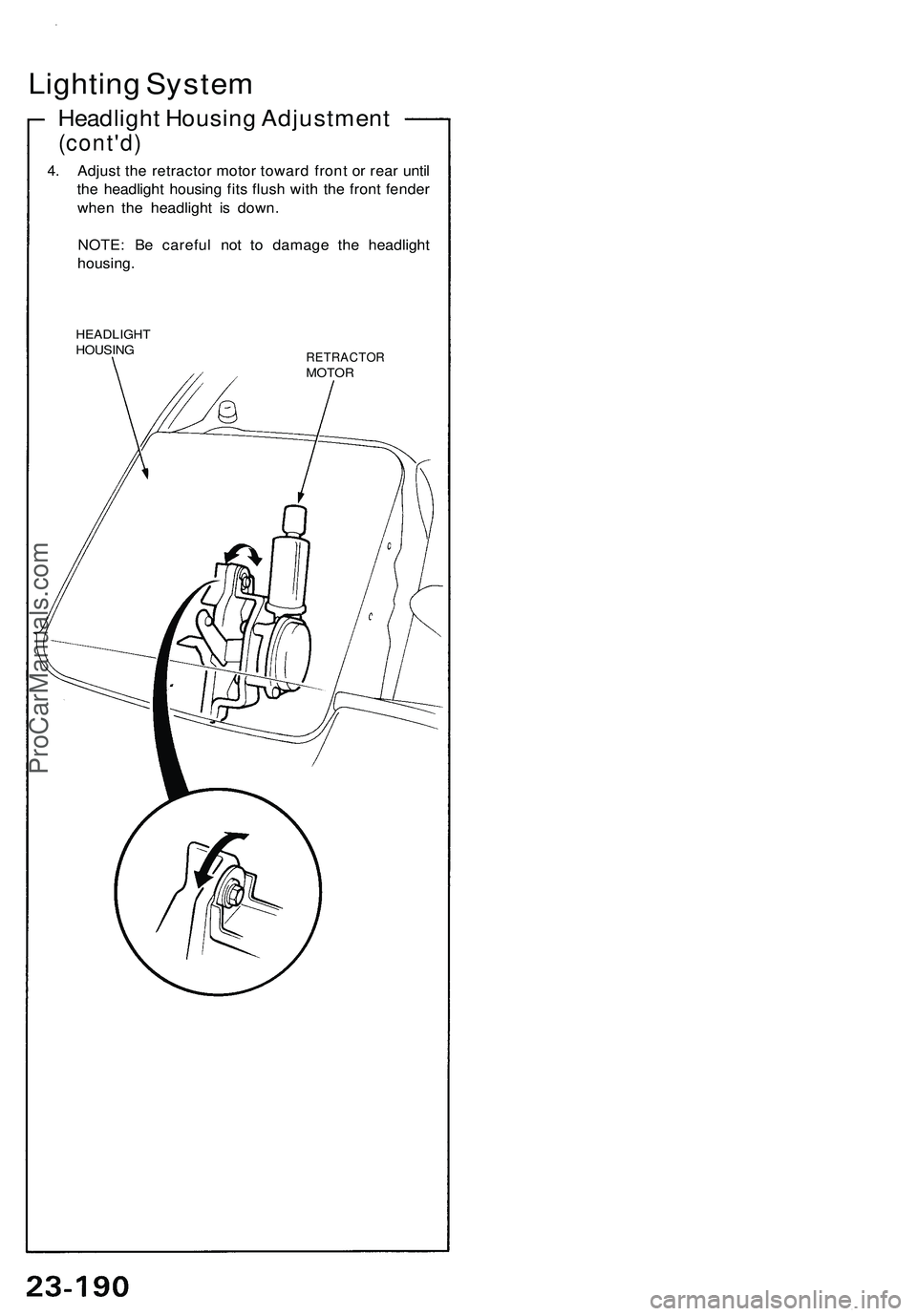

Headlight Housing Adjustment
(cont'd)
4. Adjust the retractor motor toward front or rear until
the headlight housing fits flush with the front fender
when the headlight is down.
NOTE: Be careful not to damage the headlight
housing.
HEADLIGHT
HOUSING
RETRACTOR
MOTORProCarManuals.com
Page 1343 of 1503
Lighting Syste m

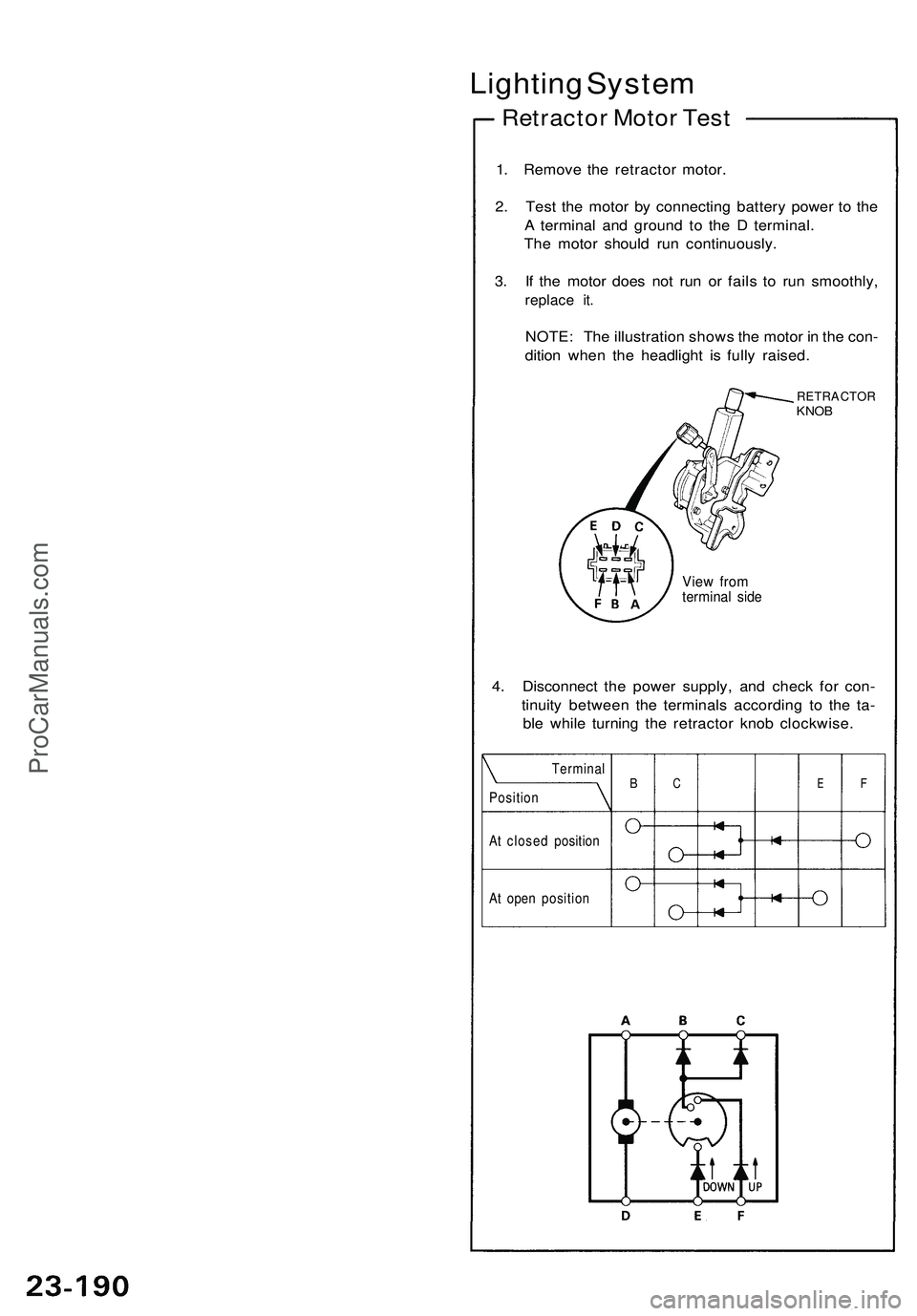

Retracto r Moto r Tes t
1. Remov e th e retracto r motor .
2 . Tes t th e moto r b y connectin g batter y powe r t o th e
A termina l an d groun d t o th e D terminal .
Th e moto r shoul d ru n continuously .
3 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replace it .
NOTE : Th e illustratio n show s th e moto r i n th e con -
ditio n whe n th e headligh t i s full y raised .
RETRACTO RKNOB
View fro mtermina l sid e
4. Disconnec t th e powe r supply , an d chec k fo r con -
tinuit y betwee n th e terminal s accordin g t o th e ta -
bl e whil e turnin g th e retracto r kno b clockwise .
At close d positio n
A t ope n positio n
BCEFTermina l
Positio n
ProCarManuals.com
Page 1344 of 1503
Headlight Rela y Tes t
1. Remov e th e headligh t rela y fro m th e under-hoo d
fuse/rela y box .
2 . Chec k continuit y a t th e rela y terminals .
Ther e shoul d b e continuit y betwee n th e C an d D
terminals .
Ther e shoul d b e continuit y betwee n th e A an d B
terminal s whe n powe r an d groun d ar e connect -
e d t o th e C an d D terminals .
Ther e shoul d b e n o continuit y betwee n th e A an d
B terminal s whe n powe r i s disconnected .
Dimmer Rela y Tes t
1. Remov e th e dimme r rela y fro m th e under-hoo d
fuse/rela y box .
2. Chec k continuit y a t th e rela y terminals .
There shoul d b e continuit y betwee n th e F an d E
terminal s an d betwee n th e B an d C terminals .
Ther e shoul d b e continuit y betwee n th e A an d C
terminal s whe n powe r an d groun d ar e connect -
ed t o th e E an d F terminals .
Ther e shoul d b e n o continuit y betwee n th e A an d
C terminal s whe n powe r i s disconnected .
