2008 NISSAN LATIO Service Repair Manual

Page 457 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER DOOR LOCK SYSTEM
BL-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
• to BCM terminal 70
• through 10A fuse [No. 8, located in the fuse block (J/B)]
• to BCM terminal 57
• thr

POWER DOOR LOCK SYSTEM
BL-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
• to BCM terminal 70
• through 10A fuse [No. 8, located in the fuse block (J/B)]
• to BCM terminal 57
• through 10A fuse [No. 14, located in the fuse block (J/B)]
• to key switch terminal 2 (without Intelligent Key system)
• through 10A fuse [No. 31, located in the fuse block (J/B)]
• to key switch and ignition knob switch terminals 2 and 4 (with Intelligent Key system).
When key switch is ON (key is inserted in ignition key cylinder), power is supplied
• through key switch terminal 1 (without Intelligent Key system) or key switch and ignition knob terminal 1 (with
Intelligent Key system)
• to BCM terminal 37.
Ground is supplied
• to BCM terminal 67
• through body grounds M57 and M61.
LOCK OPERATION
When the door is locked with main power window and door lock/unlock switch, ground is supplied
• to BCM terminal 45
• through main power window and door lock and unlock switch terminals 17 and 18
• through body grounds M57 and M61.
When the door is locked with power window and door lock/unlock switch RH, ground is supplied
• to BCM terminal 45
• through power window and door lock and unlock switch RH terminals 1 and 3
• through body grounds M57 and M61.
When the door is locked with front door key cylinder switch LH, ground is supplied
• to BCM terminal 8
• through front door key cylinder switch LH terminals 1 and 2
• through body grounds M57 and M61.
UNLOCK OPERATION
When the door is unlocked with main power window and door lock/unlock switch, ground is supplied
• to BCM terminal 46
• through main power window and door lock/unlock switch terminals 6 and 17
• through body grounds M57 and M61.
When the door is unlocked with power window and door lock/unlock switch RH, ground is supplied
• to BCM terminal 46
• through power window and door lock and unlock switch RH terminals 2 and 3
• through body grounds M57 and M61.
When the door is unlocked with front door key cylinder switch LH, ground is supplied
• to BCM terminal 7
• through front door key cylinder switch LH terminals 2 and 3
• through body grounds M57 and M61.
When the front door switch LH is ON (door is OPEN), ground is supplied
• to BCM terminal 47
• through front door switch LH terminal 2
• through front door switch LH case ground.
When the front door switch RH is ON (door is OPEN), ground is supplied
• to BCM terminal 12
• through front door switch RH terminal 2
• through front door switch RH case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied
• to BCM terminal 48
• through rear door switch LH terminal 1
• through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied
• to BCM terminal 13
• through rear door switch RH terminal 1
• through rear door switch RH case ground.
When the back door switch (hatchback) is ON (back door is OPEN), ground is supplied
• to BCM terminal 43
• through back door switch terminals 3 and 4
• through body grounds B117, B132 and D402.

Page 458 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-24
< SERVICE INFORMATION >
POWER DOOR LOCK SYSTEM
OUTLINE
Functions available by operating the inside door lock and unlock switches
• Interlocked with the locking operation of door lock and unloc

Page 459 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER DOOR LOCK SYSTEM
BL-25
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
SchematicINFOID:0000000001703956
WITHOUT INTELLIGENT KEY SYSTEM
WIWA2264E

Page 460 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-26
< SERVICE INFORMATION >
POWER DOOR LOCK SYSTEM

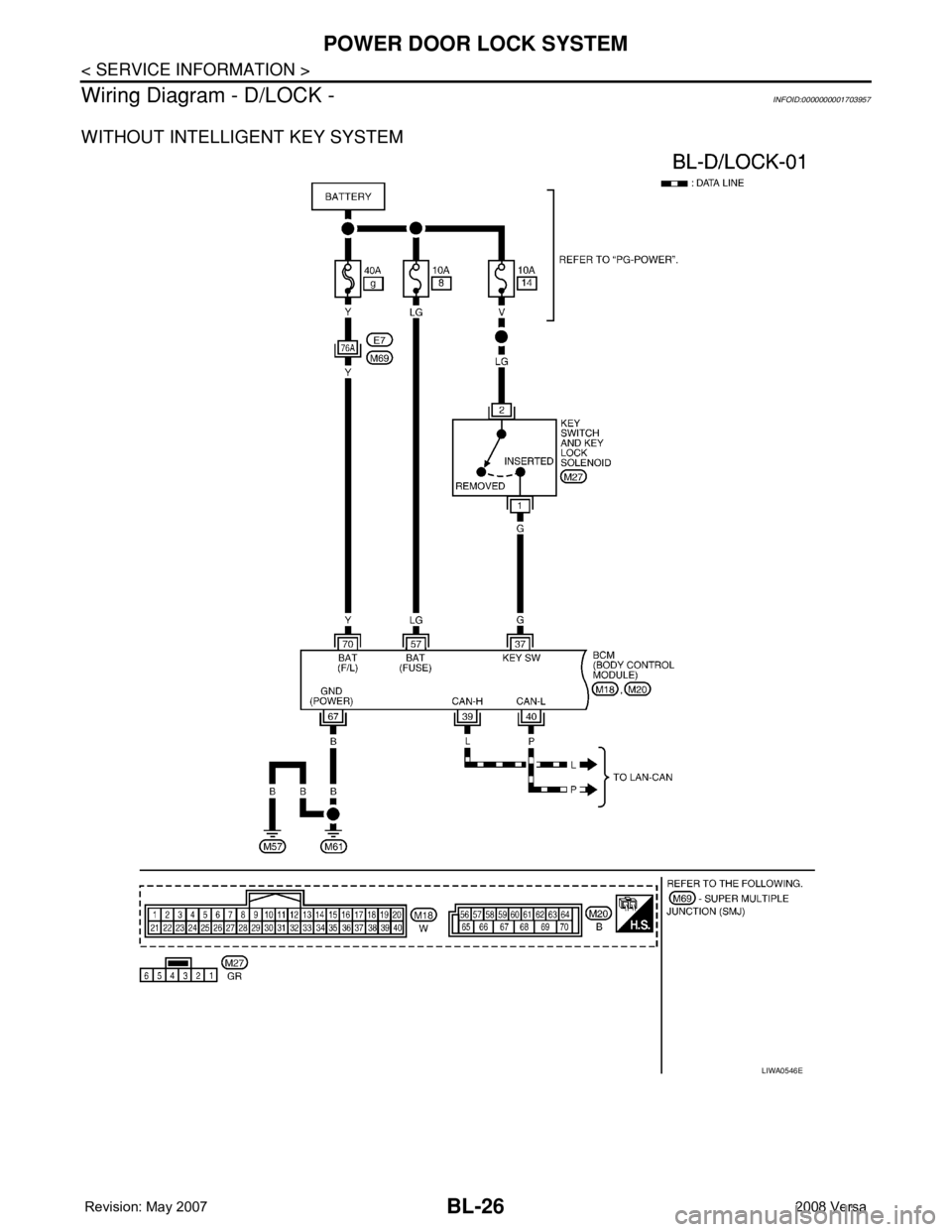

Wiring Diagram - D/LOCK -
INFOID:0000000001703957
WITHOUT INTELLIGENT KEY SYSTEM
LIWA0546E

Page 461 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER DOOR LOCK SYSTEM
BL-27
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

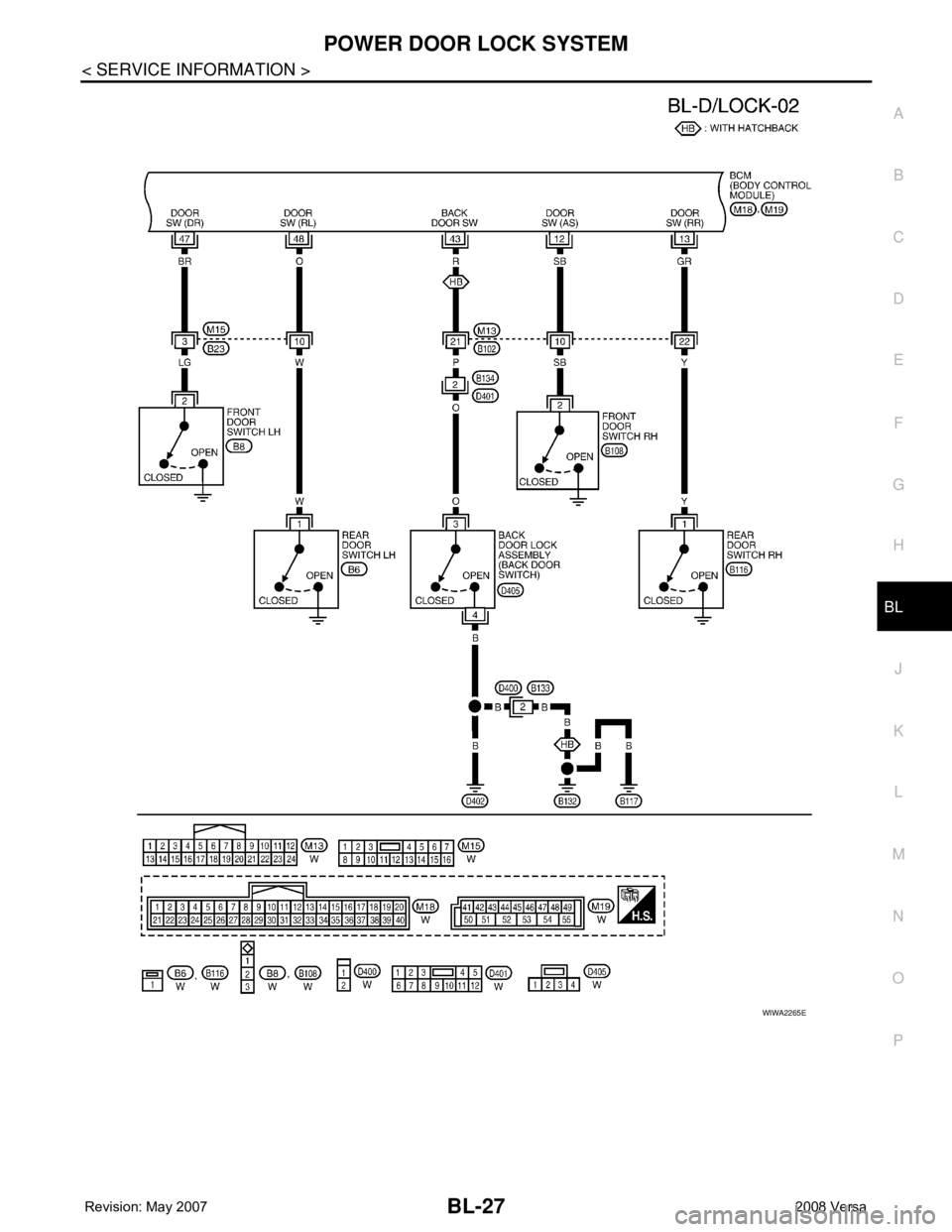

WIWA2265E

Page 462 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-28
< SERVICE INFORMATION >
POWER DOOR LOCK SYSTEM

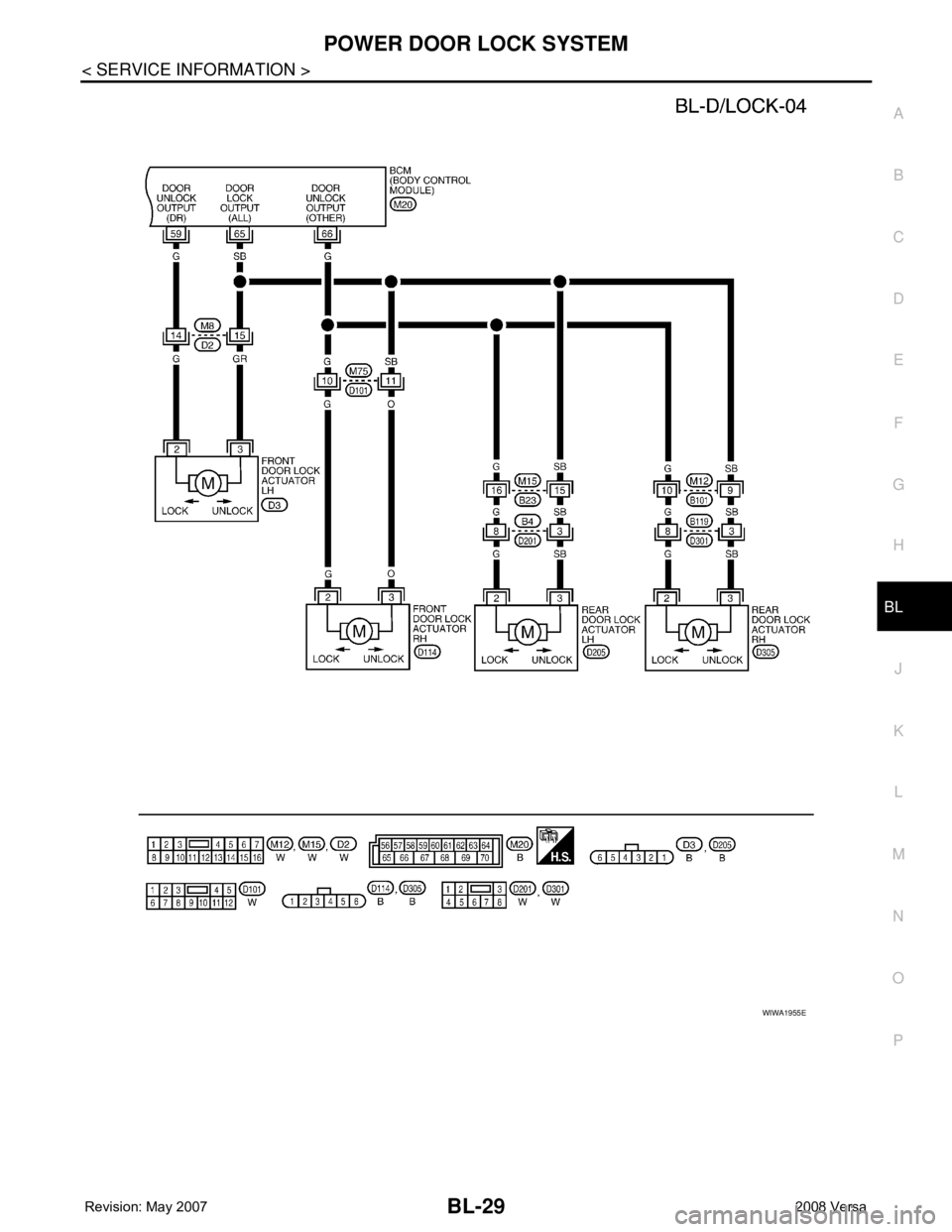

WIWA1954E

Page 463 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER DOOR LOCK SYSTEM
BL-29
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

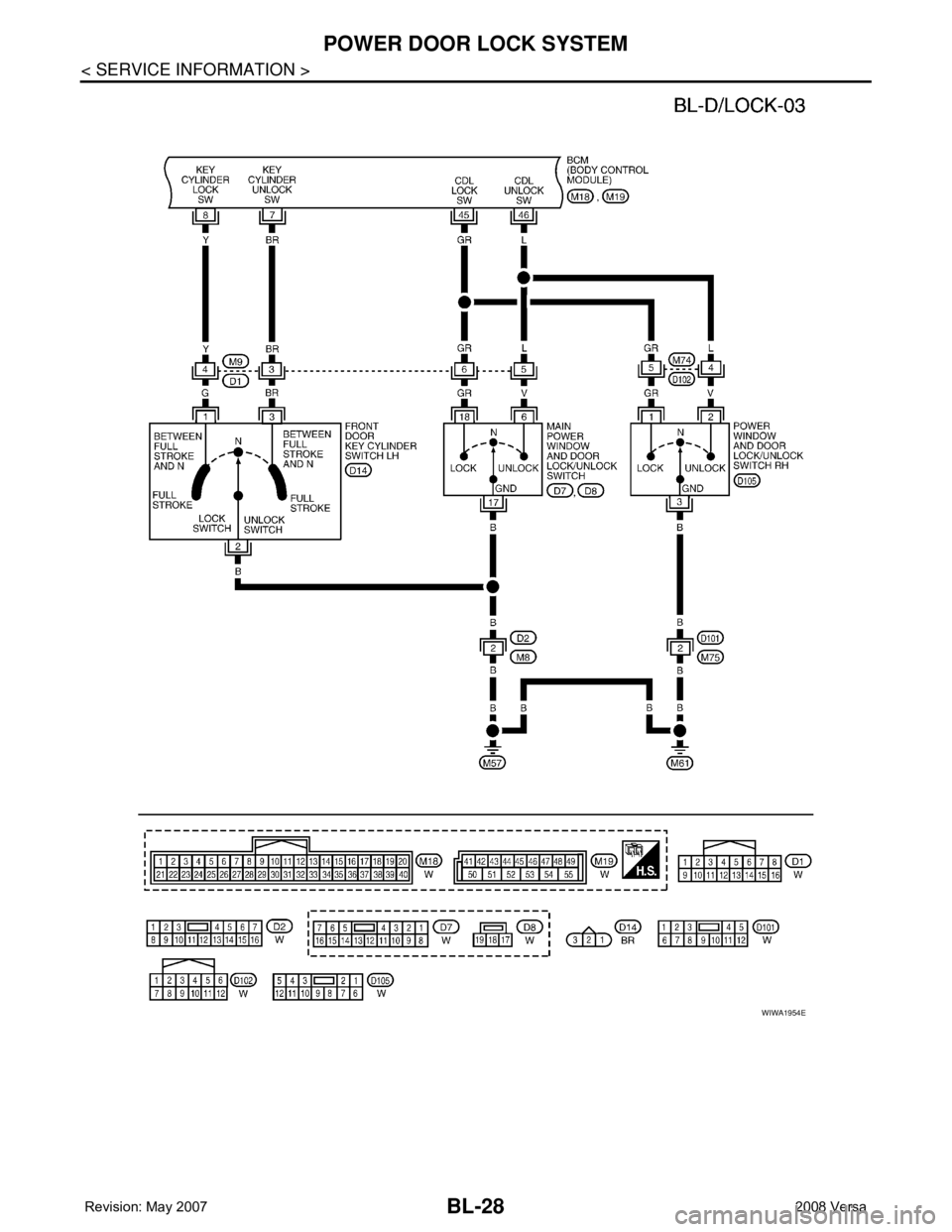

WIWA1955E

Page 464 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-30
< SERVICE INFORMATION >
POWER DOOR LOCK SYSTEM
Schematic
INFOID:0000000001703958
WITH INTELLIGENT KEY SYSTEM
WIWA2266E
