2008 NISSAN LATIO Service Repair Manual

Page 2513 of 2771

NISSAN LATIO 2008  Service Repair Manual STEERING WHEEL
PS-7
< SERVICE INFORMATION >
C
D
E
F
H
I
J
K
L
MA
B
PS
N
O
P

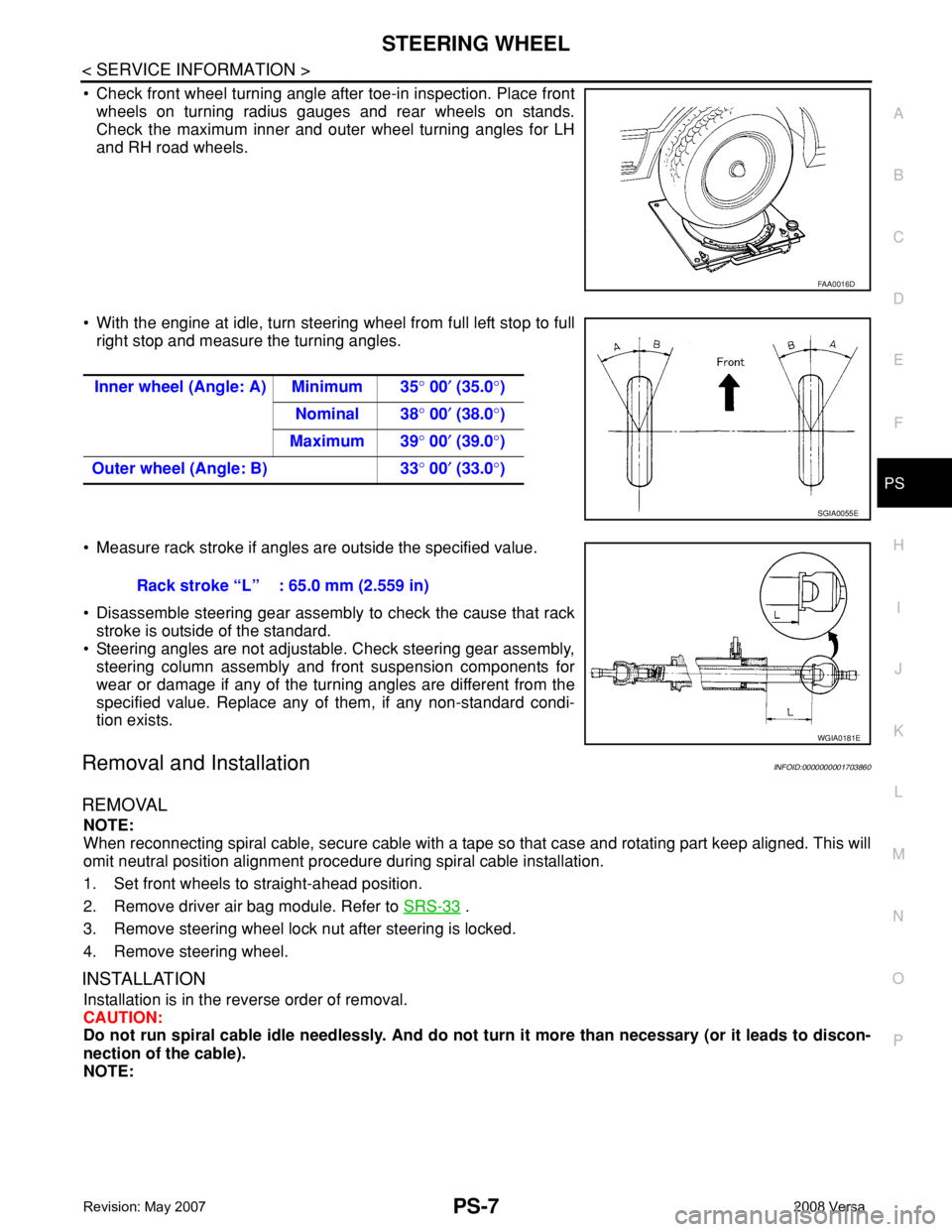

• Check front wheel turning angle after toe-in inspection. Place front
wheels on turning radius gauges and rear wheels on

Page 2514 of 2771

NISSAN LATIO 2008  Service Repair Manual PS-8
< SERVICE INFORMATION >
STEERING WHEEL
• The neutral position is set as follows.
Turn the spiral cable clockwise to the end position. Then turn it
counterclockwise (about 2 and half turns) and

Page 2515 of 2771

NISSAN LATIO 2008  Service Repair Manual STEERING COLUMN
PS-9
< SERVICE INFORMATION >
C
D
E
F
H
I
J
K
L
MA
B
PS
N
O
P

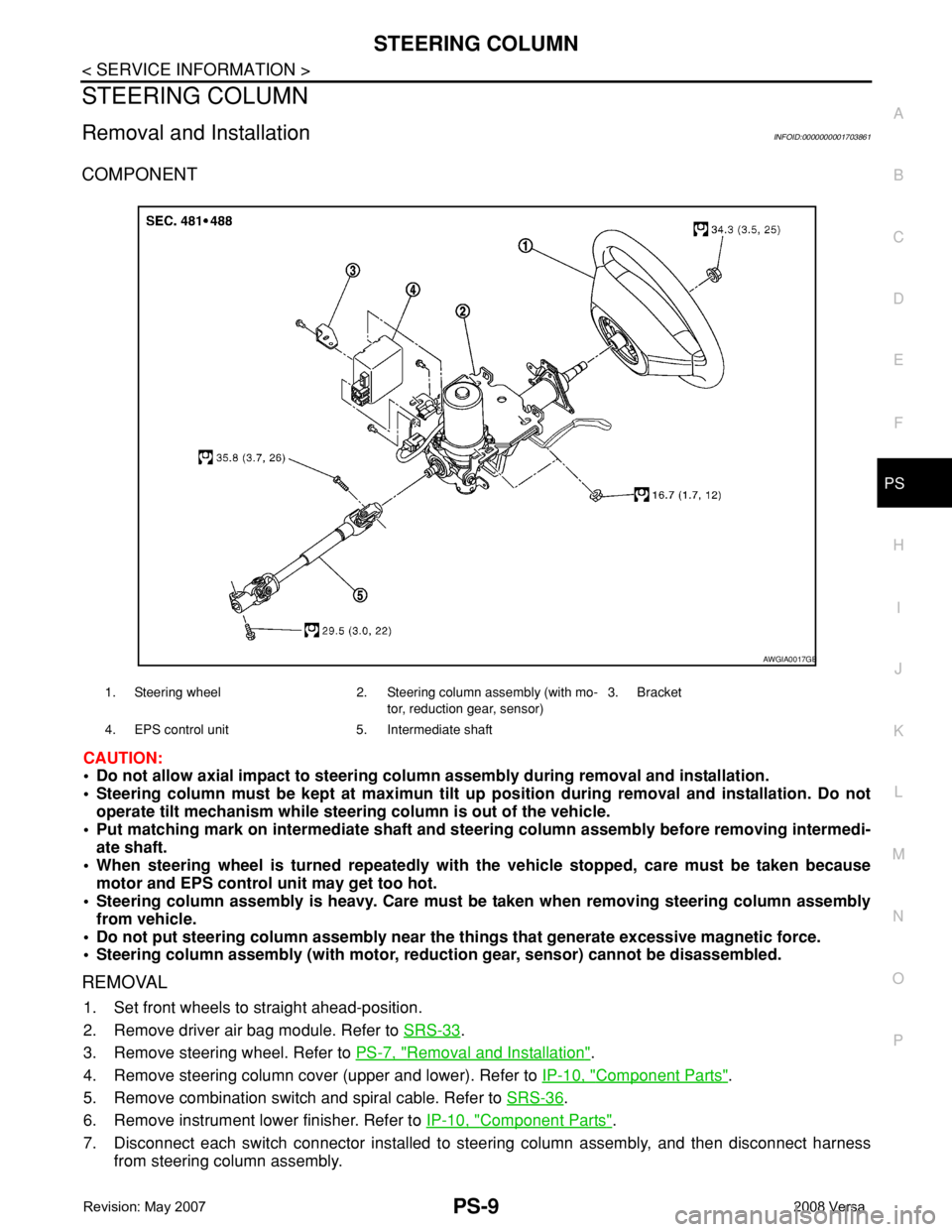

STEERING COLUMN
Removal and InstallationINFOID:0000000001703861
COMPONENT
CAUTION:
• Do not allow axial impact to steerin

Page 2516 of 2771

NISSAN LATIO 2008  Service Repair Manual PS-10
< SERVICE INFORMATION >
STEERING COLUMN

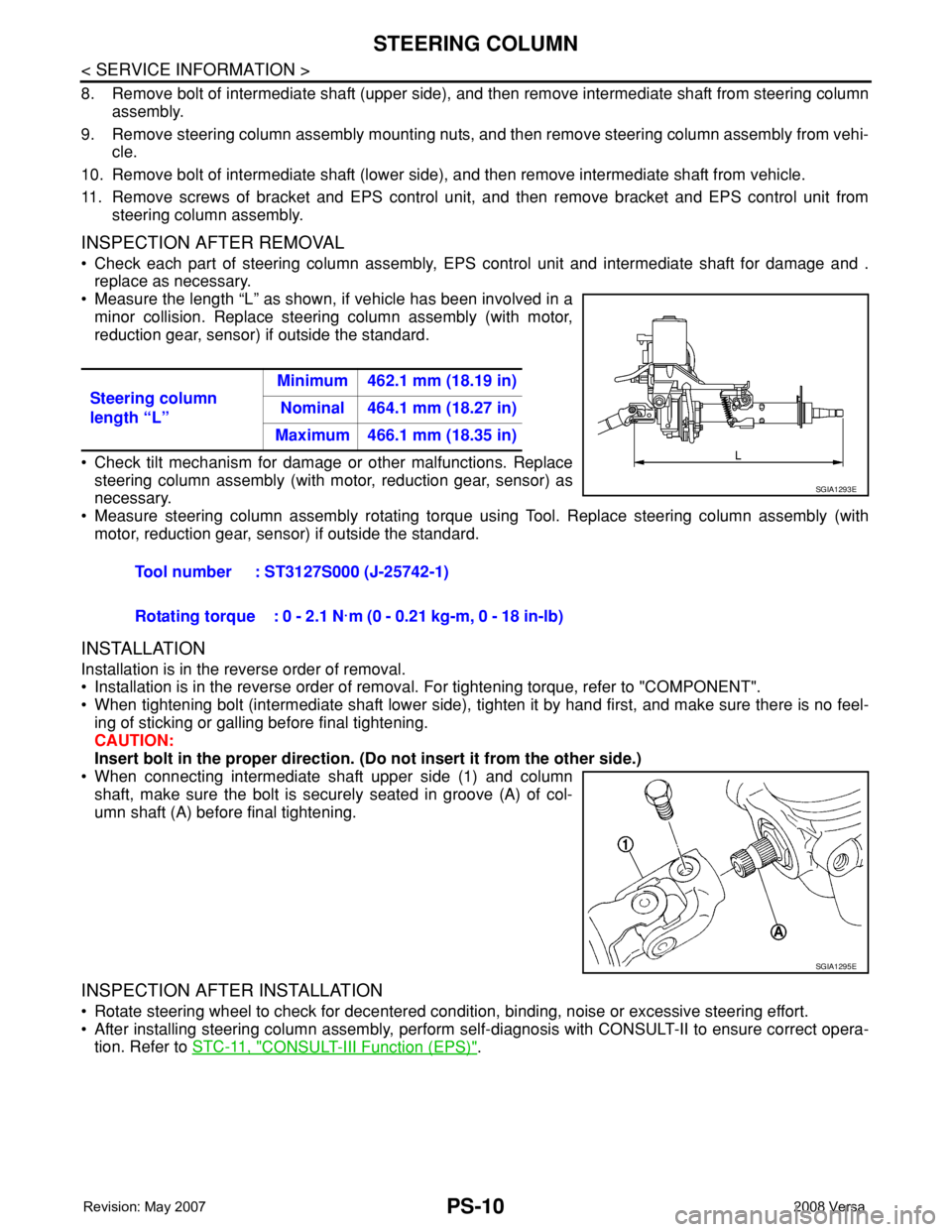

8. Remove bolt of intermediate shaft (upper side), and then remove intermediate shaft from steering column
assembly.
9. Remove steering column assembly mo

Page 2517 of 2771

NISSAN LATIO 2008  Service Repair Manual STEERING COLUMN
PS-11
< SERVICE INFORMATION >
C
D
E
F
H
I
J
K
L
MA
B
PS
N
O
P
• Check tilt mechanism operating range “L” as shown.
Tilt operating range “L” : 20 mm (0.79 in)
LGIA0040E

Page 2518 of 2771

NISSAN LATIO 2008  Service Repair Manual PS-12
< SERVICE INFORMATION >

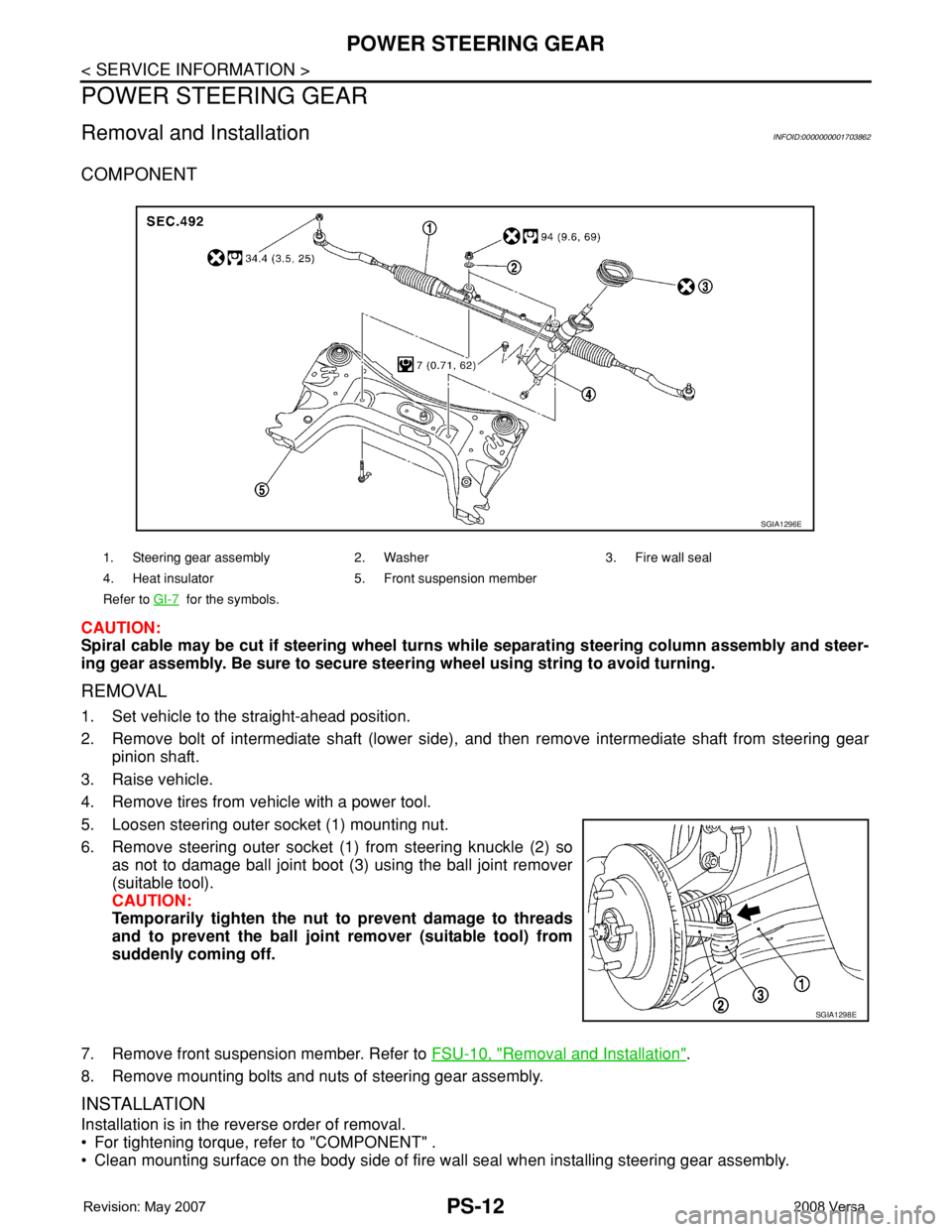

POWER STEERING GEAR
POWER STEERING GEAR
Removal and InstallationINFOID:0000000001703862
COMPONENT
CAUTION:
Spiral cable may be cut if steering wheel turns while separatin

Page 2519 of 2771

NISSAN LATIO 2008  Service Repair Manual POWER STEERING GEAR
PS-13
< SERVICE INFORMATION >
C
D
E
F
H
I
J
K
L
MA
B
PS
N
O
P

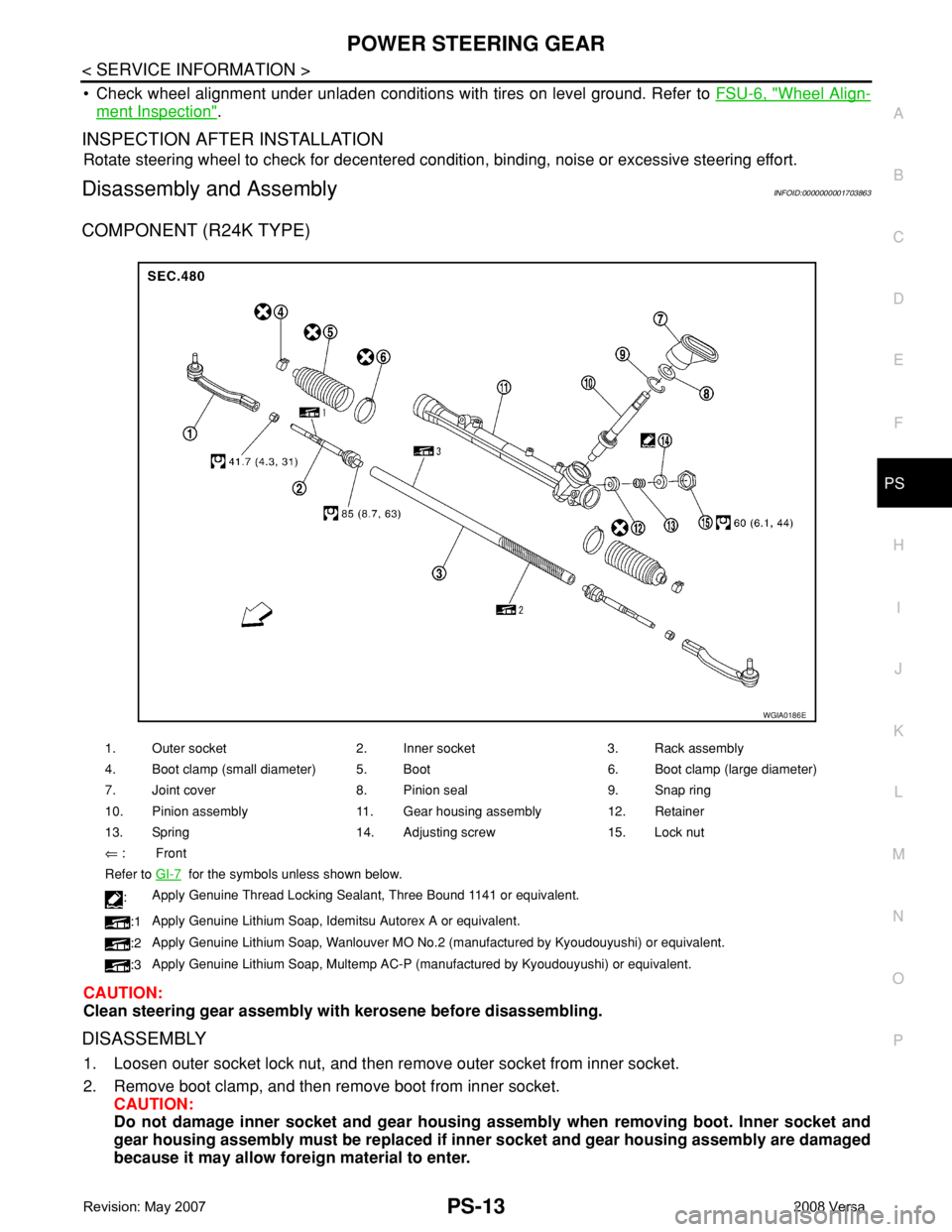

• Check wheel alignment under unladen conditions with tires on level ground. Refer to FSU-6, "Wheel Align-
ment

Page 2520 of 2771

NISSAN LATIO 2008  Service Repair Manual PS-14
< SERVICE INFORMATION >
POWER STEERING GEAR

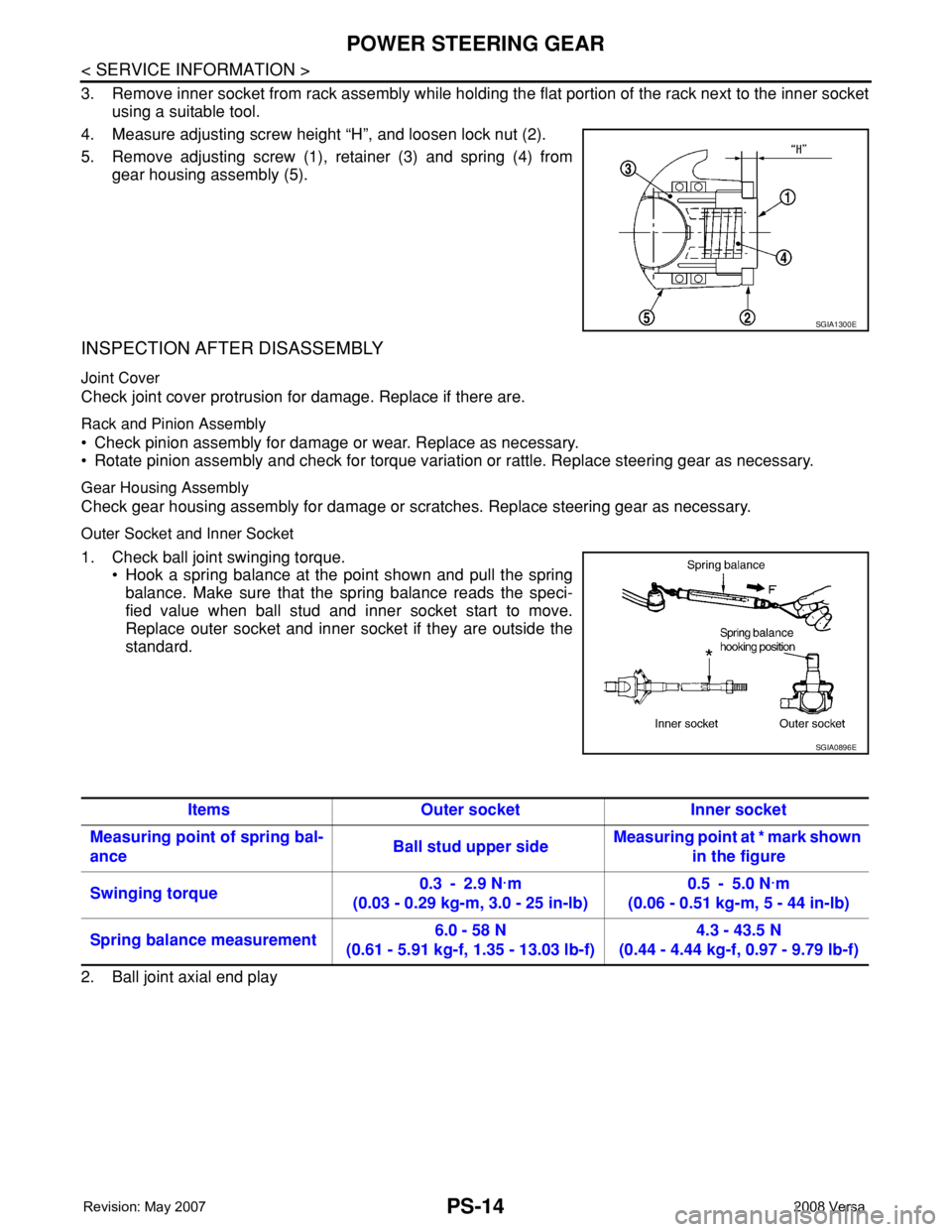

3. Remove inner socket from rack assembly while holding the flat portion of the rack next to the inner socket
using a suitable tool.
4. Measure adjust
