Page 2201 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-64 < SERVICE INFORMATION > COMBINATION SWITCH 4. Check for continuity between of BCM harness connector in suspect system and ground. OK or NG OK >> GO TO 4. NG >> Check harness between BCM and comb

Page 2202 of 2771

NISSAN LATIO 2008 Service Repair Manual COMBINATION SWITCH LT-65 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P OK or NG OK >> Open circuit in combination switch, GO TO 5. NG >> Replace BCM. Refer to BCS-18, " Removal and Insta

Page 2203 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-66 < SERVICE INFORMATION > STOP LAMP STOP LAMP Wiring Diagram - STOP/LINFOID:0000000001704438 HATCHBACK WKWA5833E

Page 2204 of 2771

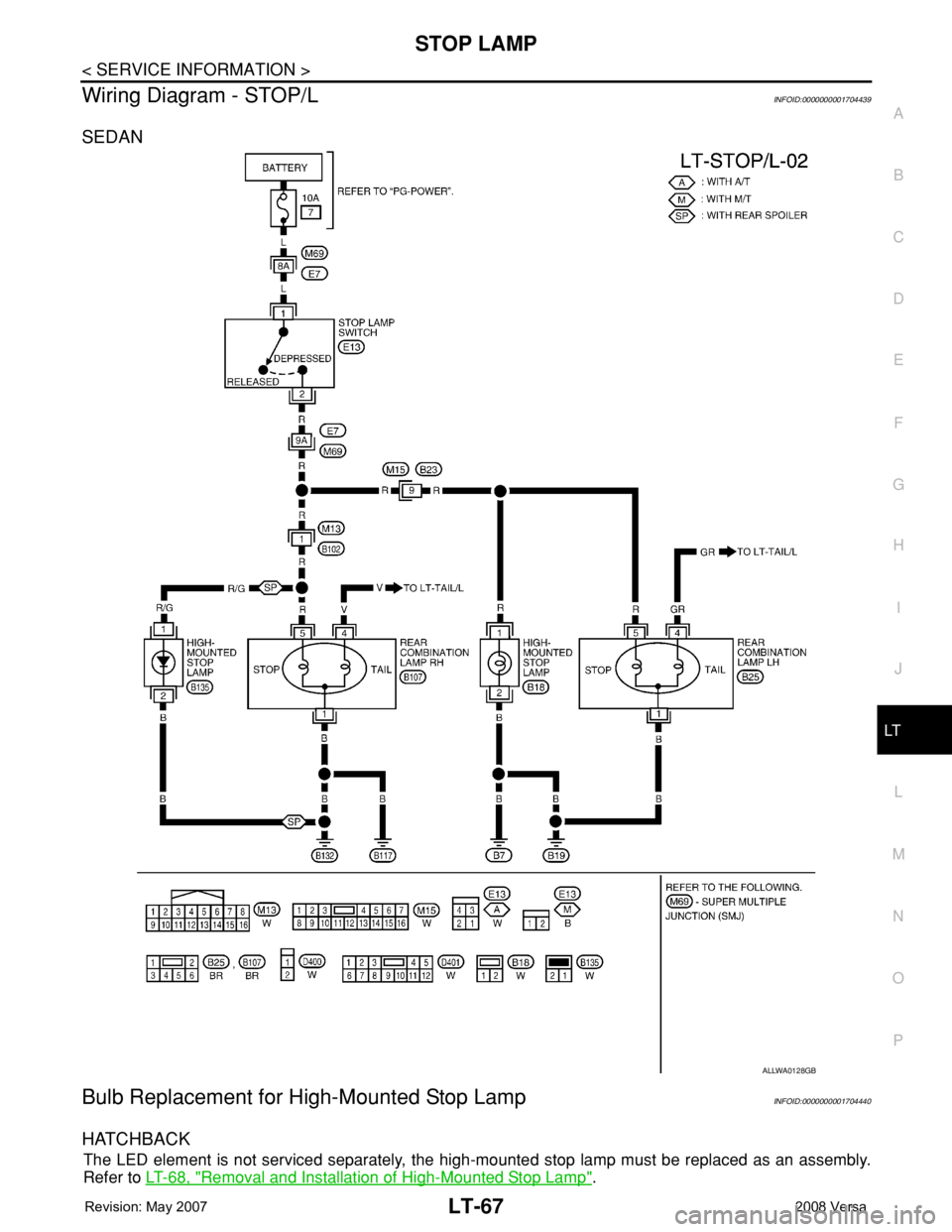

NISSAN LATIO 2008 Service Repair Manual STOP LAMP LT-67 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P Wiring Diagram - STOP/LINFOID:0000000001704439 SEDAN Bulb Replacement for High-Mounted Stop LampINFOID:0000000001704440 HATCHBAC

Page 2205 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-68 < SERVICE INFORMATION > STOP LAMP SEDAN 1. Remove the high-mounted stop lamp bulb socket (1) and remove the high-mounted stop lamp (2). 2. Installation is in the reverse order of removal. Bulb

Page 2206 of 2771

NISSAN LATIO 2008 Service Repair Manual STOP LAMP LT-69 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P 3. Remove the high-mounted stop lamp finisher screws (A) and remove the high-mounted stop lamp finisher (1). Installation Insta

Page 2207 of 2771

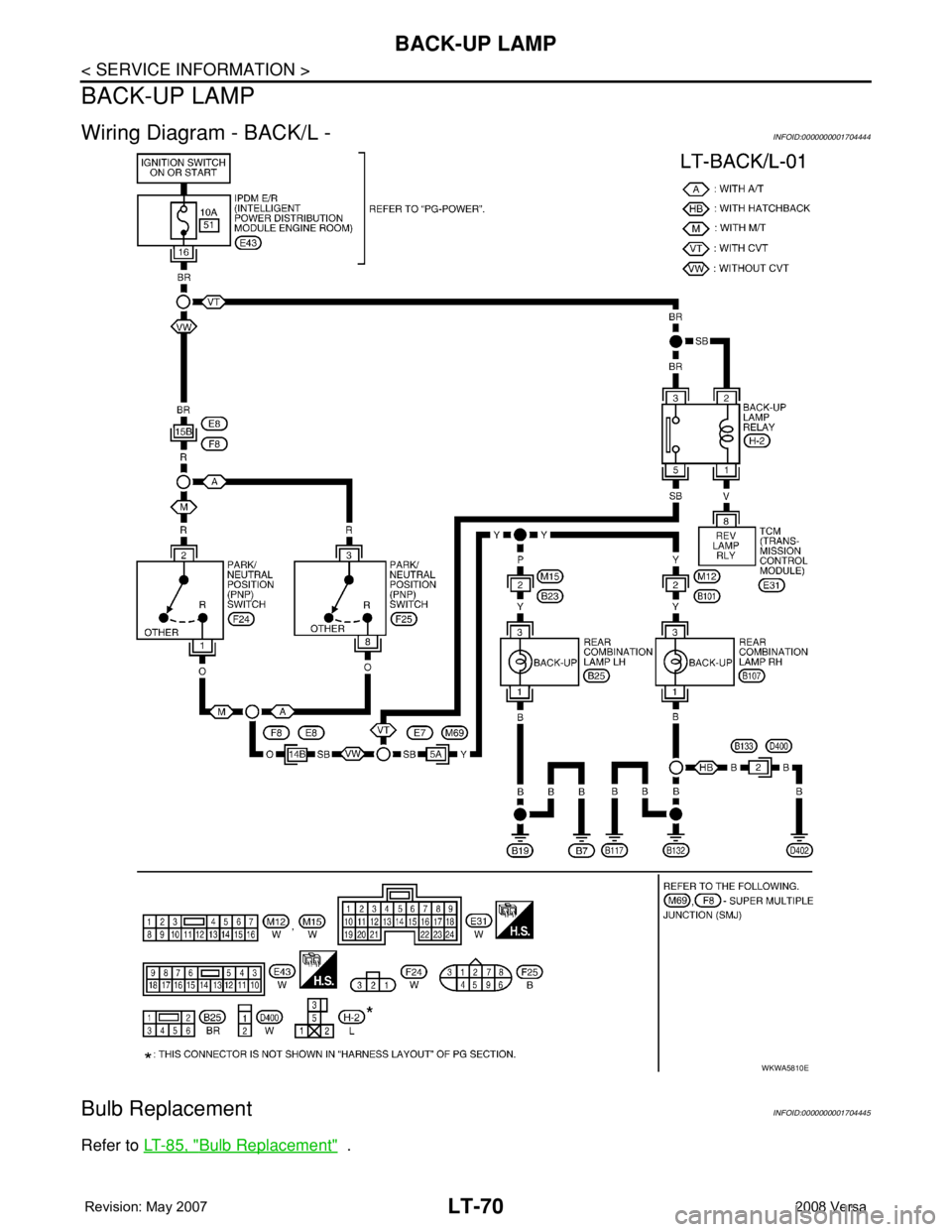

NISSAN LATIO 2008 Service Repair Manual LT-70 < SERVICE INFORMATION > BACK-UP LAMP BACK-UP LAMP Wiring Diagram - BACK/L -INFOID:0000000001704444 Bulb ReplacementINFOID:0000000001704445 Refer to LT-85, "Bulb Replacement" . WKWA5810E

Page 2208 of 2771

NISSAN LATIO 2008 Service Repair Manual BACK-UP LAMP LT-71 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P Removal and InstallationINFOID:0000000001704446 Refer to LT-86, "Removal and Installation" .
