Page 2473 of 2771

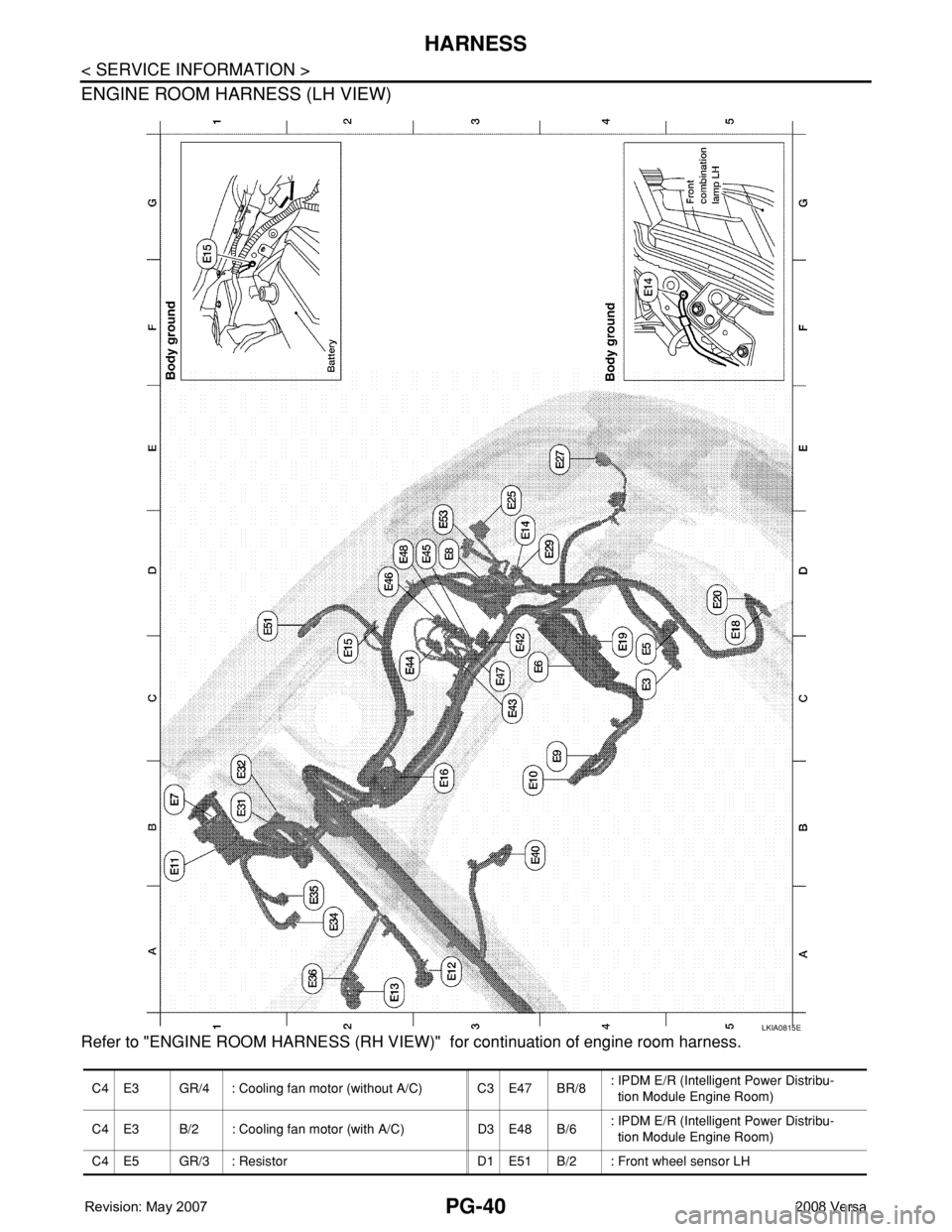

NISSAN LATIO 2008 Service Repair Manual PG-40 < SERVICE INFORMATION > HARNESS ENGINE ROOM HARNESS (LH VIEW) Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness. LKIA0815E C4 E3 GR/4 : Cooling fan motor

Page 2474 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS PG-41 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P C3 E6 — : Fuse and fusible link box D3 E53 B/2: Front combination lamp LH (parking) B1 E7 SMJ : To M69 D3 E8 SMJ : To F8 B4 E9

Page 2475 of 2771

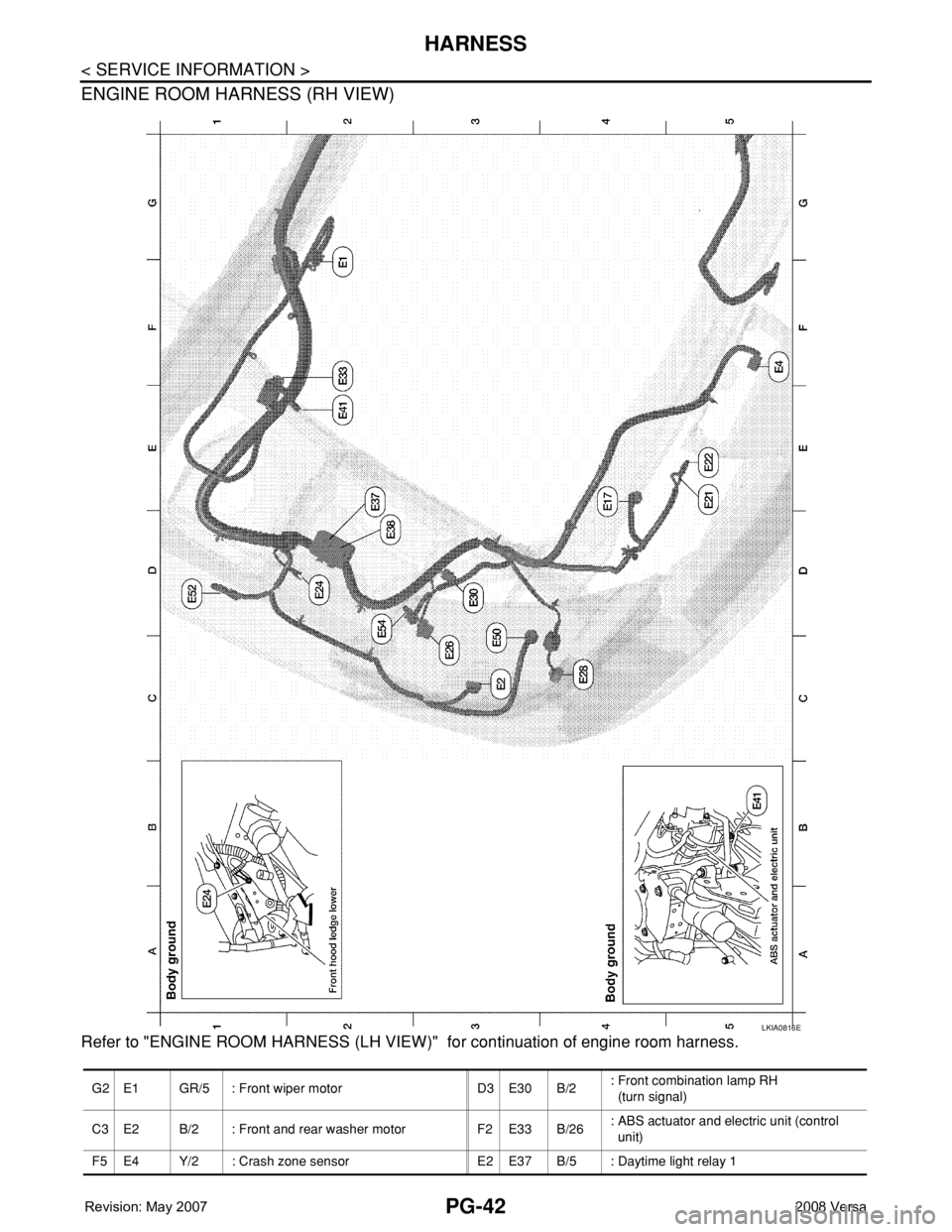

NISSAN LATIO 2008 Service Repair Manual PG-42 < SERVICE INFORMATION > HARNESS ENGINE ROOM HARNESS (RH VIEW) Refer to "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness. LKIA0816E G2 E1 GR/5 : Front wiper motor

Page 2476 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS PG-43 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P E4 E17 B/3 : Refrigerant pressure sensor D2 E38 L/5 : Daytime light relay 2 E5 E21 B/1 : Horn (high) E2 E41 — : Ground (ABS) E5

Page 2477 of 2771

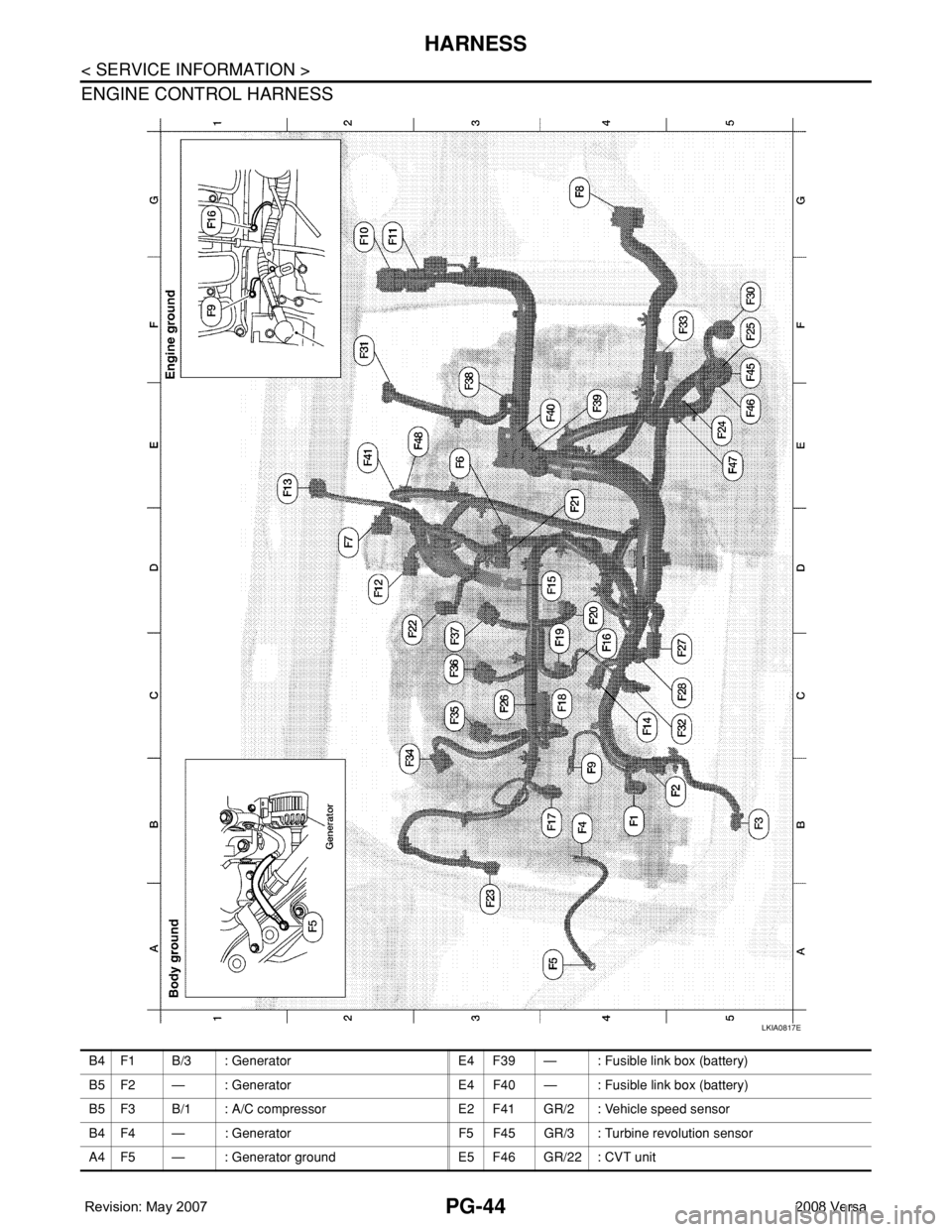

NISSAN LATIO 2008 Service Repair Manual PG-44 < SERVICE INFORMATION > HARNESS ENGINE CONTROL HARNESS LKIA0817E B4 F1 B/3 : Generator E4 F39 — : Fusible link box (battery) B5 F2 — : Generator E4 F40 — : Fusible link box (battery) B5 F3

Page 2478 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS PG-45 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P BODY HARNESS (HATCHBACK) E3 F6 GR/2 : Engine coolant temperature sensor E5 F47 B/3 : Powertrain revolution sensor (with A/T) D2 F7

Page 2479 of 2771

NISSAN LATIO 2008 Service Repair Manual PG-46 < SERVICE INFORMATION > HARNESS G4 B2 GR/2 : Rear bumper antenna C4 B4 W/8 : To D201 C4 B5 — : Body ground E4 B6 W/1 : Rear door switch LH C4 B7 — : Body ground C4 B8 W/3 : Front door switch

Page 2480 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS PG-47 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P BODY HARNESS (SEDAN) LKIA0932E G4 B2 GR/2 : Rear bumper antenna C4 B4 W/8 : To D201 C4 B5 — : Body ground D3 B6 W/1 : Rear door
