Page 1713 of 2771

NISSAN LATIO 2008 Service Repair Manual EM-36 < SERVICE INFORMATION > FUEL INJECTOR AND FUEL TUBE 2. Install fuel injector (4) to fuel tube (1) with the following proce- dure: a. Insert clip (2) into clip groove (F) on fuel injector. • In

Page 1714 of 2771

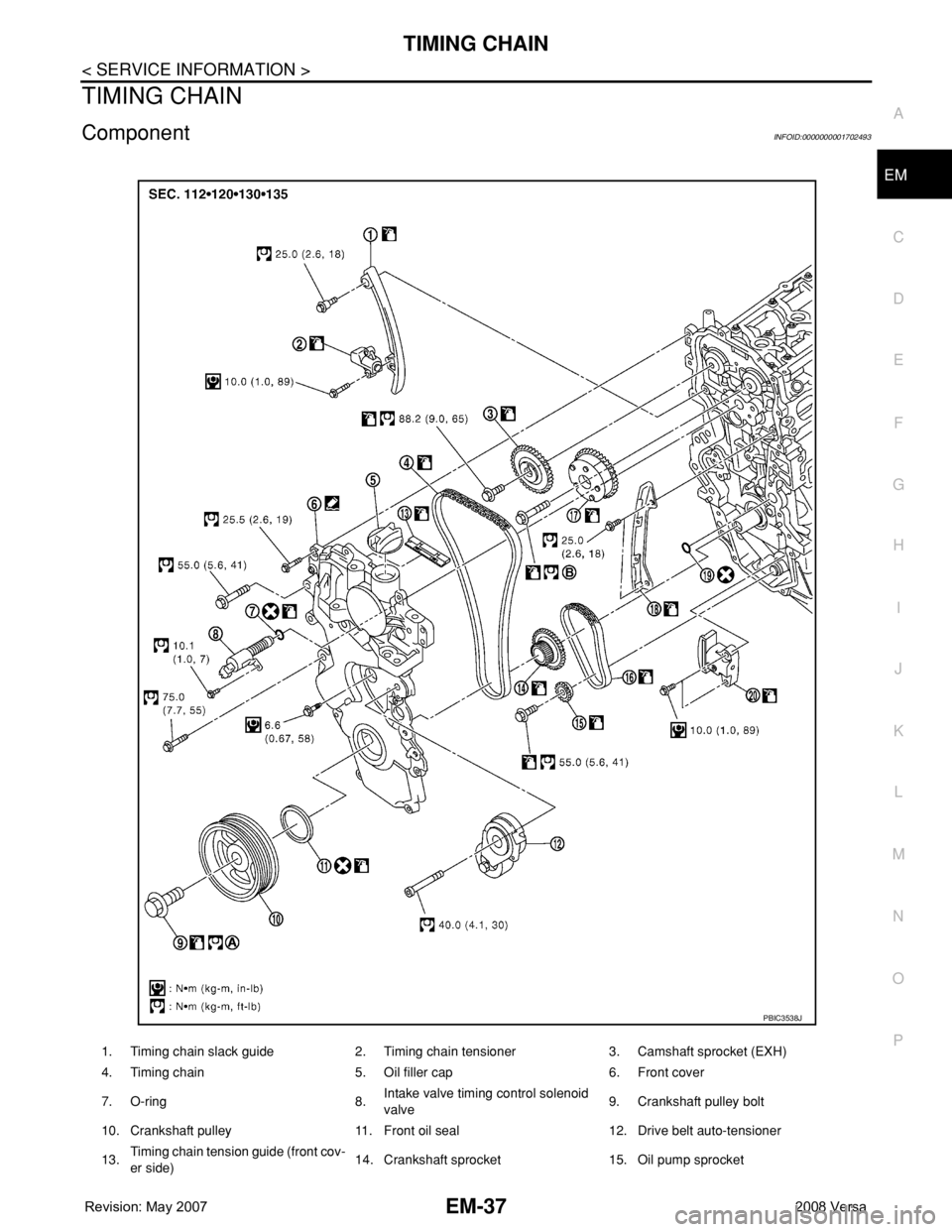

NISSAN LATIO 2008 Service Repair Manual TIMING CHAIN EM-37 < SERVICE INFORMATION > C D E F G H I J K L MA EM N P O TIMING CHAIN ComponentINFOID:0000000001702493 1. Timing chain slack guide 2. Timing chain tensioner 3. Camshaft sprocket (EXH

Page 1715 of 2771

NISSAN LATIO 2008 Service Repair Manual EM-38 < SERVICE INFORMATION > TIMING CHAIN Removal and Installation INFOID:0000000001844926 CAUTION: The rotating direction indicated in the text indicates all directions seen from the engine front. R

Page 1716 of 2771

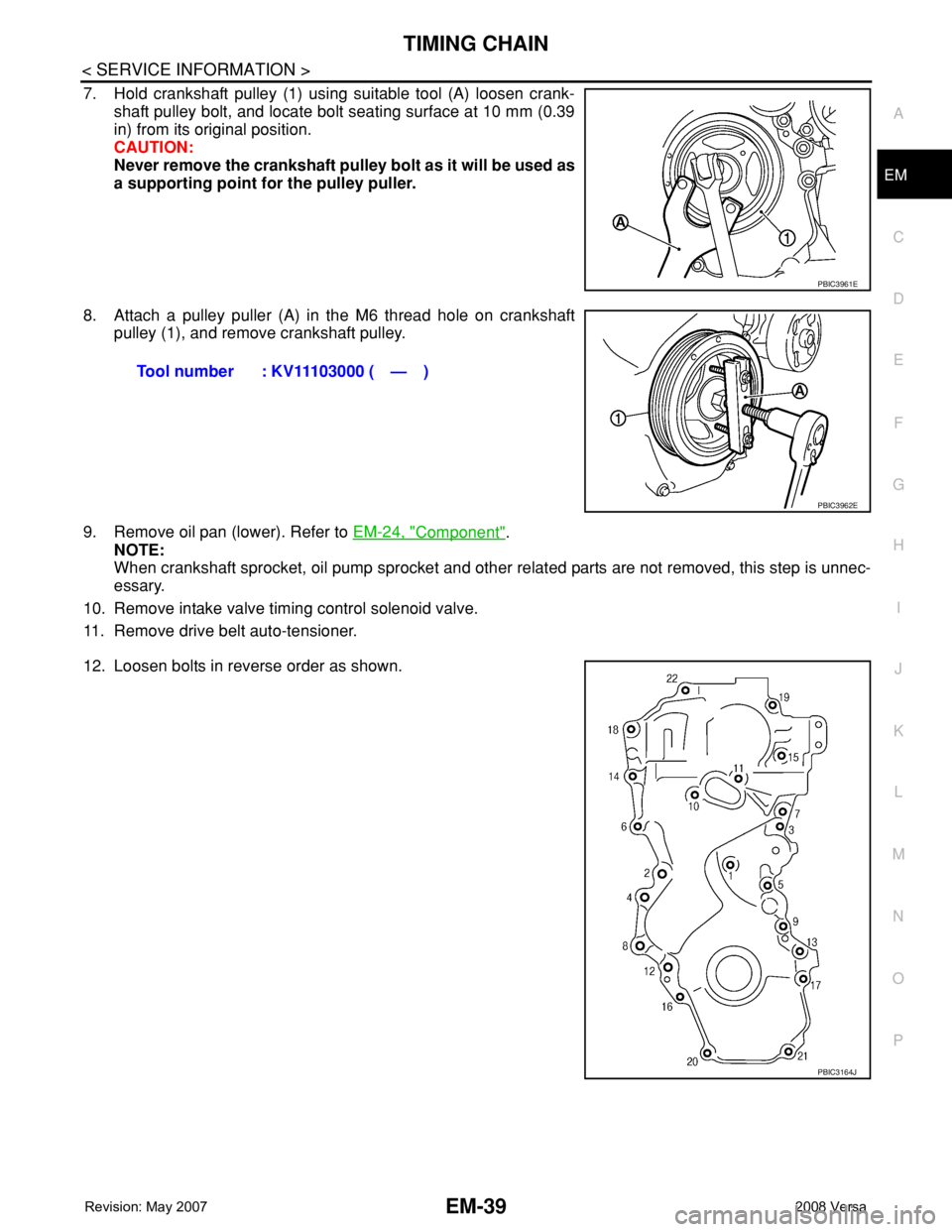

NISSAN LATIO 2008 Service Repair Manual TIMING CHAIN EM-39 < SERVICE INFORMATION > C D E F G H I J K L MA EM N P O 7. Hold crankshaft pulley (1) using suitable tool (A) loosen crank- shaft pulley bolt, and locate bolt seating surface at 10

Page 1717 of 2771

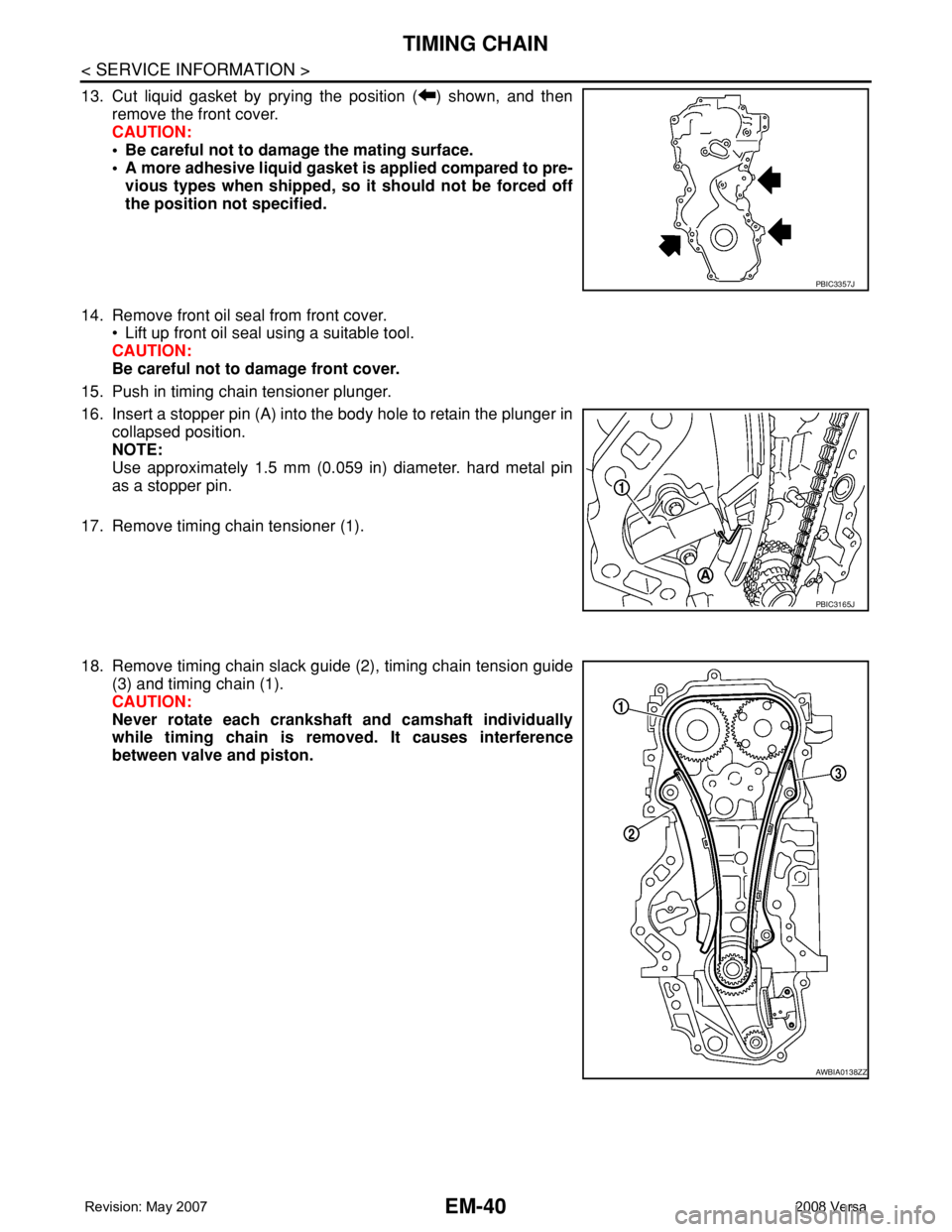

NISSAN LATIO 2008 Service Repair Manual EM-40 < SERVICE INFORMATION > TIMING CHAIN 13. Cut liquid gasket by prying the position ( ) shown, and then remove the front cover. CAUTION: • Be careful not to damage the mating surface. • A more

Page 1718 of 2771

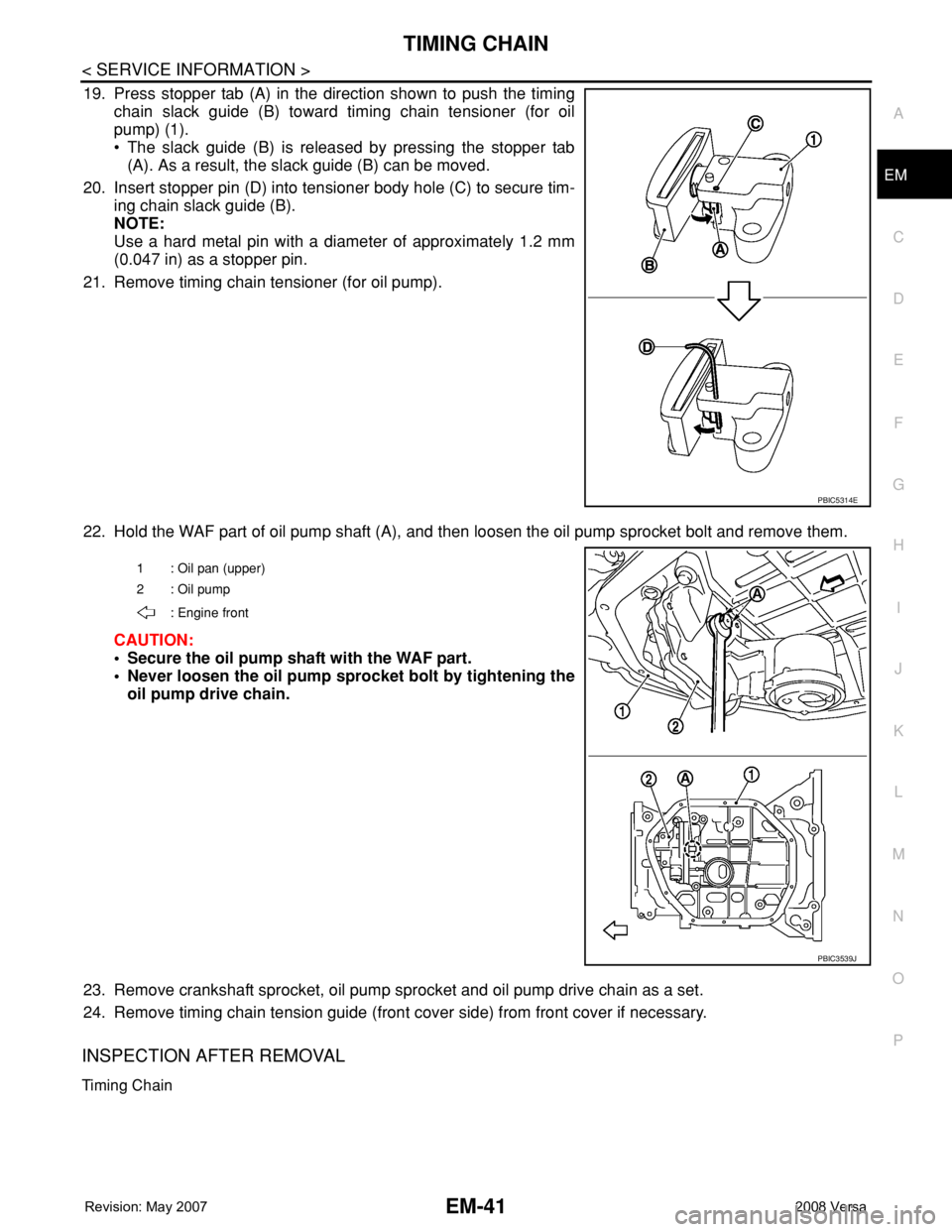

NISSAN LATIO 2008 Service Repair Manual TIMING CHAIN EM-41 < SERVICE INFORMATION > C D E F G H I J K L MA EM N P O 19. Press stopper tab (A) in the direction shown to push the timing chain slack guide (B) toward timing chain tensioner (for

Page 1719 of 2771

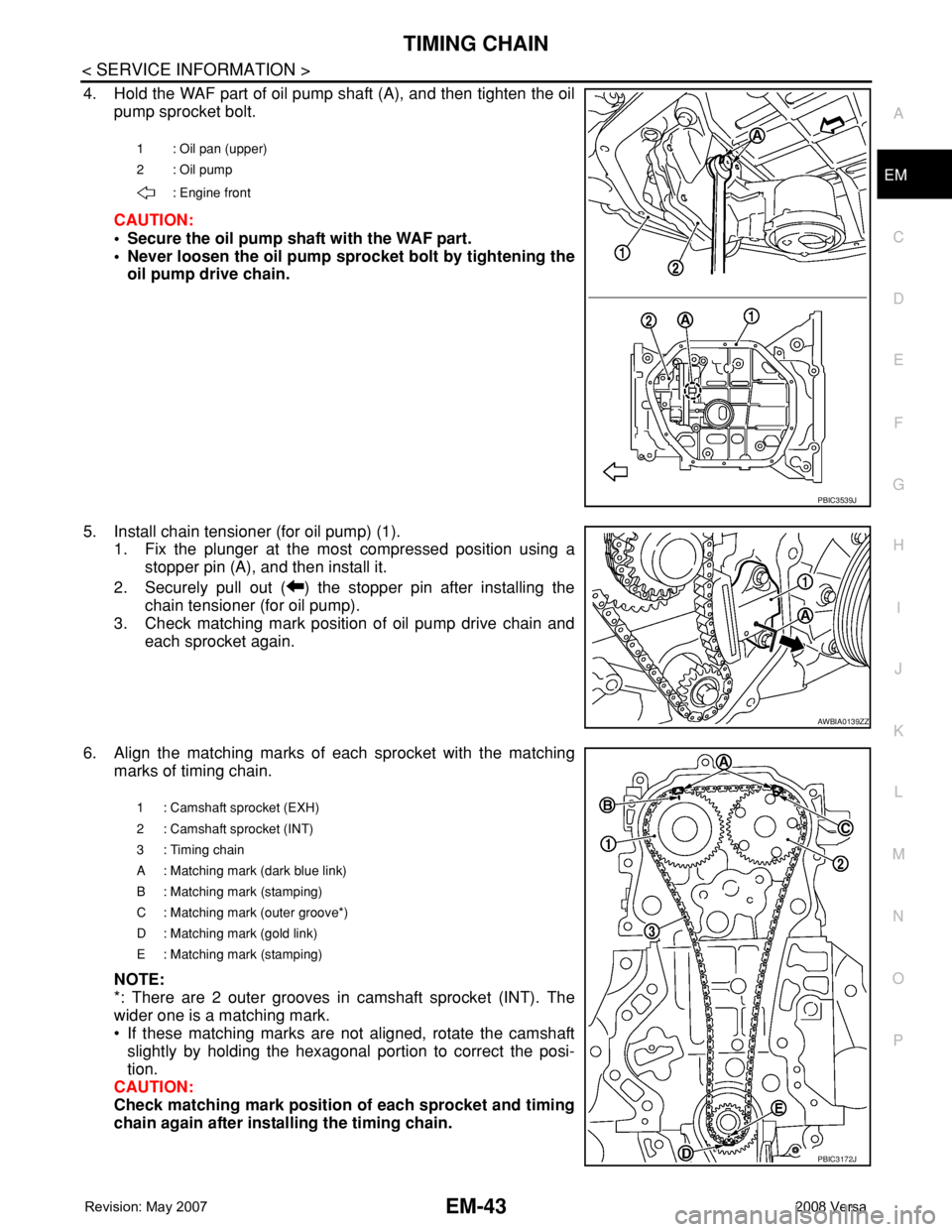

NISSAN LATIO 2008 Service Repair Manual EM-42 < SERVICE INFORMATION > TIMING CHAIN • Check timing chain and oil pump drive chain for cracks (A) and any excessive wear (B) at the roller links of timing chain. • Replace timing chain and/

Page 1720 of 2771

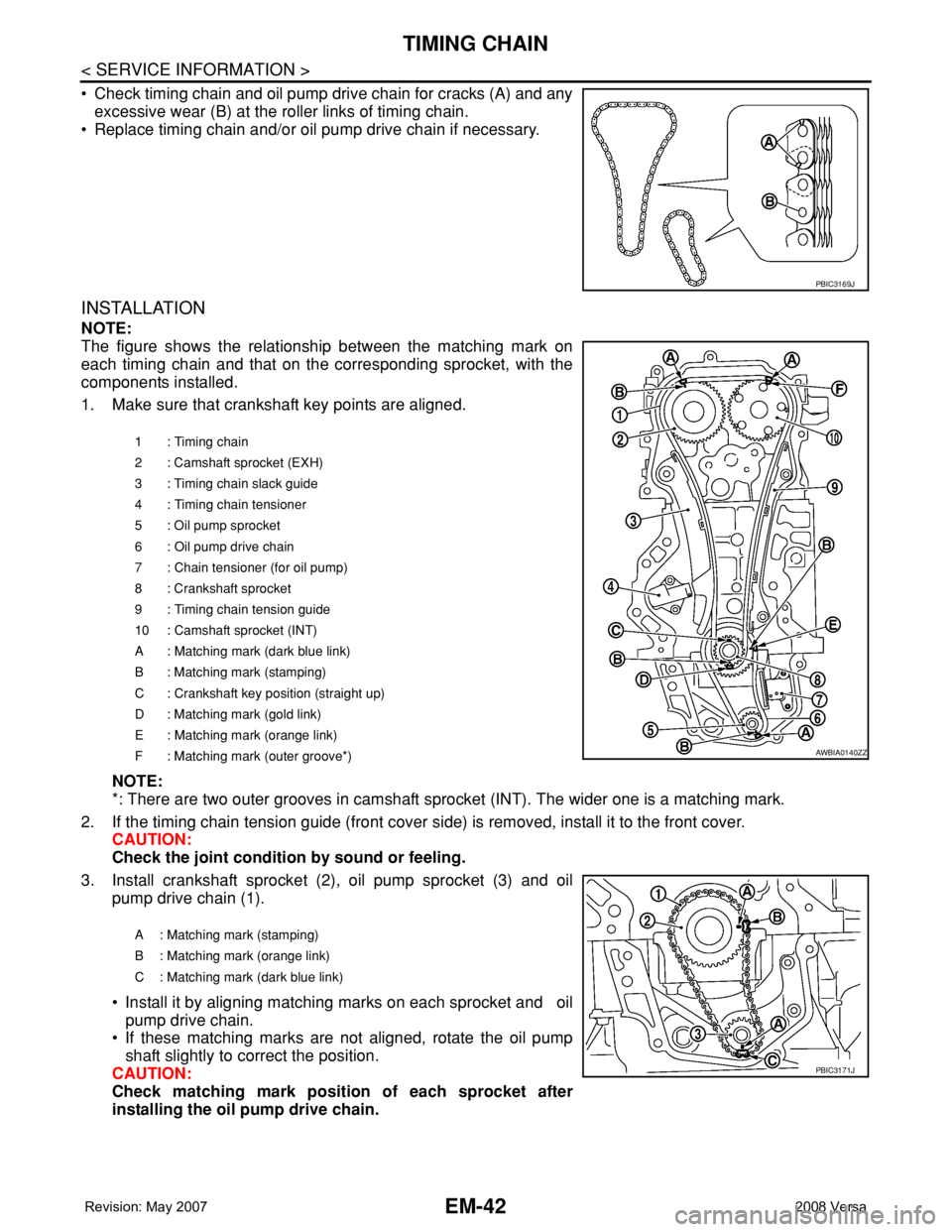

NISSAN LATIO 2008 Service Repair Manual TIMING CHAIN EM-43 < SERVICE INFORMATION > C D E F G H I J K L MA EM N P O 4. Hold the WAF part of oil pump shaft (A), and then tighten the oil pump sprocket bolt. CAUTION: • Secure the oil pump sha
