NISSAN LATIO 2008  Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-309
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
4. Wrap OD servo piston retainer (1) using lint-free cloth A, and
then apply compressed air into the band serv

Page 322 of 2771

NISSAN LATIO 2008  Service Repair Manual AT-310
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

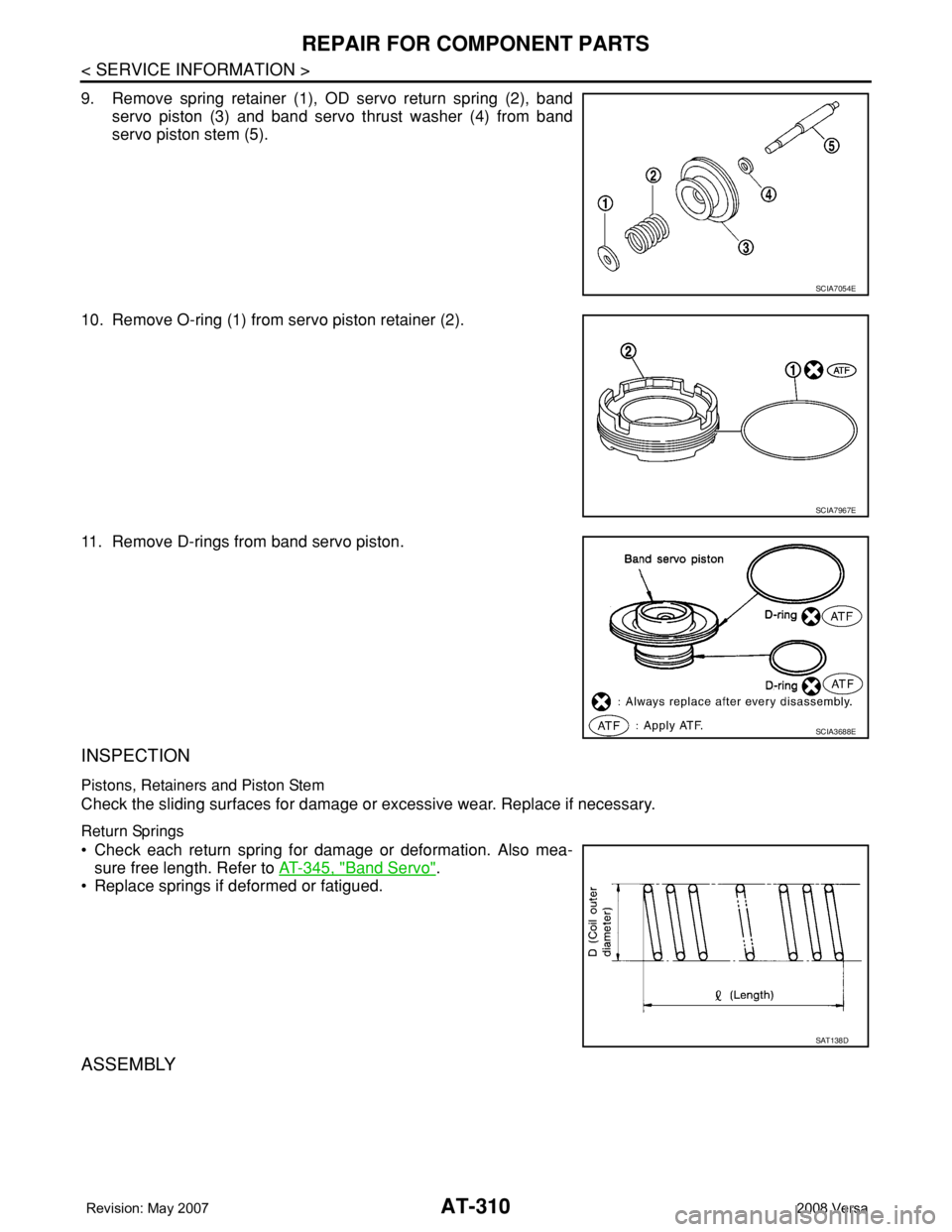

9. Remove spring retainer (1), OD servo return spring (2), band
servo piston (3) and band servo thrust washer (4) from band
servo piston stem

Page 323 of 2771

NISSAN LATIO 2008  Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-311
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
1. Install D-rings to band servo piston.
2. Install band servo thrust washer (4), band servo piston (3), OD
se

Page 324 of 2771

NISSAN LATIO 2008  Service Repair Manual AT-312
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

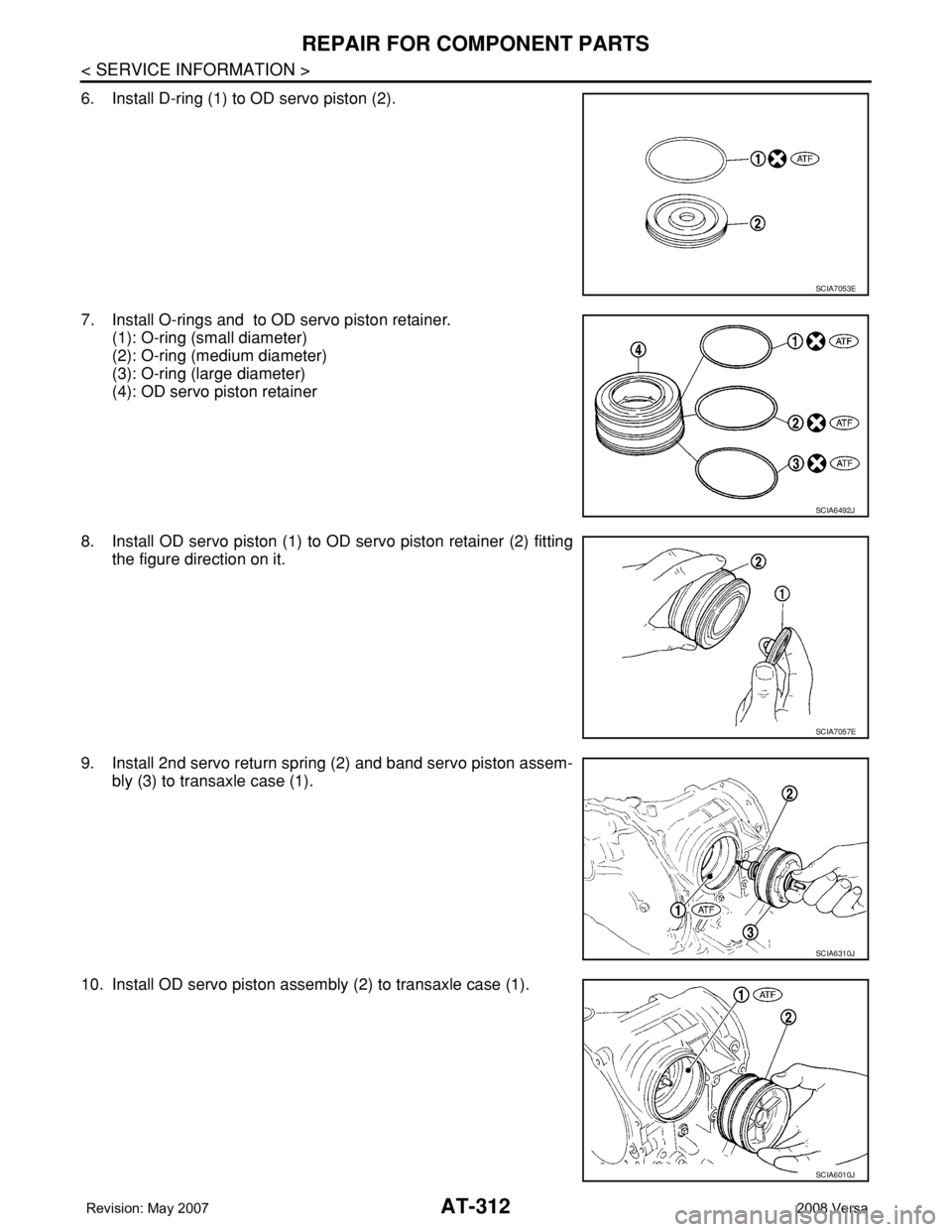

6. Install D-ring (1) to OD servo piston (2).
7. Install O-rings and  to OD servo piston retainer.
(1): O-ring (small diameter)
(2): O-ring (m

Page 325 of 2771

NISSAN LATIO 2008  Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-313
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
11. Push in OD servo piston assembly using a puller A (commercial
service tool) and a suitable drift B, and in

Page 326 of 2771

NISSAN LATIO 2008  Service Repair Manual AT-314
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

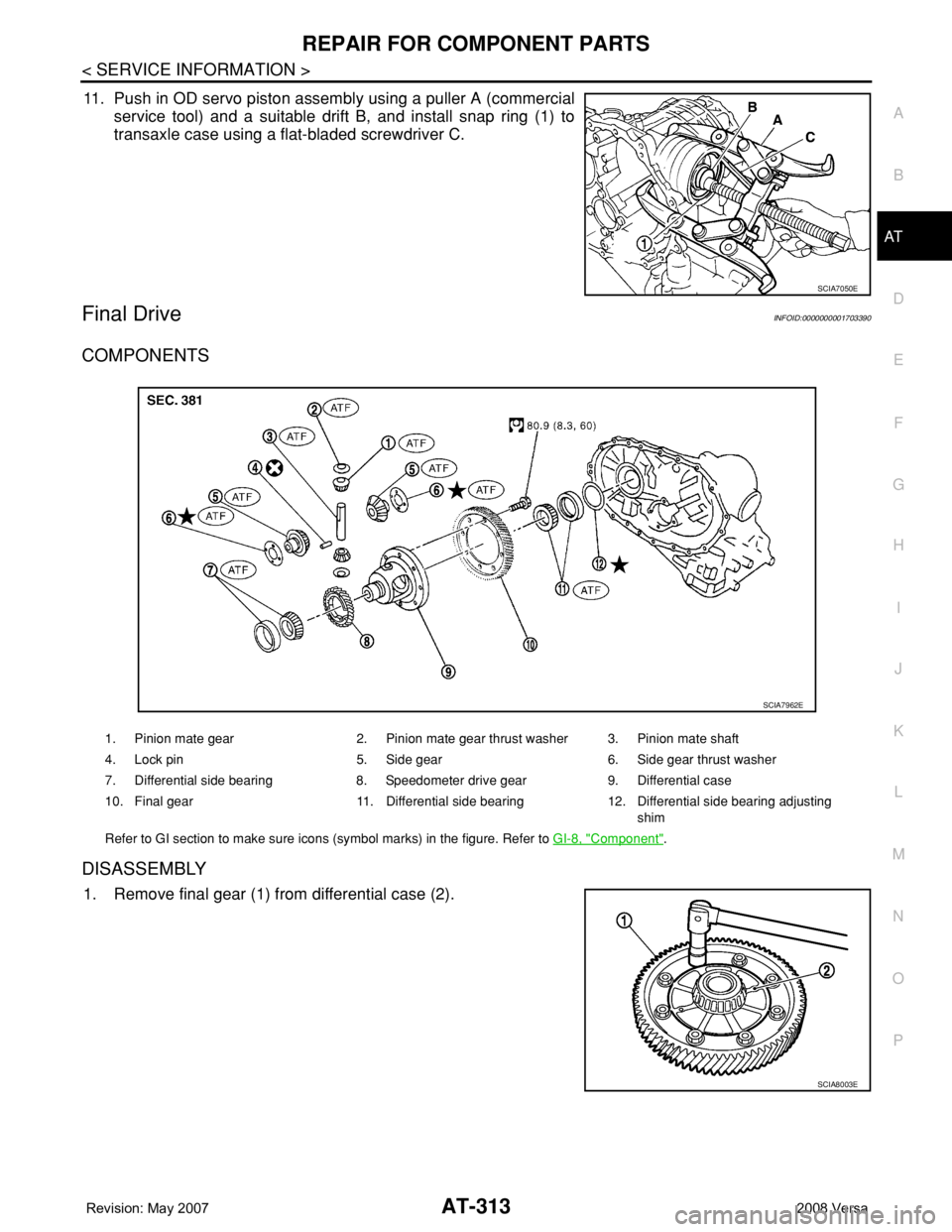

2. Press out differential side bearings.
CAUTION:
Be careful not to mix up the right and left bearings.
3. Remove speedometer drive gear from

Page 327 of 2771

NISSAN LATIO 2008  Service Repair Manual REPAIR FOR COMPONENT PARTS
AT-315
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
• Check mating surfaces of differential case, side gears, pinion mate
gears and pinion mate shaft. Replace i

Page 328 of 2771

NISSAN LATIO 2008  Service Repair Manual AT-316
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

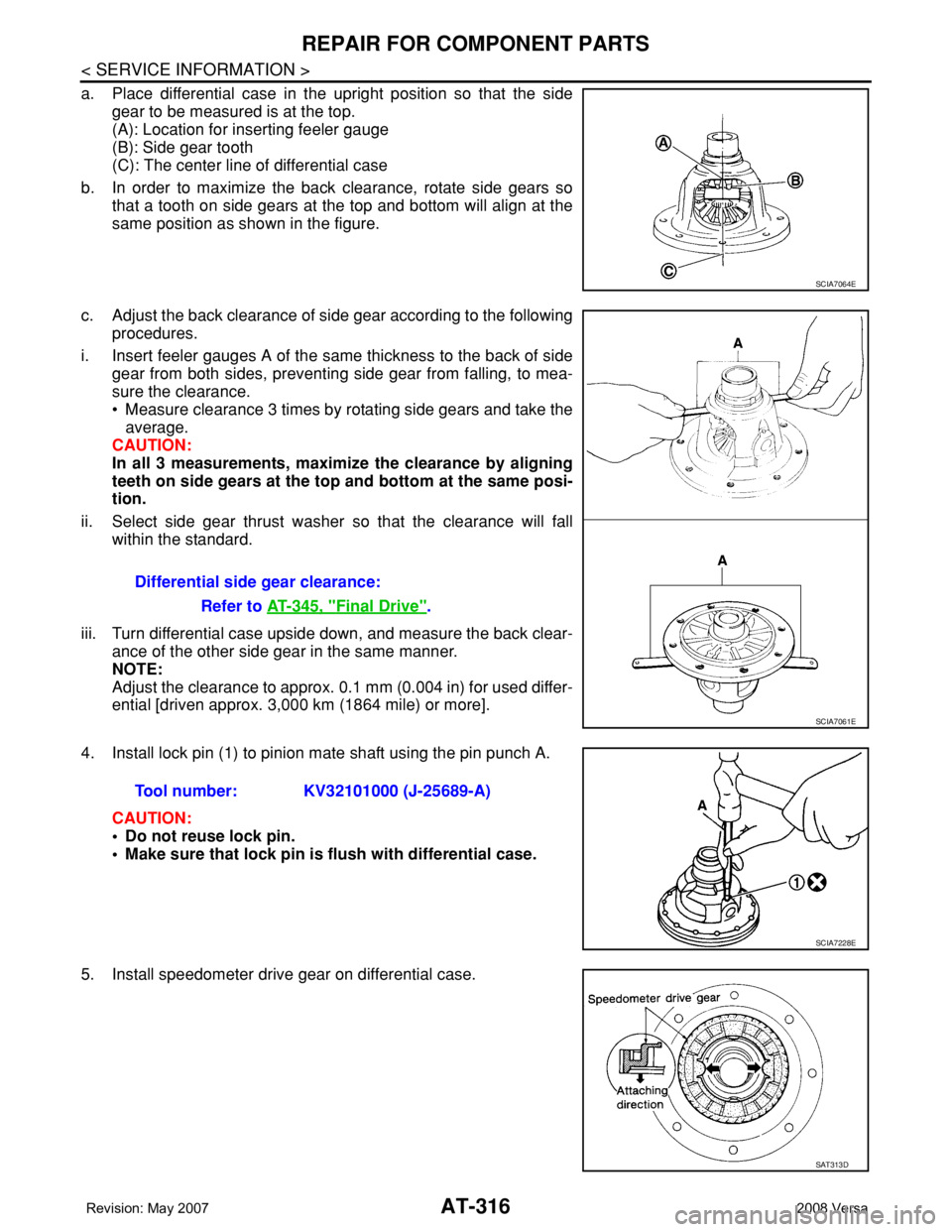

a. Place differential case in the upright position so that the side
gear to be measured is at the top.
(A): Location for inserting feeler gaug
