Page 1489 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-415 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 8. Make sure that cooling fans operates at low speed. If NG, go to EC-417, " Diagnosis Procedure

Page 1490 of 2771

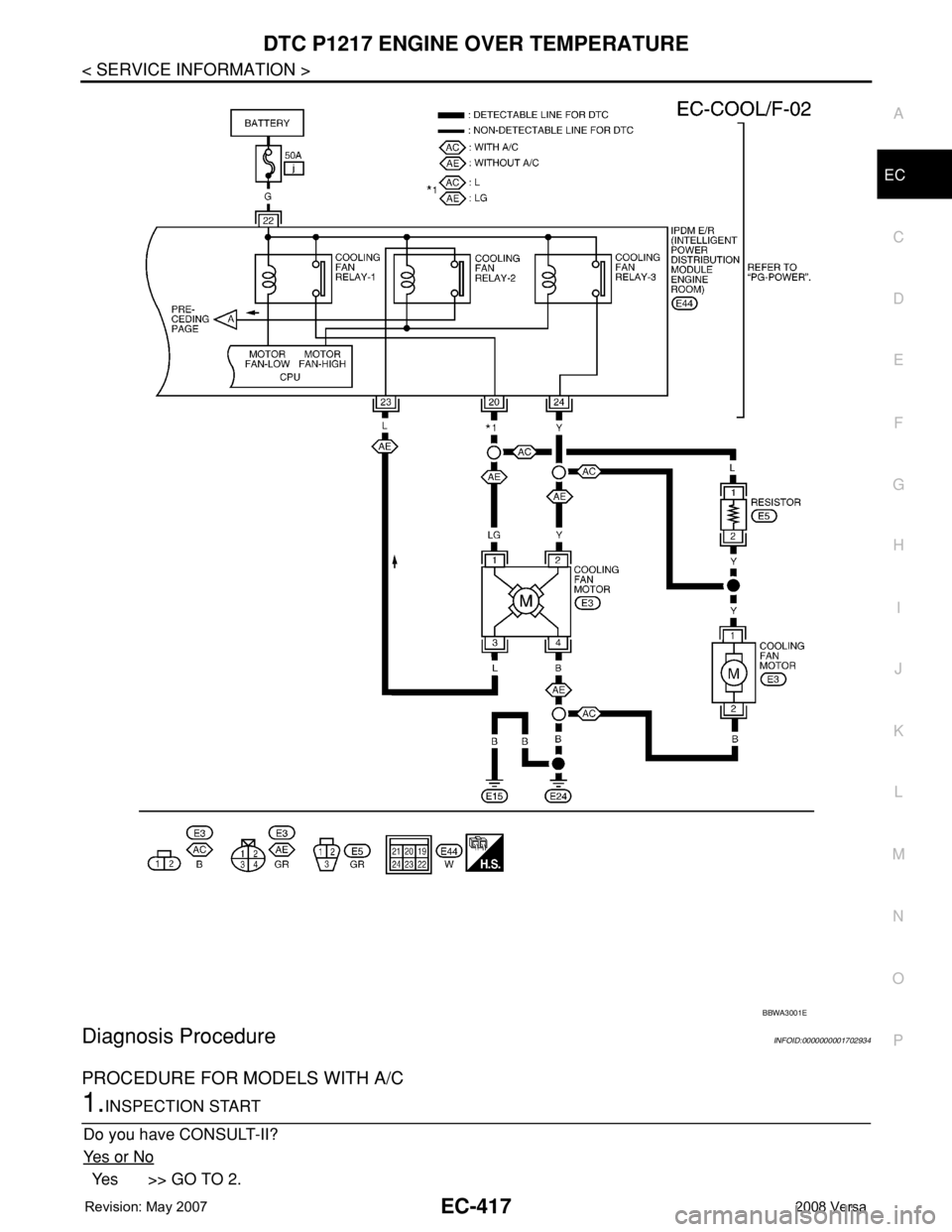

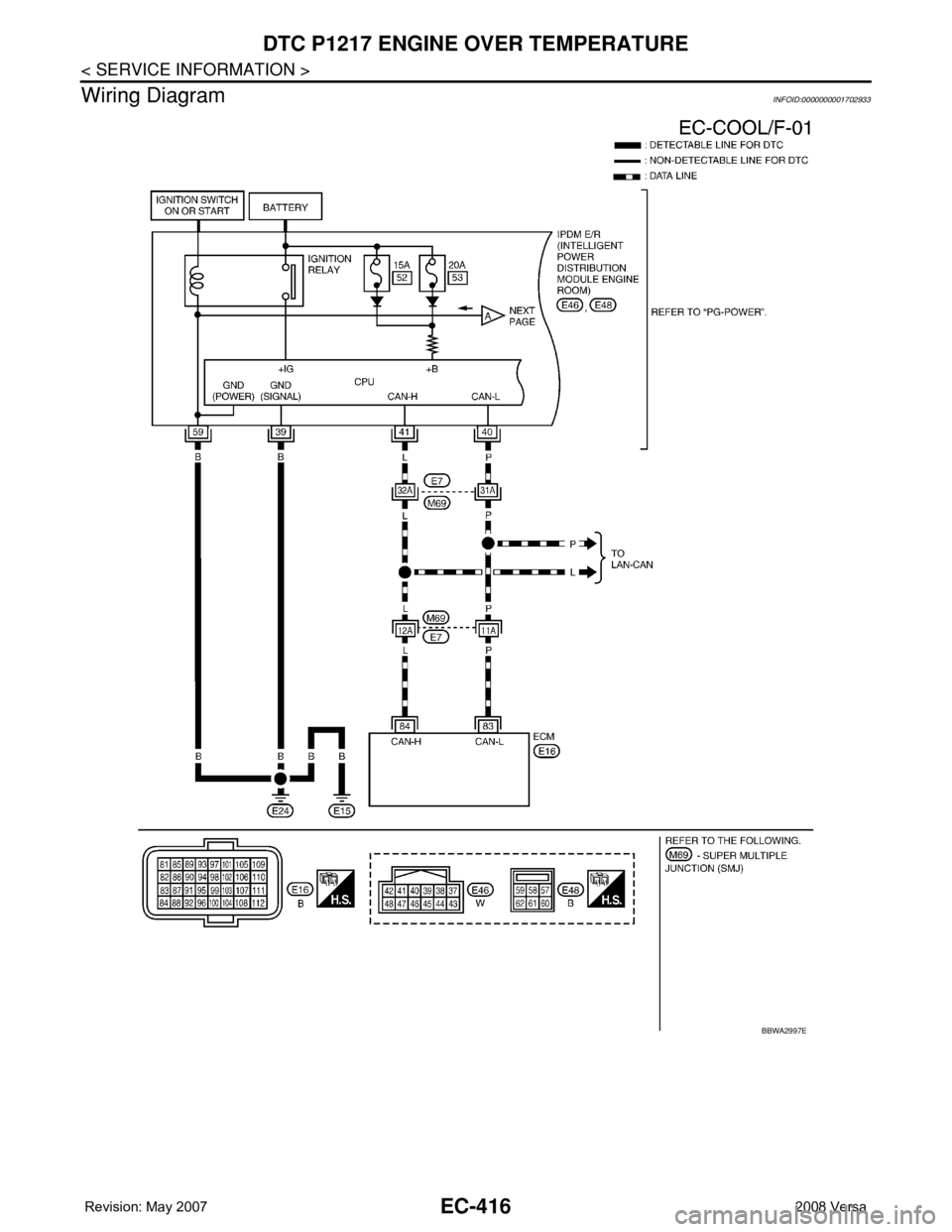

NISSAN LATIO 2008 Service Repair Manual EC-416 < SERVICE INFORMATION > DTC P1217 ENGINE OVER TEMPERATURE Wiring Diagram INFOID:0000000001702933 BBWA2997E

Page 1491 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-417 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Diagnosis ProcedureINFOID:0000000001702934 PROCEDURE FOR MODELS WITH A/C 1.INSPECTION START Do you have

Page 1492 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-418 < SERVICE INFORMATION > DTC P1217 ENGINE OVER TEMPERATURE No >> GO TO 4. 2.CHECK COOLING FAN LOW SPEED OPERATION With CONSULT-II 1. Turn ignition switch ON. 2. Perform “COOLING FAN” in “

Page 1493 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-419 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 5. Restart engine and make sure that cooling fan operate at higher speed than low speed. OK or NG OK >>

Page 1494 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-420 < SERVICE INFORMATION > DTC P1217 ENGINE OVER TEMPERATURE 3. Check voltage between IPDM E/R terminal 22 and ground with CONSULT-II or tester. OK or NG OK >> GO TO 3. NG >> GO TO 2. 2.DETECT MAL

Page 1495 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-421 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O OK >> GO TO 6. NG >> Replace cooling fan motor. 6.CHECK INTERMITTENT INCIDENT Perform EC-136 . OK or NG

Page 1496 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-422 < SERVICE INFORMATION > DTC P1217 ENGINE OVER TEMPERATURE 2. Disconnect engine coolant temperature sensor harness connector. 3. Connect 150Ω resistor to engine coolant temperature sensor harn
