Page 1433 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-359 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 1. Disconnect EVAP control system pressure sensor (1) harness connector. - EVAP canister (2

Page 1434 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-360 < SERVICE INFORMATION > DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR OK or NG OK >> GO TO 8. NG >> Repair short to ground or short to power in harness or connectors. 8.CHECK COMPONENTS Check t

Page 1435 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-361 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 1. Check harness continuity between ECM terminal 42 and EVAP control system pressure sensor

Page 1436 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-362 < SERVICE INFORMATION > DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR Component DescriptionINFOID:0000000001702871 The EVAP control system pressure

Page 1437 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-363 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OF

Page 1438 of 2771

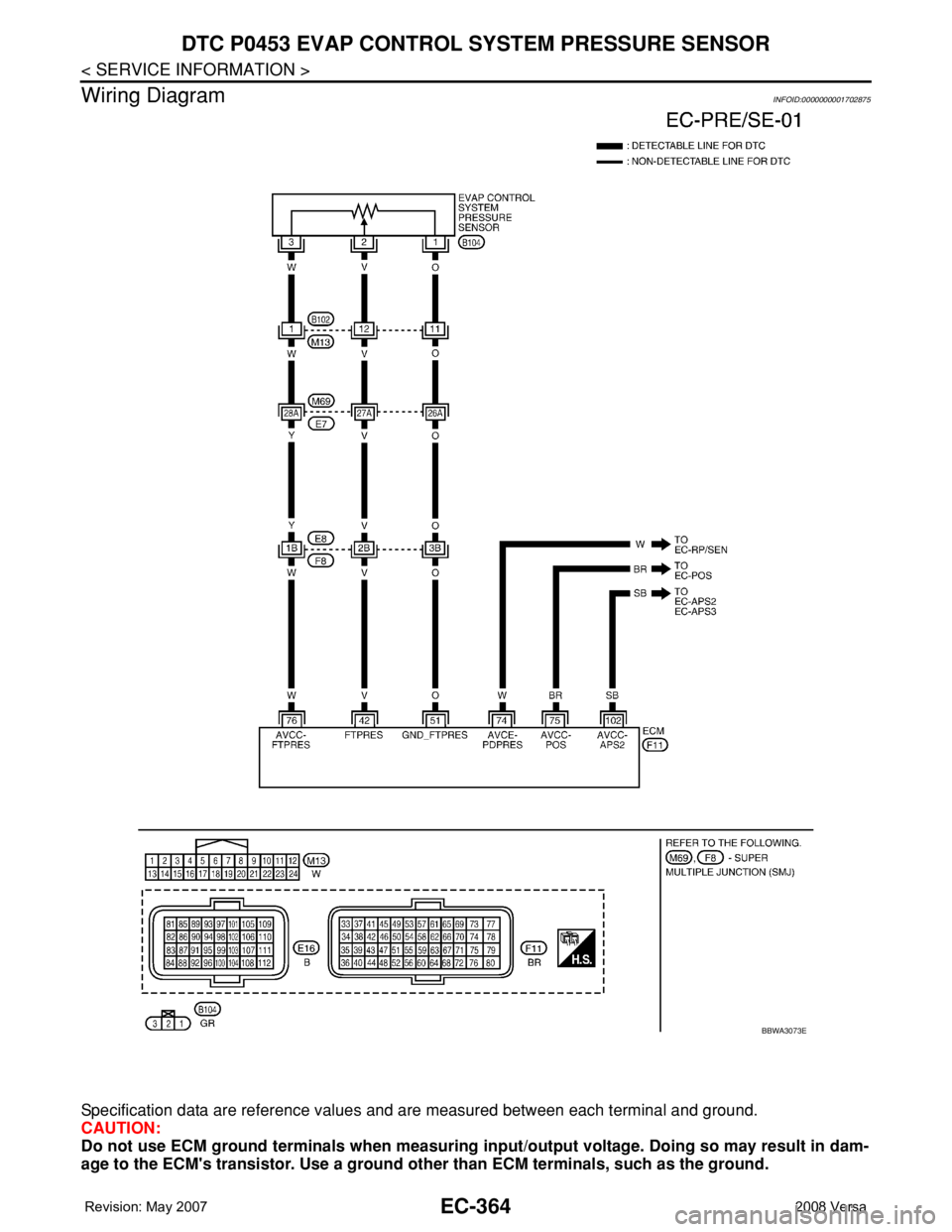

NISSAN LATIO 2008 Service Repair Manual EC-364 < SERVICE INFORMATION > DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR Wiring Diagram INFOID:0000000001702875 Specification data are reference values and are measured between each terminal and g

Page 1439 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR EC-365 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Diagnosis ProcedureINFOID:0000000001702876 1.CHECK GROUND CONNECTIONS 1. Turn ignition swit

Page 1440 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-366 < SERVICE INFORMATION > DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR 1. Disconnect EVAP control system pressure sensor (1) harness connector. - EVAP canister (2) - EVAP canister vent control v
