Page 2465 of 2771

NISSAN LATIO 2008 Service Repair Manual PG-32
< SERVICE INFORMATION >

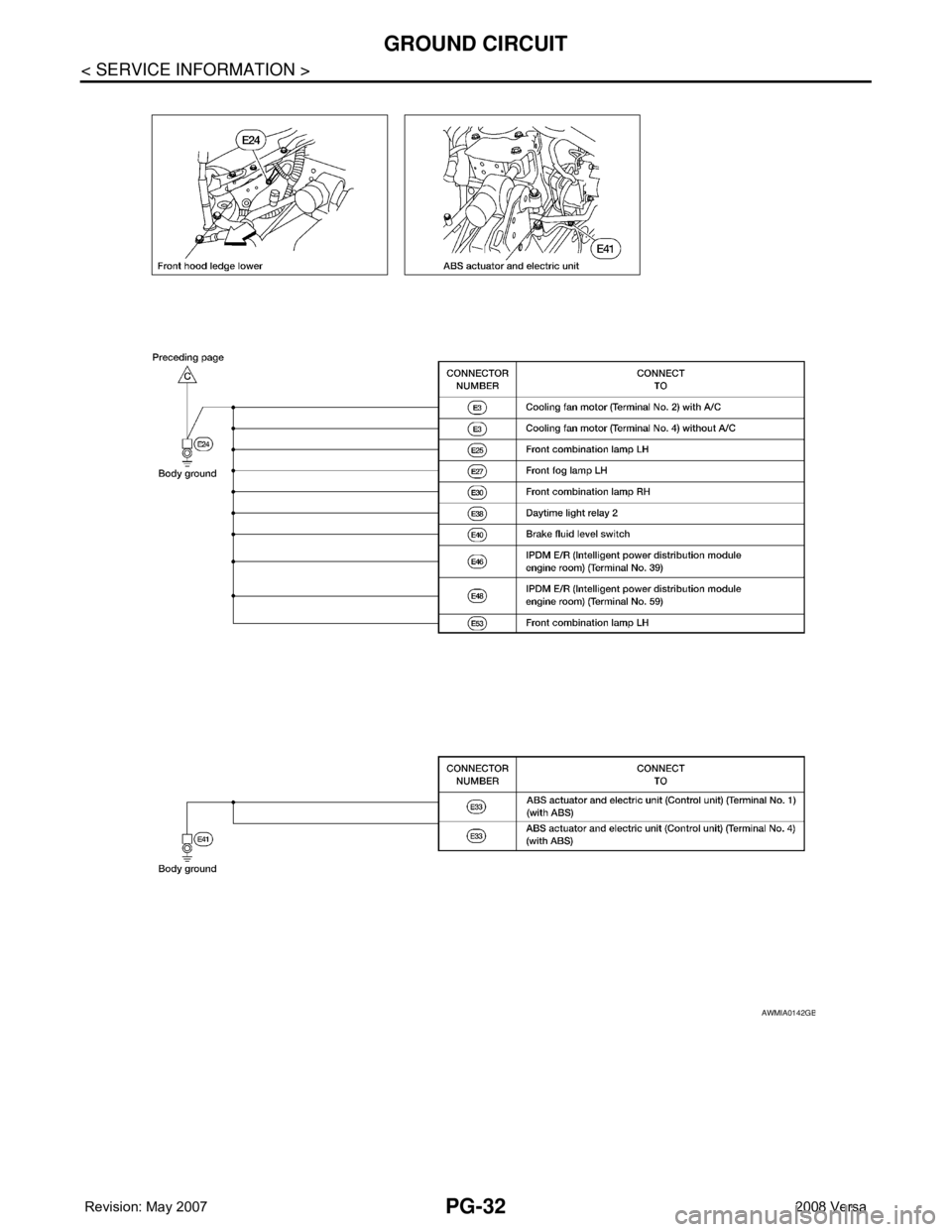

GROUND CIRCUIT
AWMIA0142GB

Page 2466 of 2771

NISSAN LATIO 2008 Service Repair Manual GROUND CIRCUIT
PG-33
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P

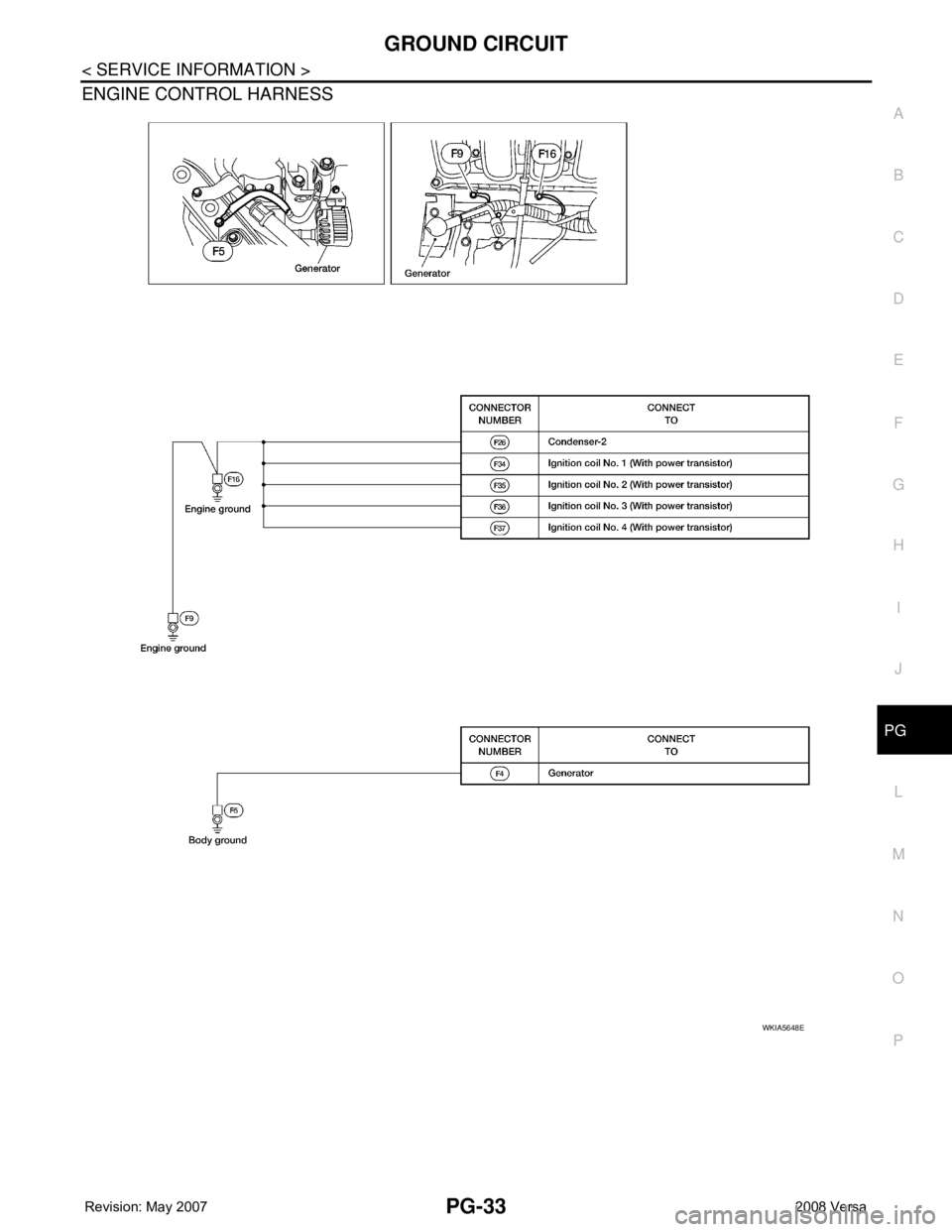

ENGINE CONTROL HARNESS
WKIA5648E

Page 2467 of 2771

NISSAN LATIO 2008 Service Repair Manual PG-34
< SERVICE INFORMATION >
GROUND CIRCUIT

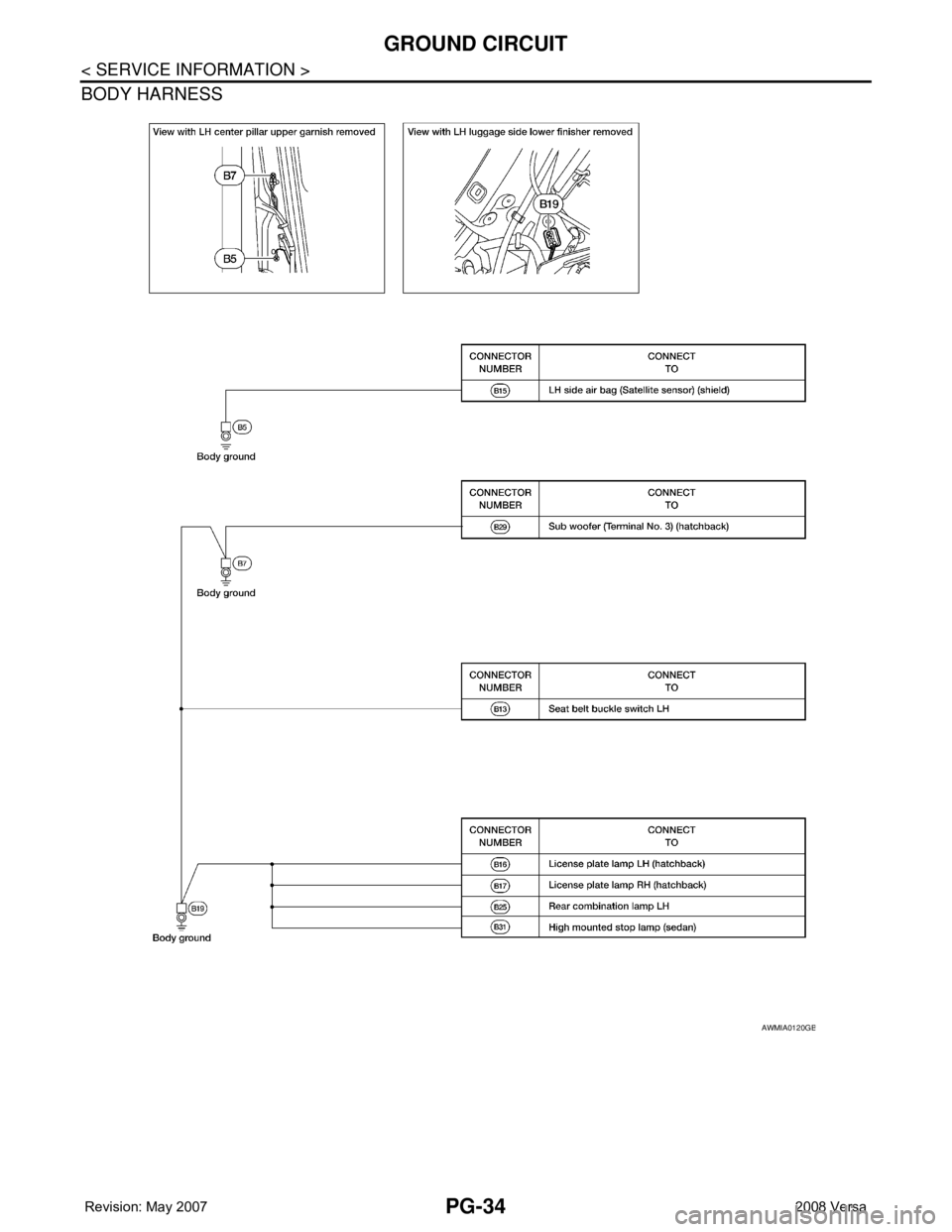

BODY HARNESS
AWMIA0120GB

Page 2468 of 2771

NISSAN LATIO 2008 Service Repair Manual GROUND CIRCUIT
PG-35
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P

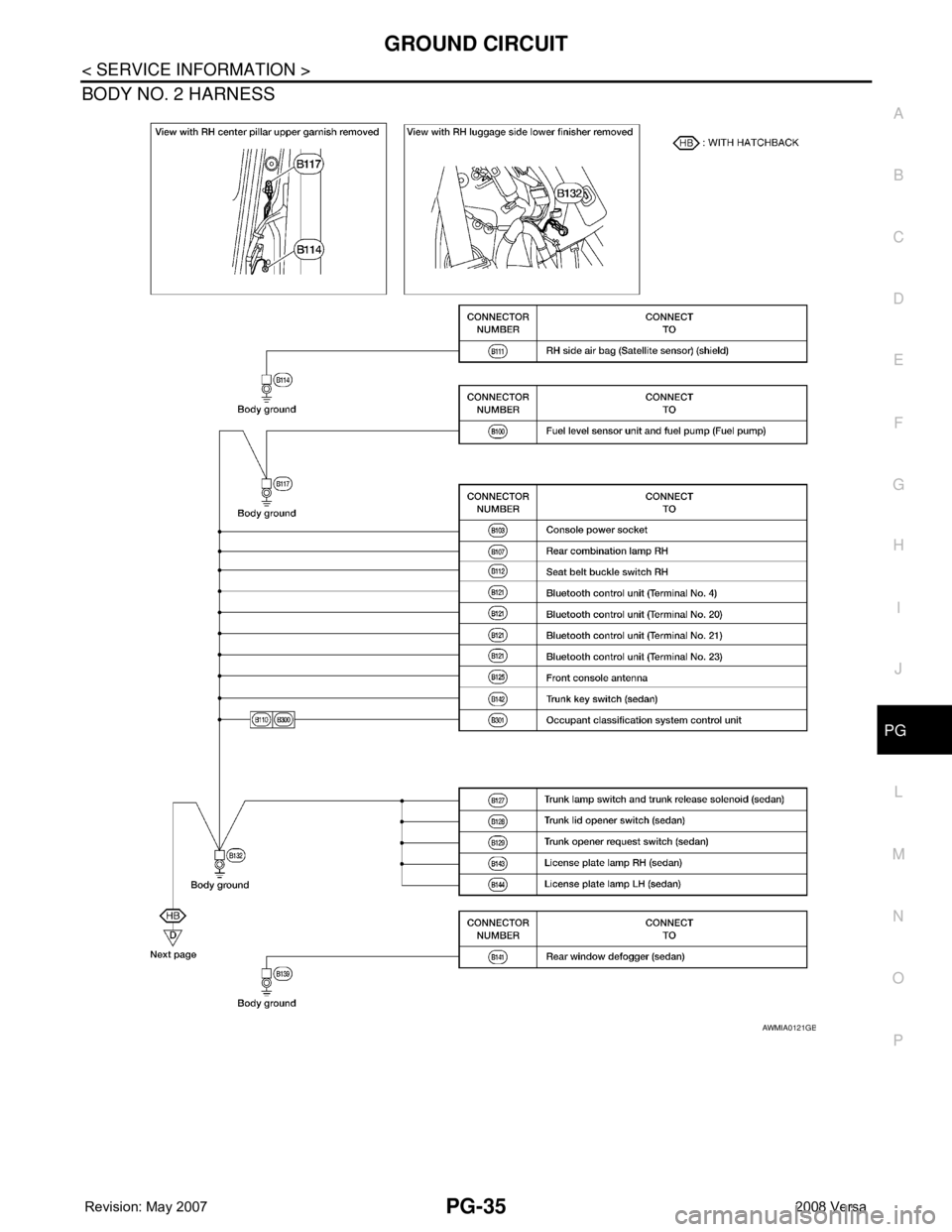

BODY NO. 2 HARNESS
AWMIA0121GB

Page 2469 of 2771

NISSAN LATIO 2008 Service Repair Manual PG-36
< SERVICE INFORMATION >
GROUND CIRCUIT

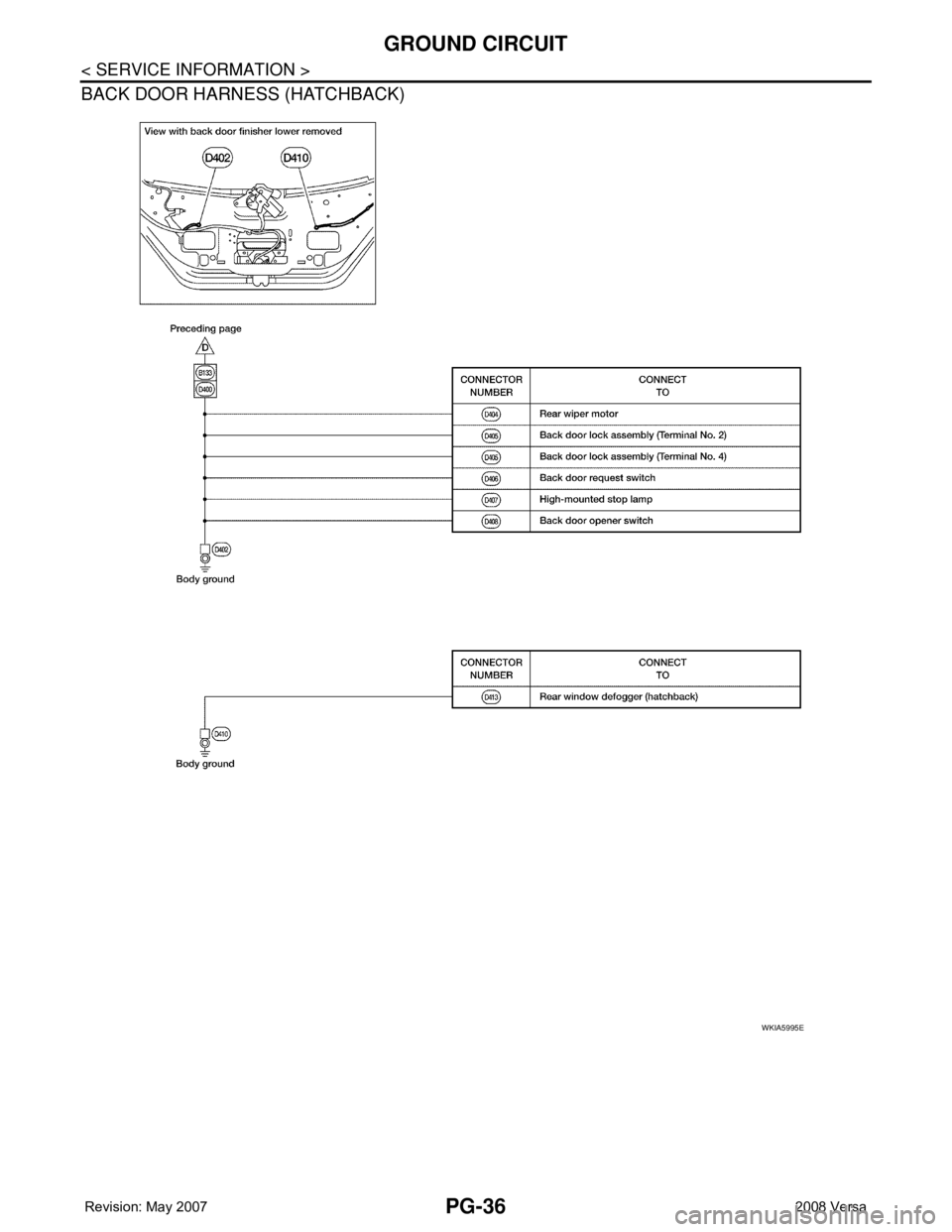

BACK DOOR HARNESS (HATCHBACK)
WKIA5995E

Page 2470 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS
PG-37
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
HARNESS

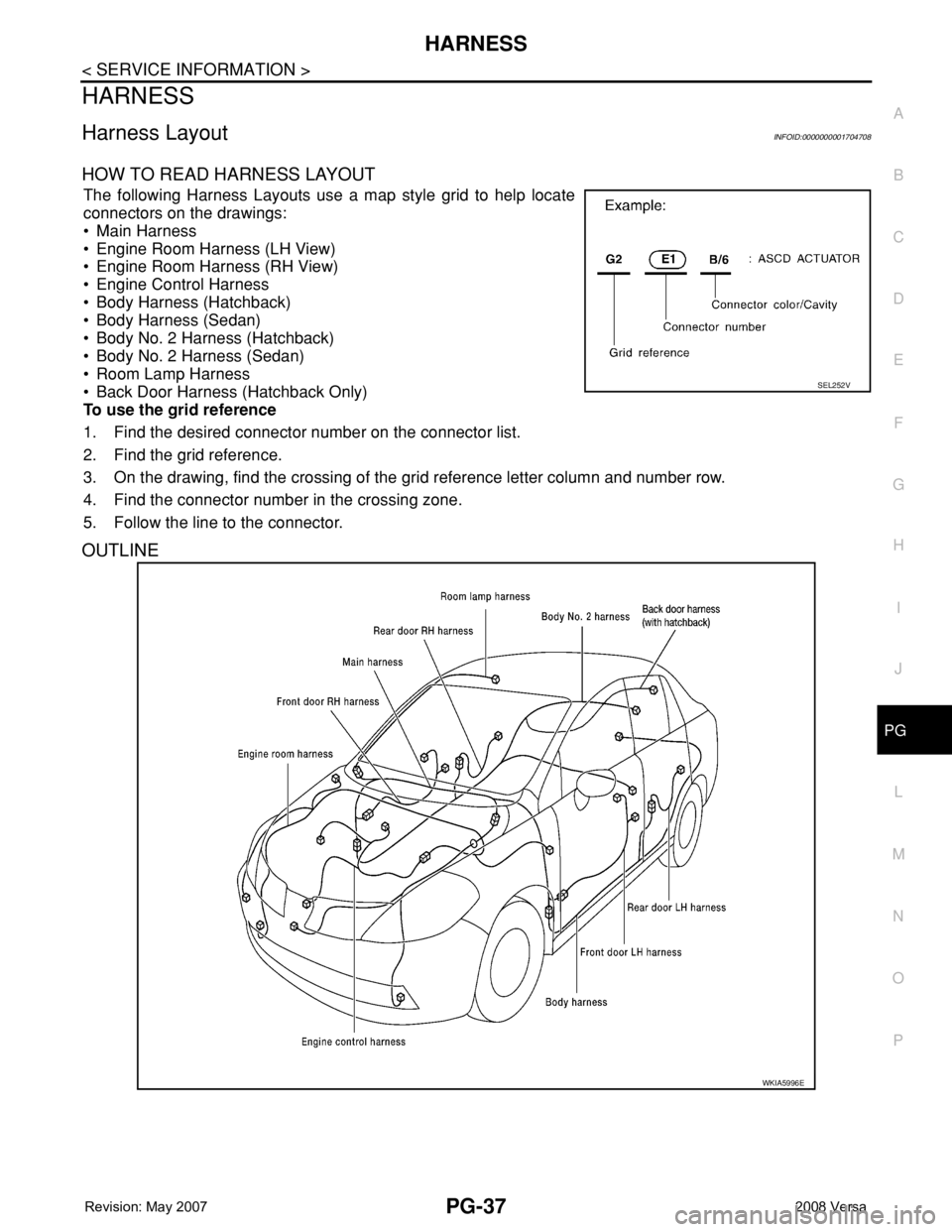

Harness LayoutINFOID:0000000001704708
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to he

Page 2471 of 2771

NISSAN LATIO 2008 Service Repair Manual PG-38
< SERVICE INFORMATION >
HARNESS

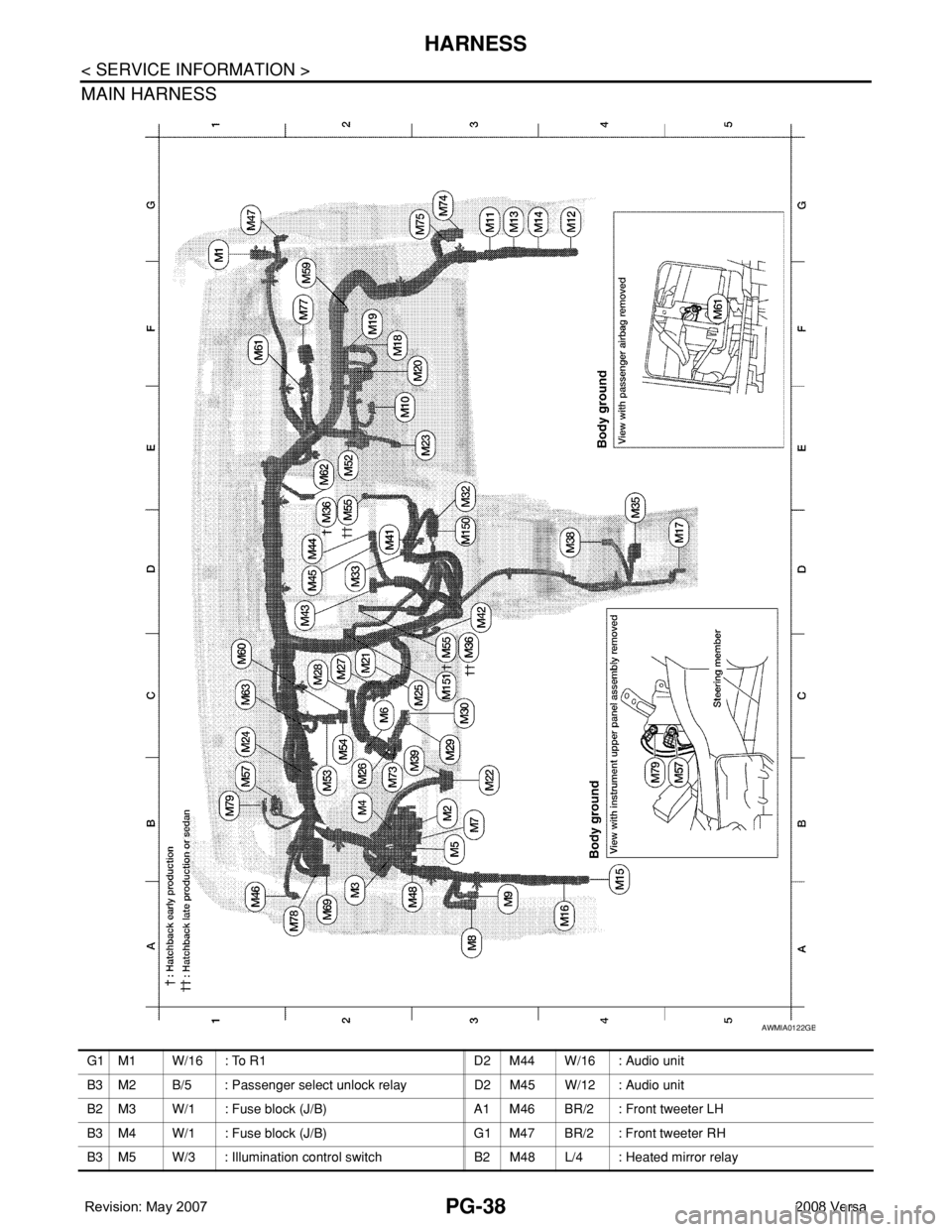

MAIN HARNESS
AWMIA0122GB
G1 M1 W/16 : To R1 D2 M44 W/16 : Audio unit
B3 M2 B/5 : Passenger select unlock relay D2 M45 W/12 : Audio unit
B2 M3 W/1 : Fuse block (

Page 2472 of 2771

NISSAN LATIO 2008 Service Repair Manual HARNESS
PG-39
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
C2 M6 W/4 : Steering lock solenoid E2 M52 W/40 : Intelligent key unit
B3 M7 W/16 : Door mirror remote control switch B2 M53 W/16 :

HARNESS
PG-39
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
PG
N
O
P
C2 M6 W/4 : Steering lock solenoid E2 M52 W/40 : Intelligent key unit
B3 M7 W/16 : Door mirror remote control switch B2 M53 W/16 : EPS control unit
A3 M8 W/16 : To D2 B3 M54 B/2 : EPS control unit
A3 M9 W/16 : To D1 C3 M55† W/4: Hazard switch (hatchback early
production)
E2 M10 GR/2 : Instrument panel antenna D2 M55†† W/4: Hazard switch (hatchback late production
or sedan)
G3 M11 W/4 : To B106 B2 M57 — : Body ground
G4 M12 W/16 : To B101 F2 M59 W/2 : Glove box lamp
G3 M13 W/24 : To B102 C1 M60 L/2 : EPS control unit
G3 M14 W/24 : To B120 F1 M61 — : Body ground
B4 M15 W/16 : To B23 E2 M62 W/2 : Front blower motor
B4 M16 W/24 : To B24 C1 M63 W/4 : Torque sensor
D5 M17 B/1 : Parking brake switch A2 M69 SMJ : To E7
F2 M18 W/40 : BCM (body control module) B2 M73 GR/6: Key switch and ignition knob switch (With
intelligent key)
F2 M19 W/15 : BCM (body control module) G3 M74 W/12 : To D102
F3 M20 B/15 : BCM (body control module) G3 M75 W/12 : To D101
C2 M21 W/4 : NATS antenna amp. F2 M77 Y/4 : Front passenger air bag module
B3 M22 W/16 : Data link connector A2 M78 B/2 : To E11
E3 M23 W/4 : Remote keyless entry receiver B1 M79 — : Body ground
C1 M24 W/40 : Combination meter D3 M150 W/4 : To M32
C3 M25 /2 : Diode-1 C3 M151 W/4 : Front blower motor resistor
B2 M26 W/6 : Ignition switch
C2 M27 GR/6 : Key switch and key lock solenoid
C2 M28 W/16 : Combination switch
C3 M29 Y/6 : Combination switch (spiral cable)
C3 M30 GR/8 : Combination switch (spiral cable)
E3 M32 W/4 : To M150
D2 M33 B/15 : Front air control
D4 M35 Y/28 : Air bag diagnosis sensor unit
D2 M36† W/3: Front passenger air bag OFF indicator
(hatchback early production)
C3 M36†† W/3: Front passenger air bag OFF indicator
(hatchback late production or sedan)
D4 M38 W/6 : A/T device
D4 M38 W/6 : CVT device (without intelligent key)
D4 M38 W/8 : CVT device (with intelligent key)
B3 M39 W/2 : Tire pressure warning check connector
D2 M41 W/2 : Defrost A/C switch
D3 M42 W/3 : Thermo control amp. (without CVT)
D2 M43 W/20 : Audio unit
