Page 2617 of 2771

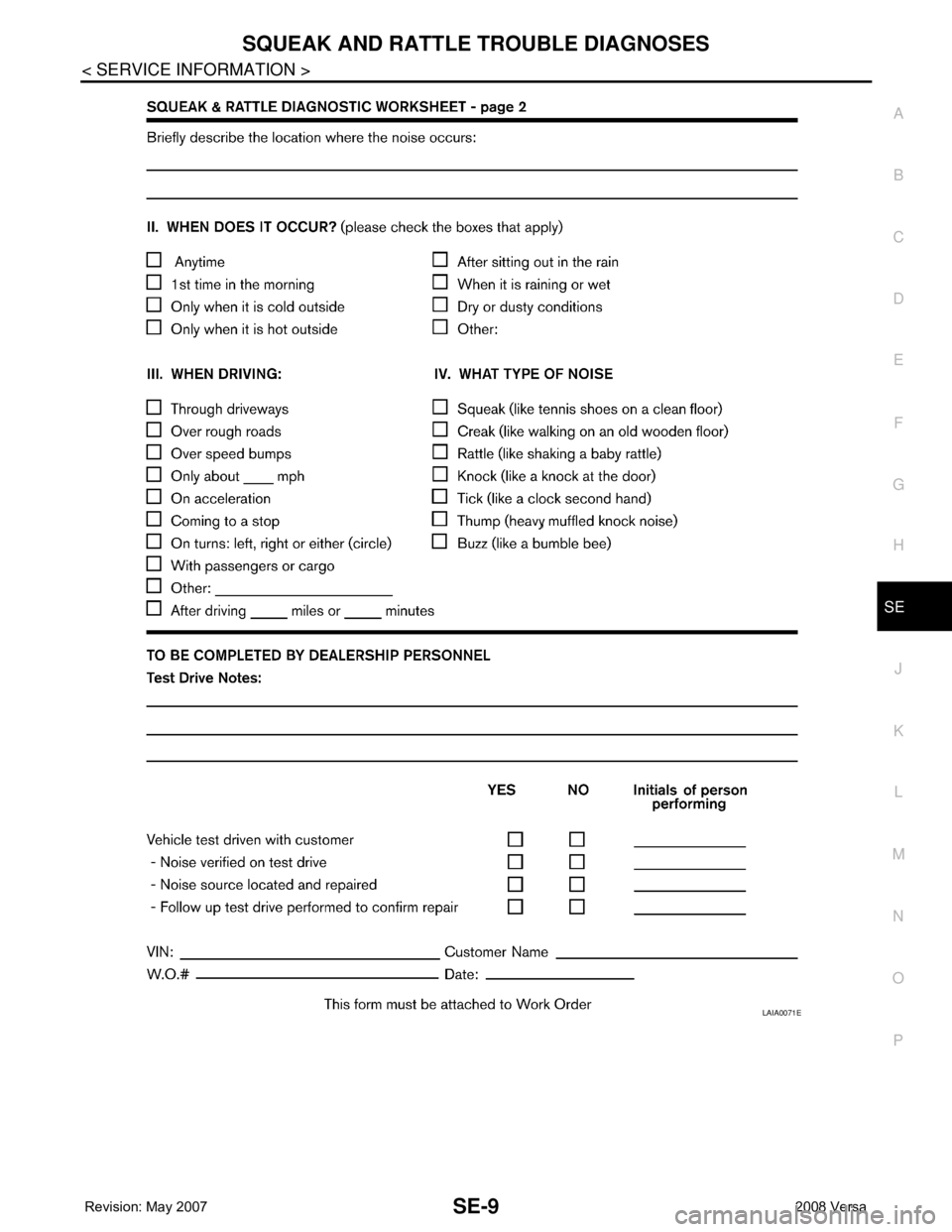

NISSAN LATIO 2008 Service Repair Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES SE-9 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P LAIA0071E

Page 2618 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-10 < SERVICE INFORMATION > FRONT SEAT FRONT SEAT Driver SeatINFOID:0000000001704262 1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked) 4. Seat assembly 5. Seat belt buckle 6. Rear le

Page 2619 of 2771

NISSAN LATIO 2008 Service Repair Manual FRONT SEAT SE-11 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P Passenger SeatINFOID:0000000001704263 Removal and InstallationINFOID:0000000001704264 CAUTION: • When removing and installing

Page 2620 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-12 < SERVICE INFORMATION > FRONT SEAT 1. Remove the rear leg covers. 2. Remove the front leg covers. 3. Remove the mounting bolts on the back side of the front seat. (TORX bolt: T50) 4. Remove the

Page 2621 of 2771

NISSAN LATIO 2008 Service Repair Manual FRONT SEAT SE-13 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P 2. Remove the seat cushion finisher B. (Driver seat) 3. Remove the seat cushion lower finisher. 4. Remove the front seat belt b

Page 2622 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-14 < SERVICE INFORMATION > REAR SEAT REAR SEAT Component Parts DrawingINFOID:0000000001704266 60:40 SPLIT FOLD DOWN SEAT - HATCHBACK WIIA1231E 1. Seat cushion trim 2. Seat cushion pad 3. Seatback s

Page 2623 of 2771

NISSAN LATIO 2008 Service Repair Manual REAR SEAT SE-15 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P Removal and InstallationINFOID:0000000001704267 CAUTION: When removing and installing, use shop cloths to protect parts from dam

Page 2624 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-16 < SERVICE INFORMATION > REAR SEAT 4. Remove the seatback mounting bolts from the left rear seat back brackets. 5. Remove the seatback from the vehicle. 6. Remove the kicking plate rear inner. Re
