Page 2441 of 2771

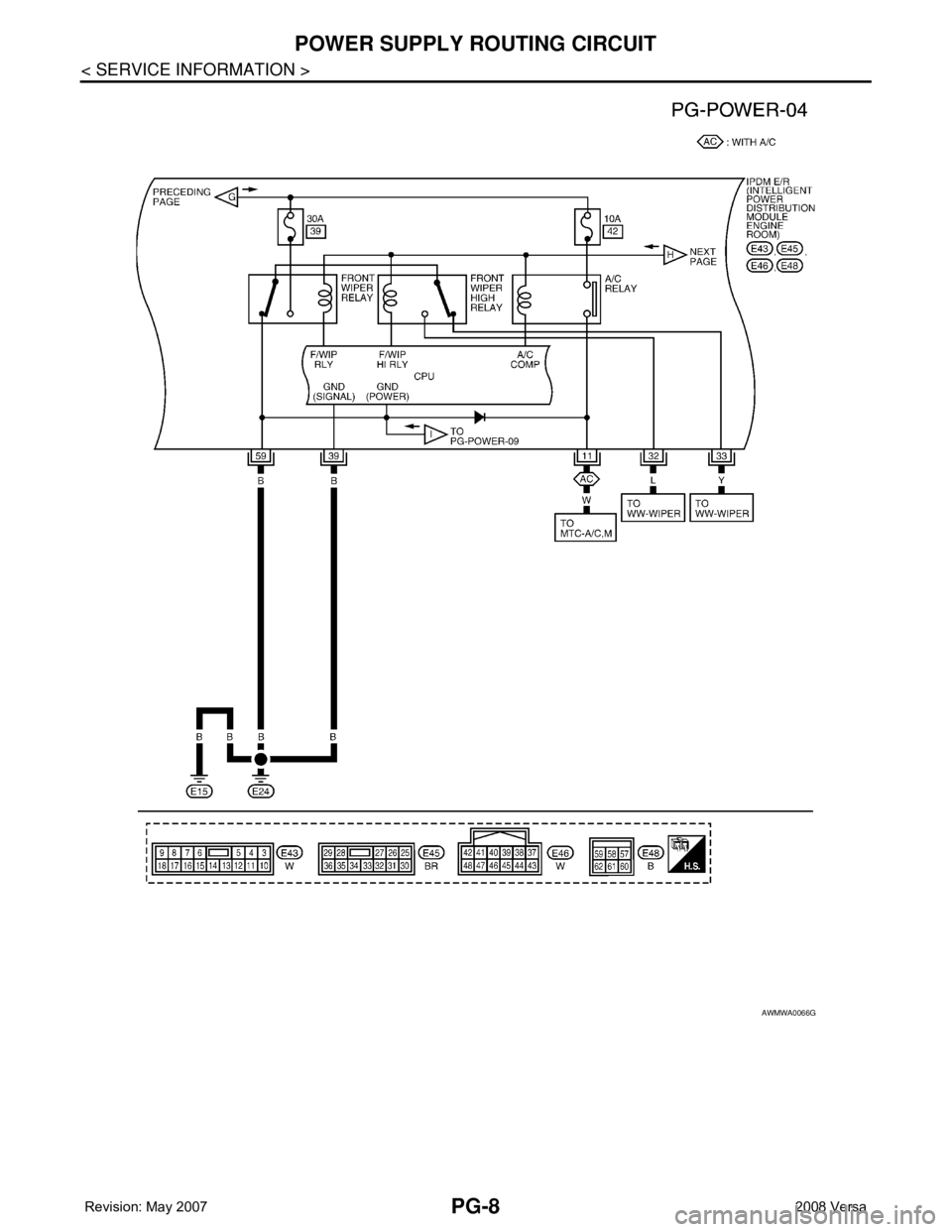

NISSAN LATIO 2008 Service Repair Manual PG-8 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT AWMWA0066G

Page 2442 of 2771

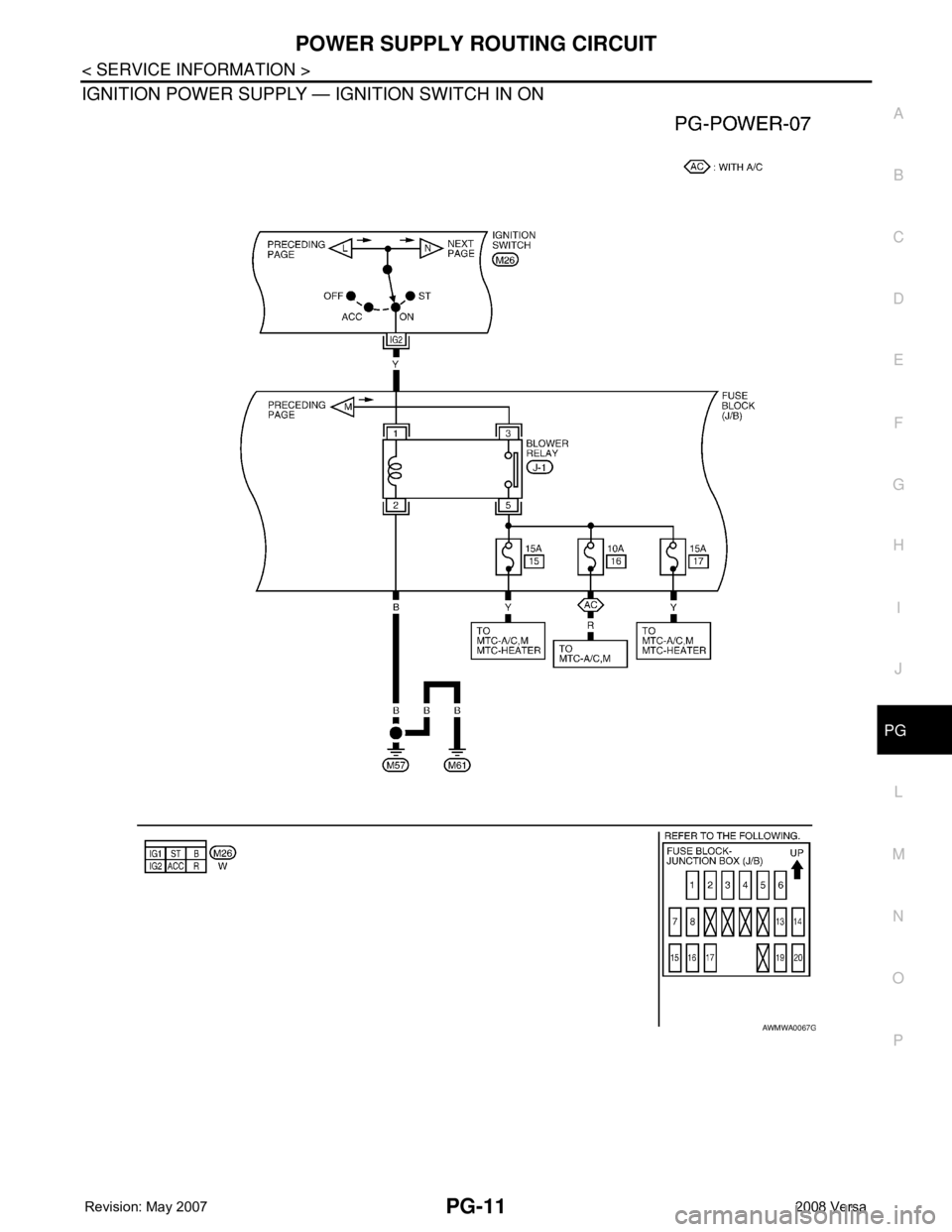

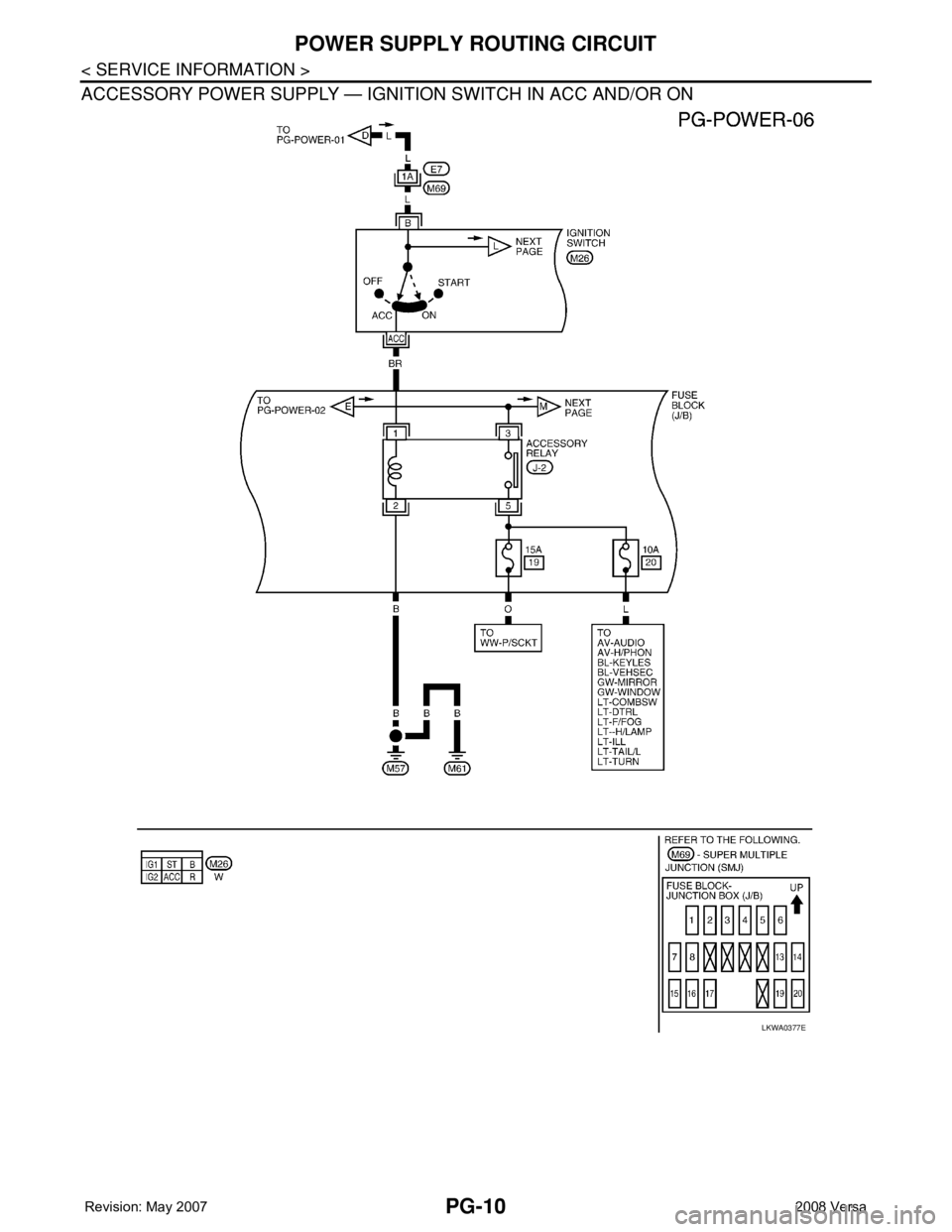

NISSAN LATIO 2008 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-9 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P LKWA0376E

Page 2443 of 2771

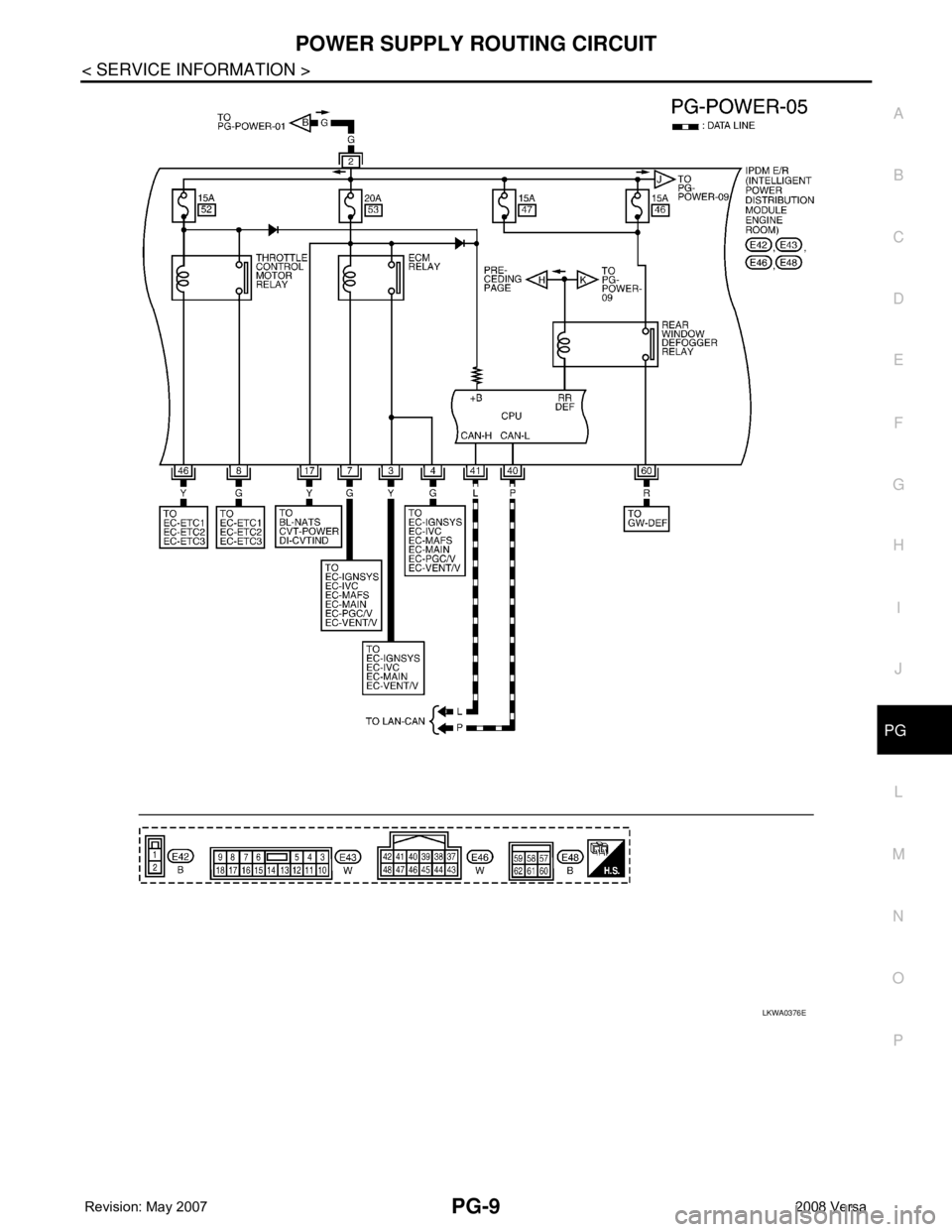

NISSAN LATIO 2008 Service Repair Manual PG-10 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT ACCESSORY POWER SUPPLY — IGNITION SWITCH IN ACC AND/OR ON LKWA0377E

Page 2444 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-11 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P IGNITION POWER SUPPLY — IGNITION SWITCH IN ON AWMWA0067G

Page 2445 of 2771

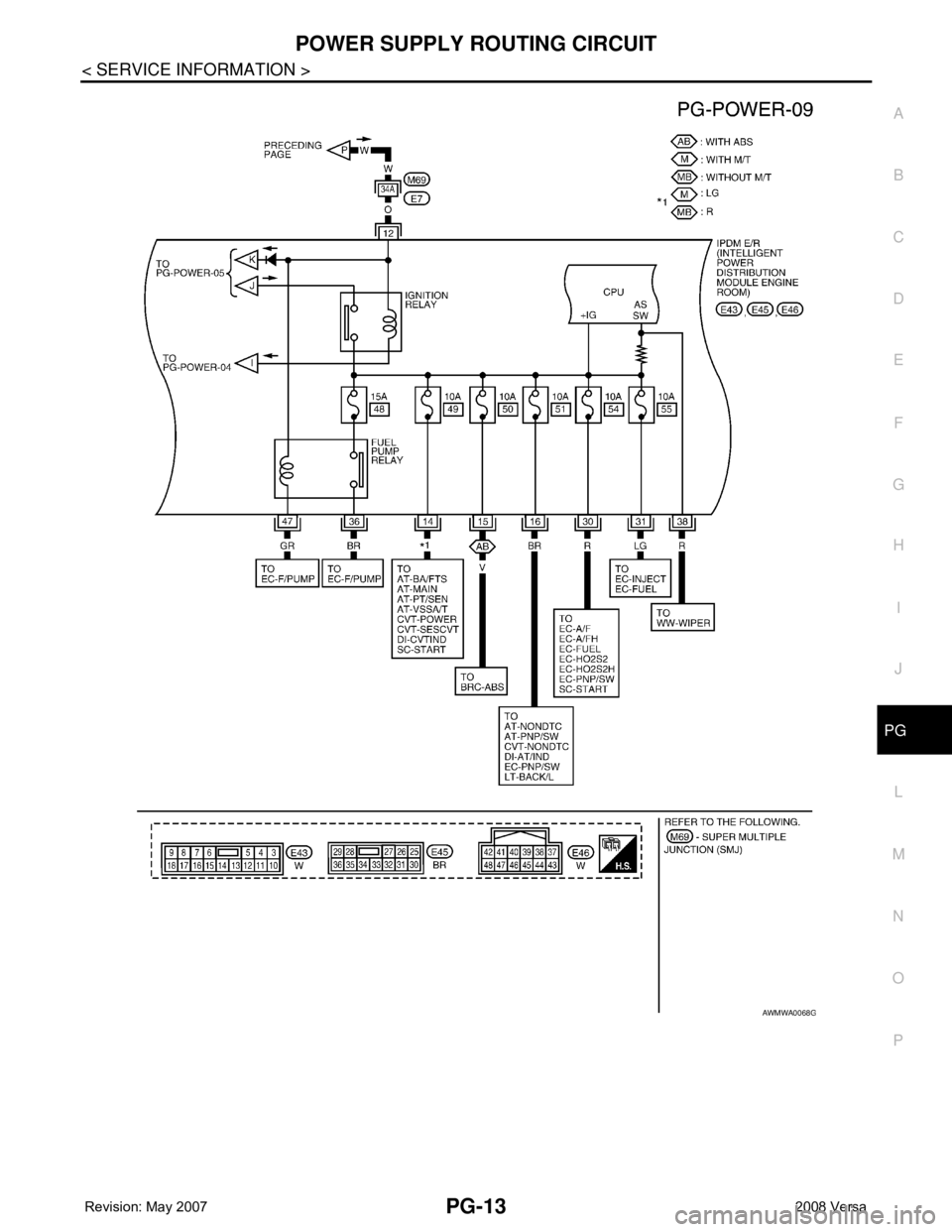

NISSAN LATIO 2008 Service Repair Manual PG-12 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT IGNITION POWER SUPPLY — IGNITION SWITCH IN ON AND/OR START. LKWA0379E

Page 2446 of 2771

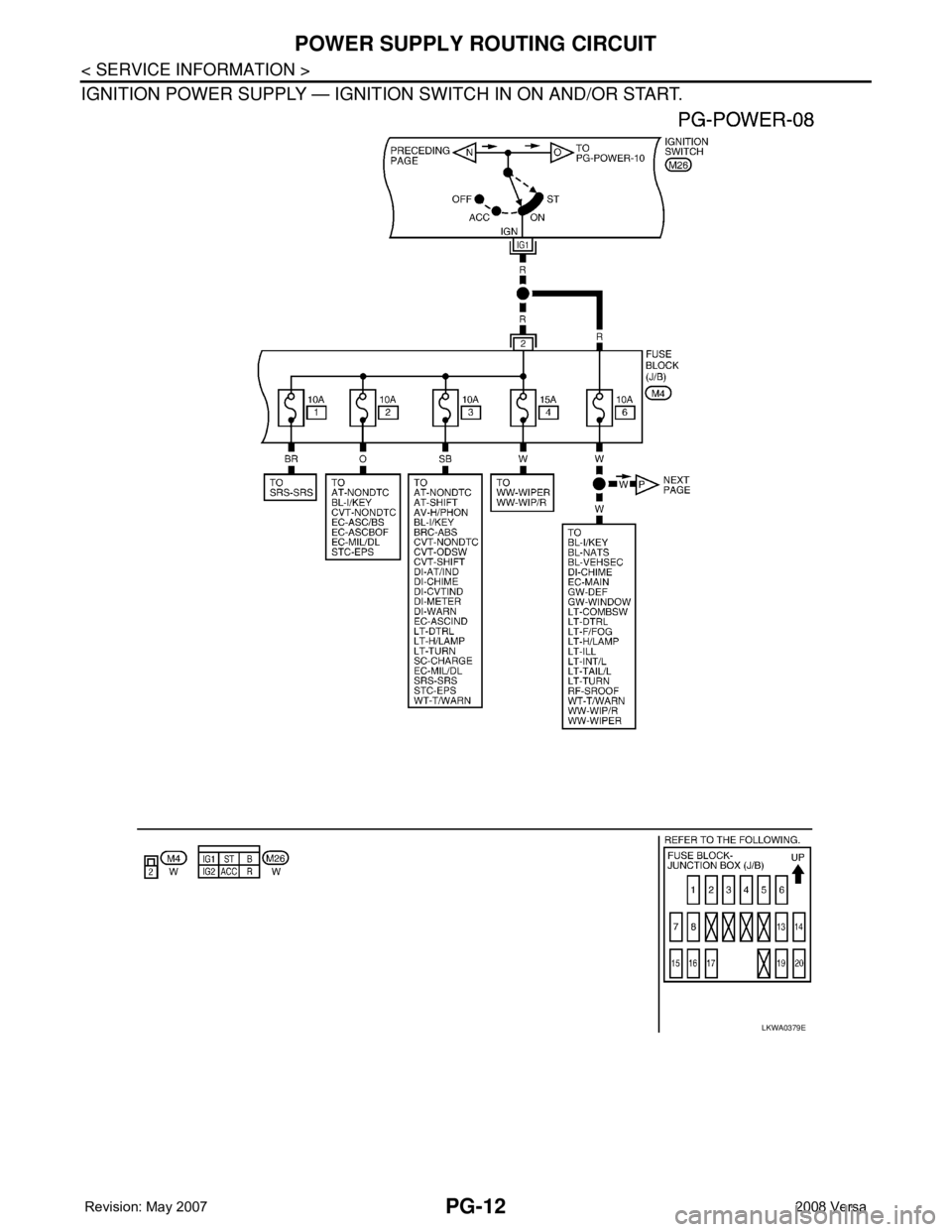

NISSAN LATIO 2008 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-13 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P AWMWA0068G

Page 2447 of 2771

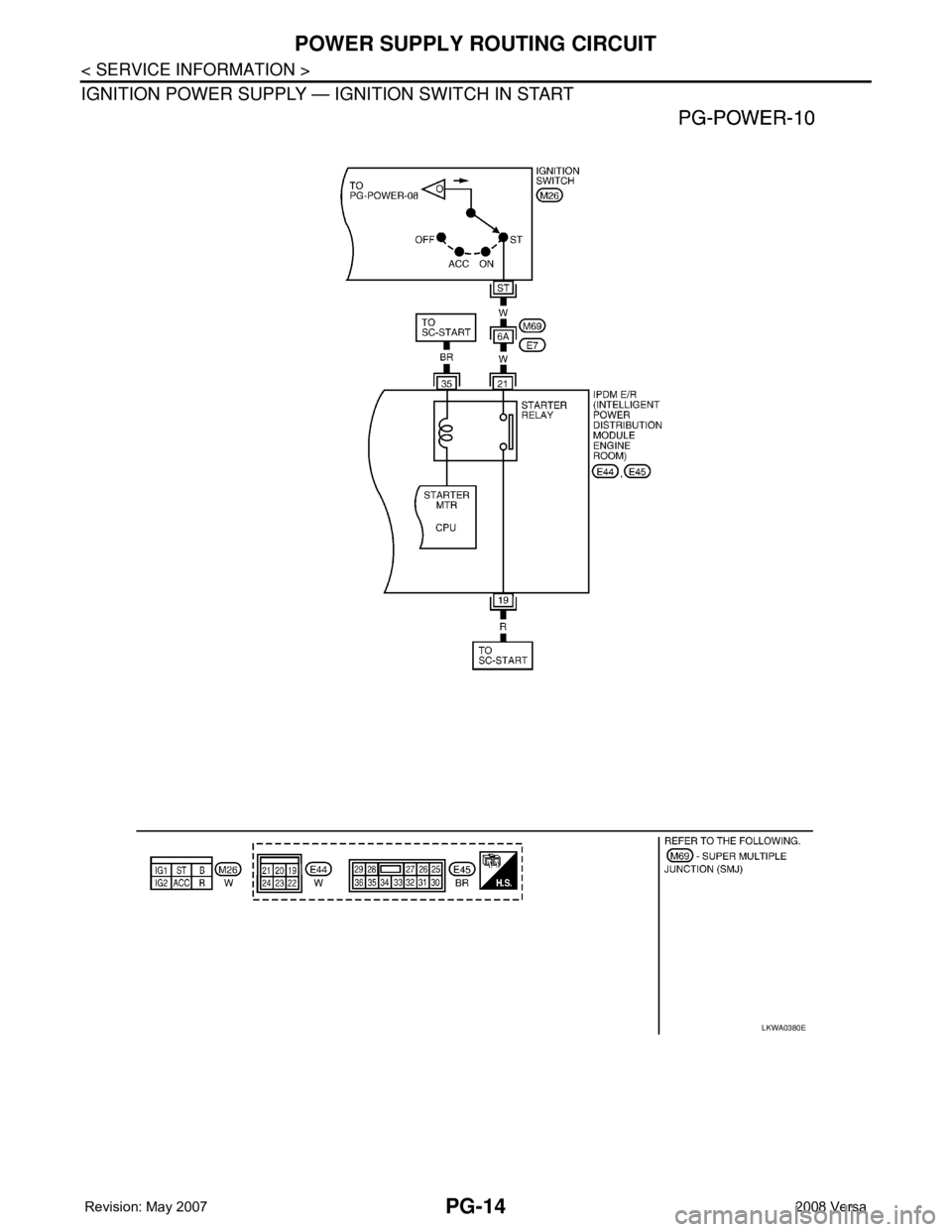

NISSAN LATIO 2008 Service Repair Manual PG-14 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT IGNITION POWER SUPPLY — IGNITION SWITCH IN START LKWA0380E

Page 2448 of 2771

NISSAN LATIO 2008 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-15 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P FuseINFOID:0000000001704693 • If fuse is blown, be sure to eliminate cause of malfunction before installing
