Page 905 of 2771
CVT-66
< SERVICE INFORMATION >
DTC P0705 PARK/NEUTRAL POSITION SWITCH
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
VEHICLE SPEED: More than 10 km/h (6 MPH)
ENG SPEED: More than 450 rpm
ACC PEDAL OPEN: More than 1.0/8
5. If DTC is detected, go to CVT-68, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Page 906 of 2771
DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-67
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
CVT
N
O
P

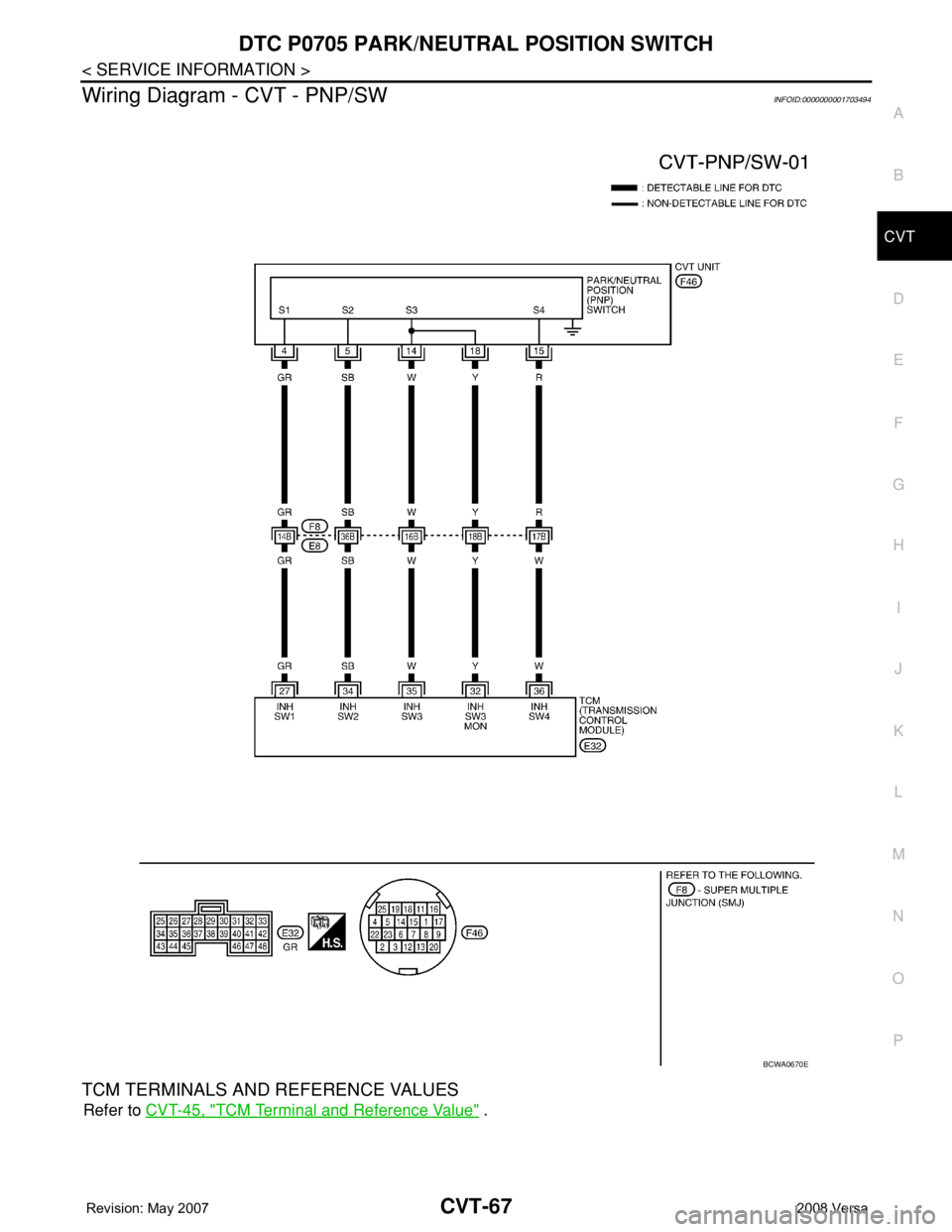

Wiring Diagram - CVT - PNP/SWINFOID:0000000001703494
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-45, "TCM Terminal and Reference Value" .
BCWA0670E
Page 907 of 2771

CVT-68
< SERVICE INFORMATION >
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Diagnosis Procedure
INFOID:0000000001703495
1. CHECK PNP SW SIGNALS
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Change selector lever to “P”, “R”, “N”, “D” and “L” positions to check the value of “INH SW1”“INH SW2”
“INH SW3”“INH SW4” and “INH SW3M”.
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Change selector lever to “P“, “R”, “N”, “D” and “L” positions to
check voltage between the TCM connector terminals and
ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK PNP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
Shift
posi-
tion“INH SW1” “INH SW2” “INH SW3” “INH SW4” “INH SW3M”
P OFF OFF OFF OFF OFF
R ON OFF OFF ON OFF
N ON ON OFF OFF OFF
DON ON ON ON ON
L OFF ON ON OFF ON
Shift po-
sitionConnector E32
Te r m i n a l
27 - Ground 34 - Ground 35 - Ground 36 - Ground32 -
Ground
PBattery volt-
age10.0 V - Bat-
tery voltage8.0 V - Bat-
tery voltage10.0 V - Bat-
tery voltage8.0 V - Bat-
tery volt-
age
R0 V10.0 V - Bat-
tery voltage8.0 V - Bat-
tery voltage0 V8.0 V - Bat-
tery volt-
age
N0 V 0 V8.0 V - Bat-
tery voltage10.0 V - Bat-
tery voltage8.0 V - Bat-
tery volt-
age
D 0 V 0 V 0 V 0 V 0 V
LBattery volt-
age0 V 0 V10.0 V - Bat-
tery voltage0 V
SCIA2024E
Page 908 of 2771

DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-69
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
CVT
N
O
P
3. Check continuity between TCM connector terminals and ground.
4. If OK, check harness for short-circuit to ground or power supply.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND PNP SWITCH
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. DETECT MALFUNCTIONING ITEM
Check PNP switch. Refer to CVT-70, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK DTC
Perform CVT-65, "
DTC Confirmation Procedure" .
Connector Terminal Condition Continuity
E3227 - groundSelect lever in “P” and “L” positions No
Select lever in other positions Yes
34 - groundSelect lever in “P” and “R” positions No
Select lever in other positions Yes
35 - groundSelect lever in “P”, “R” and “N” posi-
tionsNo
Select lever in other positions Yes
36 - groundSelect lever in “P”,“N” and “L” positions No
Select lever in other positions Yes
32 - groundSelect lever in “P”, “R” and “N” posi-
tionsNo
Select lever in other positions Yes
SCIA5258E
Item Connector Terminal Continuity
TCM E32 27
Ye s
CVT unit harness connector F46 4
TCM E32 34
Ye s
CVT unit harness connector F46 5
TCM E32 35
Ye s
CVT unit harness connector F46 14
TCM E32 32
Ye s
CVT unit harness connector F46 18
TCM E32 36
Ye s
CVT unit harness connector F46 15
SCIA3182E
Page 909 of 2771

CVT-70
< SERVICE INFORMATION >
DTC P0705 PARK/NEUTRAL POSITION SWITCH
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-45, "
TCM Terminal and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-178, "
Removal and Installation" .
Component InspectionINFOID:0000000001703496
PNP SWITCH
1. Change selector lever to various positions to check the continu-
ity between terminals on the PNP switch and ground.
2. If NG, check continuity with control cable disconnected. (Refer to step 1 above.)
3. If OK, with the control cable disconnected, adjust the control cable. Refer to CVT-171, "
Adjustment of CVT
Position" .
4. If NG, even when the control cable is disconnected, replace the transaxle assembly. Refer to CVT-178,
"Removal and Installation" .
PNP SW Shift position Connector Terminal Continuity
SW 1“R”, “N”, “D”
F464 - Ground Ye s
other positions No
SW 2“N”, “D”, “L”
5 - Ground Ye s
other positions No
SW 3“D”, “L”
14 - Ground Ye s
other positions No
SW 4“R”, “D”
15 - Ground Ye s
other positions No
SW 3 Moni-
tor“D”, “L”
18 - Ground Ye s
other positions No
SCIA4678E
Page 910 of 2771

DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
CVT-71
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
CVT
N
O
P
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
DescriptionINFOID:0000000001703497
• The CVT fluid temperature sensor is included in the control valve assembly.
• The CVT fluid temperature sensor detects the CVT fluid temperature and sends a signal to the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001703498
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001703499
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0710 ATF TEMP SEN/CIRC” with CONSULT-III is detected when TCM receives
an excessively low or high voltage from the sensor.
Possible CauseINFOID:0000000001703500
• Harness or connectors
(Sensor circuit is open or shorted.)
• CVT fluid temperature sensor
DTC Confirmation ProcedureINFOID:0000000001703501
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and maintain the following conditions for at least 10 minutes (Total).
VEHICLE SPEED: 10 km/h (6 MPH) or more
ENG SPEED: 450 rpm more than
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
4. If DTC is detected, go to CVT-73, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value (Approx.)
ATF TEMP SEN When CVT fluid temperature is 20°C (68°F). 2.0 V
When CVT fluid temperature is 80°C (176°F). 1.0 V
Page 911 of 2771
CVT-72
< SERVICE INFORMATION >
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT

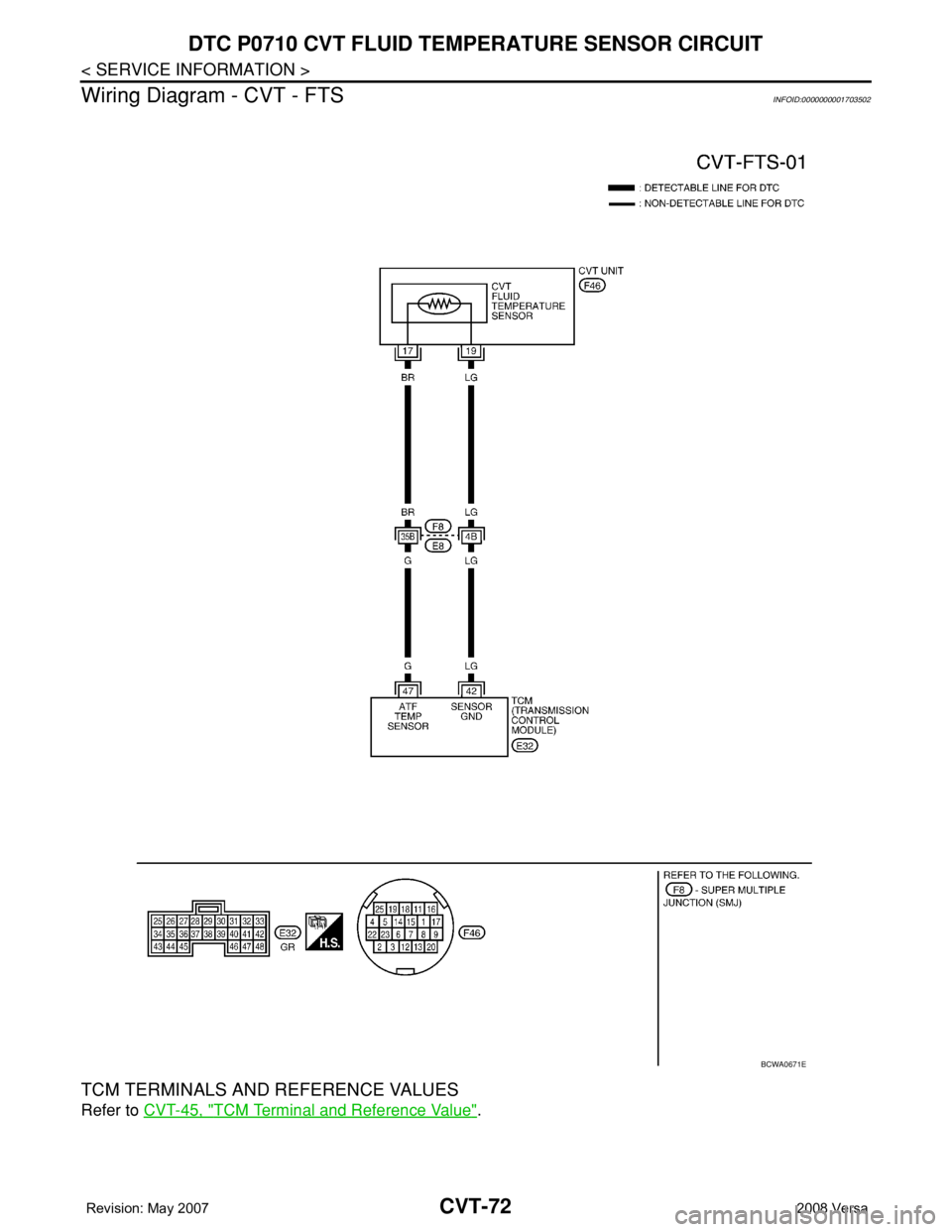

Wiring Diagram - CVT - FTS
INFOID:0000000001703502
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-45, "TCM Terminal and Reference Value".
BCWA0671E
Page 912 of 2771

DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
CVT-73
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
CVT
N
O
P
Diagnosis ProcedureINFOID:0000000001703503
1. CHECK CVT FLUID TEMPERATURE SENSOR SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “ATF TEMP SEN”.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and
ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK CVT FLUID TEMPERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminals.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
Item name ConditionDisplay value
(Approx.)
ATF TEMP SENWhen CVT fluid temperature is 20°C
(68°F).2.0 V
When CVT fluid temperature is 80°C
(176°F).1.0 V
Name Connector TerminalTemperature
°C (°F)Voltage
(Approx.)
CVT fluid tem-
perature sen-
sorE32 47 - 4220 (68) 2.0 V
80 (176) 1.0 V
SCIA2027E
Name Connector TerminalTemperature
°C (°F)Resistance
(Approx.)
CVT fluid tem-
perature sensorE32 47 - 4220 (68) 6.5 kΩ
80 (176) 0.9 kΩ
SCIA2510E
