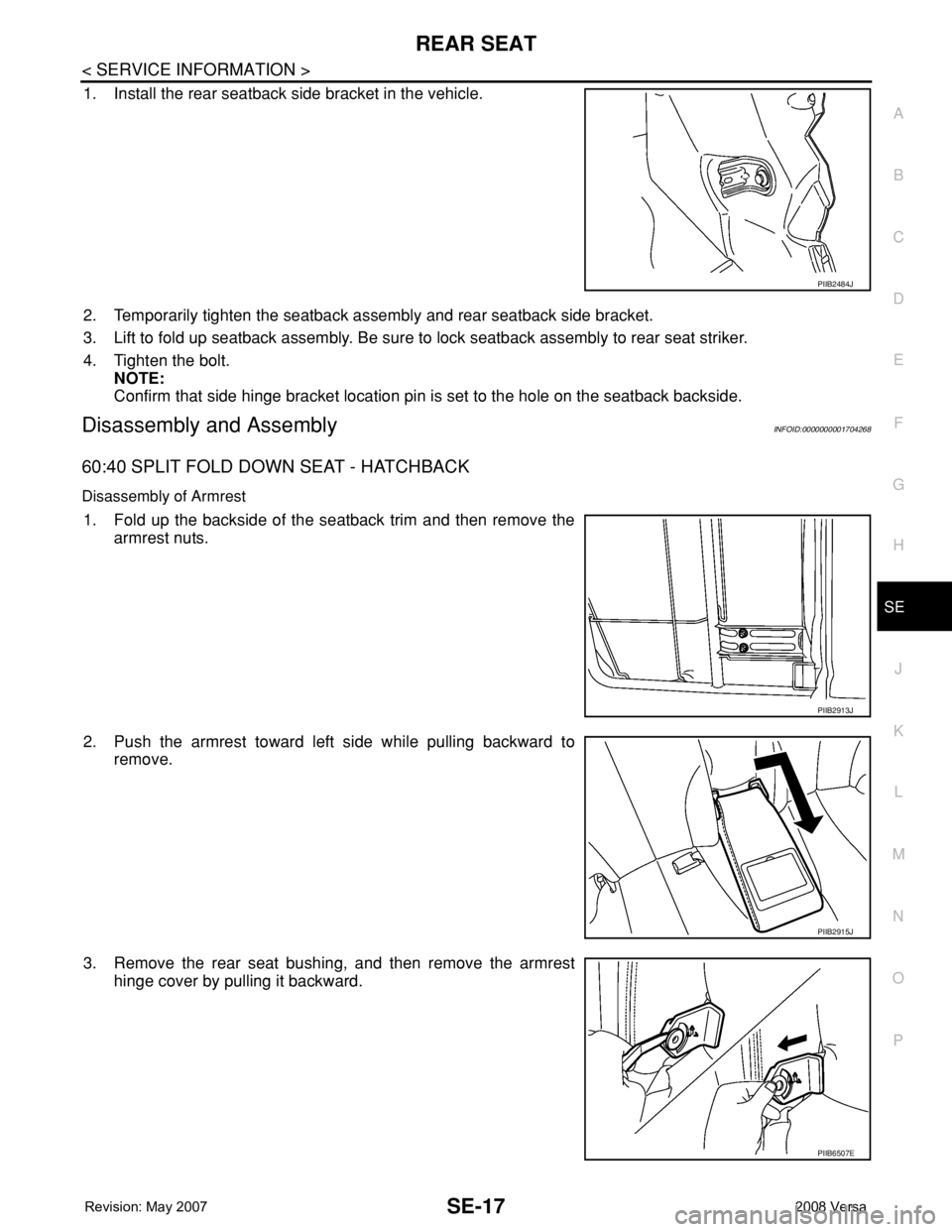

NISSAN LATIO 2008 Service Repair Manual REAR SEAT
SE-17
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
1. Install the rear seatback side bracket in the vehicle.
2. Temporarily tighten the seatback assembly and rear seatback side br

Page 2626 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-18
< SERVICE INFORMATION >
REAR SEAT
Assembly of Armrest
Assembly in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the

Page 2627 of 2771

NISSAN LATIO 2008 Service Repair Manual REAR SEAT
SE-19
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P Assembly of Seatback Trim and Pad
Assembly is the reverse order of disassembly. Be careful of the following one point.
• Befor

Page 2628 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-20
< SERVICE INFORMATION >
REAR SEAT
Component Parts Drawing
INFOID:0000000001704269
60:40 SPLIT FOLD DOWN SEAT - SEDAN
WBIA0849E
1. Seat cushion trim 2. Seat cushion pad 3. Seatback side
4. Armres

Page 2629 of 2771

NISSAN LATIO 2008 Service Repair Manual REAR SEAT
SE-21
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Removal and InstallationINFOID:0000000001704270
CAUTION:
When removing and installing, use shop cloths to protect parts from dam

Page 2630 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-22
< SERVICE INFORMATION >
REAR SEAT
5. Remove the kicking plate rear inner. Refer to EI-38, "Removal and Installation" .
6. Remove the bolt under the seatback side.
7. Pull seatback side

Page 2631 of 2771

NISSAN LATIO 2008 Service Repair Manual REAR SEAT
SE-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.
Disassembly and AssemblyINFOID:0

Page 2632 of 2771

NISSAN LATIO 2008 Service Repair Manual SE-24
< SERVICE INFORMATION >
REAR SEAT
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the back of seatback.
3. Remove the clips, and then remove the striker
