WW-36
< SERVICE INFORMATION >
POWER SOCKET
2. Remove the power socket (2) from the power socket ring (3),
while pressing the hook (A) on the ring out from square hole (B).
• Console mask (1)
• Power socket cutout (C)
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Install the power socket with its cutout aligned with the power socket ring.
SKIB5671E
Page 2770 of 2771
HORN
WW-37
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P
HORN

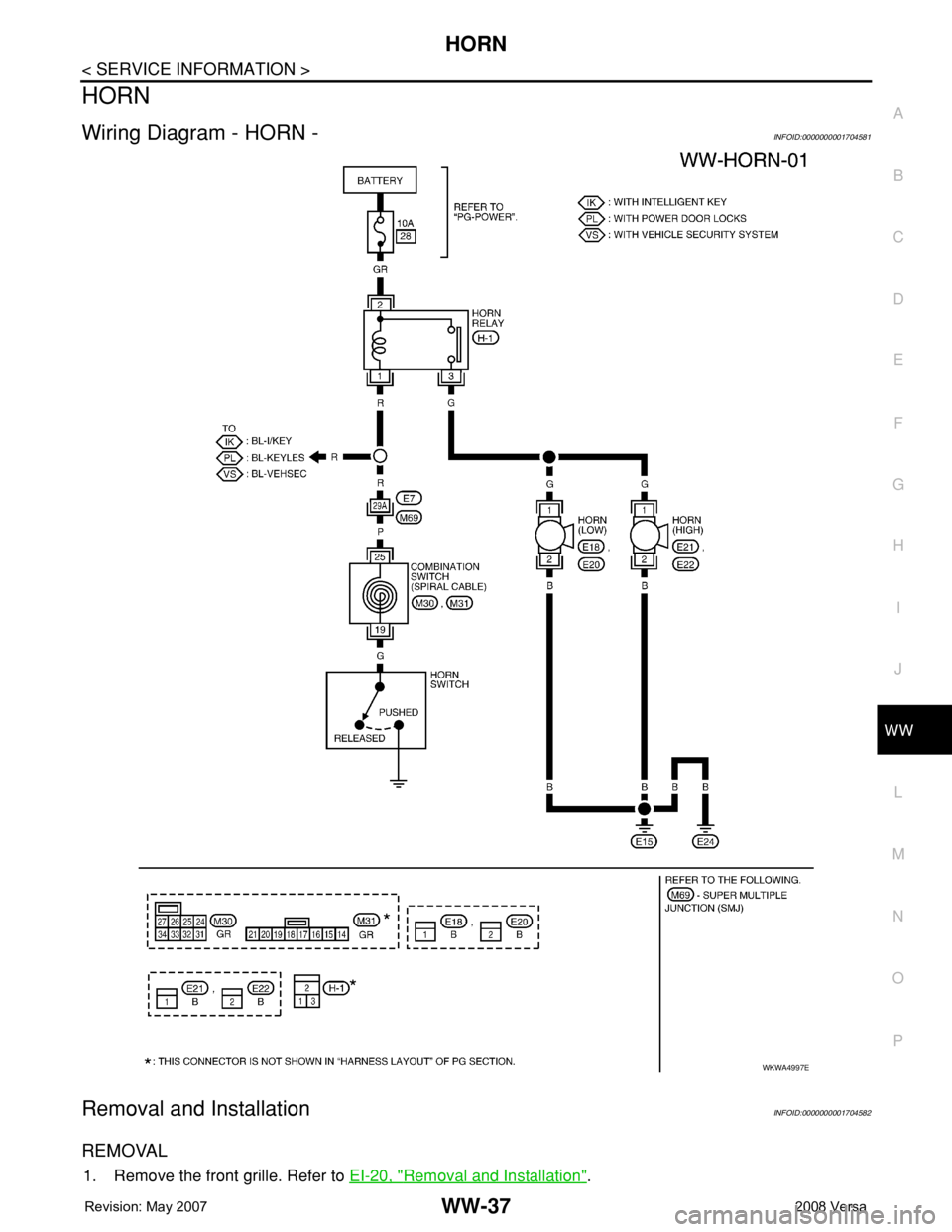

Wiring Diagram - HORN -INFOID:0000000001704581
Removal and InstallationINFOID:0000000001704582
REMOVAL
1. Remove the front grille. Refer to EI-20, "Removal and Installation".
WKWA4997E
Page 2771 of 2771
WW-38
< SERVICE INFORMATION >
HORN
2. Disconnect the horn connectors.
3. Remove the horn nuts (A) and remove the horns (1).
INSTALLATION
Installation is in the reverse order of removal.
SKIB5670E
