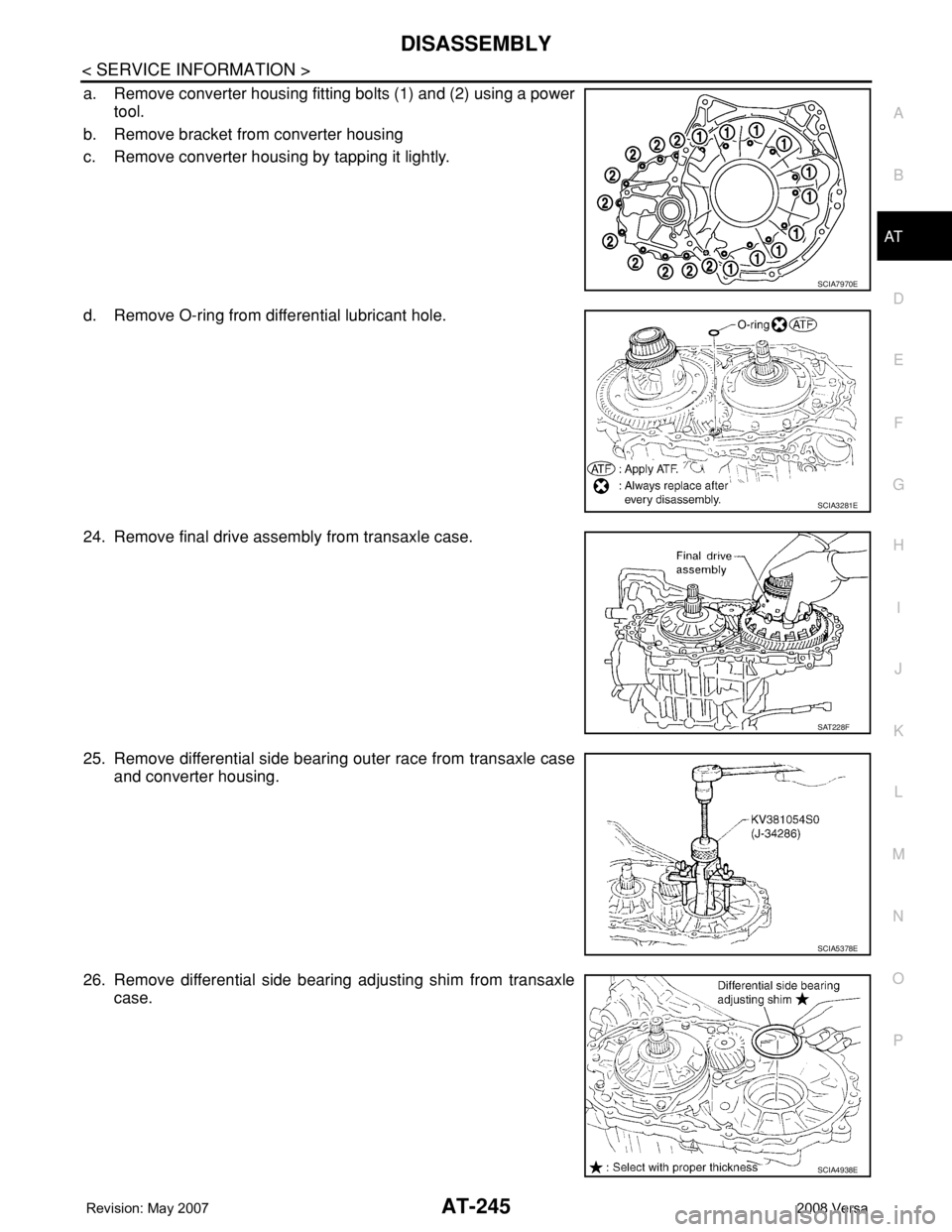

Page 257 of 2771
DISASSEMBLY
AT-245
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
a. Remove converter housing fitting bolts (1) and (2) using a power
tool.
b. Remove bracket from converter housing
c. Remove converter housing by tapping it lightly.
d. Remove O-ring from differential lubricant hole.
24. Remove final drive assembly from transaxle case.
25. Remove differential side bearing outer race from transaxle case
and converter housing.
26. Remove differential side bearing adjusting shim from transaxle
case.
SCIA7970E
SCIA3281E
SAT228F
SCIA5378E
SCIA4938E
Page 258 of 2771
AT-246
< SERVICE INFORMATION >
DISASSEMBLY
27. Remove RH differential side oil seal from converter housing
using a flat-bladed screwdriver.
CAUTION:
Be careful not to scratch converter housing.
28. Remove differential lubricant tube (1) and clips (2) from con-
verter housing.
: Bolt (3)
29. Remove oil pump assembly according to the following procedures.
a. Remove O-ring from input shaft assembly (high clutch drum).
b. Remove oil pump assembly fitting bolts, and then remove oil
pump assembly (1) from transaxle case.
c. Remove O-ring from oil pump assembly (1).
SCIA3283E
SCIA7817E
SCIA5634E
SCIA6036J
Page 259 of 2771
DISASSEMBLY
AT-247
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
d. Remove bearing race (1) and thrust washer (2) from oil pump
assembly (3).
30. Remove brake band according to the following procedures.
a. Loosen lock nut (1), and then remove anchor end pin (2) and
lock nut (1) as a set from transaxle case.
b. Remove brake band from transaxle case.
•To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
brake band, always secure it with a clip as shown in the
figure.
Leave the clip in position after removing brake band.
SCIA6957E
SCIA6037J
SAT038D
SAT039D
Page 260 of 2771
AT-248
< SERVICE INFORMATION >
DISASSEMBLY
c. Check brake band facing for damage, cracks, wear or burns.
31. Remove input shaft assembly (high clutch assembly) and reverse clutch assembly according to the follow-
ing procedures.
a. Remove input shaft assembly (high clutch assembly) (1) with
reverse clutch assembly (2).
b. Remove input shaft assembly (high clutch assembly) (1) from
reverse clutch assembly (2).
c. Remove needle bearing (1) from input shaft assembly (high
clutch drum) (2).
•Inspect needle bearing (1) and input shaft assembly (high
clutch drum) (2), and replace if damaged or worn.
SAT040D
SCIA6038J
SCIA6958E
SCIA6959E

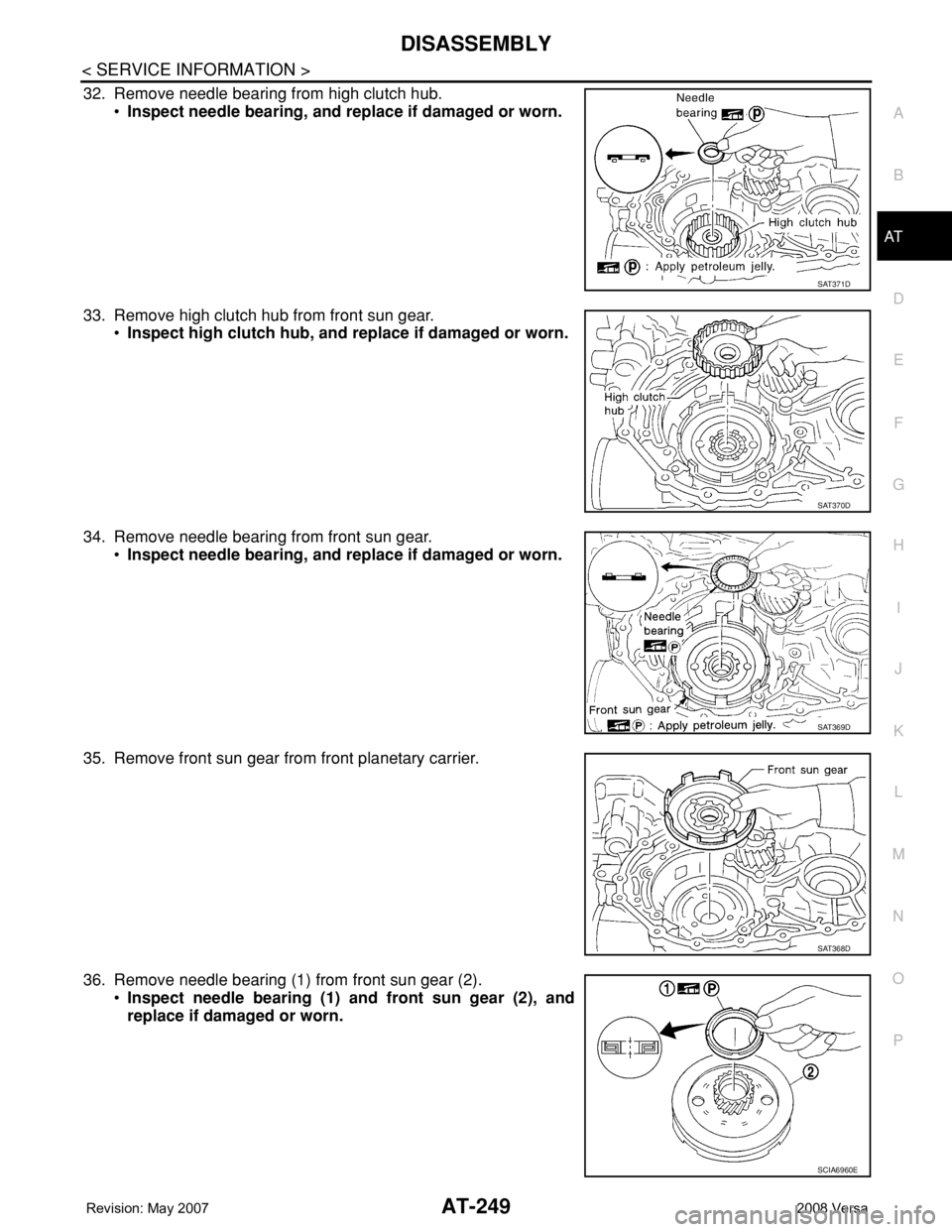

Page 261 of 2771
DISASSEMBLY
AT-249
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
32. Remove needle bearing from high clutch hub.
•Inspect needle bearing, and replace if damaged or worn.
33. Remove high clutch hub from front sun gear.
•Inspect high clutch hub, and replace if damaged or worn.
34. Remove needle bearing from front sun gear.
•Inspect needle bearing, and replace if damaged or worn.
35. Remove front sun gear from front planetary carrier.
36. Remove needle bearing (1) from front sun gear (2).
•Inspect needle bearing (1) and front sun gear (2), and
replace if damaged or worn.
SAT371D
SAT370D
SAT369D
SAT368D
SCIA6960E
Page 262 of 2771
AT-250
< SERVICE INFORMATION >
DISASSEMBLY
37. Remove front planetary carrier and low one-way clutch according to the following procedures.
a. Remove snap ring using a flat-bladed screwdriver.
b. Remove low one-way clutch (1) and front planetary carrier (2) as
a set from transaxle case.
c. Check that low one-way clutch rotates counter-clockwise around
front planetary carrier. Then try to turn it clockwise and check
that it is locked.
•Replace low one-way clutch if necessary.
d. Remove low one-way clutch from front planetary carrier by turn-
ing it in the direction of unlock.
•Inspect low one-way clutch, and replace if damaged or
worn.
e. Remove needle bearing (1) from front planetary carrier (2).
•Inspect needle bearing (1) and front planetary carrier (2),
and replace if damaged or worn.
SCIA3633E
SCIA5896J
SAT048D
SCIA6047J

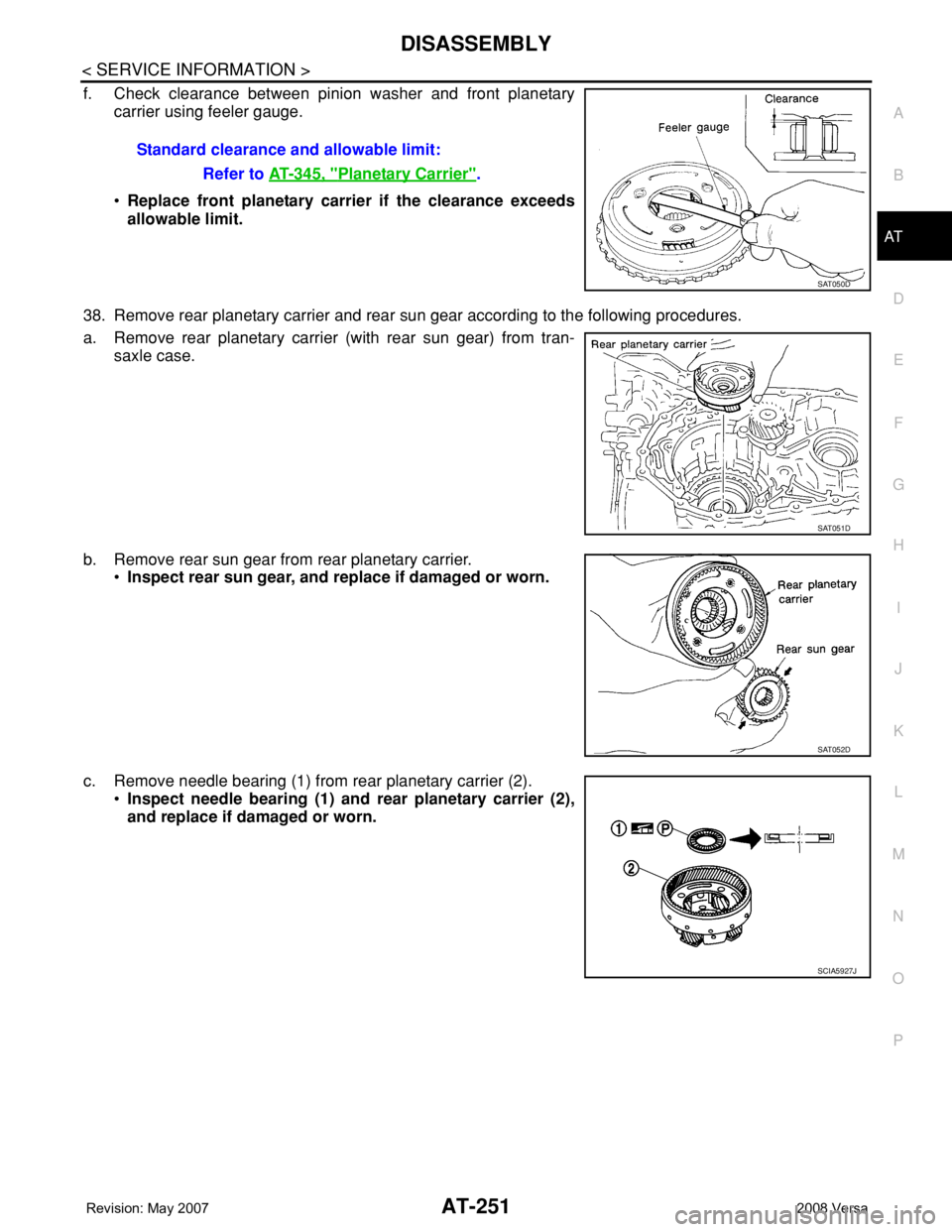

Page 263 of 2771
DISASSEMBLY
AT-251
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
f. Check clearance between pinion washer and front planetary
carrier using feeler gauge.
•Replace front planetary carrier if the clearance exceeds
allowable limit.
38. Remove rear planetary carrier and rear sun gear according to the following procedures.
a. Remove rear planetary carrier (with rear sun gear) from tran-
saxle case.
b. Remove rear sun gear from rear planetary carrier.
•Inspect rear sun gear, and replace if damaged or worn.
c. Remove needle bearing (1) from rear planetary carrier (2).
•Inspect needle bearing (1) and rear planetary carrier (2),
and replace if damaged or worn. Standard clearance and allowable limit:
Refer to AT-345, "
Planetary Carrier".
SAT050D
SAT051D
SAT052D
SCIA5927J

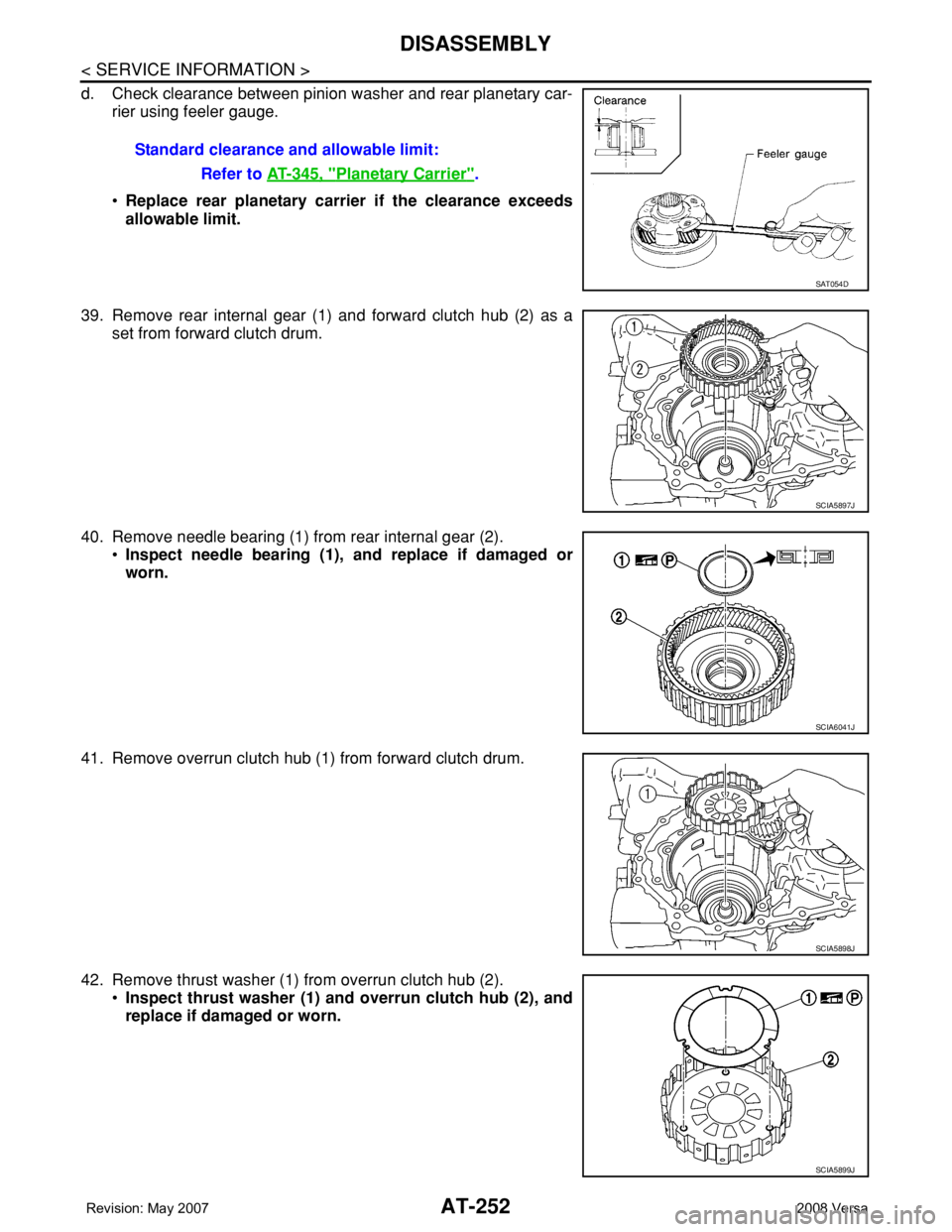

Page 264 of 2771
AT-252
< SERVICE INFORMATION >
DISASSEMBLY
d. Check clearance between pinion washer and rear planetary car-
rier using feeler gauge.
•Replace rear planetary carrier if the clearance exceeds
allowable limit.
39. Remove rear internal gear (1) and forward clutch hub (2) as a
set from forward clutch drum.
40. Remove needle bearing (1) from rear internal gear (2).
•Inspect needle bearing (1), and replace if damaged or
worn.
41. Remove overrun clutch hub (1) from forward clutch drum.
42. Remove thrust washer (1) from overrun clutch hub (2).
•Inspect thrust washer (1) and overrun clutch hub (2), and
replace if damaged or worn.Standard clearance and allowable limit:
Refer to AT-345, "
Planetary Carrier".
SAT054D
SCIA5897J
SCIA6041J
SCIA5898J
SCIA5899J
