Page 705 of 2771
BODY REPAIR
BL-271
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Replacement OperationINFOID:0000000001704127

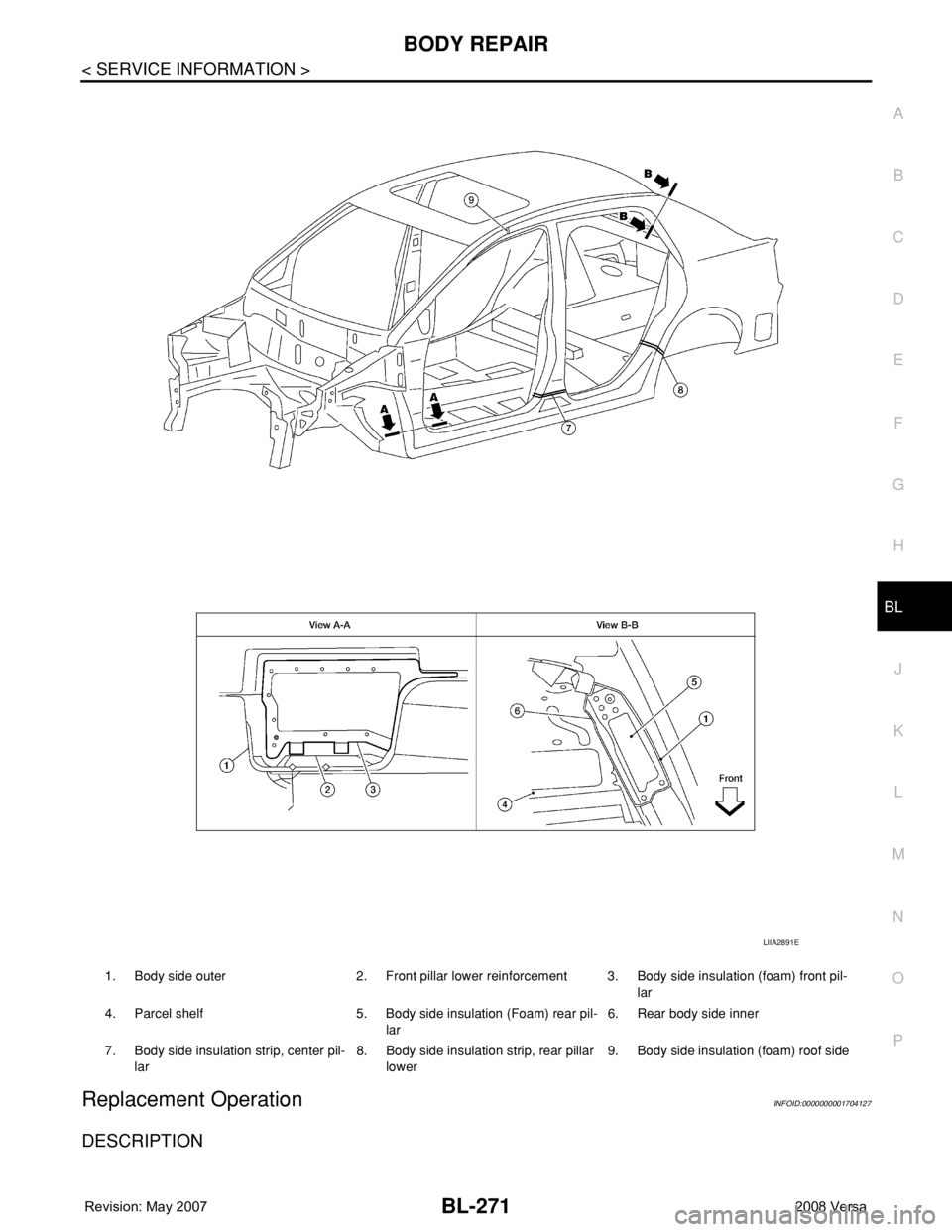

DESCRIPTION
1. Body side outer 2. Front pillar lower reinforcement 3. Body side insulation (foam) front pil-
lar
4. Parcel shelf 5. Body side insulation (Foam) rear pil-
lar6. Rear body side inner
7. Body side insulation strip, center pil-
lar8. Body side insulation strip, rear pillar
lower9. Body side insulation (foam) roof side
LIIA2891E
Page 706 of 2771
BL-272
< SERVICE INFORMATION >
BODY REPAIR
This section is prepared for technicians who have attained a high level of skill and experience in repairing col-
lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.
Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-
inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains
additional information, including cautions and warnings, that are not including in this manual. Technicians
should refer to both manuals to ensure proper repairs.
Please note that this information is prepared for worldwide usage, and as such, certain procedures may not
apply in some regions or countries.
Page 707 of 2771
BODY REPAIR
BL-273
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

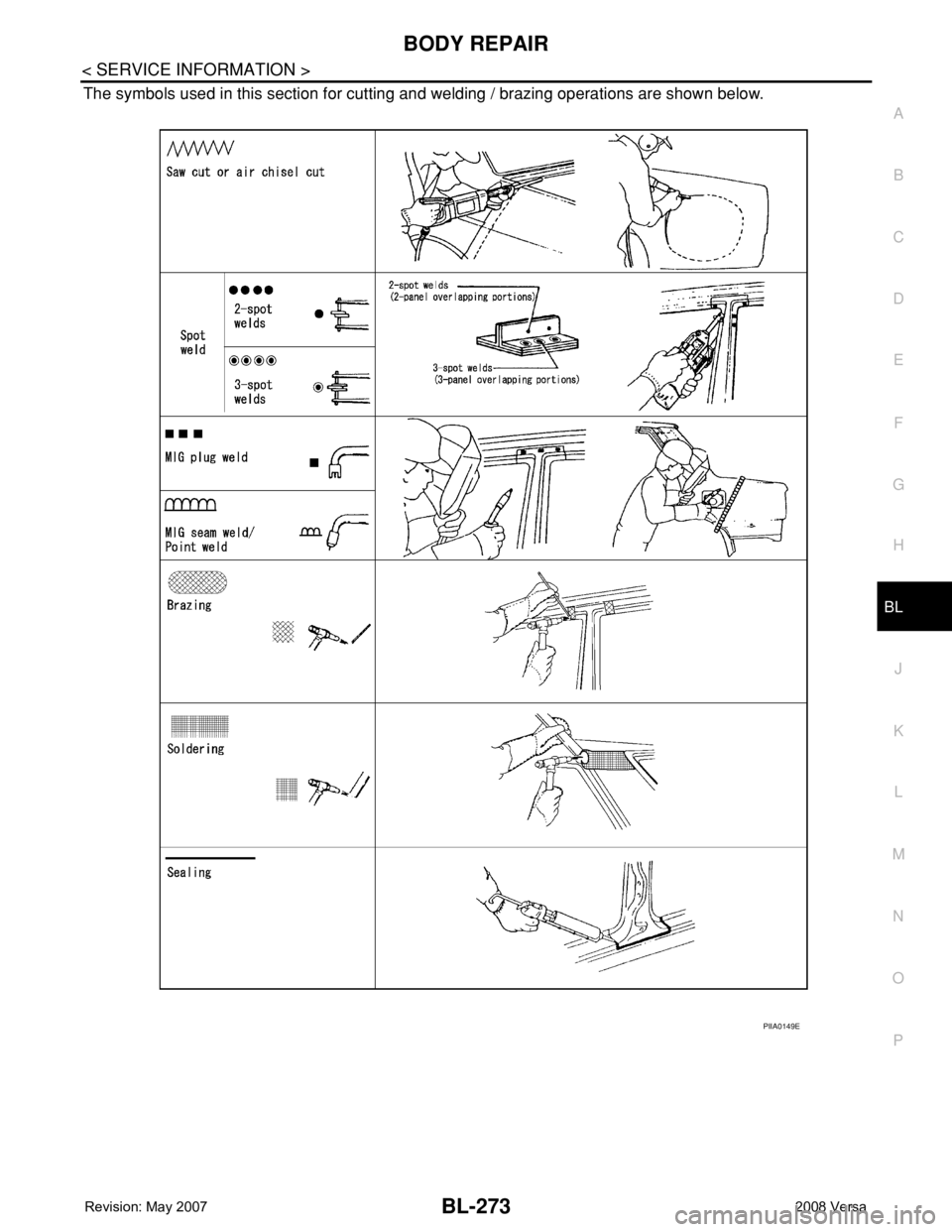

The symbols used in this section for cutting and welding / brazing operations are shown below.
PIIA0149E
Page 708 of 2771

BL-274
< SERVICE INFORMATION >
BODY REPAIR
• Front pillar butt joint can be determined anywhere within shaded
area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle. Refer to the front
pillar section.
• Determine cutting position and record distance from the locating
indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.
• Prepare a cutting jig to make outer pillar easier to cut. Also, this will
permit service part to be accurately cut at joint position.
• An example of cutting operation using a cutting jig is as follows.
1. Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar
2. Align cutting line with notch on jig. Clamp jig to pillar.
3. Cut outer pillar along groove of jig. (At position A)
4. Remove jig and cut remaining portions.
5. Cut inner pillar at position B in same manner.
RADIATOR CORE SUPPORT
• Work after radiator core support upper and lower bolt on crossmembers have been removed.
PIIA0150E
PIIA0151E
PIIA0152E
PIIA0153E
Page 709 of 2771
BODY REPAIR
BL-275
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

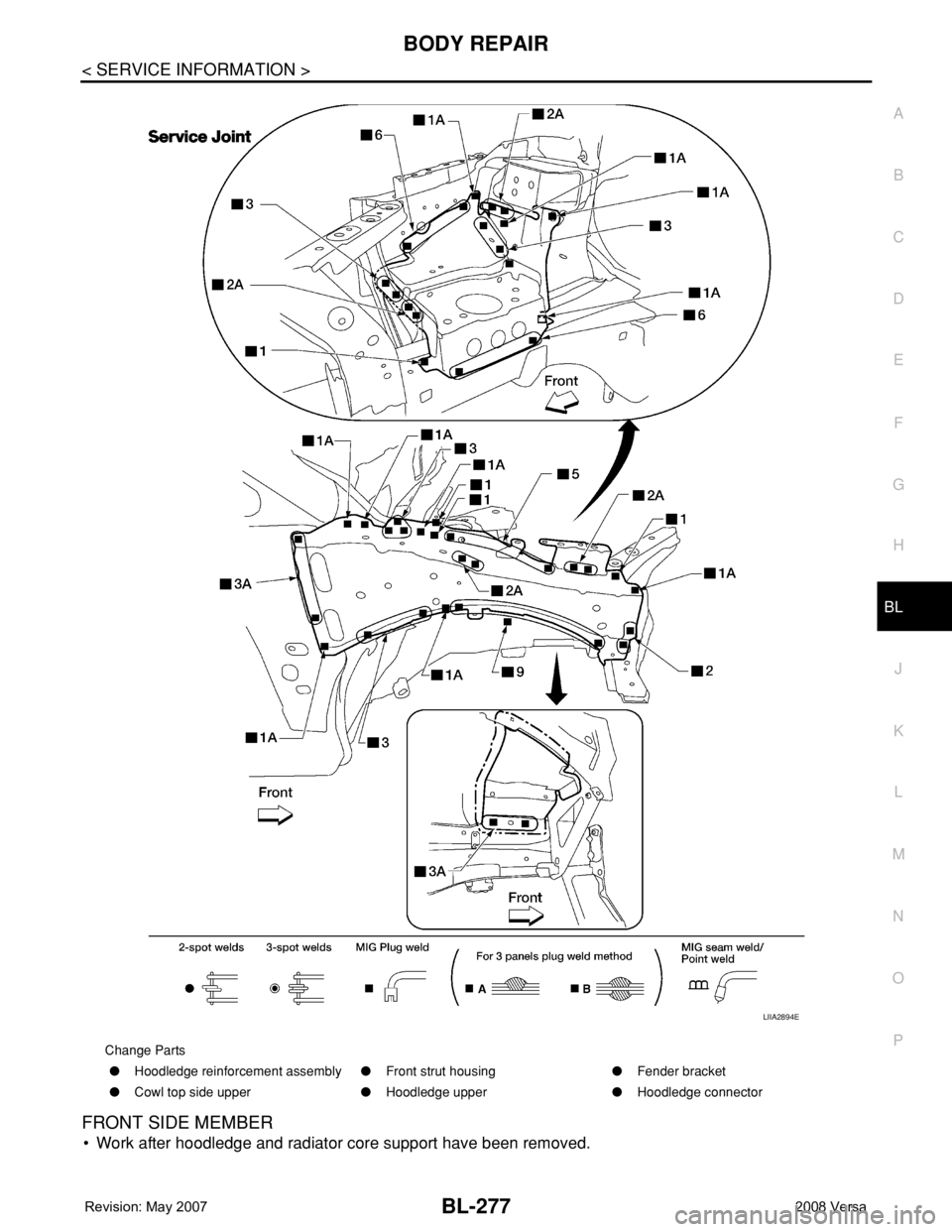

HOODLEDGE LH
• Work after radiator core support upper and lower have been removed.
Change Parts
●Radiator core side support● Radiator core support upper
LIIA2892E
Page 710 of 2771
BL-276
< SERVICE INFORMATION >
BODY REPAIR

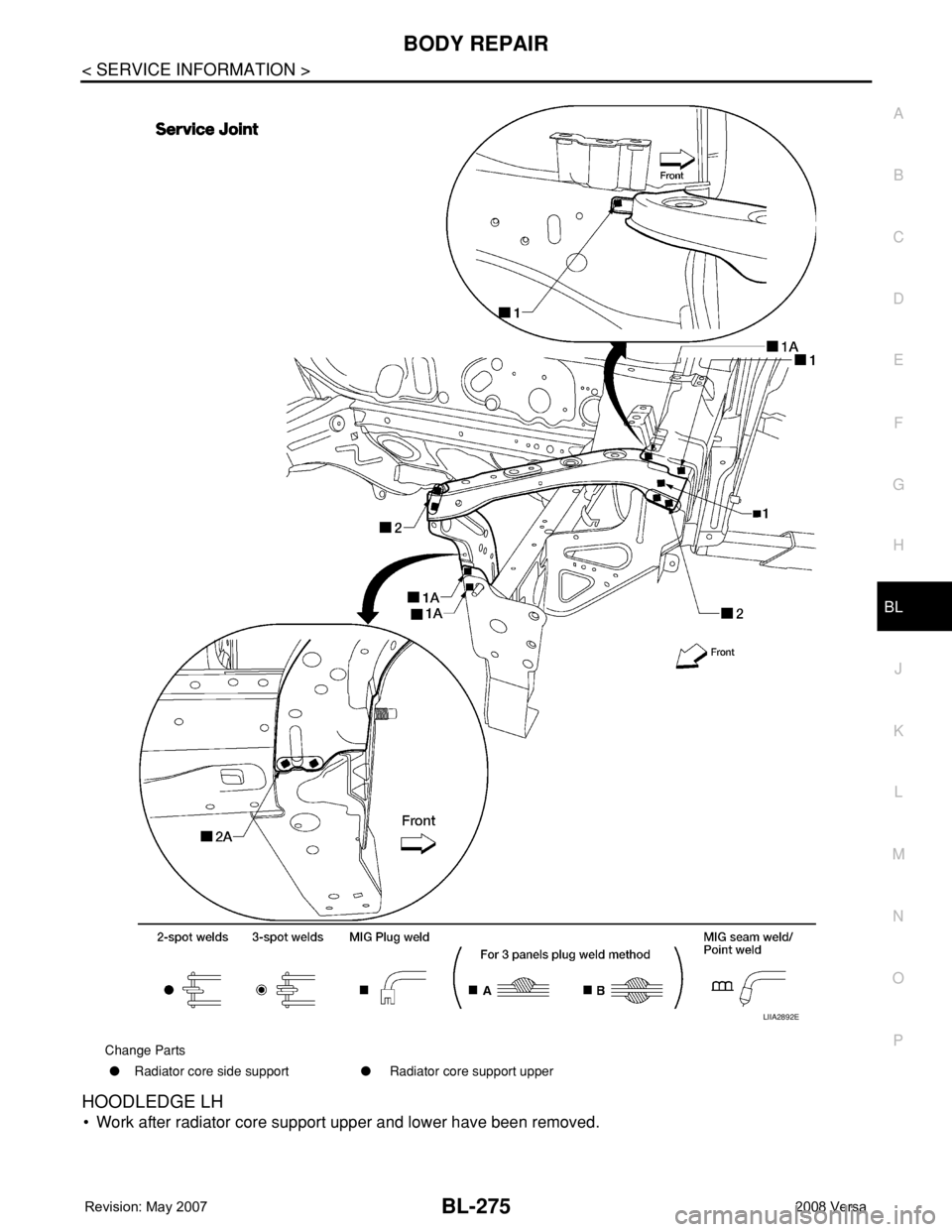

HOODLEDGE RH
• Work after radiator core support upper and lower have been removed.
Change Parts
●Hoodledge reinforcement assembly●Front strut housing●Fender bracket
●Cowl top side upper●Hoodledge upper●Hoodledge connector
LIIA2893E
Page 711 of 2771
BODY REPAIR
BL-277
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

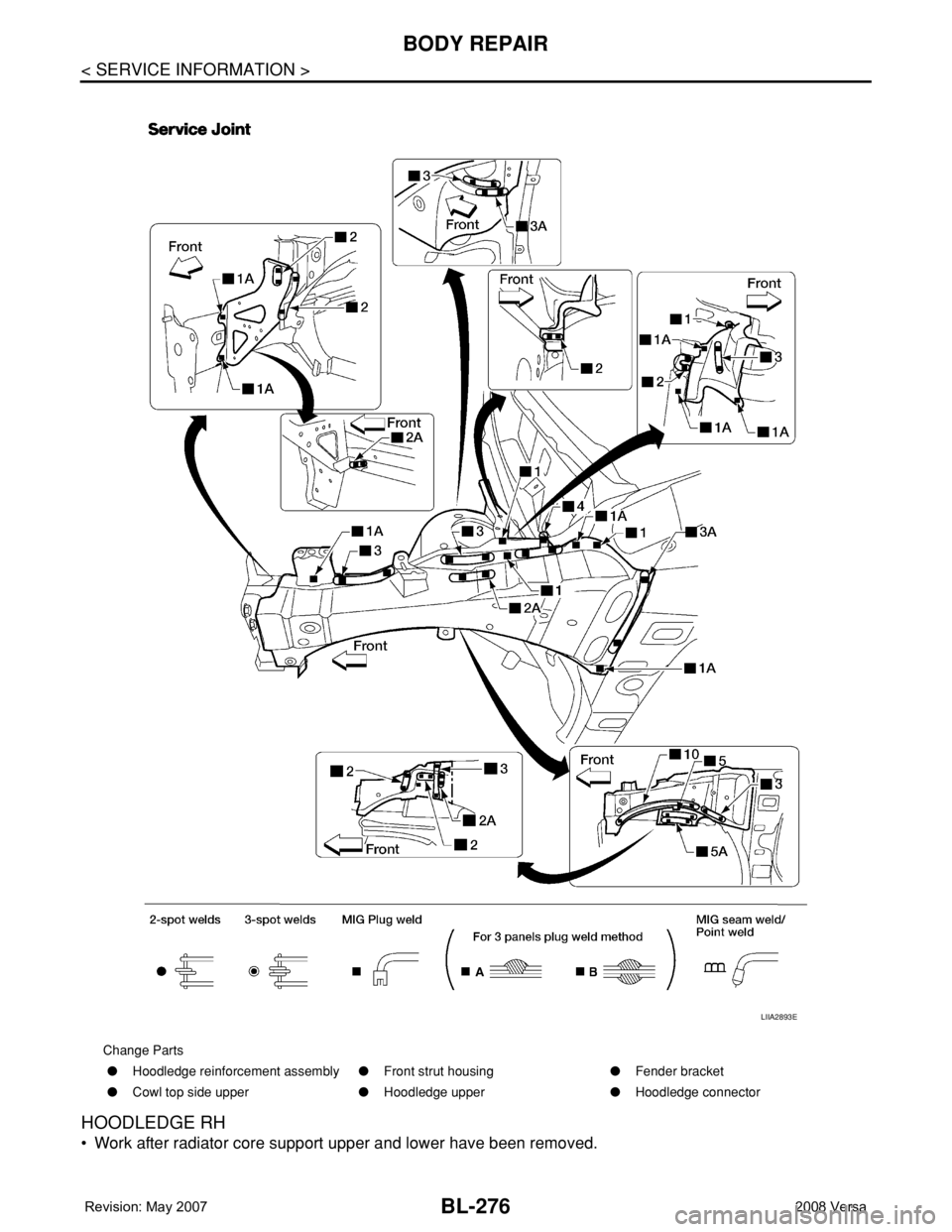

FRONT SIDE MEMBER
• Work after hoodledge and radiator core support have been removed.
Change Parts
●Hoodledge reinforcement assembly●Front strut housing●Fender bracket
●Cowl top side upper●Hoodledge upper●Hoodledge connector
LIIA2894E
Page 712 of 2771
BL-278
< SERVICE INFORMATION >
BODY REPAIR

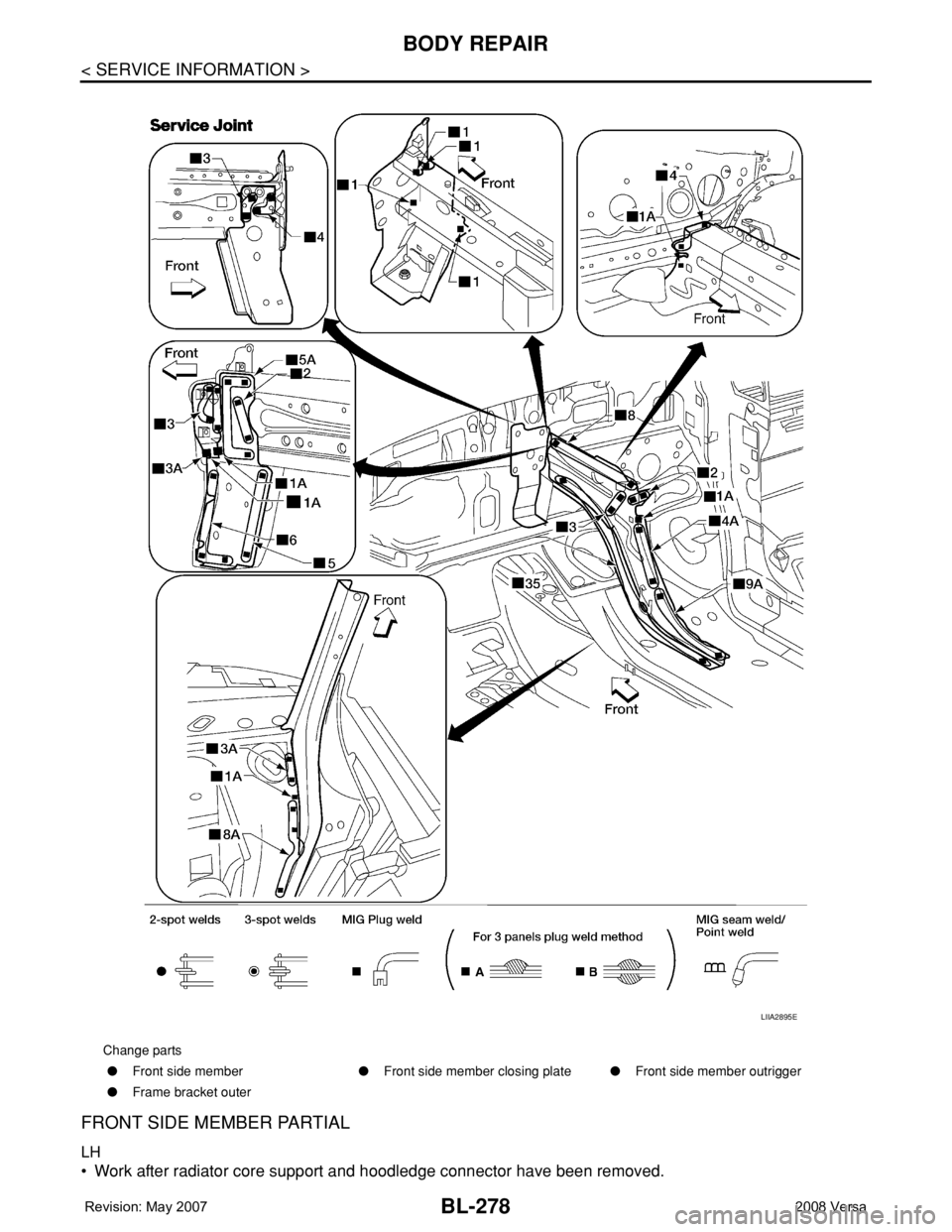

FRONT SIDE MEMBER PARTIAL
LH
• Work after radiator core support and hoodledge connector have been removed.
Change parts
●Front side member●Front side member closing plate●Front side member outrigger
●Frame bracket outer
LIIA2895E
