Page 689 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR
BL-255
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O

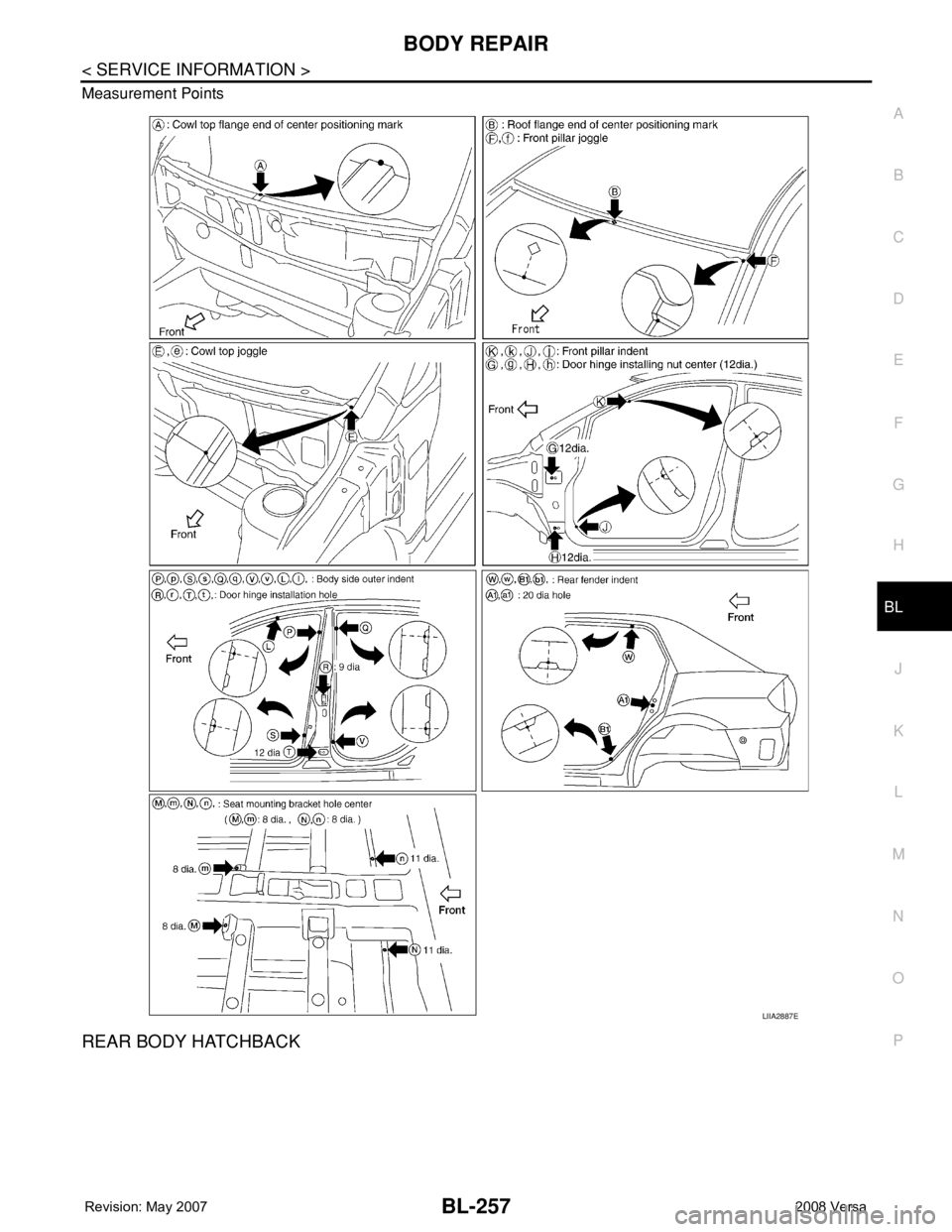

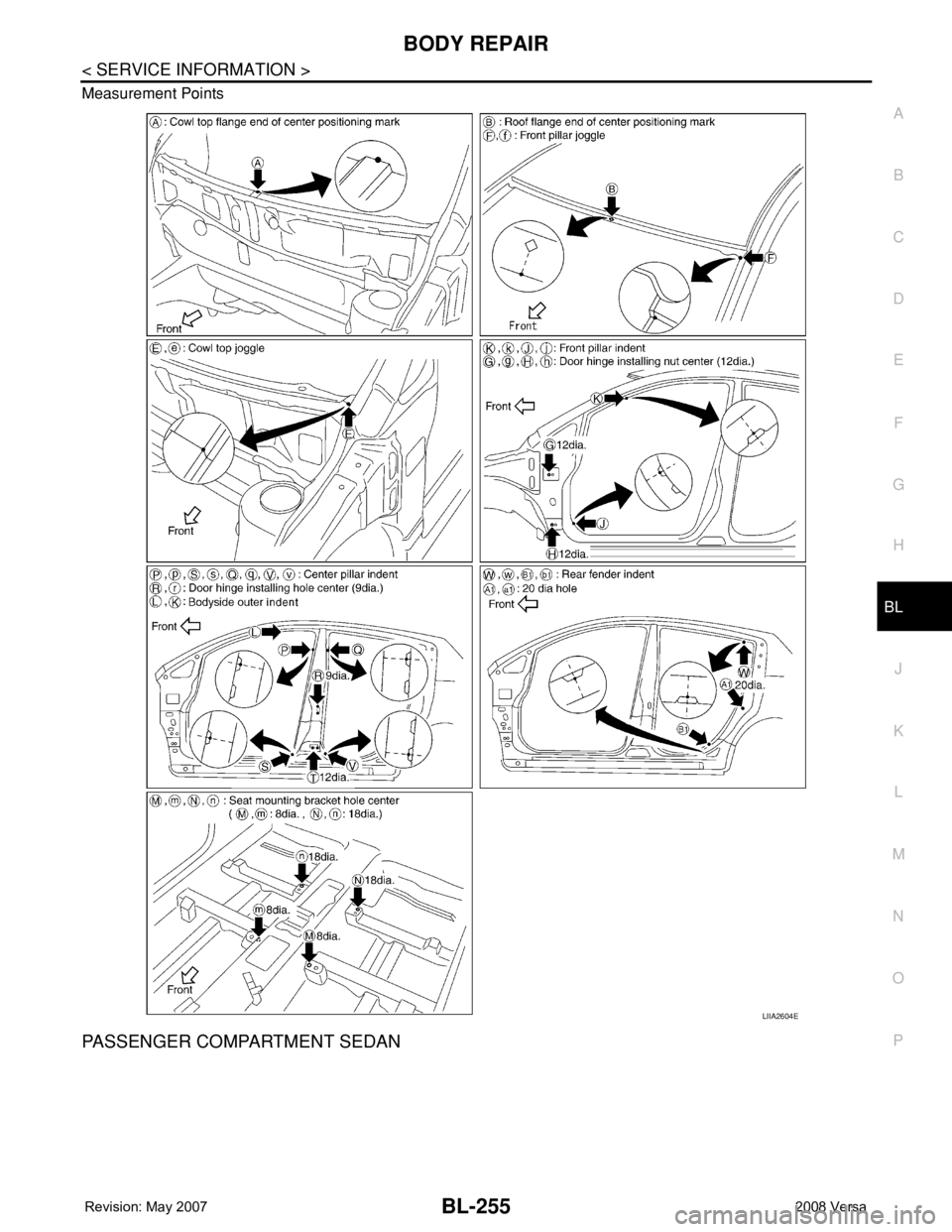

P Measurement Points

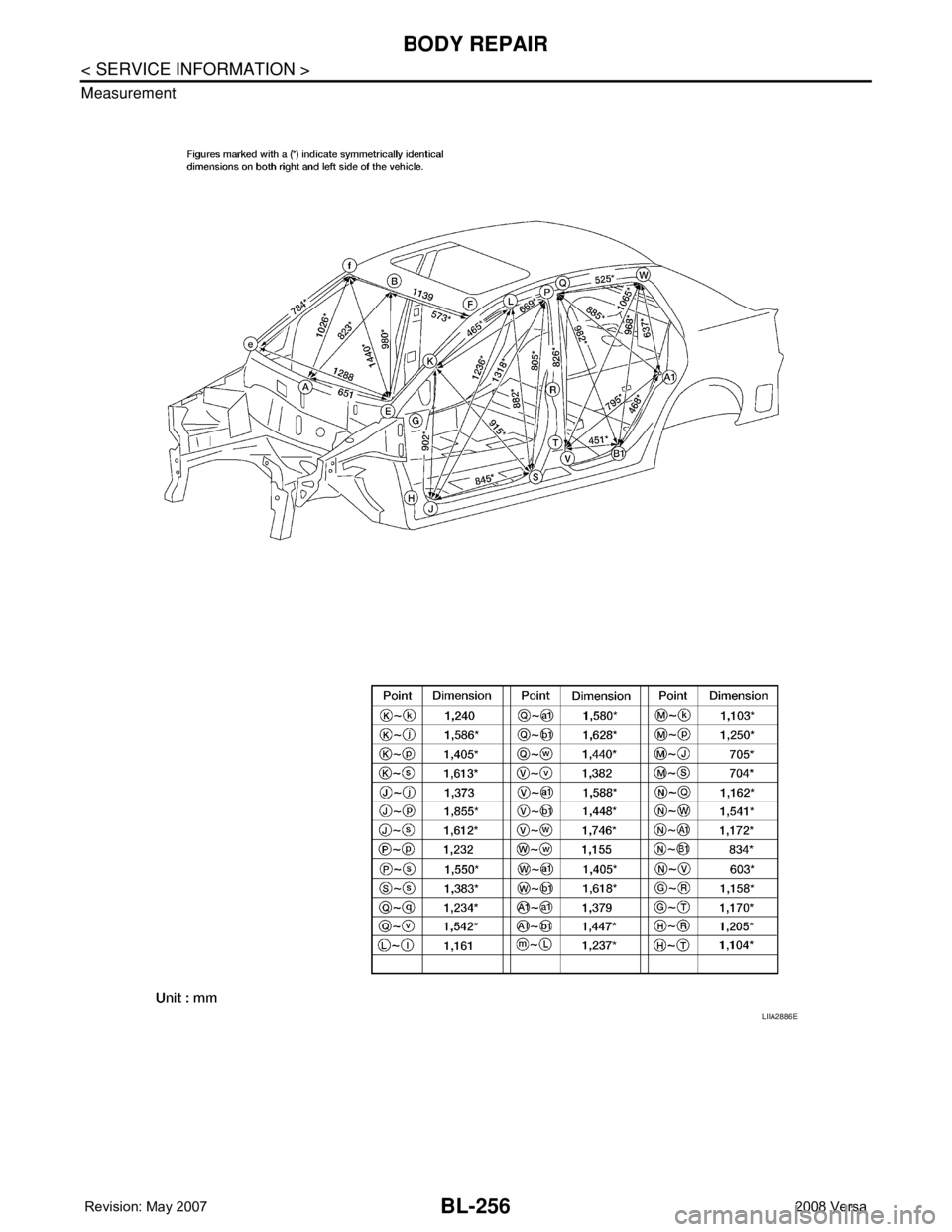

PASSENGER COMPARTMENT SEDAN
LIIA2604E

Page 690 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-256
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2886E

Page 691 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR
BL-257
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O

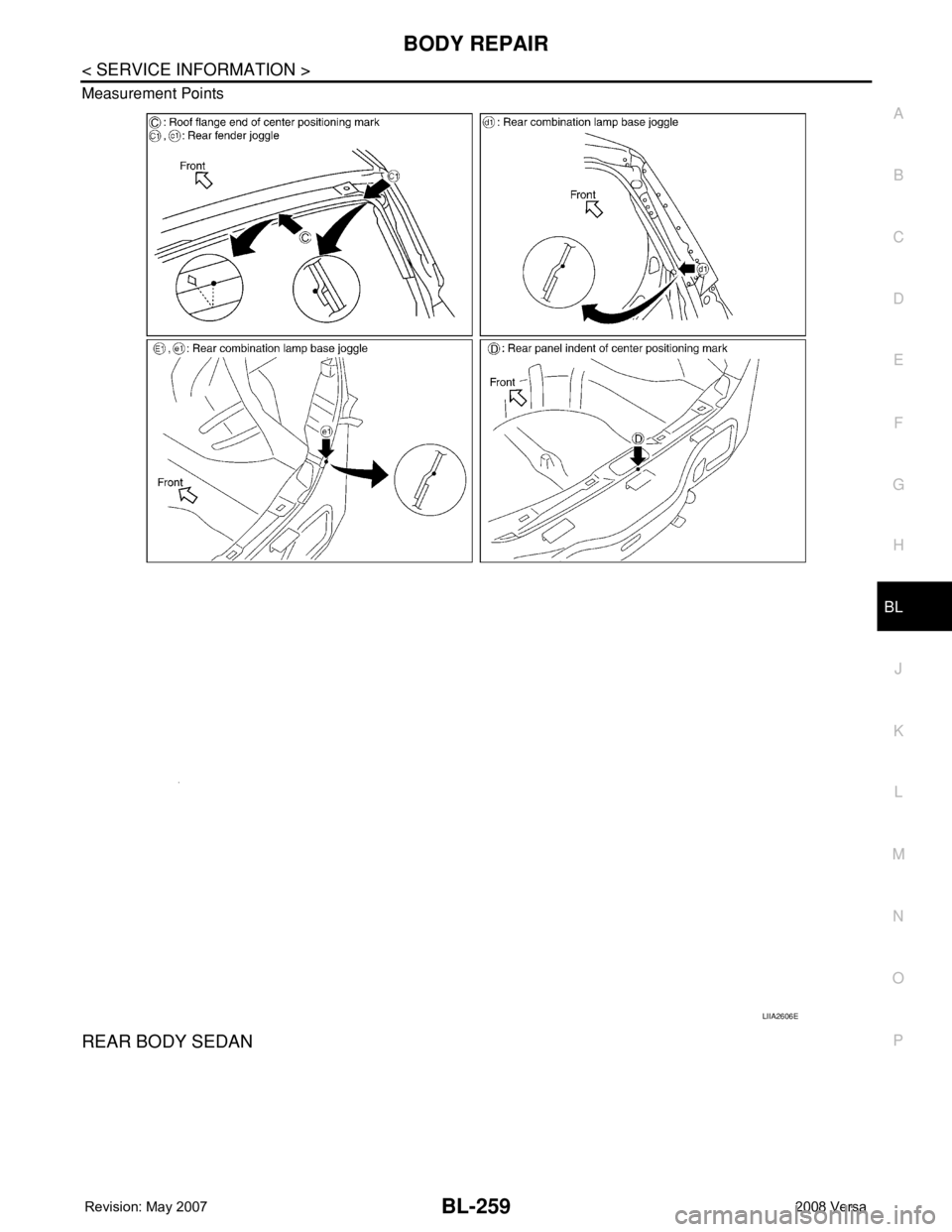

P Measurement Points

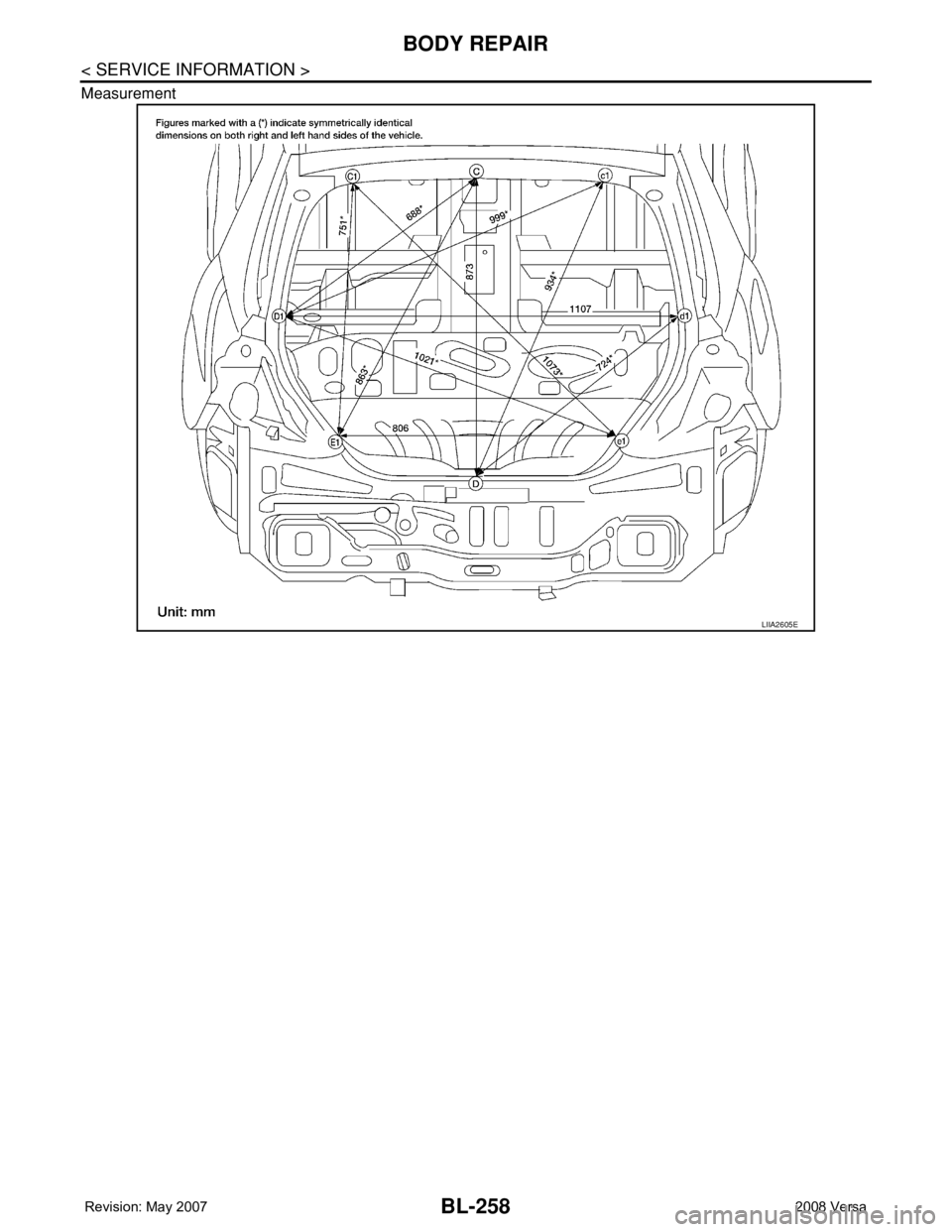

REAR BODY HATCHBACK
LIIA2887E

Page 692 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-258
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2605E

Page 693 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR
BL-259
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Measurement Points

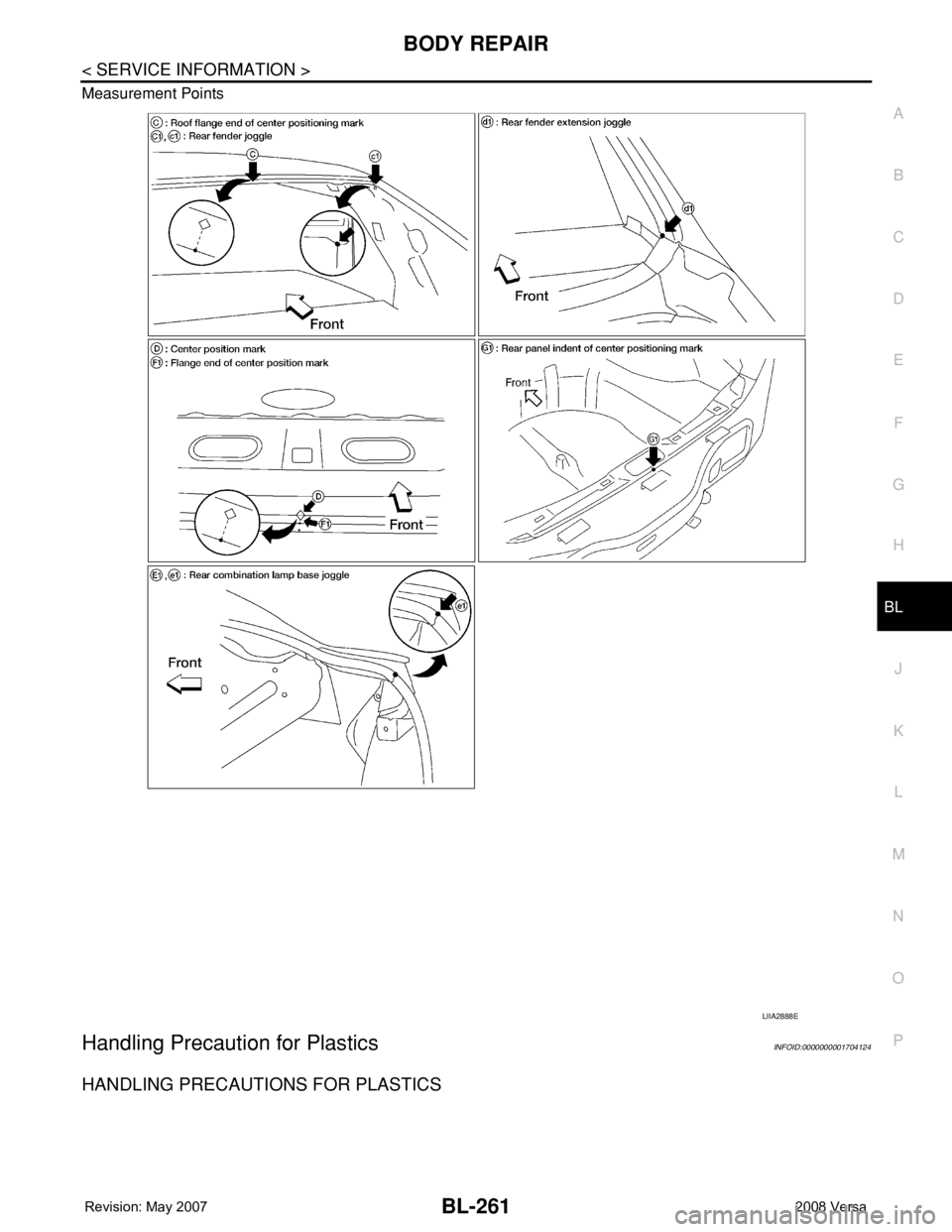

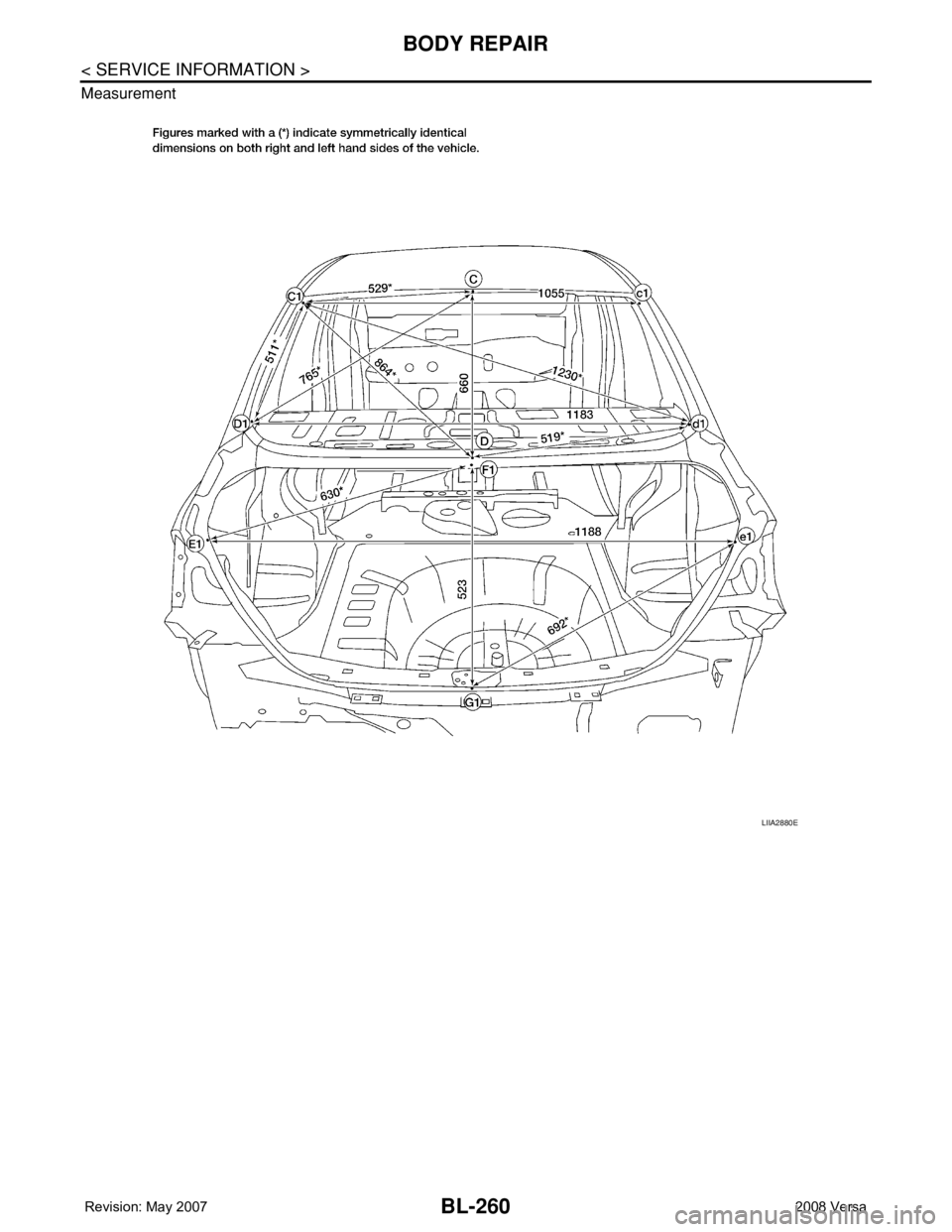

REAR BODY SEDAN
LIIA2606E

Page 694 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-260
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2880E

Page 695 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR
BL-261
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Measurement Points
Handling Precaution for PlasticsINFOID:0000000001704124
HANDLING PRECAUTIONS FOR PLASTICS
LIIA2888E

Page 696 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-262
< SERVICE INFORMATION >
BODY REPAIR
1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics
(influence of heat and solvent) and remove the

BL-262
< SERVICE INFORMATION >
BODY REPAIR
1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics
(influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.
2. Plastic parts should be repaired and painted using methods suiting the materials
, characteristics.
LOCATION OF PLASTIC PARTS
Abbre-
viationMaterial nameHeat resisting
temperature
°C (°F)Resistance to gasoline and
solventsOther cautions
PE Polyethylene 60 (140)Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly).Flammable
PVC Polyvinyl Chloride 80 (176) Same as above.Poison gas is emitted
when burned.
EPM/
EPDMEthylene Propylene (Diene) rub-
ber80 (176) Same as above. Flammable
TPO/
TPRThermoplastic Olefine/
Thermoplastic Rubber80 (176) Same as above. Flammable
PP Polypropylene 90 (194) Same as above.Flammable, avoid bat-
tery acid.
UP Polyester thermoset 90 (194) Same as above. Flammable
PS Polystyrene 80 (176) Avoid solvents. Flammable
ABSAcrylonitrile Butadiene Styrene
resin80 (176) Avoid gasoline and solvents.
AES Acrylonitrile Ethylene Styrene 80 (176) Same as above.
PMMA Polymethyl Methacrylate 85 (185) Same as above.
AAS Acrylonitrile Acrylic Styrene 85 (185) Same as above.
AS Acrylonitrile Styrene 85 (185) Same as above.
EVA Polyvinyl Ethyl Acetate 90 (194) Same as above.
ASA Acrylonitrile Styrene Acrylate 100 (222) Same as above. Flammable
PPO/
PPEPolyphenylene Oxide/
Polyphenylene Ether110 (230) Same as above.
PC Polycarbonate 120 (248) Same as above.
PAR Polyacrylate 180 (356) Same as above.
L-
LDPELenear Low Density PE 45 (100)Gasoline and most solvents are
harmless.Flammable
PUR Polyurethane 90 (194) Same as above.
TPU Thermoplastic Urethane 110 (230) Same as above.
PPC Polypropylene Composite 115 (239) Same as above. Flammable
POM Polyacetal 120 (248) Same as above. Avoid battery acid.
PBT+P
CPolybutylene Terephtha-
late+Polycarbonate120 (248) Same as above. Flammable
PA Polyamide (Nylon) 140 (284) Same as above.Avoid immersing in wa-
ter.
PBT Polybutylene Terephthalate 140 (284) Same as above.
FRP Fiber Reinforced Plastics 170 (338) Same as above. Avoid battery acid.
PET Polyethylene Terephthalate 180 (356) Same as above.
PEI Polyetherimide 200 (392) Same as above.
