Page 337 of 2771

NISSAN LATIO 2008 Service Repair Manual ASSEMBLY AT-325 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P • Completely remove all moisture, oil and old sealant, etc. from the transaxle case and side cover mounting surfaces. 3. Fit m

Page 338 of 2771

NISSAN LATIO 2008 Service Repair Manual AT-326 < SERVICE INFORMATION > ASSEMBLY 4. Install needle bearing (1) on bearing retainer. CAUTION: Be careful with the direction of needle bearing. 5. Install thrust washer (1) on overrun clutch hub

Page 339 of 2771

NISSAN LATIO 2008 Service Repair Manual ASSEMBLY AT-327 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P 9. Install rear internal gear (1) and forward clutch hub (2) as a set into forward clutch drum. CAUTION: Align teeth of forward

Page 340 of 2771

NISSAN LATIO 2008 Service Repair Manual AT-328 < SERVICE INFORMATION > ASSEMBLY 14. Install low one-way clutch to front planetary carrier by turning it in the direction of unlock. 15. Check that low one-way clutch rotates counterclockwise a

Page 341 of 2771

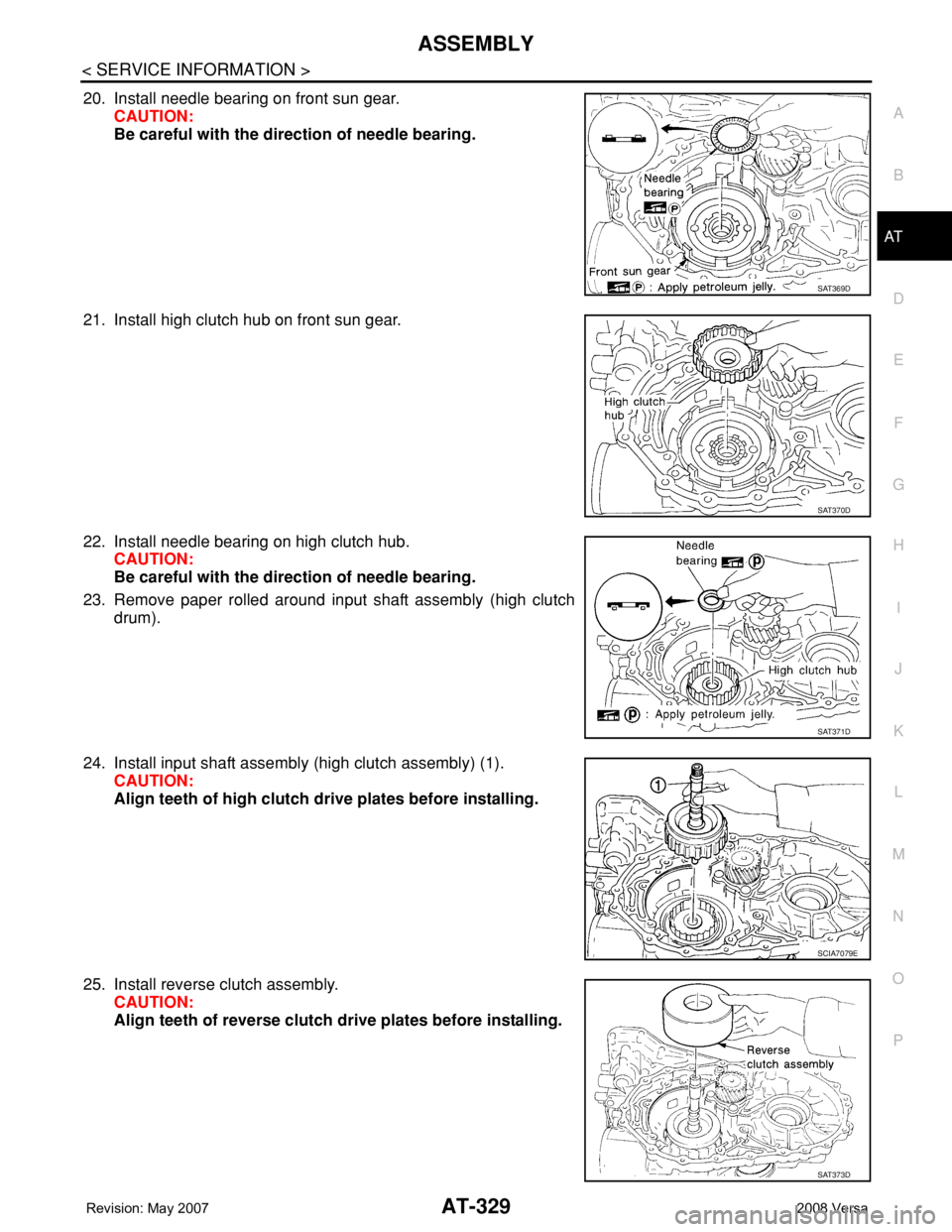

NISSAN LATIO 2008 Service Repair Manual ASSEMBLY AT-329 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P 20. Install needle bearing on front sun gear. CAUTION: Be careful with the direction of needle bearing. 21. Install high clutch

Page 342 of 2771

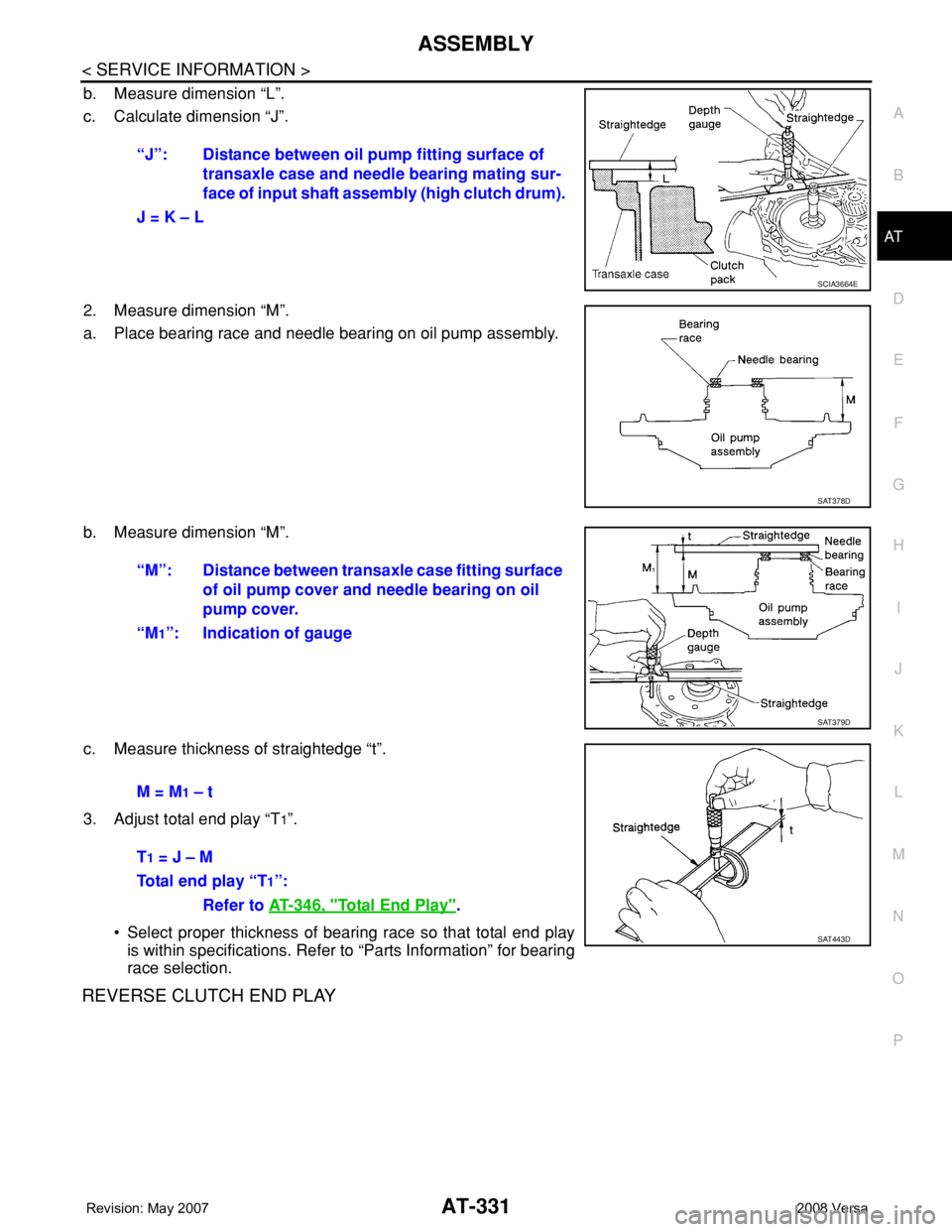

NISSAN LATIO 2008 Service Repair Manual AT-330 < SERVICE INFORMATION > ASSEMBLY Adjustment (2) INFOID:0000000001703394 When any parts listed below are replaced, adjust total end play and reverse clutch end play. TOTAL END PLAY • Measure c

Page 343 of 2771

NISSAN LATIO 2008 Service Repair Manual ASSEMBLY AT-331 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P b. Measure dimension “L”. c. Calculate dimension “J”. 2. Measure dimension “M”. a. Place bearing race and needle bea

Page 344 of 2771

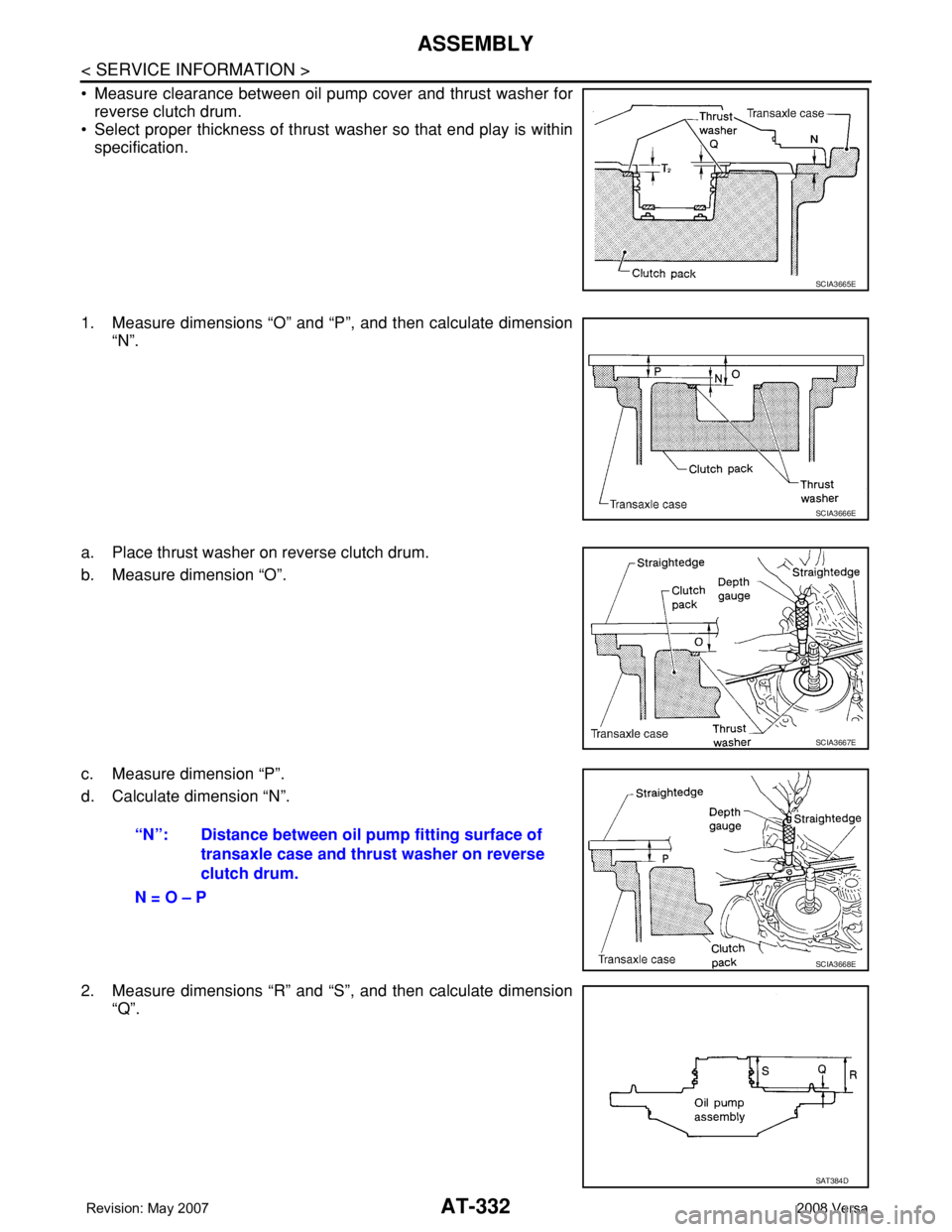

NISSAN LATIO 2008 Service Repair Manual AT-332 < SERVICE INFORMATION > ASSEMBLY • Measure clearance between oil pump cover and thrust washer for reverse clutch drum. • Select proper thickness of thrust washer so that end play is within
