Page 33 of 2771

NISSAN LATIO 2008 Service Repair Manual A/T CONTROL SYSTEM AT-21 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P • *1: Operates when OD OFF. (OD OFF indicator lamp is on.) • *2: Oil pressure is applied to both 2nd “apply” si

Page 34 of 2771

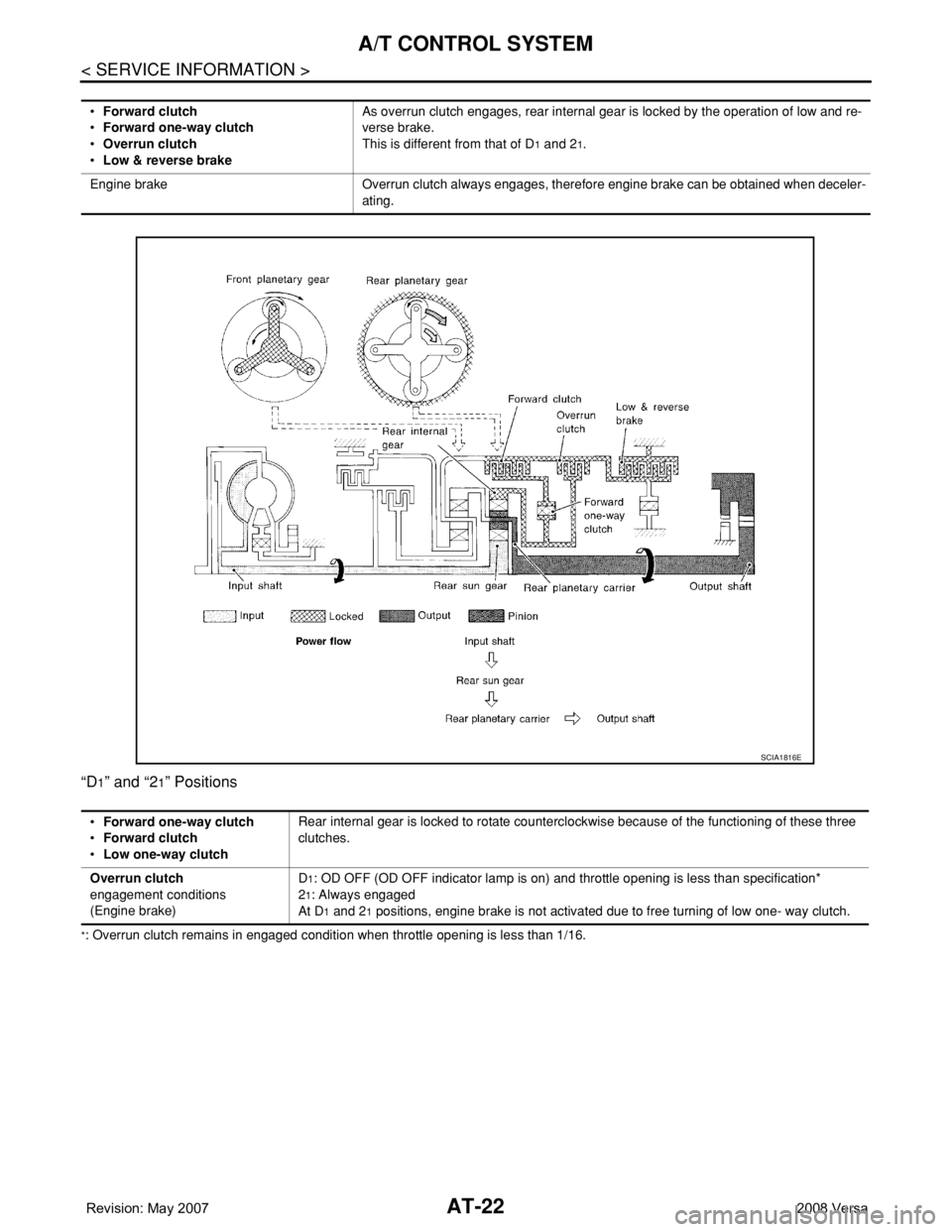

NISSAN LATIO 2008 Service Repair Manual AT-22 < SERVICE INFORMATION > A/T CONTROL SYSTEM “D1” and “21” Positions *: Overrun clutch remains in engaged condition when throttle opening is less than 1/16.•Forward clutch •Forward one

Page 35 of 2771

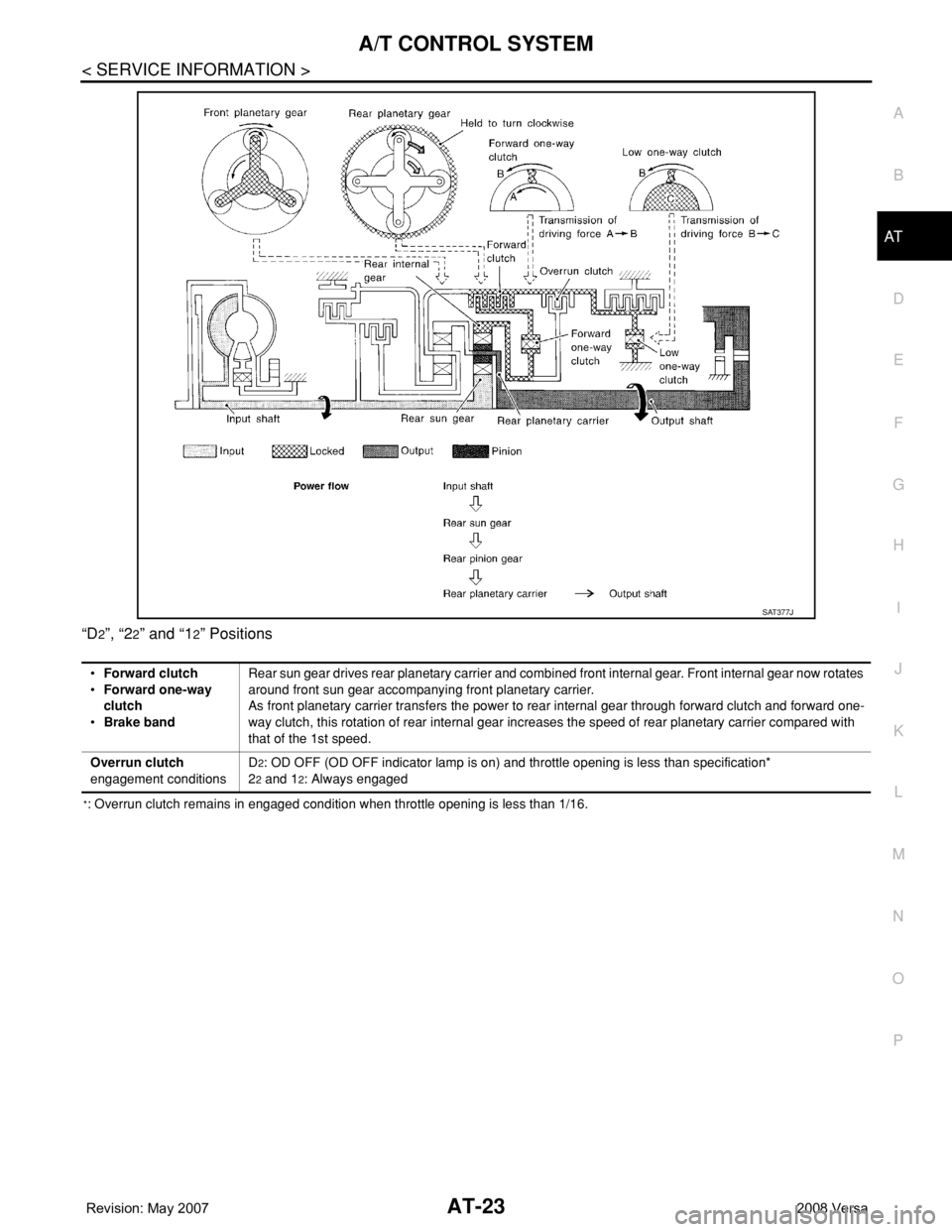

NISSAN LATIO 2008 Service Repair Manual A/T CONTROL SYSTEM AT-23 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P “D 2”, “22” and “12” Positions *: Overrun clutch remains in engaged condition when throttle opening is less

Page 36 of 2771

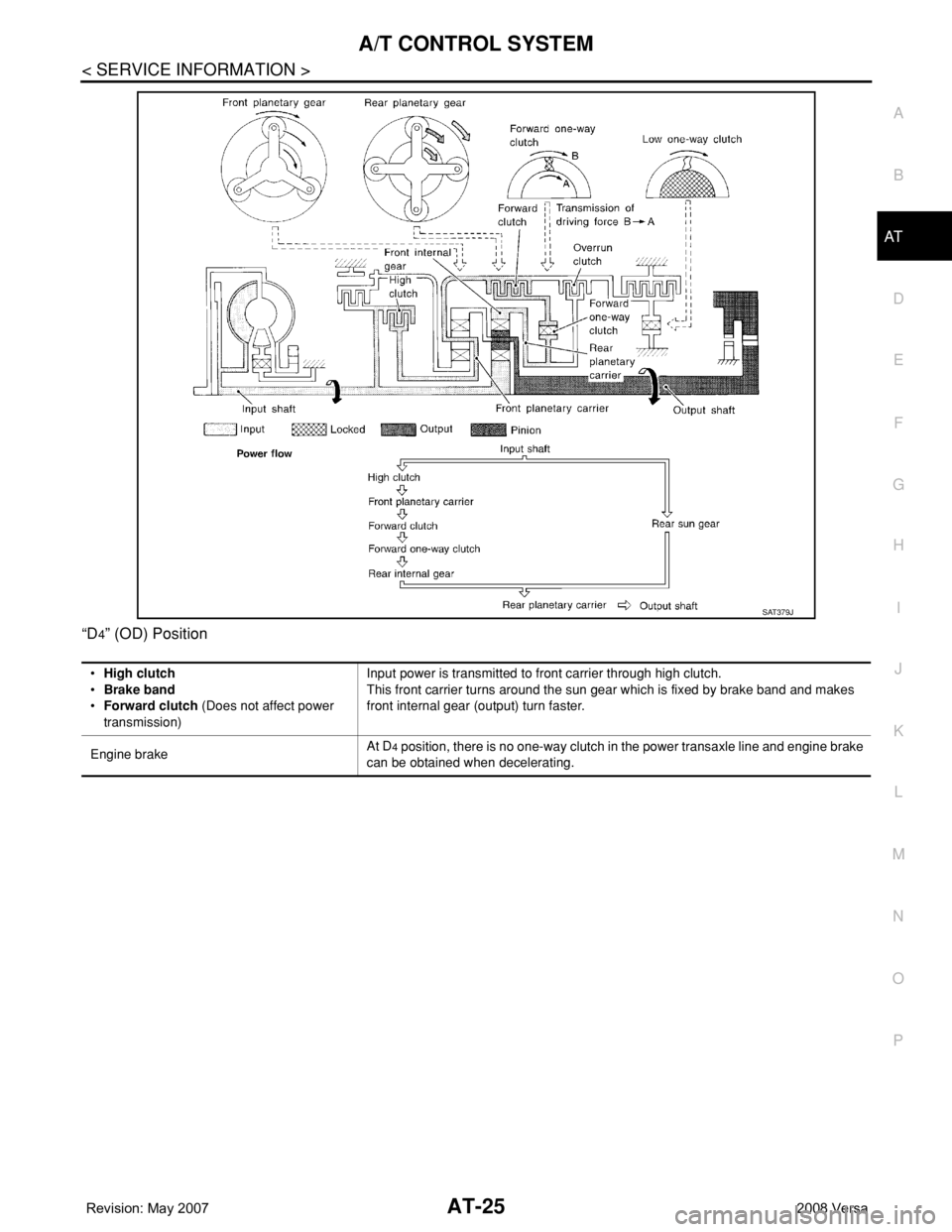

NISSAN LATIO 2008 Service Repair Manual AT-24 < SERVICE INFORMATION > A/T CONTROL SYSTEM “D3”, “23” and “13” Positions *: Overrun clutch remains in engaged condition when throttle opening is less than 1/16. SAT378J •High clutc

Page 37 of 2771

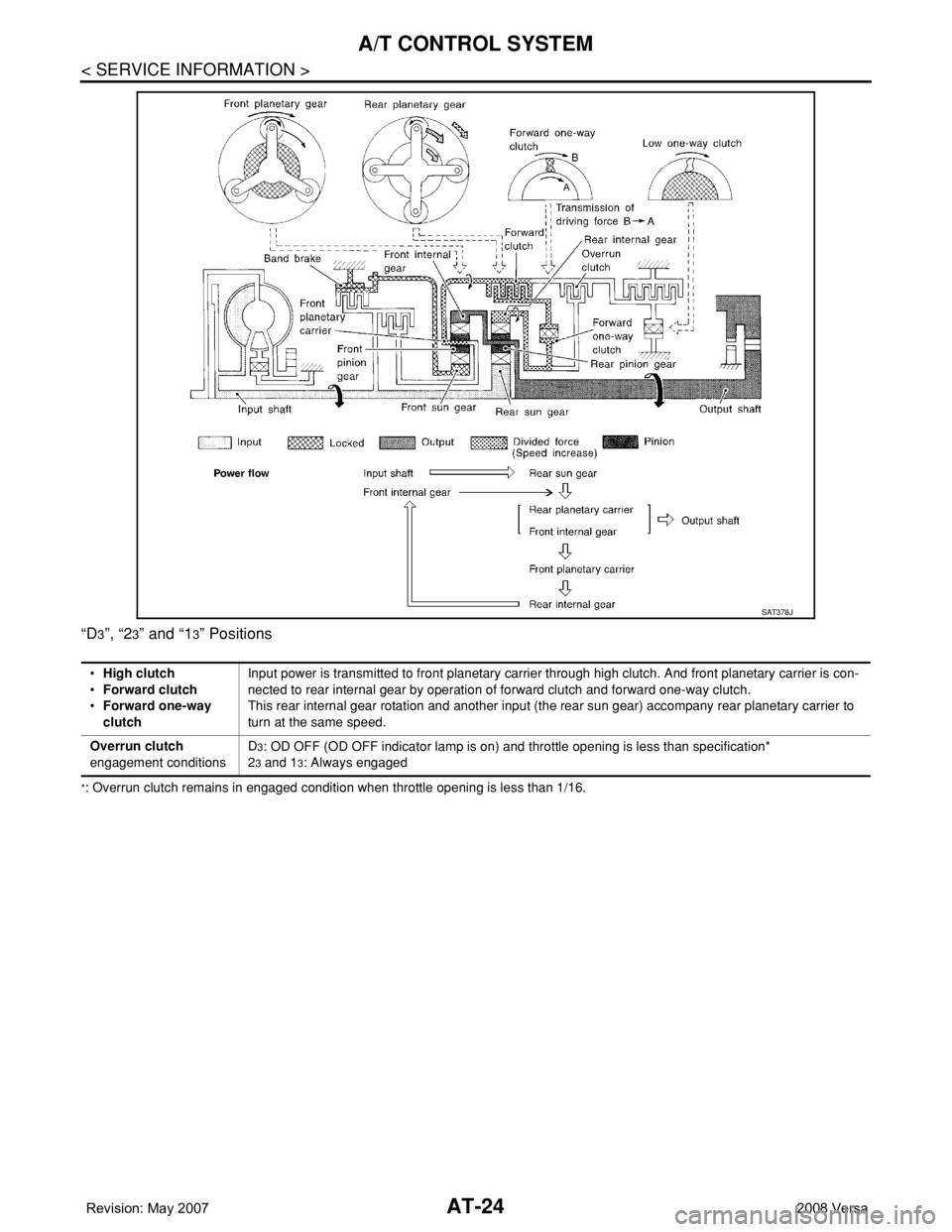

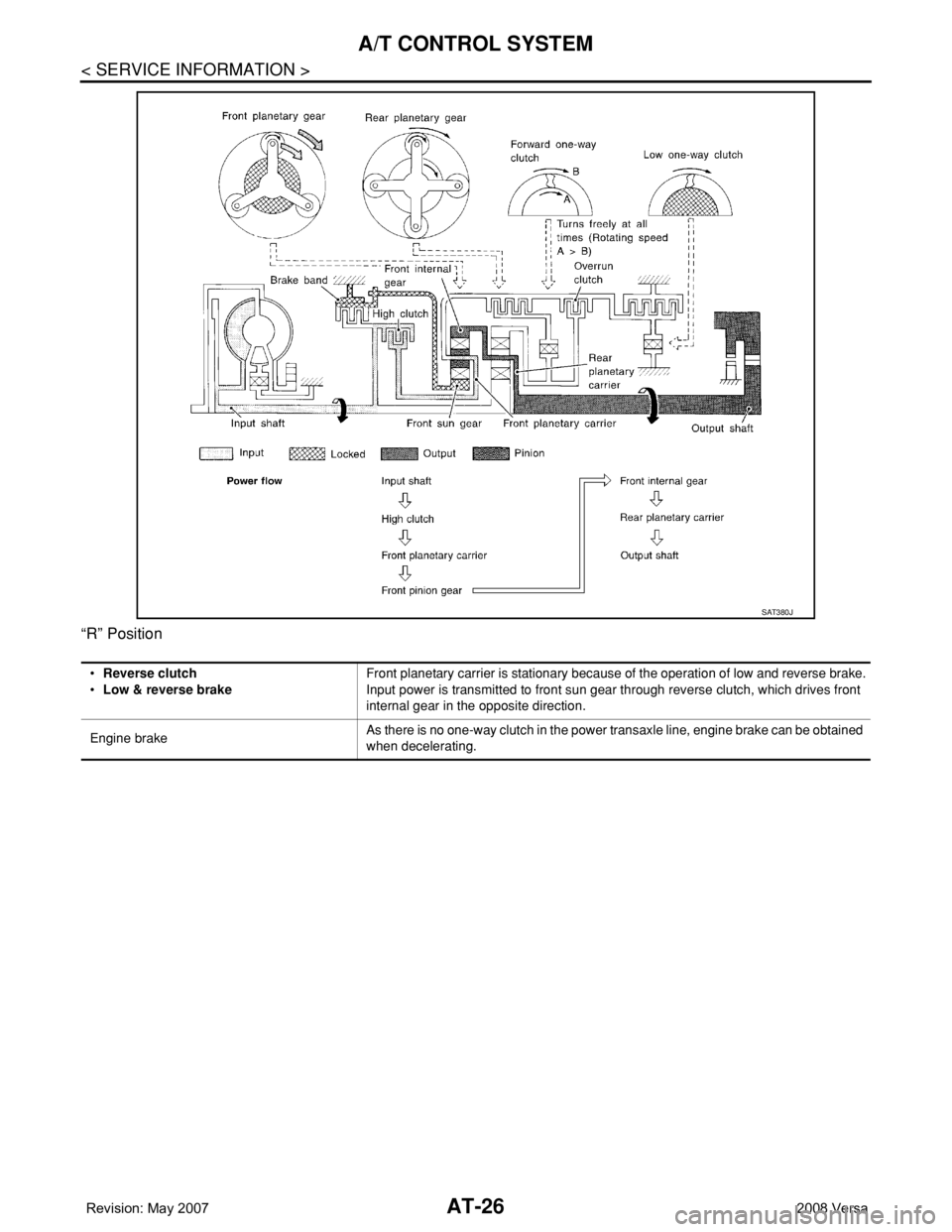

NISSAN LATIO 2008 Service Repair Manual A/T CONTROL SYSTEM AT-25 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P “D 4” (OD) Position SAT379J •High clutch •Brake band •Forward clutch (Does not affect power transmission)Inp

Page 38 of 2771

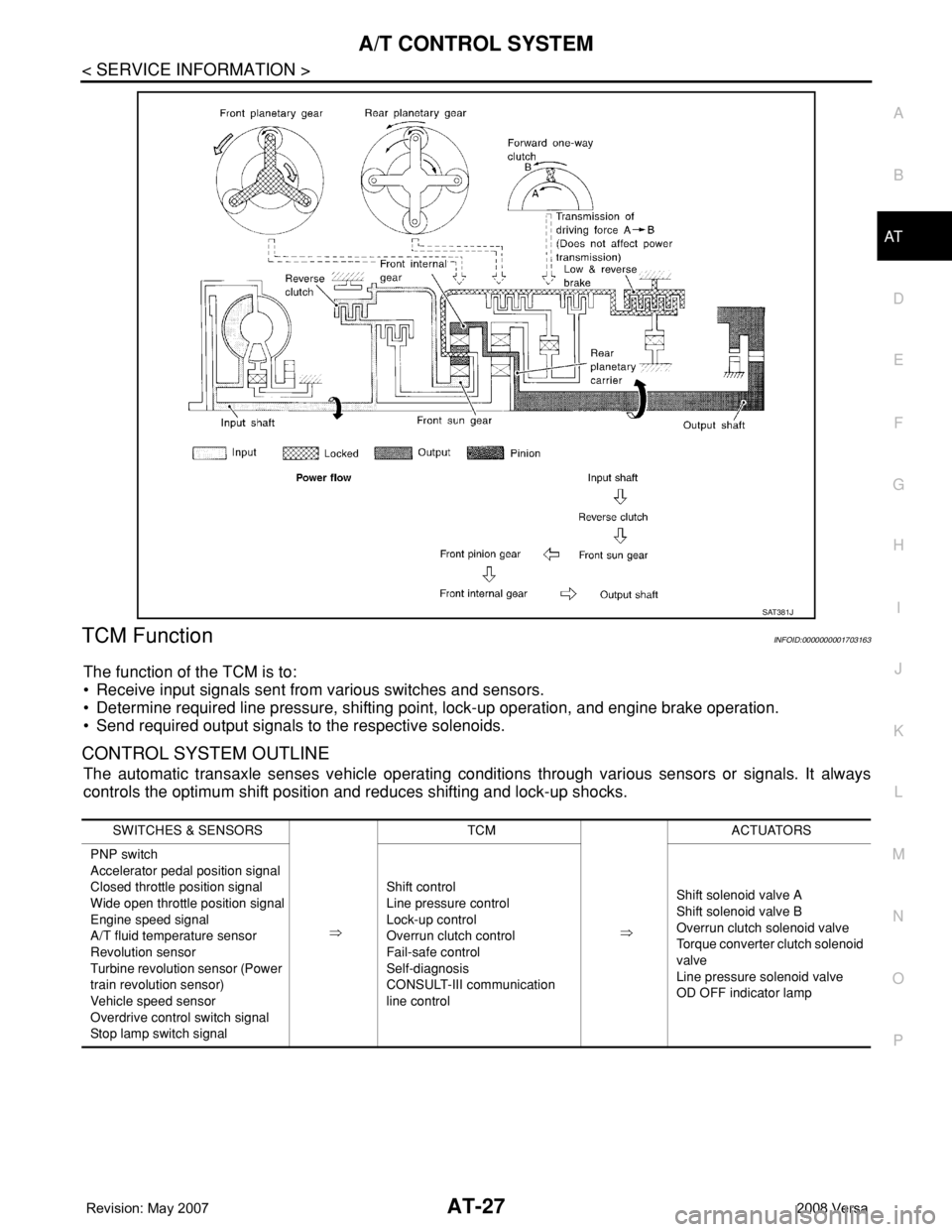

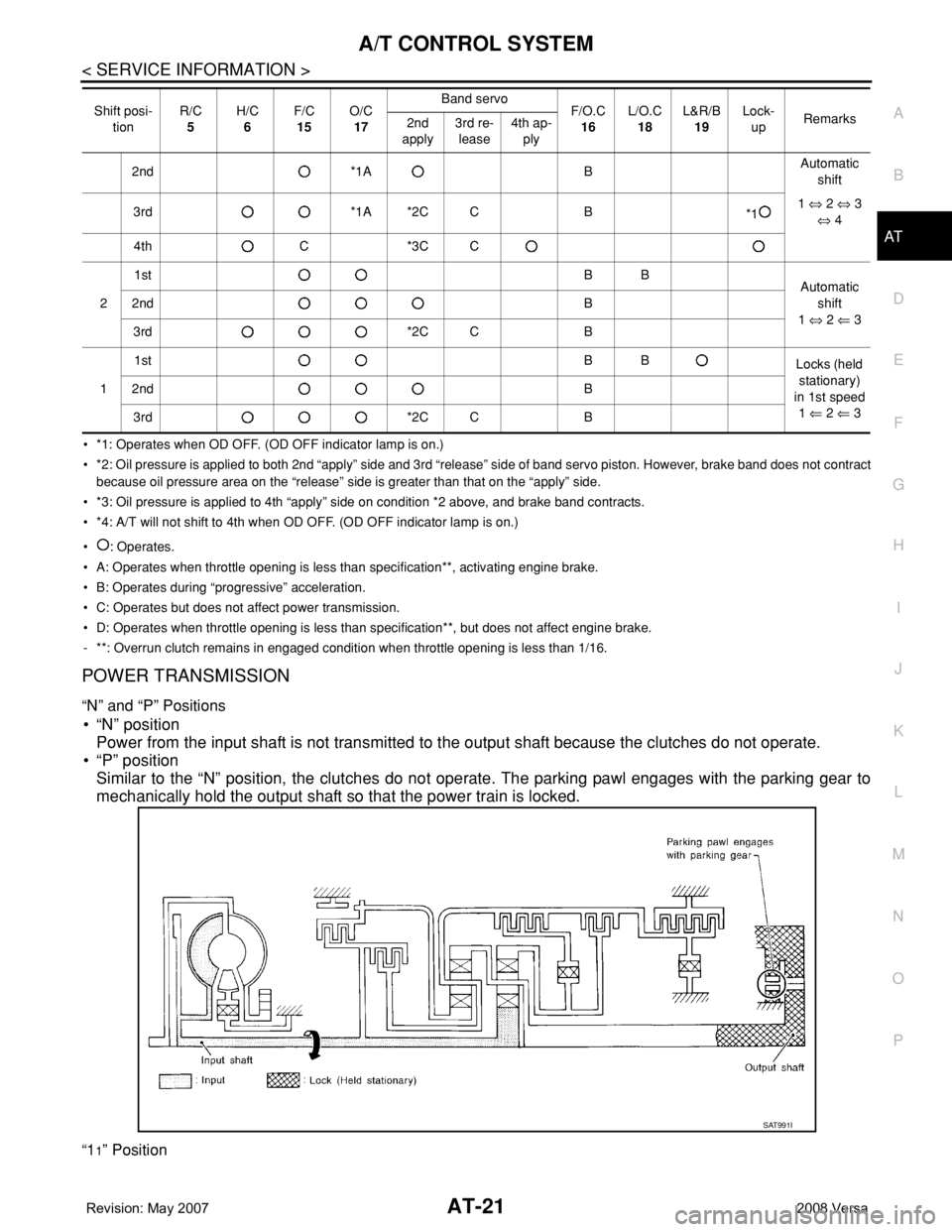

NISSAN LATIO 2008 Service Repair Manual AT-26 < SERVICE INFORMATION > A/T CONTROL SYSTEM “R” Position SAT380J •Reverse clutch •Low & reverse brakeFront planetary carrier is stationary because of the operation of low and reverse brak

Page 39 of 2771

NISSAN LATIO 2008 Service Repair Manual A/T CONTROL SYSTEM AT-27 < SERVICE INFORMATION > D E F G H I J K L MA B AT N O P TCM FunctionINFOID:0000000001703163 The function of the TCM is to: • Receive input signals sent from various switches

Page 40 of 2771

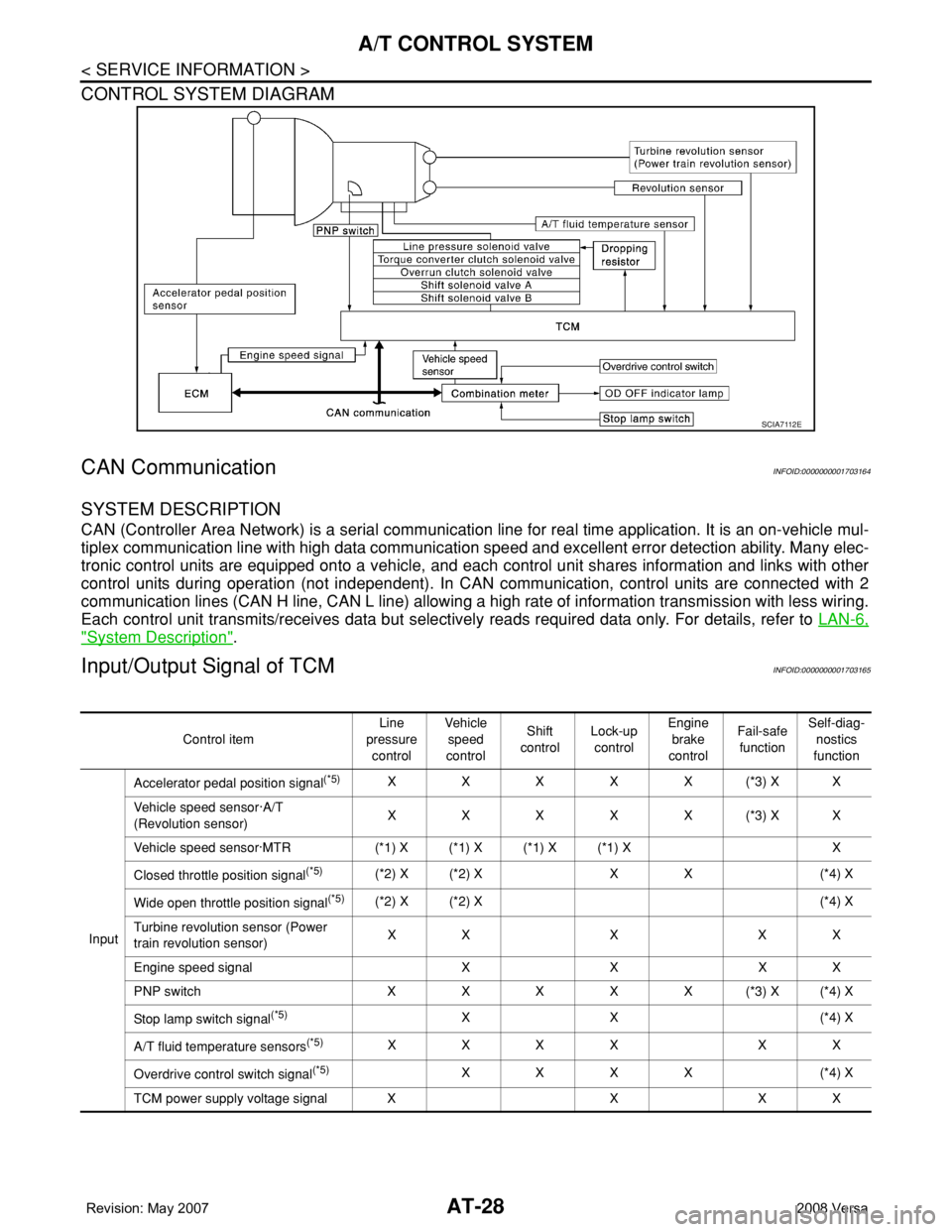

NISSAN LATIO 2008 Service Repair Manual AT-28 < SERVICE INFORMATION > A/T CONTROL SYSTEM CONTROL SYSTEM DIAGRAM CAN CommunicationINFOID:0000000001703164 SYSTEM DESCRIPTION CAN (Controller Area Network) is a serial communication line for rea
